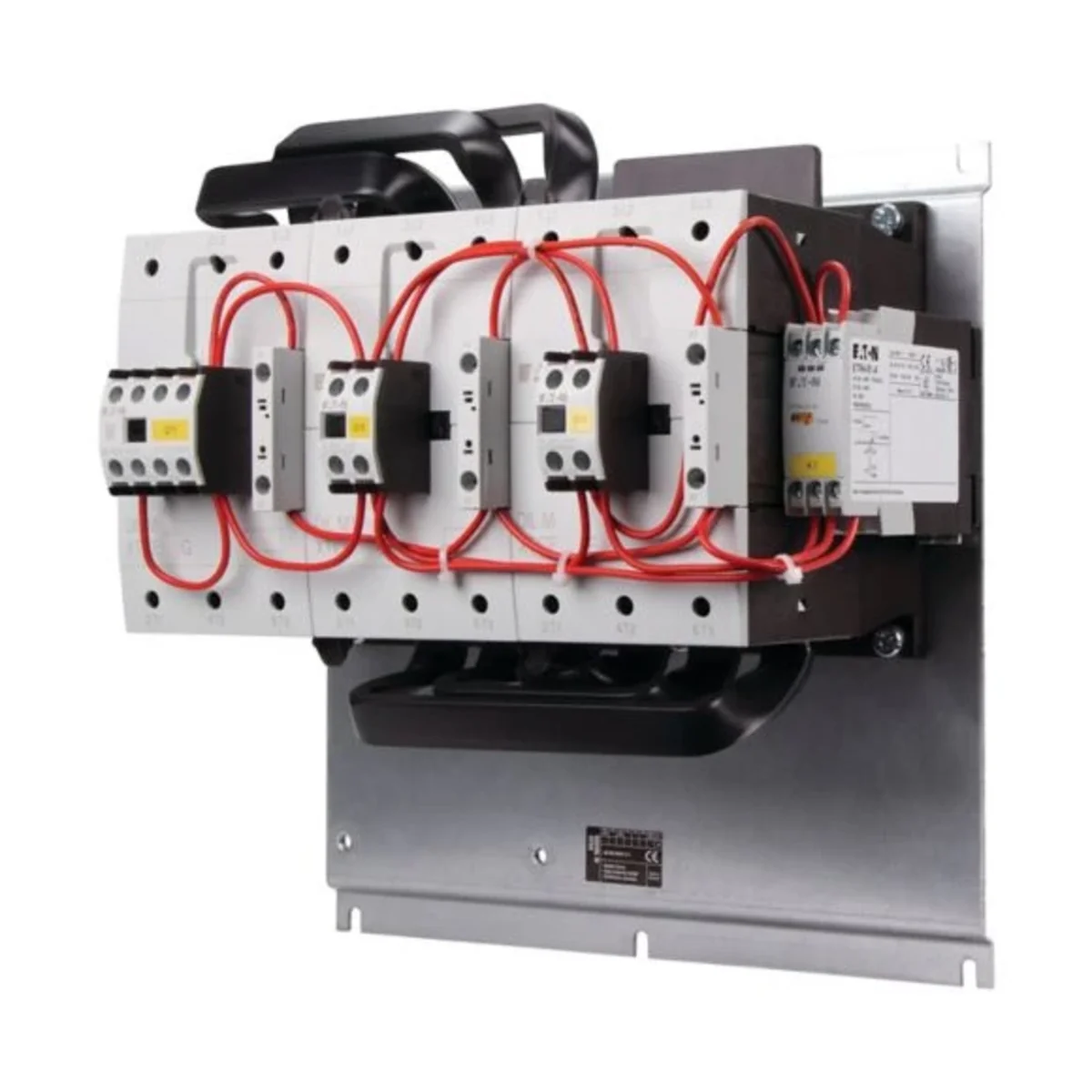

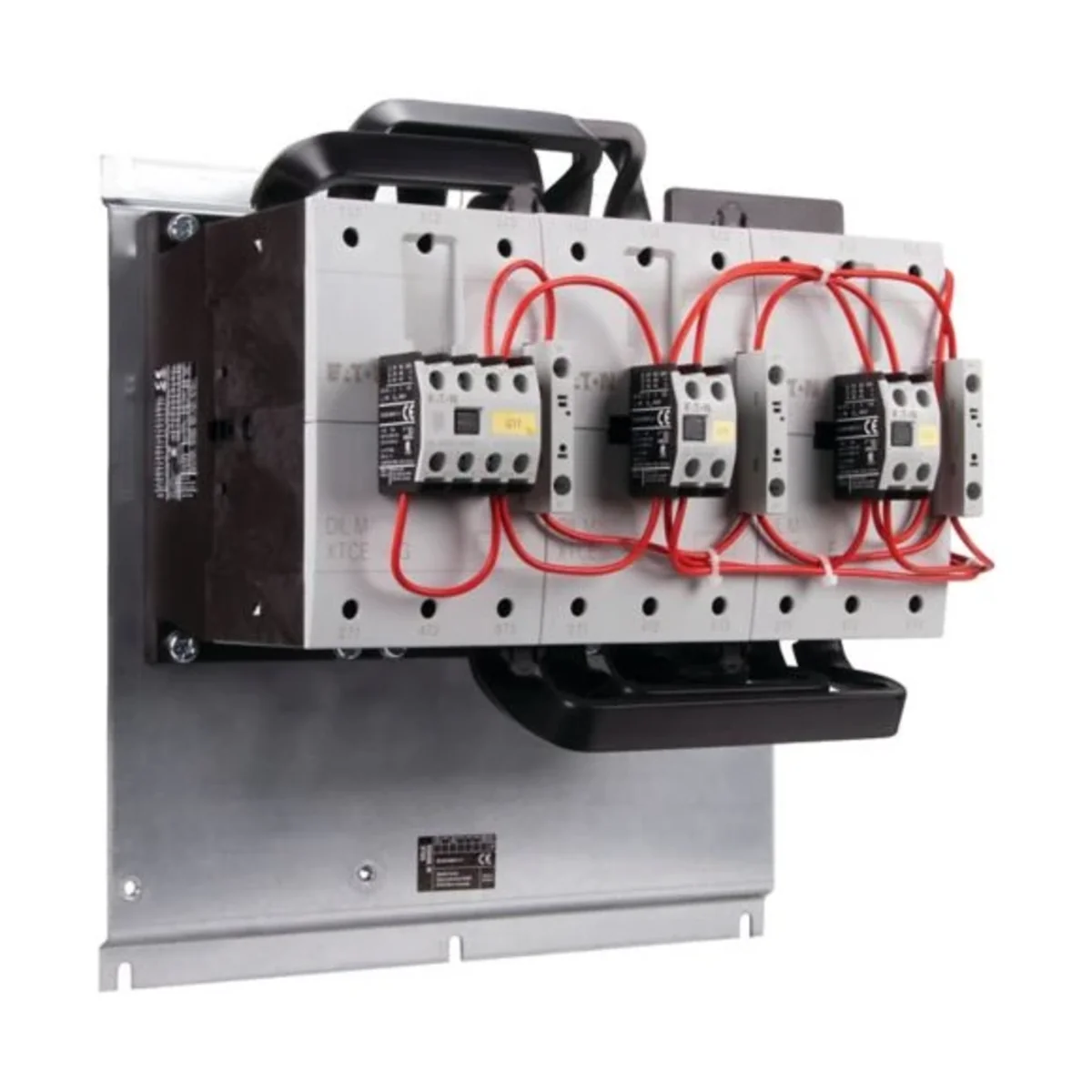

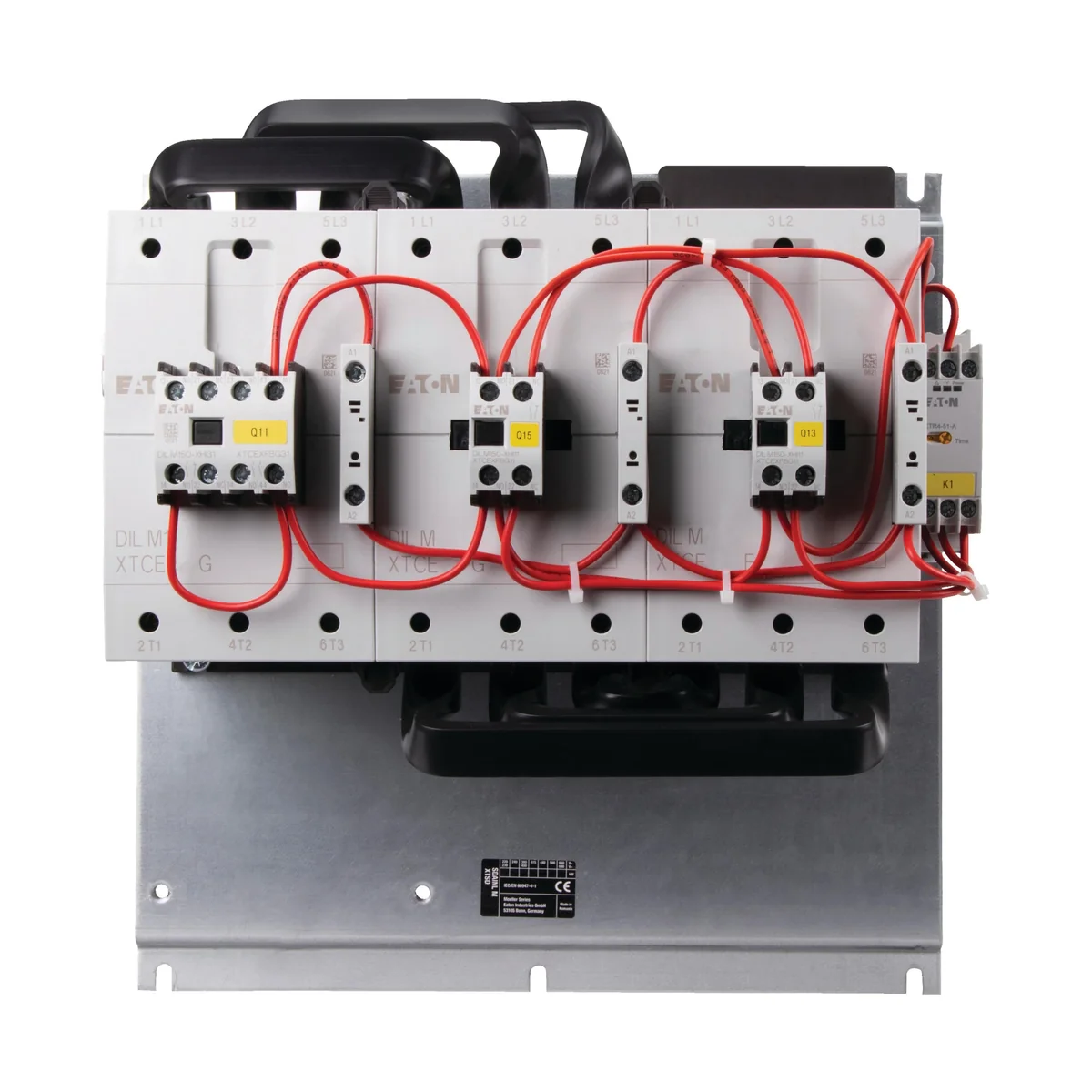

Star-delta set, SDAINLM260(230V50HZ,240V60HZ), 260A 132kW 101031

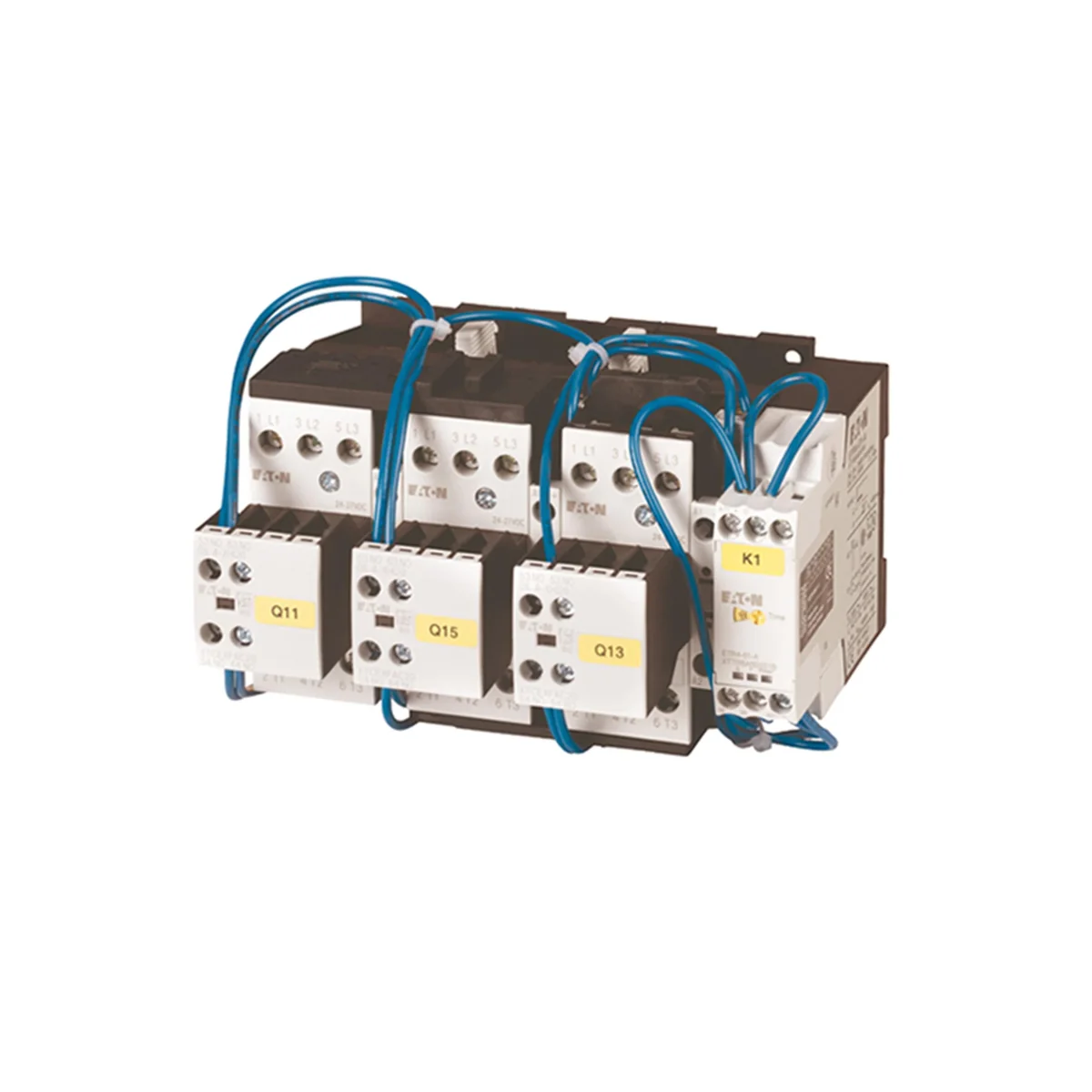

Contactor combinations for starting a star-delta motor, Switching frequency: max. 30 starts/hour, Accessories: Star-delta combinations SDAINL, Utilization category: AC-3: Squirrel cage motors: starting, stopping during operation, Rated operating current AC-3 380 V 400 V: Ie= 260 A, Max. rated power of three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 75 kW, 380 V 400 V: P= 132 kW, 500 V : P= 160 kW, 660 V 690 V: P= 160 kW, max. switching time: 20 s, Start voltage: 230 V 50 Hz, 240 V 60 Hz, Type of AC/DC current: AC operation, Combination components Contactor Q11: DILM150, + DILM150-XHI31, Delta contactor Q15: DILM150, + DILM150-XHI11 Type, Star contactor Q13: DILM95, + DILM150-XHI11 Type, Timing relay K1: ETR4-51 Type, Note: Also suitable for IE3 energy efficiency class motors. IE3 compatible devices are marked with the appropriate logo on the packaging.
