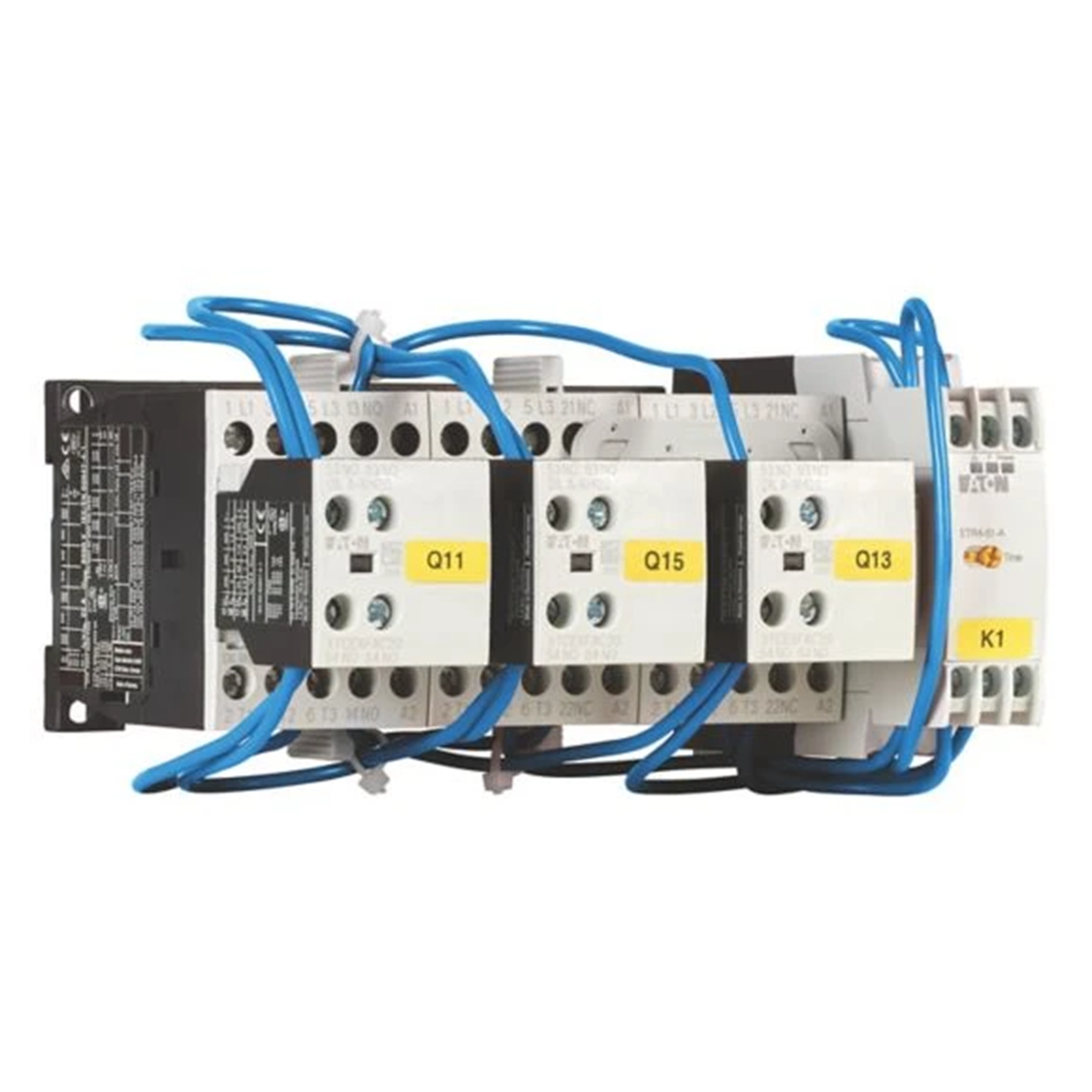

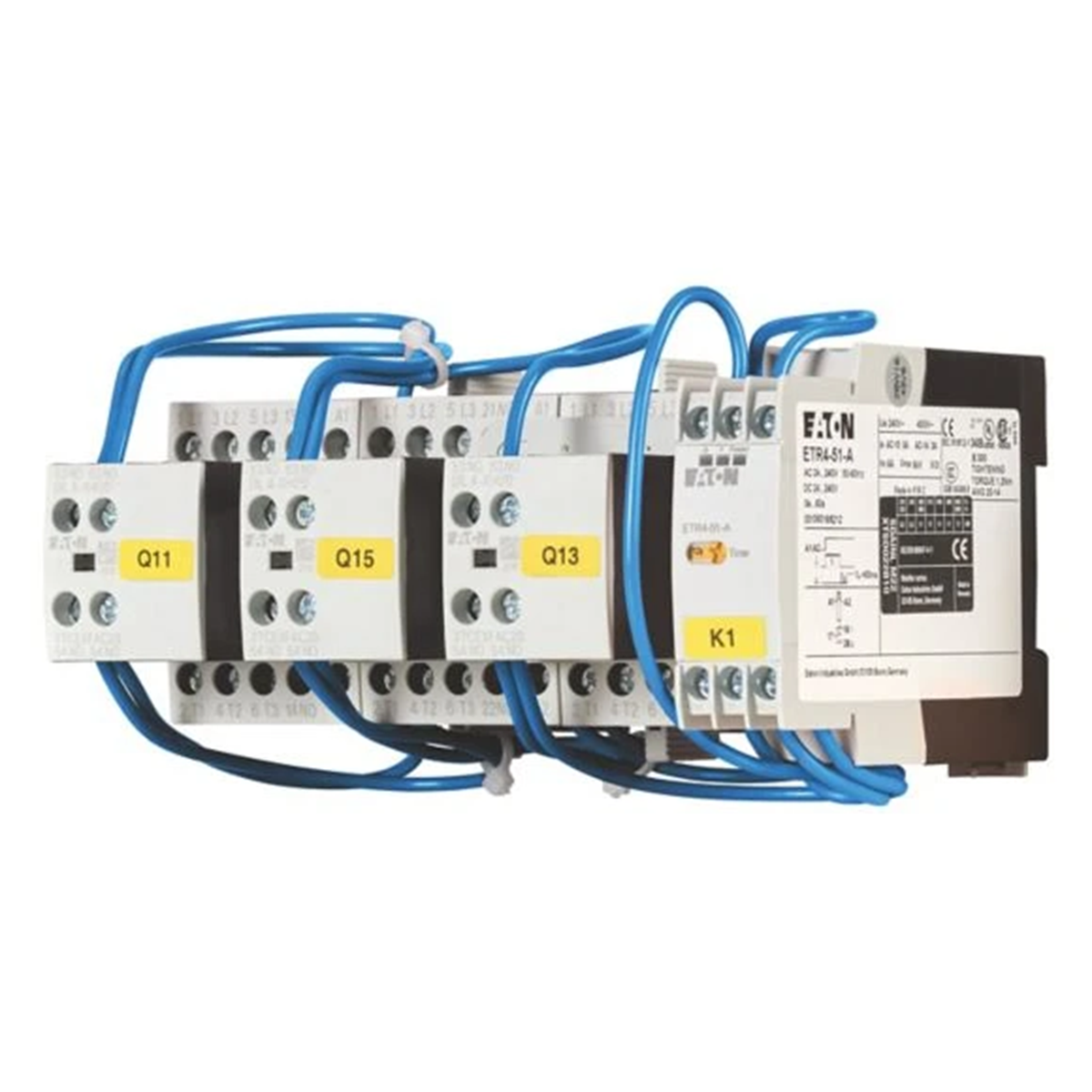

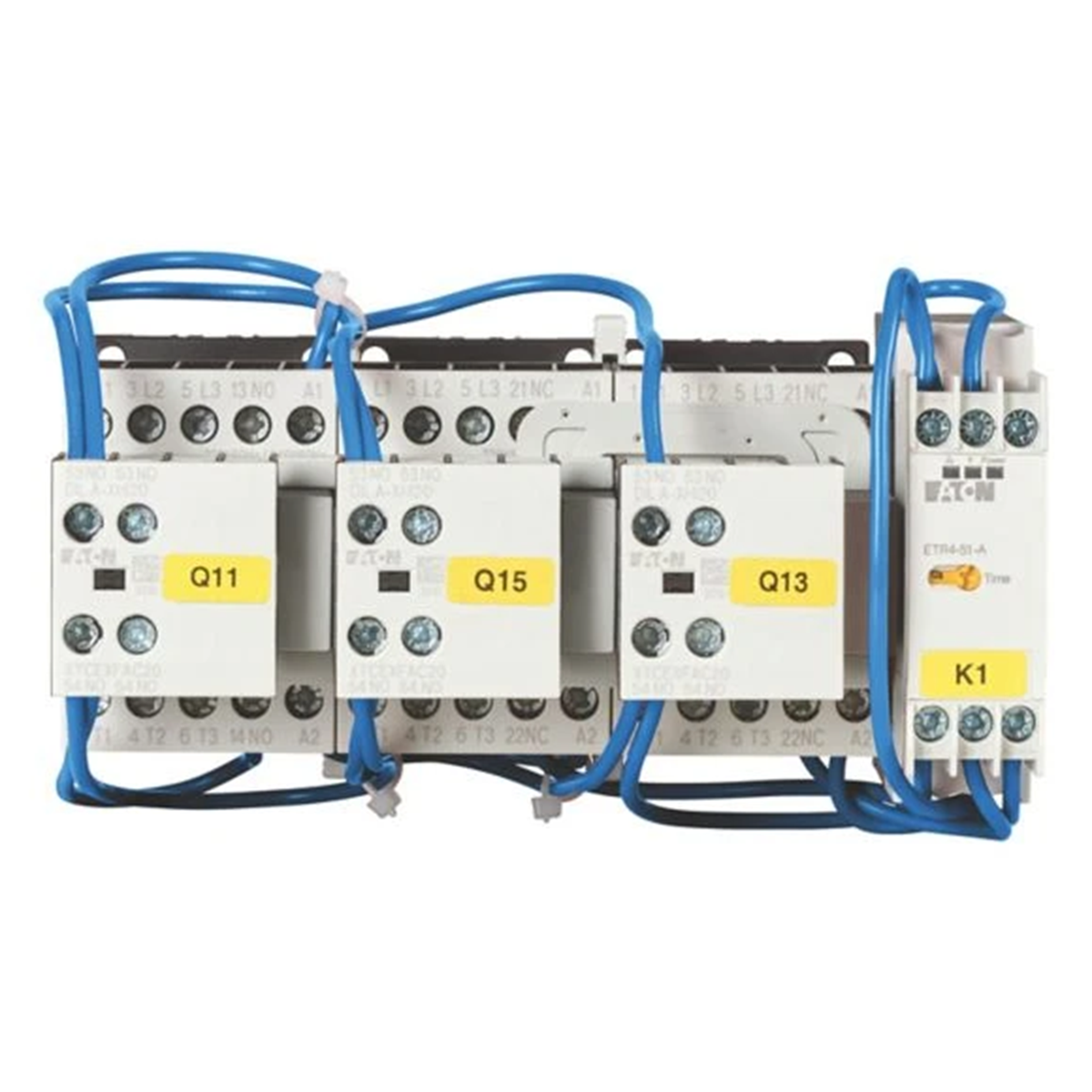

Star-delta set I=12A 5.5kW, SDAINLM12(24VDC) 100416
local index:
ATR007MOEL
Catalog No:
100416
EAN code:
4015081003938
Manufacturer:
EATON
Rated power for 230V [kW]: 3
Rated power for 400V [kW]: 5.5
Rated power for 500V [kW]: 5.5
Price:
385,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
SDAINL Star-Triangle Sets. Starting frequency: max. 30 starts per hour
Technical data
-
Rated power for 230V [kW]3
-
Rated power for 500V [kW]5.5
-
Rated current [A]12
-
Rated power for 400V [kW]5.5
-
Rated power for 690V [kW]5.5
Other technical data
-
FunctionStar-delta contactor
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Rated operation current Ie at AC-3, 400 V12 A
-
Rated operation power NEMA0 kW
-
Number of normally open contacts as main contact9
-
Degree of protection (IP)IP20
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC24 ... 24 V
-
Rated operation current Ie at AC-1, 400 V12 A
-
Rated operation power at AC-3, 400 V5.5 kW
-
Number of normally closed contacts as main contact0
-
Type of electrical connection of main circuitScrew connection
-
Rail mounting possibleNo
Manufacturer details
-
ManufacturerEATON ELECTRIC SP. Z O.O.
-
Address80-299 UL. GALAKTYCZNA 30
-
E-mail
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 1,190 | 1,262 |
| Volume (m3) | 0,002 | 0,002 |
| Width (m) | 0,158 | 0,164 |
| Length (m) | 0,117 | 0,140 |
| Depth (m) | 0,082 | 0,097 |
