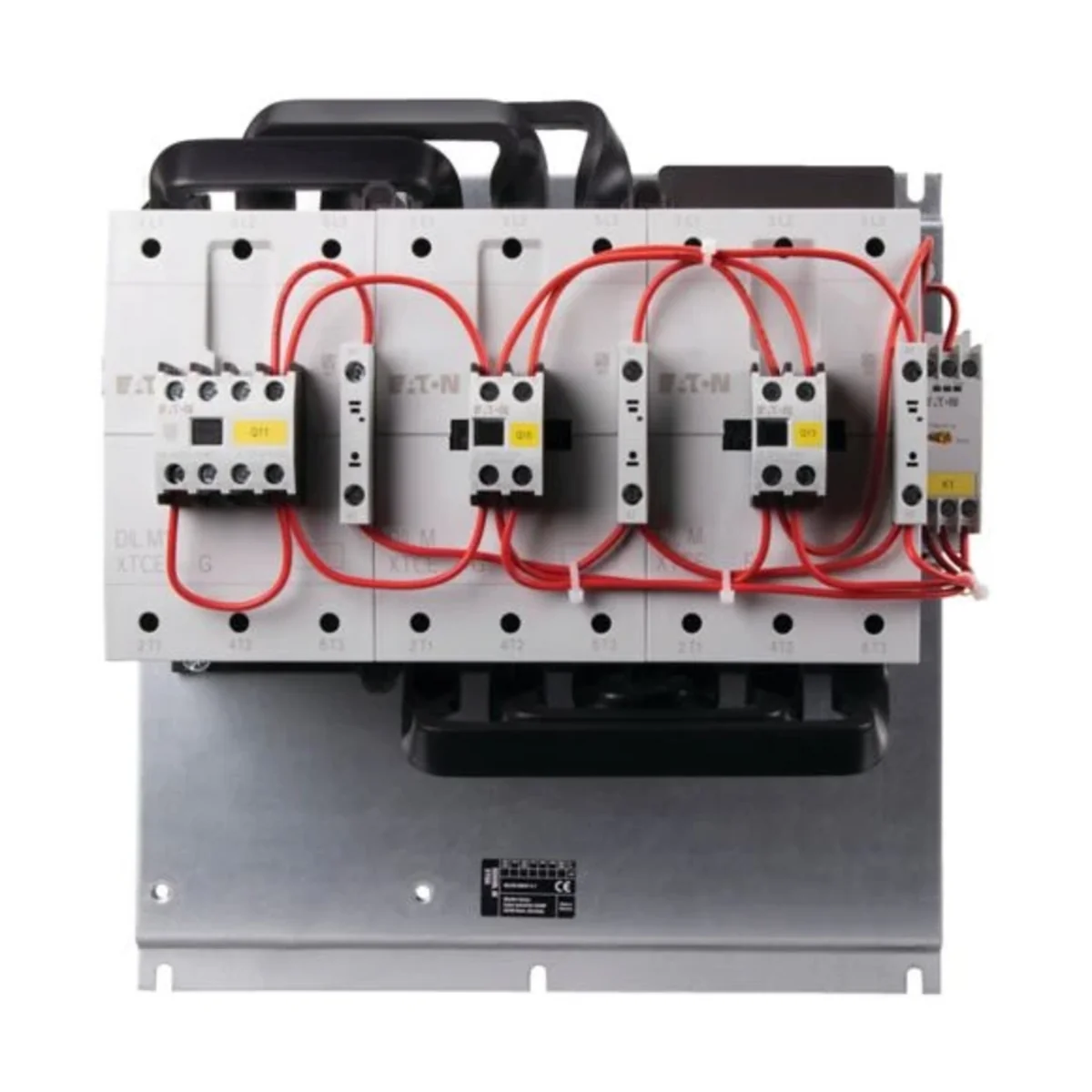

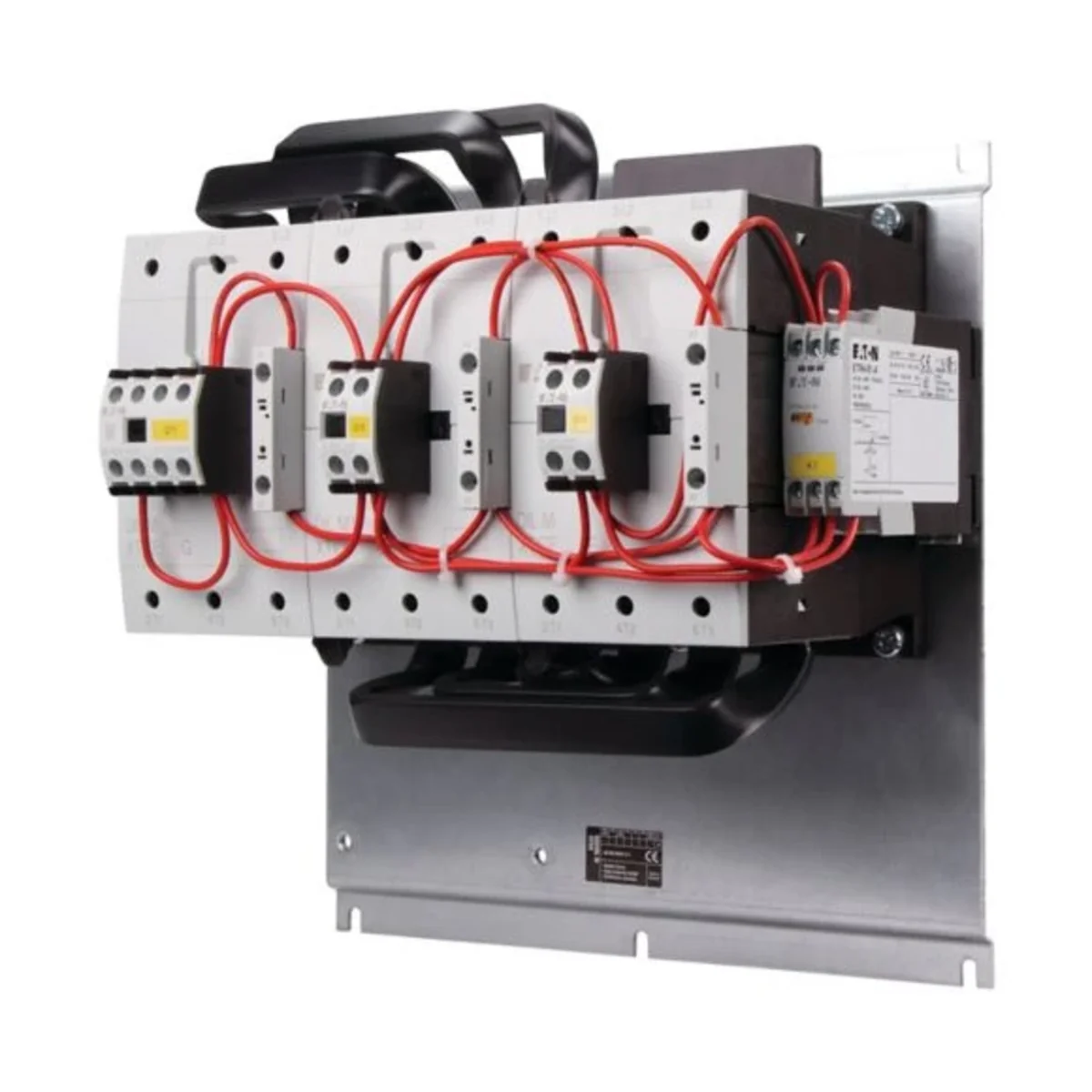

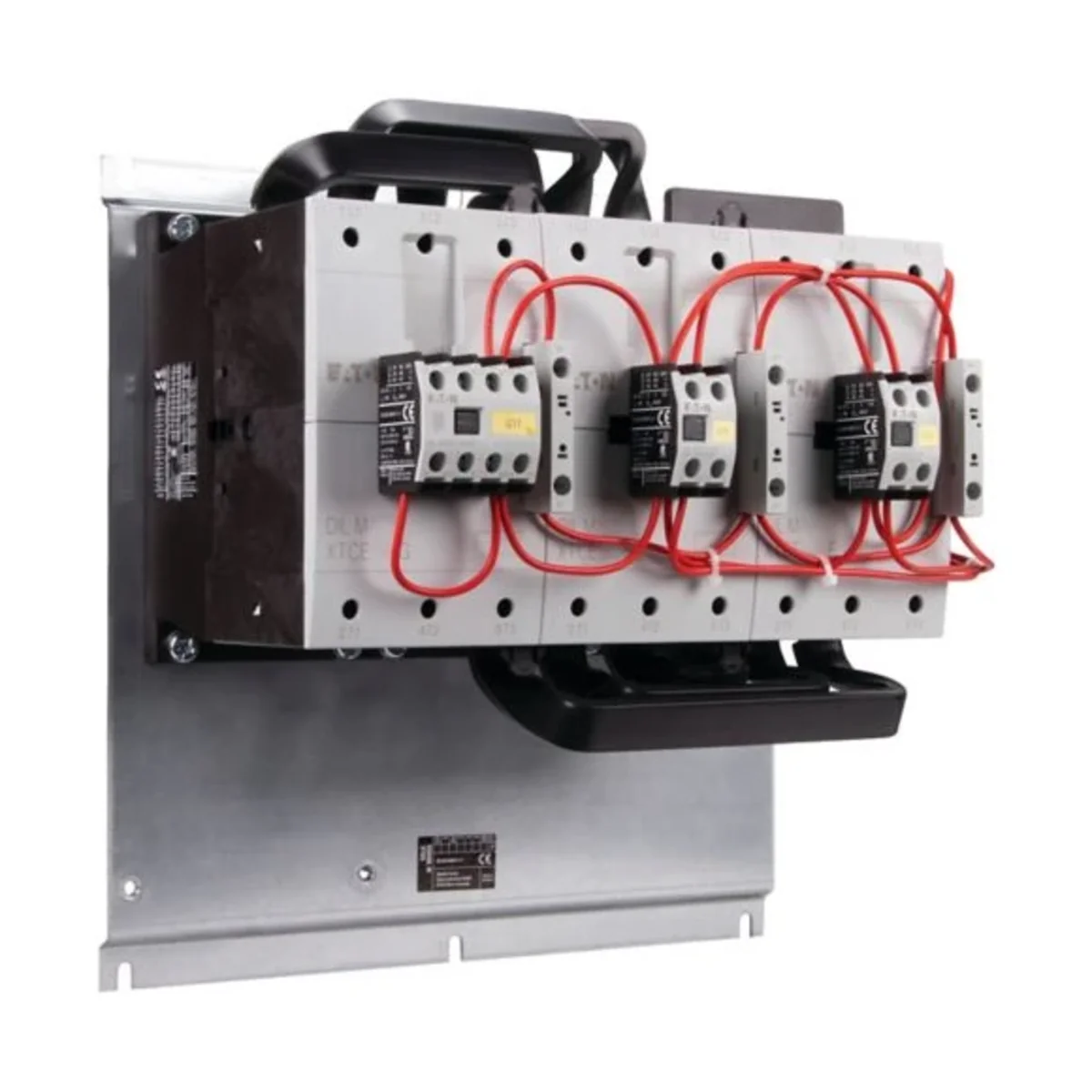

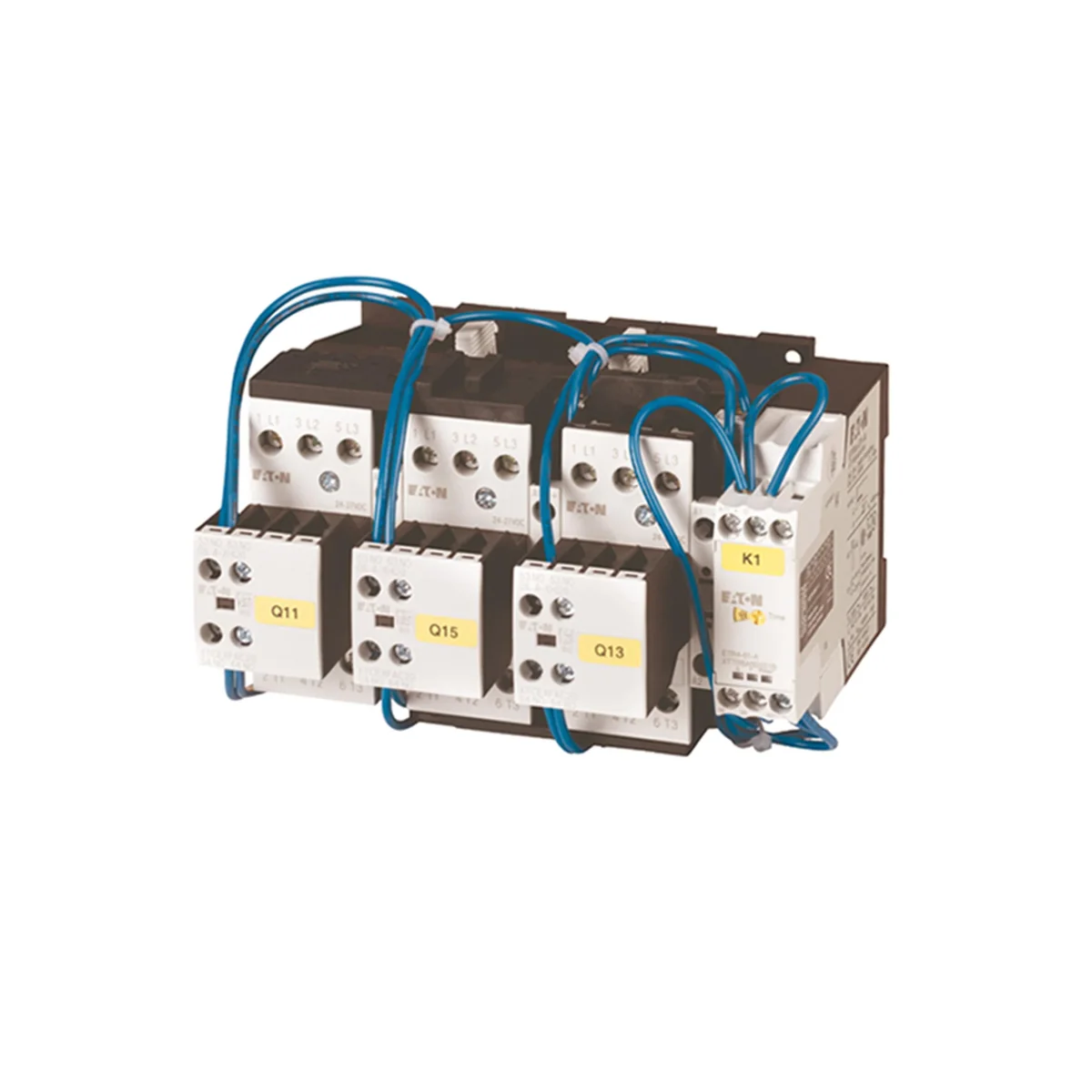

Contactor combinations for starting a star-delta motor, Switching frequency: max. 30 starts/hour, Accessories: Star-delta combinations SDAINL, Utilization category: AC-3: Squirrel cage motors: starting, stopping during operation, Rated operating current AC-3 380 V 400 V: Ie= 200 A, Max. rated power of three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 55 kW, 380 V 400 V: P= 110 kW, 500 V : P= 132 kW, 660 V 690 V: P= 160 kW, max. switching time: 20 s, Start voltage: 230 V 50 Hz, 240 V 60 Hz, Type of AC/DC current: AC operation, Combination components Contactor Q11: DILM115, + DILM150-XHI31, Delta contactor Q15: DILM115, + DILM150-XHI11 Type, Star contactor Q13: DILM80, + DILM150-XHI11 Type, Timing relay K1: ETR4-51 Type, Note: Also suitable for IE3 energy efficiency class motors. IE3 compatible devices are marked with the appropriate logo on the packaging.

Rated power for 230V [kW]

55
Rated power for 500V [kW]

132
Rated current [A]

200

Rated power for 400V [kW]

110
Rated power for 690V [kW]

160
PKWIU

25.11.23.0

Other technical data

Function

Star-delta contactor
Rated control supply voltage AC 60 Hz

240 ... 240 V
Voltage type for actuating

AC
Rated operation current Ie at AC-3, 400 V

200 A
Rated operation power NEMA

0 kW
Number of normally open contacts as main contact

9
Degree of protection (IP)

IP00

Rated control supply voltage AC 50 Hz

230 ... 230 V
Rated control supply voltage DC

0 ... 0 V
Rated operation current Ie at AC-1, 400 V

200 A
Rated operation power at AC-3, 400 V

110 kW
Number of normally closed contacts as main contact

0
Type of electrical connection of main circuit

Screw connection
Rail mounting possible

No

Manufacturer details

Manufacturer

EATON ELECTRIC SP. Z O.O.
Address

80-299 UL. GALAKTYCZNA 30
E-mail

pl-zamowienia@eaton.com
Tax identification number

5841022327

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	11,452	13,516
Volume (m3)	0,018	0,039
Width (m)	0,308	0,397
Length (m)	0,183	0,249
Depth (m)	0,314	0,397
