Spring return pushbutton actuator, M22-DDL-S-X4/X5 218145

local index:
AKS118MOEL
Catalog No:
218145
EAN code:
4015082181451
Manufacturer: EATON
Face ring color: Titanium
Insert color: Black
Execution: Lamp and raised buttons
Price:
18,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

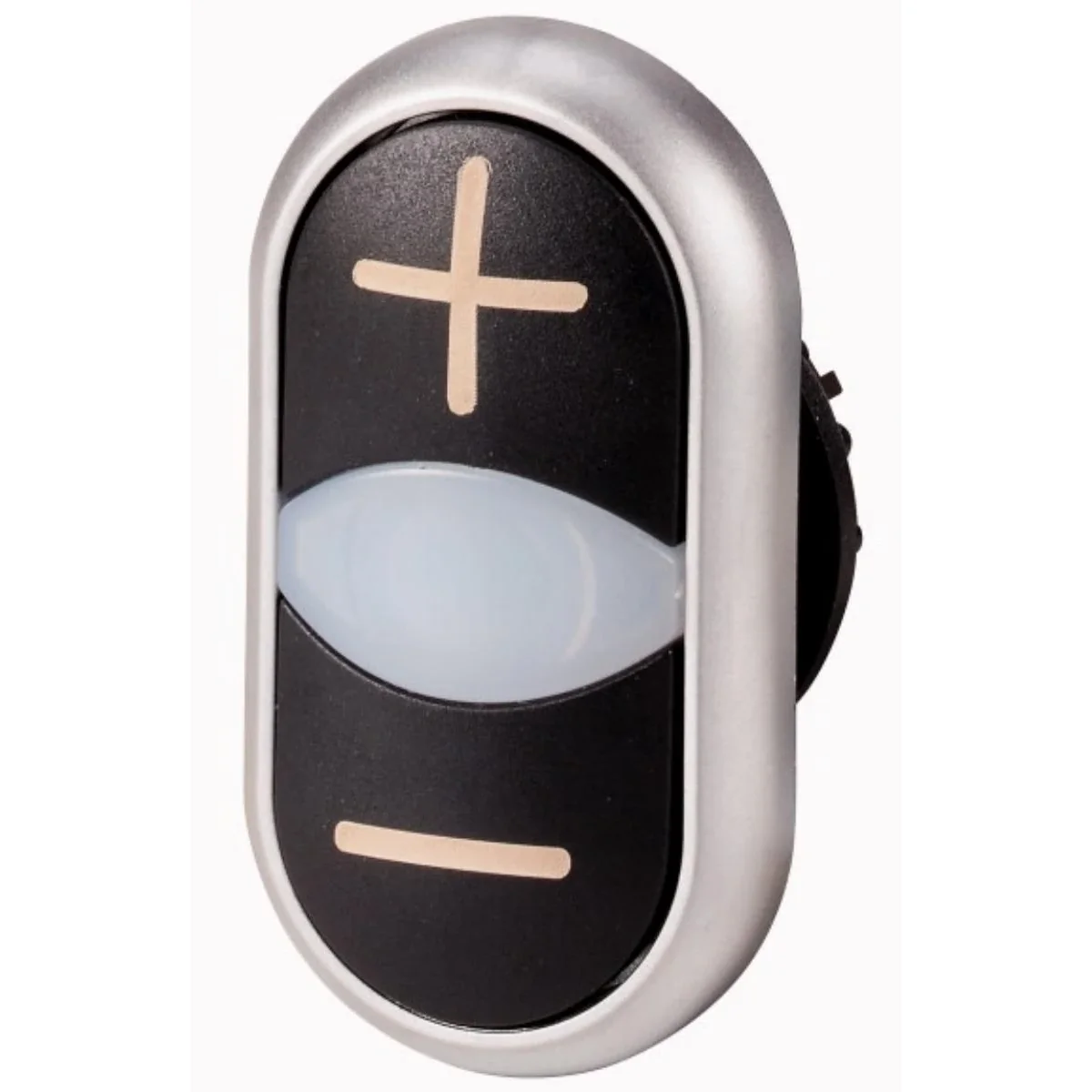

Double pushbutton actuator with spring return, black with +, - inscriptions

Technical data

  • Face ring color
    Titanium
  • Execution
    Lamp and raised buttons
  • Insert color
    Black

Other technical data

  • Colour button
    Black
  • Construction type lens
    Oval
  • Width opening
    0 mm
  • Type of button
    Flat
  • With protective cover
    no
  • Switching function latching
    no
  • With front ring
    yes
  • Colour front ring
    Chrome
  • Degree of protection (NEMA), front side
    4X
  • Number of command positions
    2
  • Hole diameter
    22 mm
  • Height opening
    0 mm
  • Suitable for illumination
    yes
  • Labelled
    yes
  • Spring-return
    yes
  • Material front ring
    Plastic
  • Degree of protection (IP), front side
    IP66

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,019 0,093
Volume (m3) 0,000 0,000
Width (m) 0,032 0,075
Length (m) 0,032 0,060
Depth (m) 0,057 0,090
