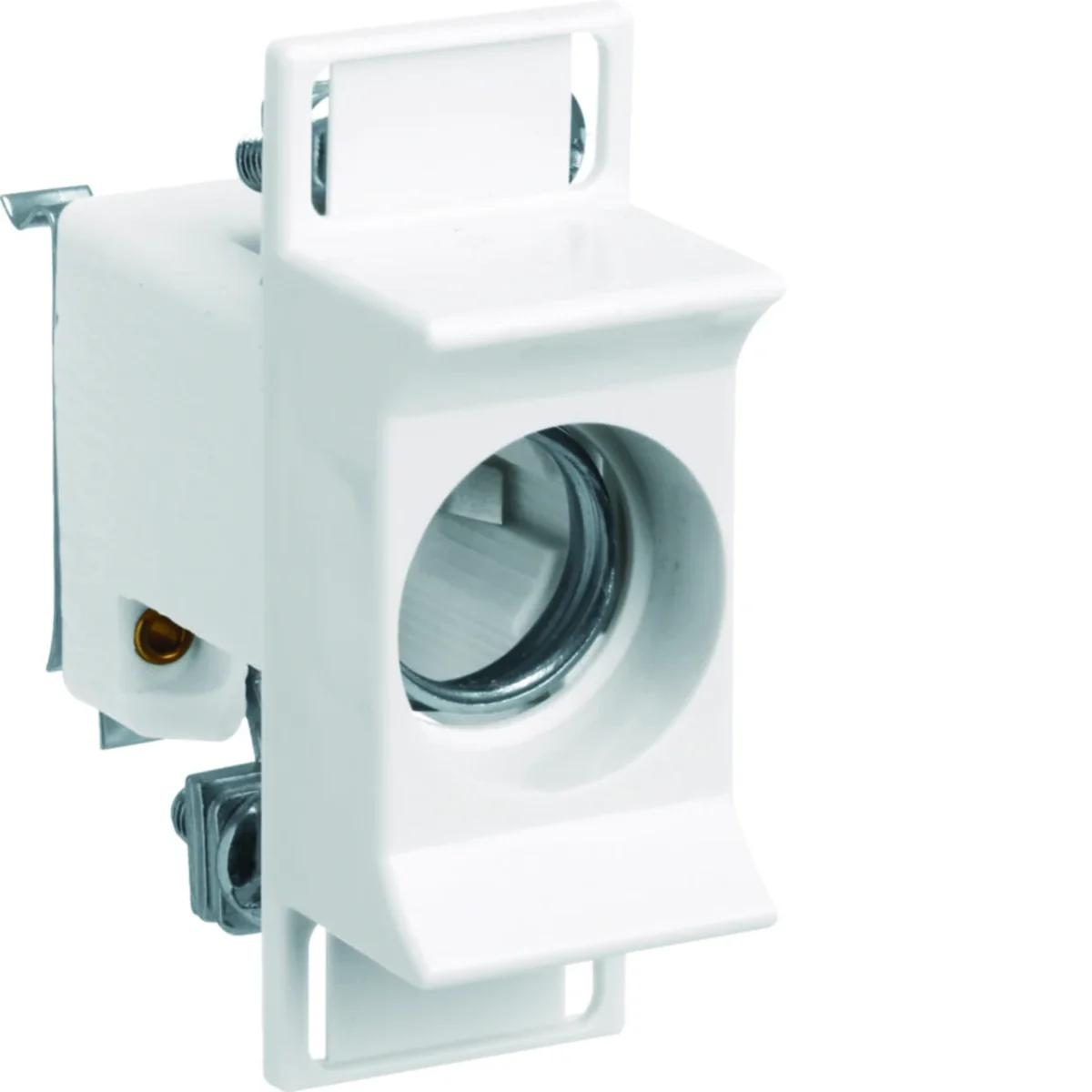

Socket D0 3268 D02/E18 63A 400V 1P TH35 LD02K63-1SS

local index:
ABO044HAGE
Catalog No:
LD02K63-1SS
EAN code:
3250614131486
Manufacturer: HAGER
Number of poles: 1
Rated current [A]: 63
power loss [W]: 9.5
Price:
5,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Socket D0 3268 D02/E18 63A 400V 1P TH35

Technical data

  • Number of poles
    1
  • power loss [W]
    9.5
  • Rated switching voltage [V]
    400
  • Rated short-circuit breaking capacity Icn [A]
    63
  • Rated current [A]
    63
  • Fuse link size
    D02
  • Fuse link rated current [A]
    2/4/6/10/13/16/20/25/35/50/63
  • PKWIU
    27.12.40.0

Other technical data

  • Number of poles
    1
  • Material
    Porcelain
  • Mounting method
    Other
  • Rated current
    63 A
  • Construction size
    D02
  • Version with cover
    Yes
  • Rated voltage
    400 V

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 20 pcs. 300 pcs. 3600 pcs.
Weight (kg) 0,084 1,920 35,700 445,000
Width (m) 0,030 0,155 0,340 0,800
Length (m) 0,014 0,067 0,200 0,750
Depth (m) 0,290 0,290 0,600 1,200
