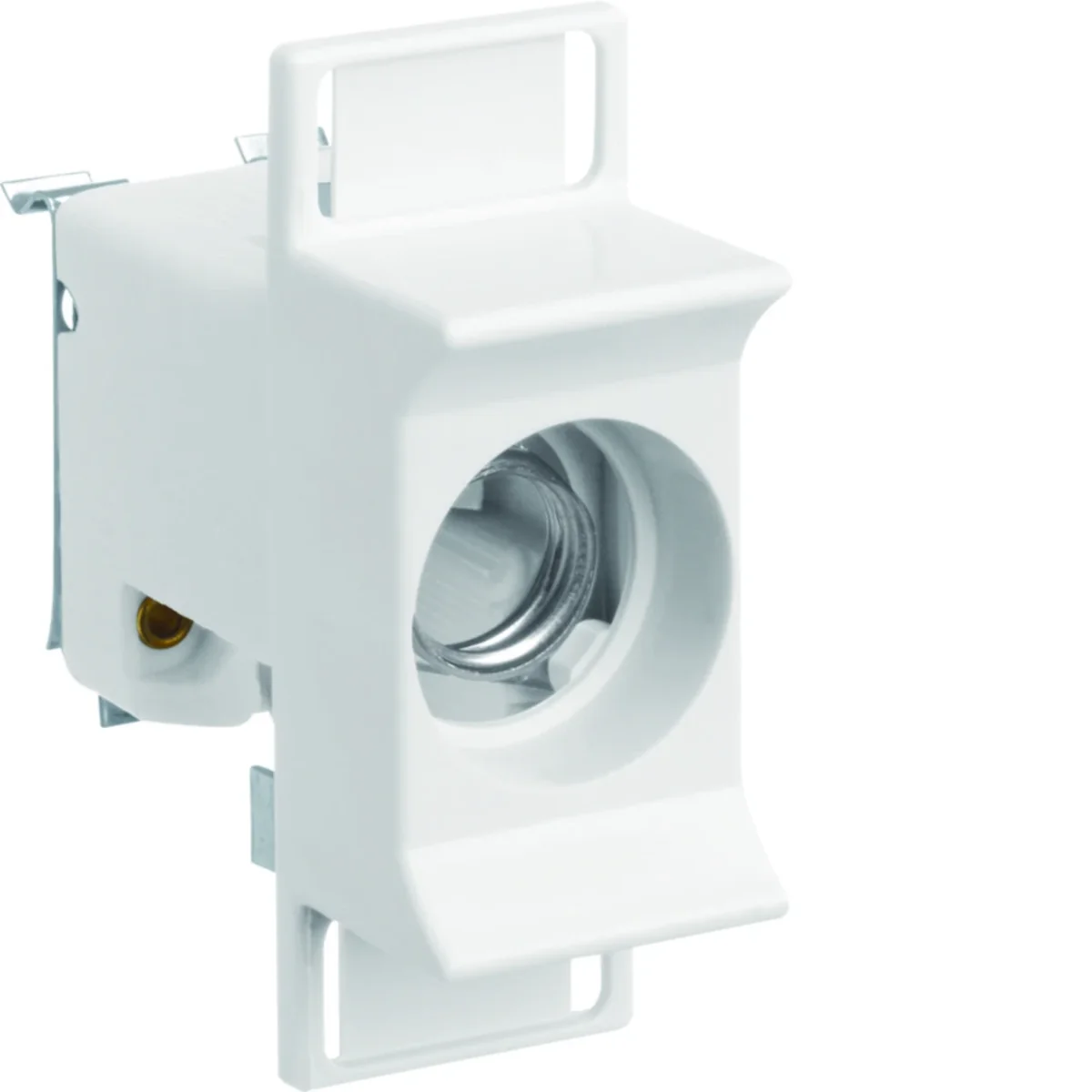

Socket D0 3168 D01/E14 16A 400V 1P TH35 LD01K16-1AS

local index:
ABO041HAGE
Catalog No:
LD01K16-1AS
EAN code:
3250614131479
Manufacturer: HAGER
Number of poles: 1
Rated current [A]: 16
power loss [W]: 3
Price:
4,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Socket D0 3168 D01/E14 16A 400V 1P TH35

Technical data

  • Number of poles
    1
  • power loss [W]
    3
  • Rated switching voltage [V]
    400
  • Rated short-circuit breaking capacity Icn [A]
    16
  • Rated current [A]
    16
  • Fuse link size
    D01
  • Fuse link rated current [A]
    2/4/6/10/13/16
  • PKWIU
    27.12.40.0

Other technical data

  • Number of poles
    1
  • Material
    Other
  • Mounting method
    Other
  • Rated current
    16 A
  • Construction size
    D01
  • Version with cover
    Yes
  • Rated voltage
    400 V

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 20 pcs. 300 pcs. 5400 pcs.
Weight (kg) 0,073 1,480 24,000 419,200
Width (m) 0,027 0,180 0,340 0,800
Length (m) 0,065 0,095 0,200 0,950
Depth (m) 0,070 0,185 0,600 1,200
