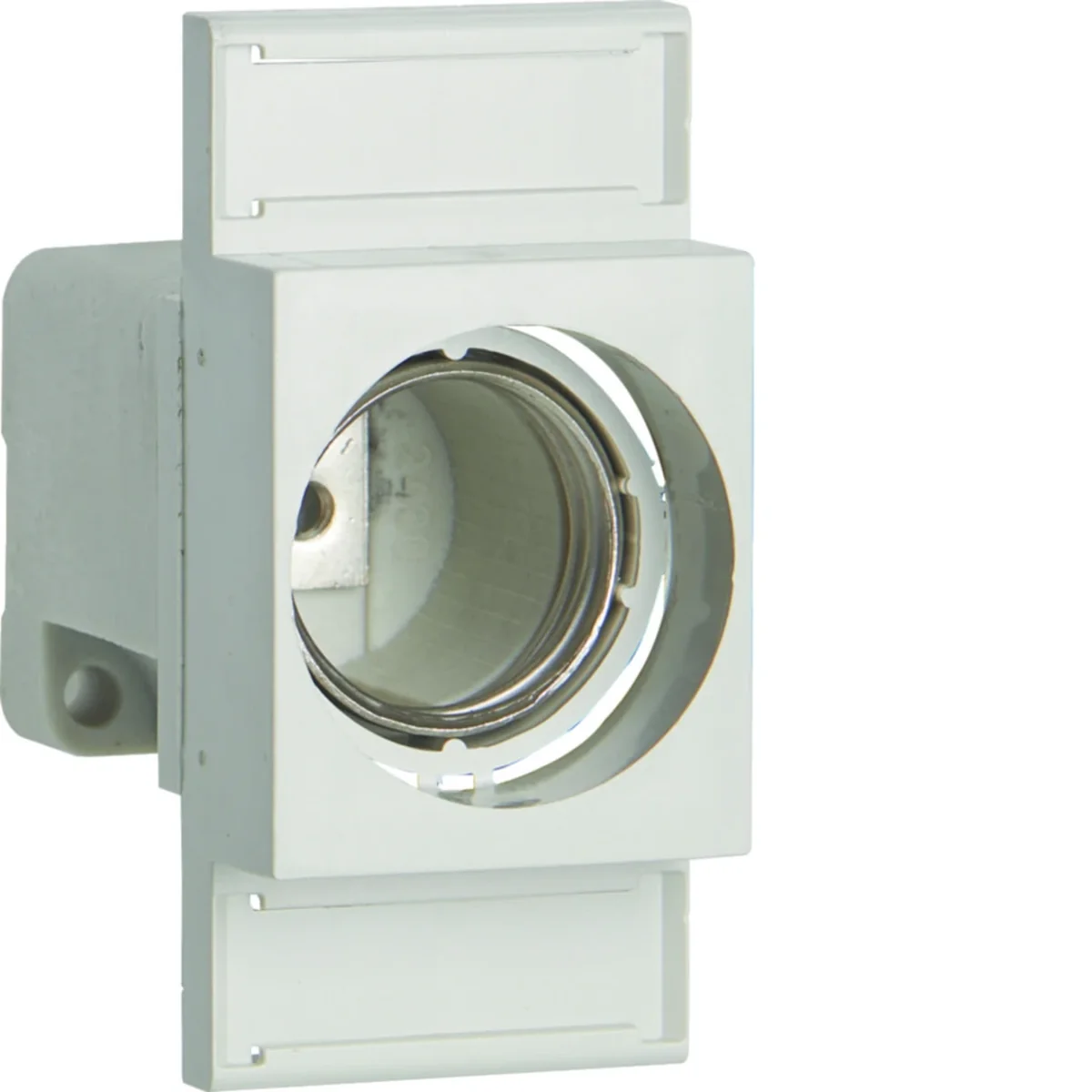

Socket D 2400 DII/E27 25A 500V w/w LE27KP

local index:
ABO068HAGE
Catalog No:
LE27KP
EAN code:
3250614128530
Socket D 2400 DII/E27 25A 500V w/w
Manufacturer: HAGER
Length [mm]: 46.5
Number of poles: 1
Fixing: rail system
Price:
6,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Socket D 2400 DII/E27 25A 500V w/w

Technical data

  • Length [mm]
    46.5
  • Fixing
    rail system
  • Width [mm]
    39
  • Height [mm]
    66
  • Fuse link rated current [A]
    2/4/6/10/16/20/25
  • PKWIU
    27.12.23.0
  • Number of poles
    1
  • Rated current [A]
    25
  • Fuse link size
    DII
  • Rated switching voltage [V]
    550/0/550
  • Rated short-circuit breaking capacity Icn [A]
    25

Other technical data

  • Number of poles
    1
  • Material
    Other
  • Version with cover
    Yes
  • Rated voltage
    500 V
  • Construction size
    DII
  • Model
    Fitted ring
  • Mounting method
    Busbar system
  • Rated current
    25 A

Bulk packaging

A kind of package Karton
Quantity 1 pcs. 10 pcs.
Weight (kg) 0,130 1,300
Width (m) 0,039 0,165
Length (m) 0,066 0,069
Depth (m) 0,047 0,210
