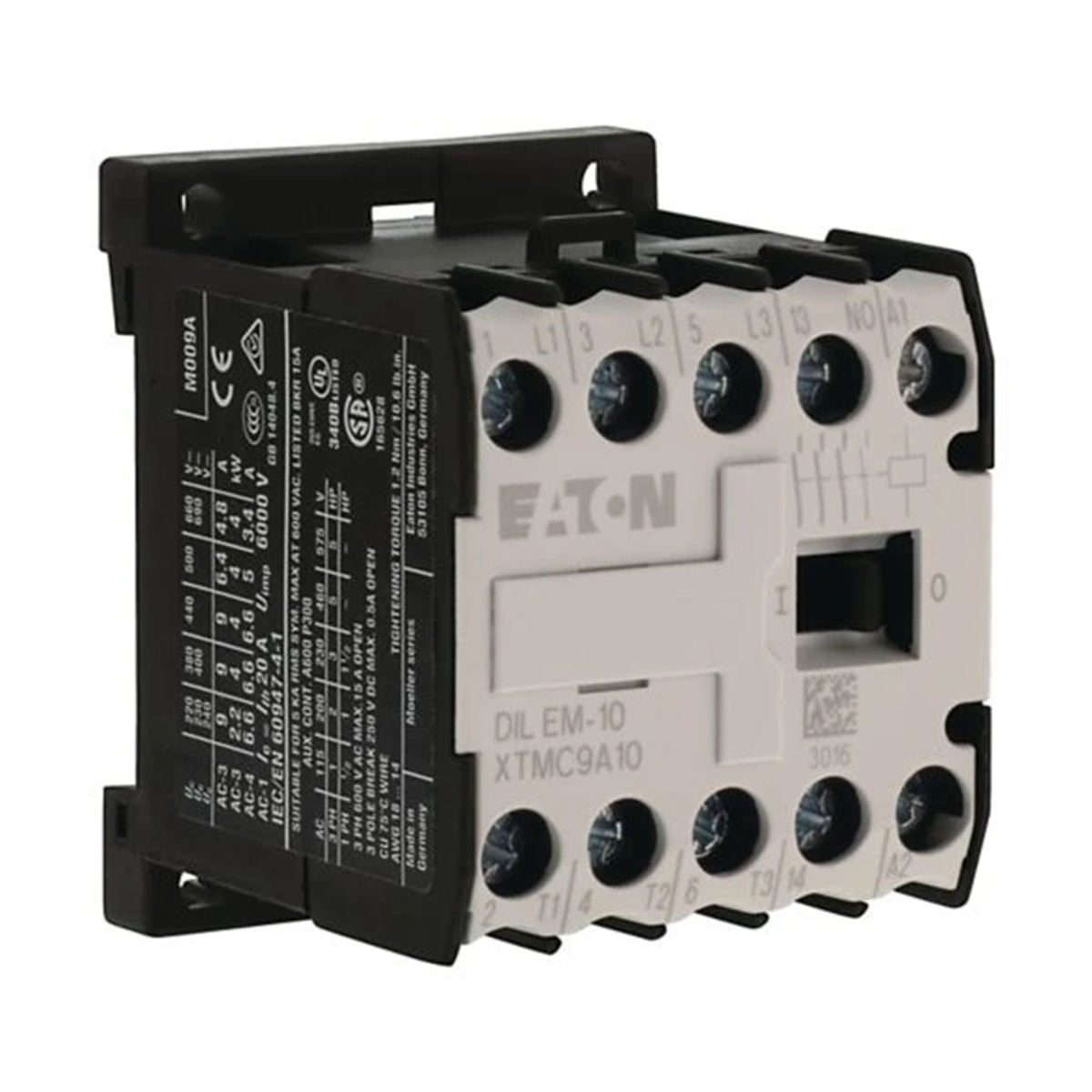

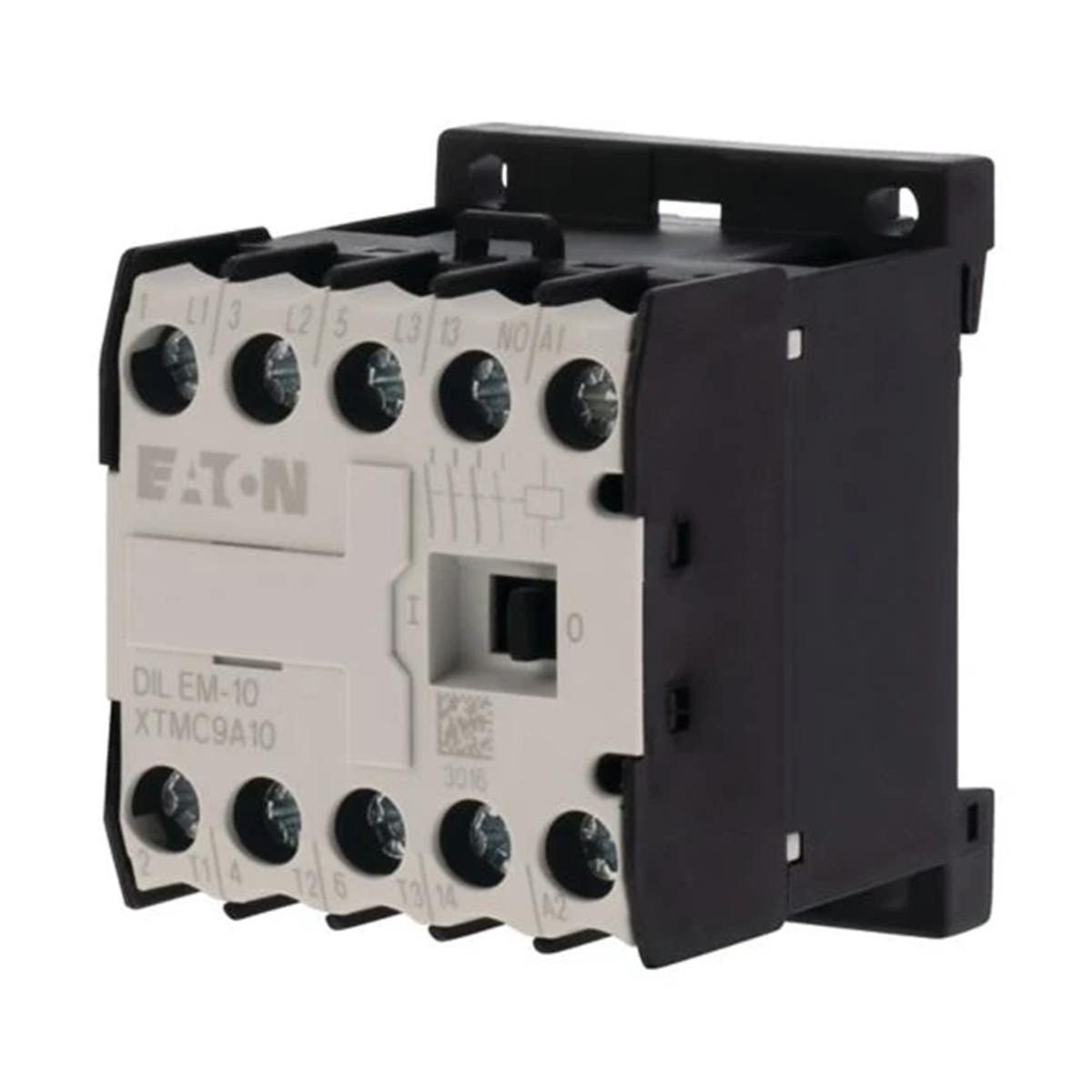

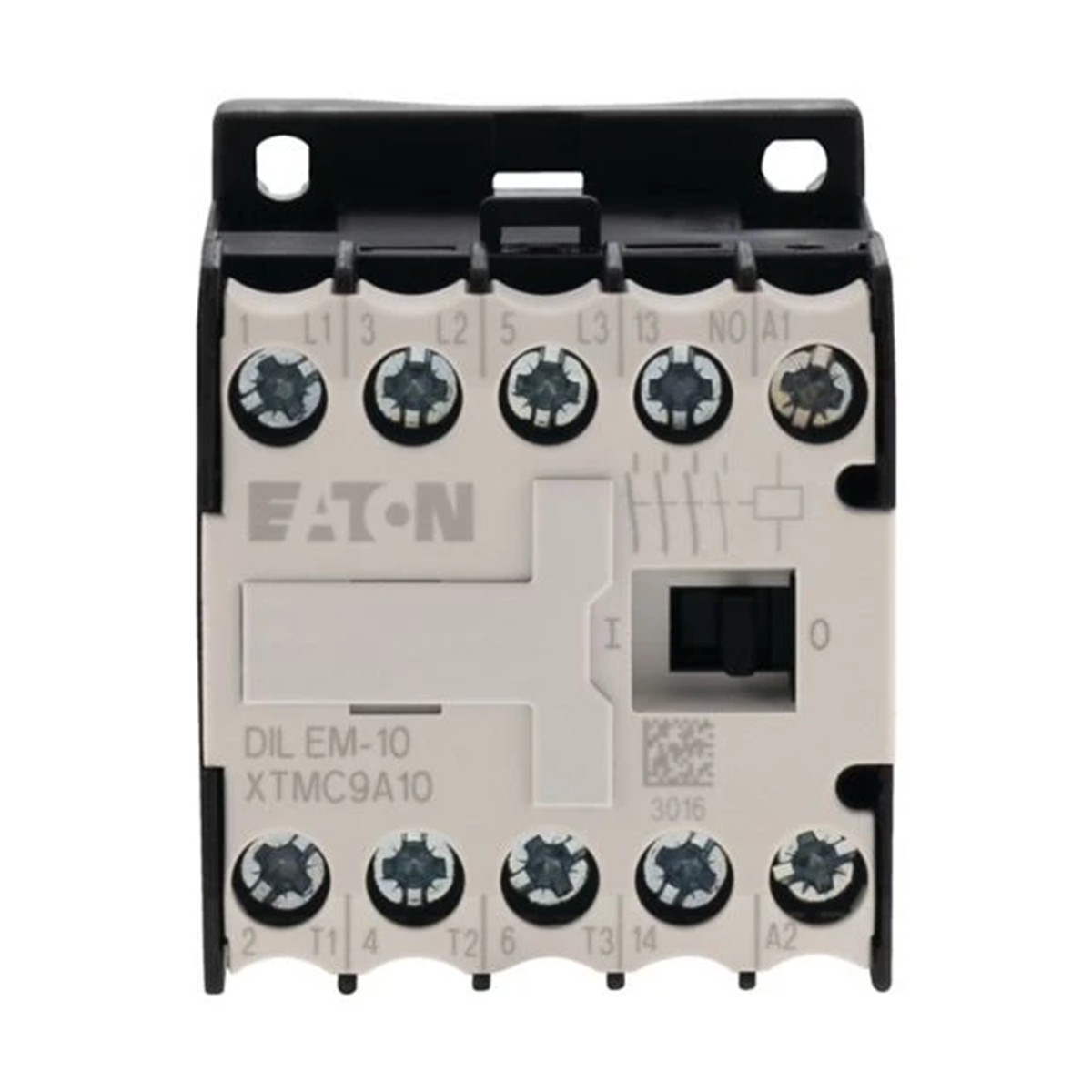

Small Contactor DILEM-10(110V50HZ,120V60HZ), 1NC 0R, 9A 051783
local index:
ATA141MOEL
Catalog No:
051783
EAN code:
4015080517832
Price:
41,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
5
)
Add to clipboard
Print
Ask about the product
Product description
Small auxiliary contactors, auxiliary contactors. DILEM AC.
Technical data
-
Rated voltage [V]110
-
PKWIU27.32.13.0
-
Rated current [A]9
Other technical data
-
Rated control supply voltage AC 50 Hz110 ... 110 V
-
Rated control supply voltage DC0 ... 0 V
-
Rated operation current Ie at AC-1, 400 V22 A
-
Rated operation power at AC-3, 400 V4 kW
-
Rated operation power at AC-4, 400 V3 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz120 ... 120 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V9 A
-
Rated operation current Ie at AC-4, 400 V6.6 A
-
Rated operation power NEMA3.7 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 5 pcs. |
| Weight (kg) | 0,170 | 0,184 | 0,920 |
| Volume (m3) | 0,000 | 0,000 | 0,001 |
| Width (m) | 0,045 | 0,047 | 0,055 |
| Length (m) | 0,052 | 0,054 | 0,240 |
| Depth (m) | 0,058 | 0,060 | 0,063 |
