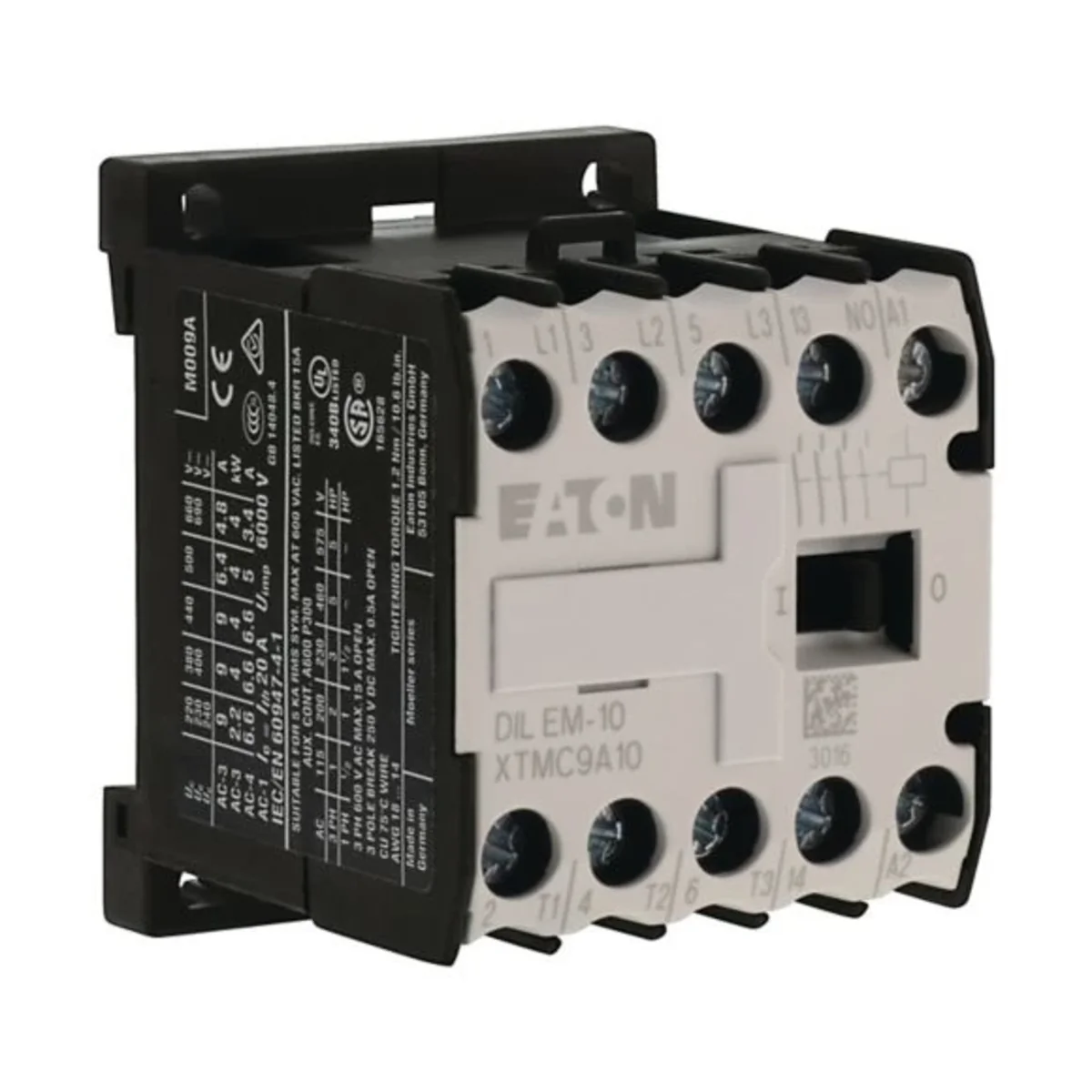

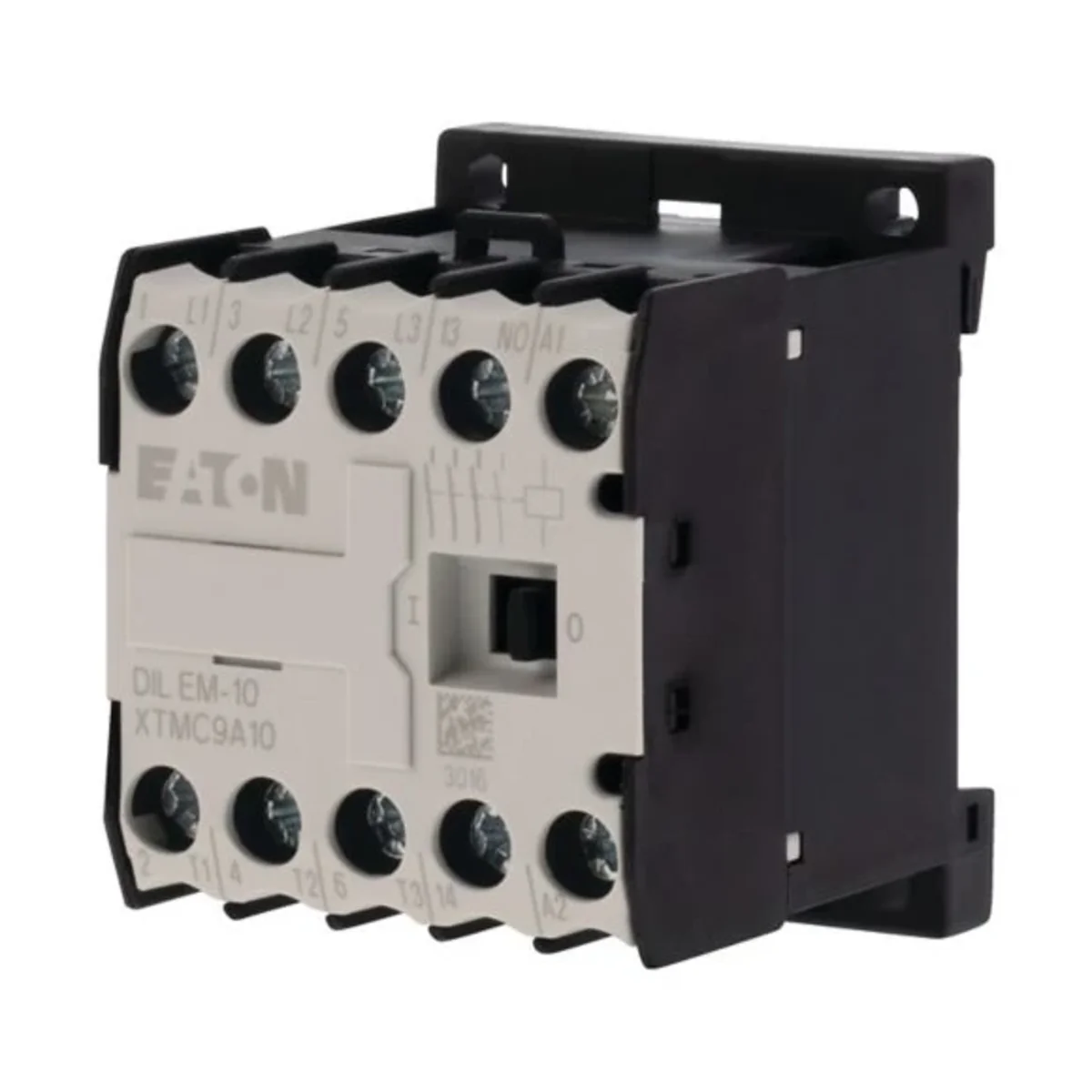

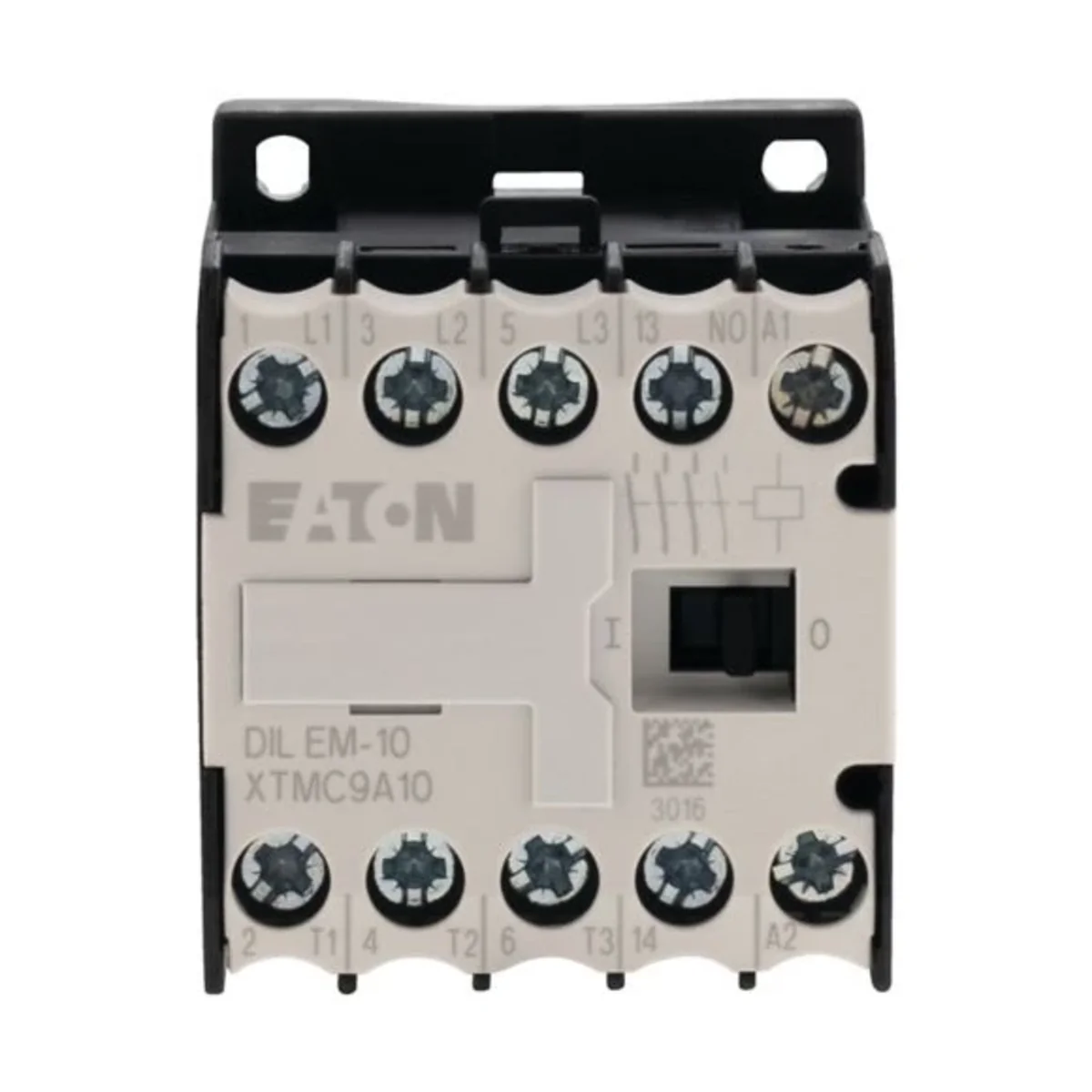

Small contactor DILEM-10-G(220VDC), 1NC 0R, 9A 010325
local index:
ATD010MOEL
Catalog No:
010325
EAN code:
4015080103257
Price:
53,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
5
)
Add to clipboard
Print
Ask about the product
Product description
DILER auxiliary contactors (small size)
Technical data
-
Power [kW]4
-
Rated current [A]9
-
DC operating voltage [V]220
Other technical data
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC220 ... 220 V
-
Rated operation current Ie at AC-1, 400 V22 A
-
Rated operation power at AC-3, 400 V4 kW
-
Rated operation power at AC-4, 400 V3 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Rated operation current Ie at AC-3, 400 V9 A
-
Rated operation current Ie at AC-4, 400 V6.6 A
-
Rated operation power NEMA3.7 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
Bulk packaging
| A kind of package | Skrzynia | Karton |
| Quantity | 1 pcs. | 5 pcs. |
| Weight (kg) | 0,220 | 1,100 |
| Volume (m3) | 0,000 | 0,001 |
| Width (m) | 0,047 | 0,055 |
| Length (m) | 0,056 | 0,240 |
| Depth (m) | 0,060 | 0,063 |
