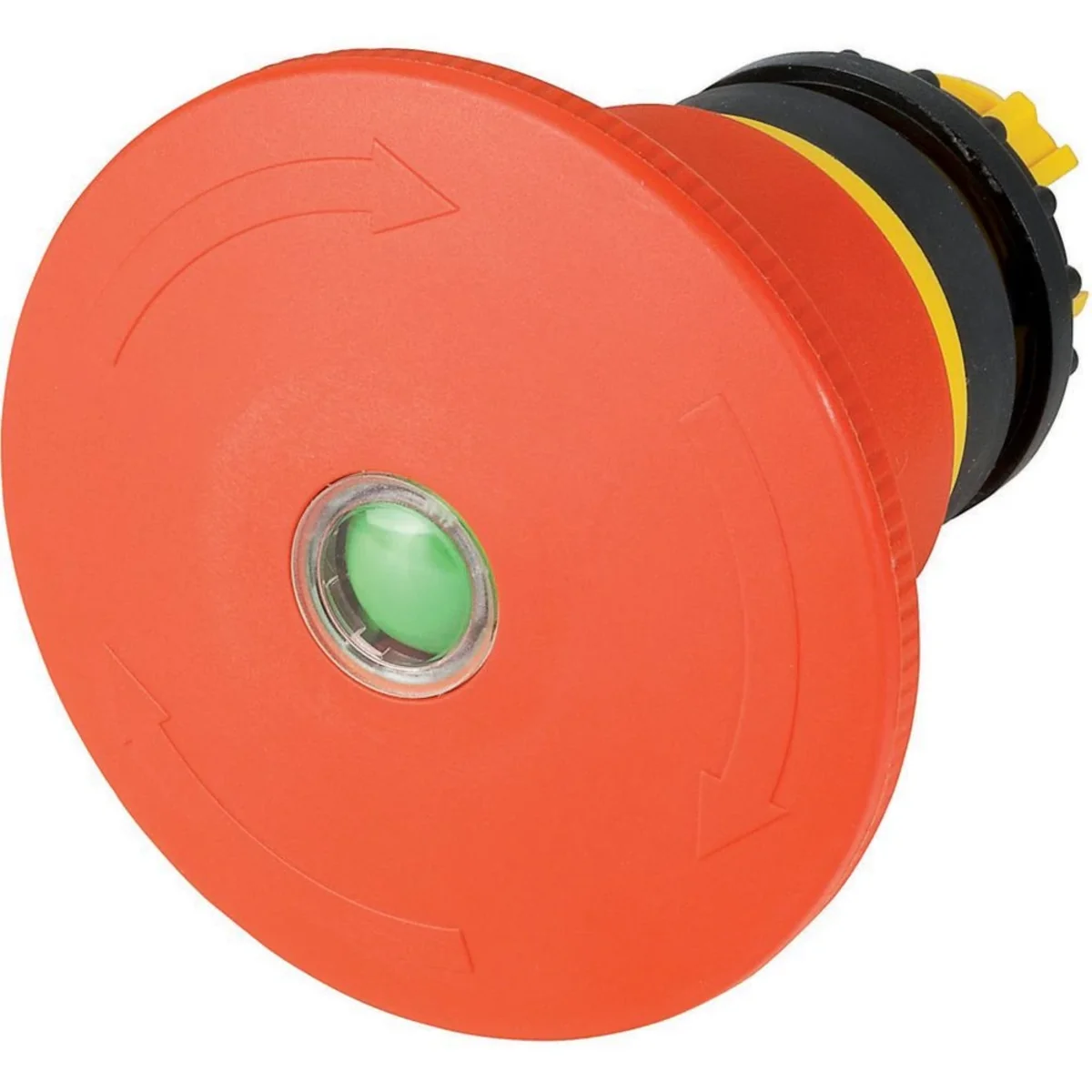

Safety button drive 60mm with mechanical actuation signaling 121465
local index:
AKS454MOEL
Catalog No:
121465
EAN code:
4015081192854
Price:
33,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Stop/Emergency Off button, Turn to unlock.
Tamper-proof according to ISO 13850/EN 418, Mushroom color: red, Color of push button base: yellow
Notes: Max. accessories: 4 x M22-(C)K01, …10 or 2 x M22-(C)K02, …20, … 11, Standards and regulations: IEC/EN 60947, VDE 0660
Technical data
-
Button colorRed
-
Level of securityIP66, IP67, IP69
-
Hole diameter [mm]22.5
-
Lens shapeRound
-
Diameter [mm]60
-
ExecutionPalm shape
Other technical data
-
Colour buttonRed
-
Diameter cap60 mm
-
Width opening0 mm
-
Degree of protection (IP)IP67/IP69K
-
Type of buttonHigh
-
With lightingNo
-
Switching function latchingYes
-
With front ringNo
-
Colour front ringOther
-
Unlocking methodTurn-release
-
Construction type lensRound
-
Hole diameter22.5 mm
-
Height opening0 mm
-
Degree of protection (NEMA)4X
-
Suitable for illuminationNo
-
Supply voltage lamp0 V
-
Spring-returnNo
-
Material front ringOther
-
Suitable for emergency stopYes
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,051 | 0,066 |
| Volume (m3) | 0,000 | 0,000 |
| Width (m) | 0,060 | 0,068 |
| Length (m) | 0,067 | 0,075 |
| Depth (m) | 0,060 | 0,065 |
