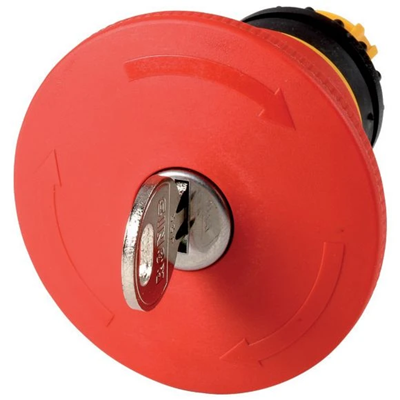

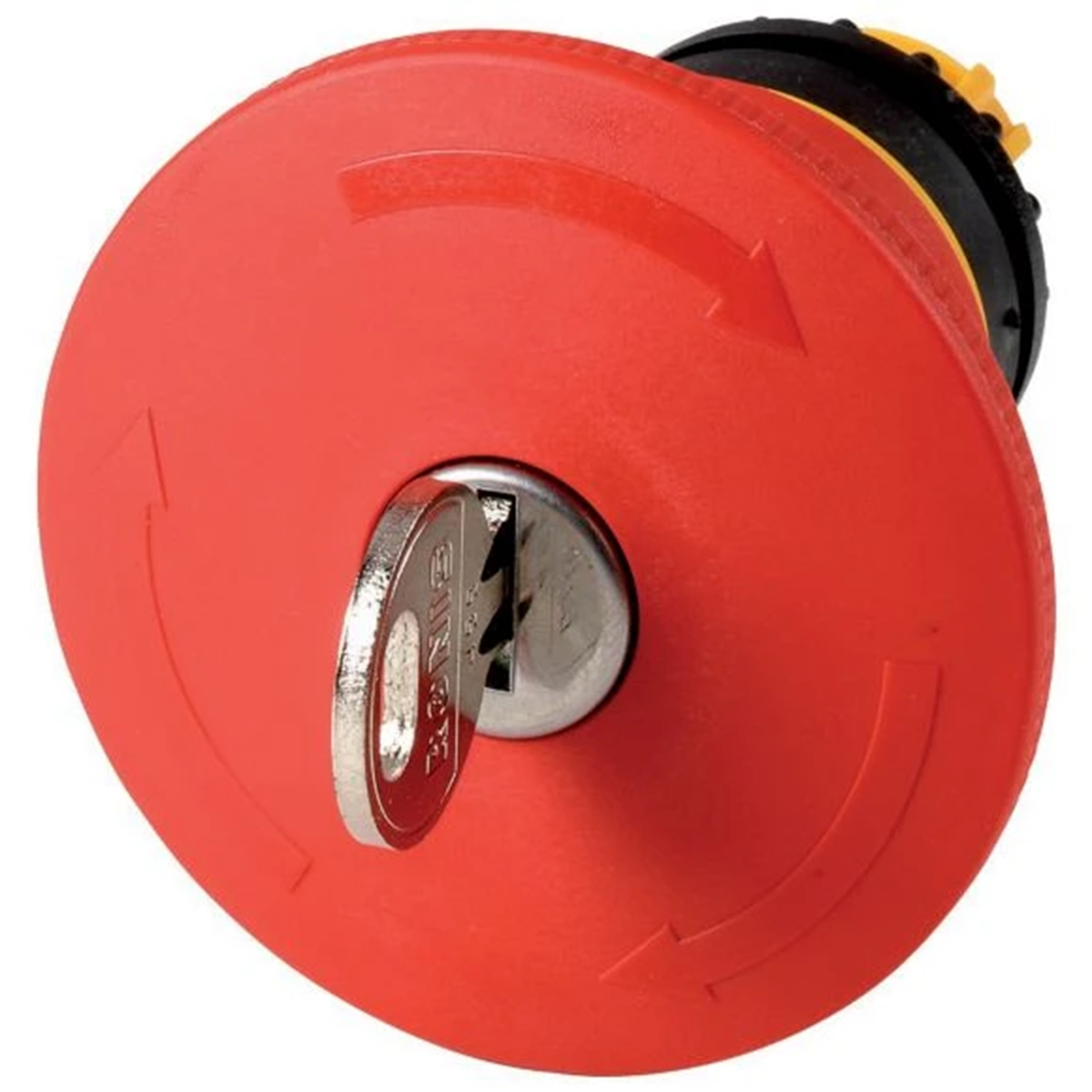

Safety button drive 60mm with key, RONIS 121467

local index:
AKS456MOEL
Catalog No:
121467
EAN code:
4015081192878
Manufacturer: EATON
Button color: Red
Lens shape: Round
Level of security: IP66, IP67, IP69
Price:
51,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Stop/Emergency stop button, key unlock.

Tamper-proof according to ISO 13850/EN 418, Mushroom color: red, Color of button base:< /strong> yellow

Notes: Max. accessories: 4 x M22-(C)K01, …10 or 2 x M22-(C)K02, …20, …11 , Standards and regulations: IEC/EN 60947, VDE 0660

Technical data

  • Button color
    Red
  • Level of security
    IP66, IP67, IP69
  • Hole diameter [mm]
    22.5
  • Lens shape
    Round
  • Diameter [mm]
    60
  • Execution
    Palm shape

Other technical data

  • Colour button
    Red
  • Diameter cap
    60 mm
  • Width opening
    0 mm
  • Degree of protection (IP)
    IP67/IP69K
  • Type of button
    High
  • With lighting
    No
  • Switching function latching
    Yes
  • With front ring
    No
  • Colour front ring
    Other
  • Unlocking method
    Key-release
  • Construction type lens
    Round
  • Hole diameter
    22.5 mm
  • Height opening
    0 mm
  • Degree of protection (NEMA)
    4X
  • Suitable for illumination
    No
  • Supply voltage lamp
    0 V
  • Spring-return
    No
  • Material front ring
    Other
  • Suitable for emergency stop
    Yes

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,097
Volume (m3) 0,000
Width (m) 0,068
Length (m) 0,075
Depth (m) 0,065
