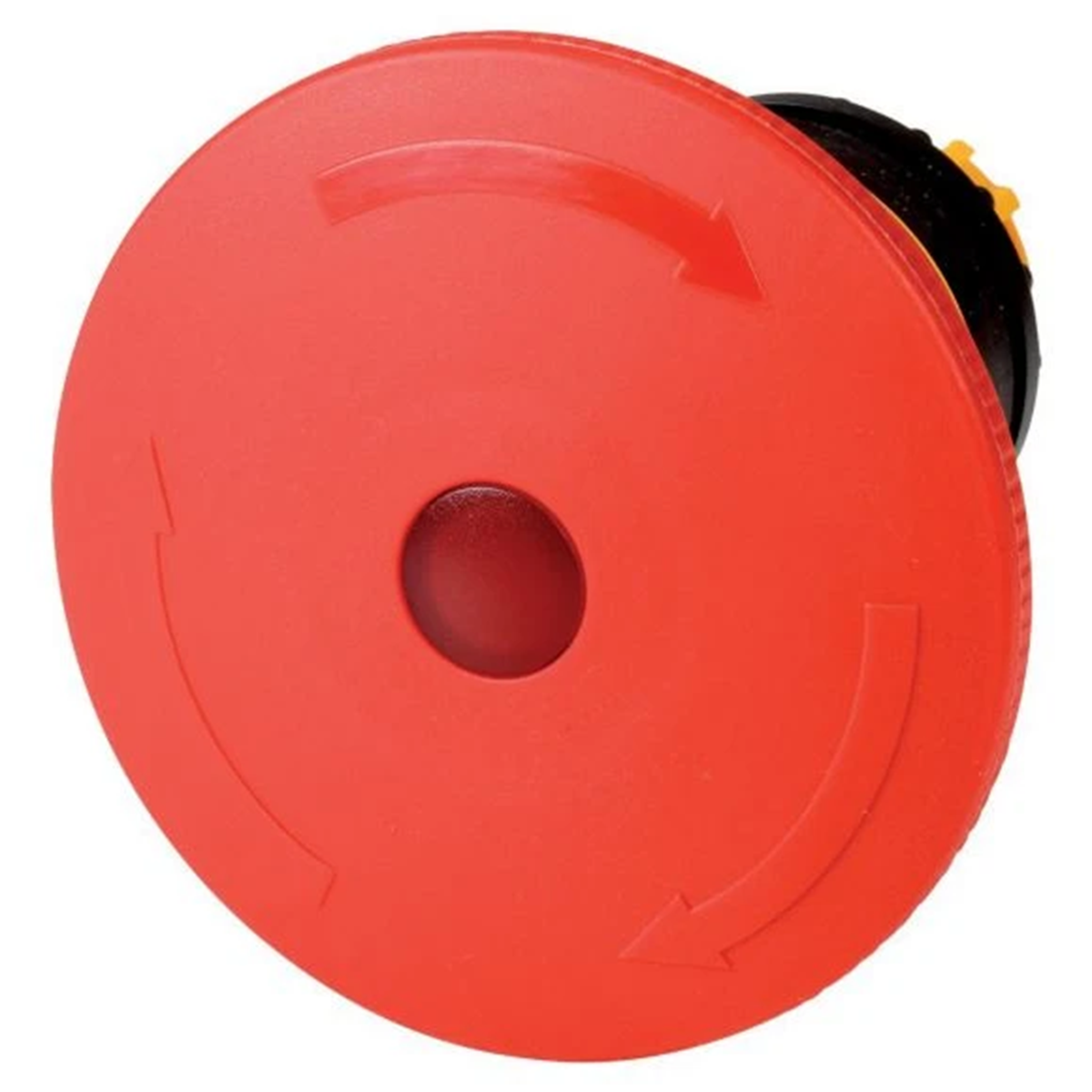

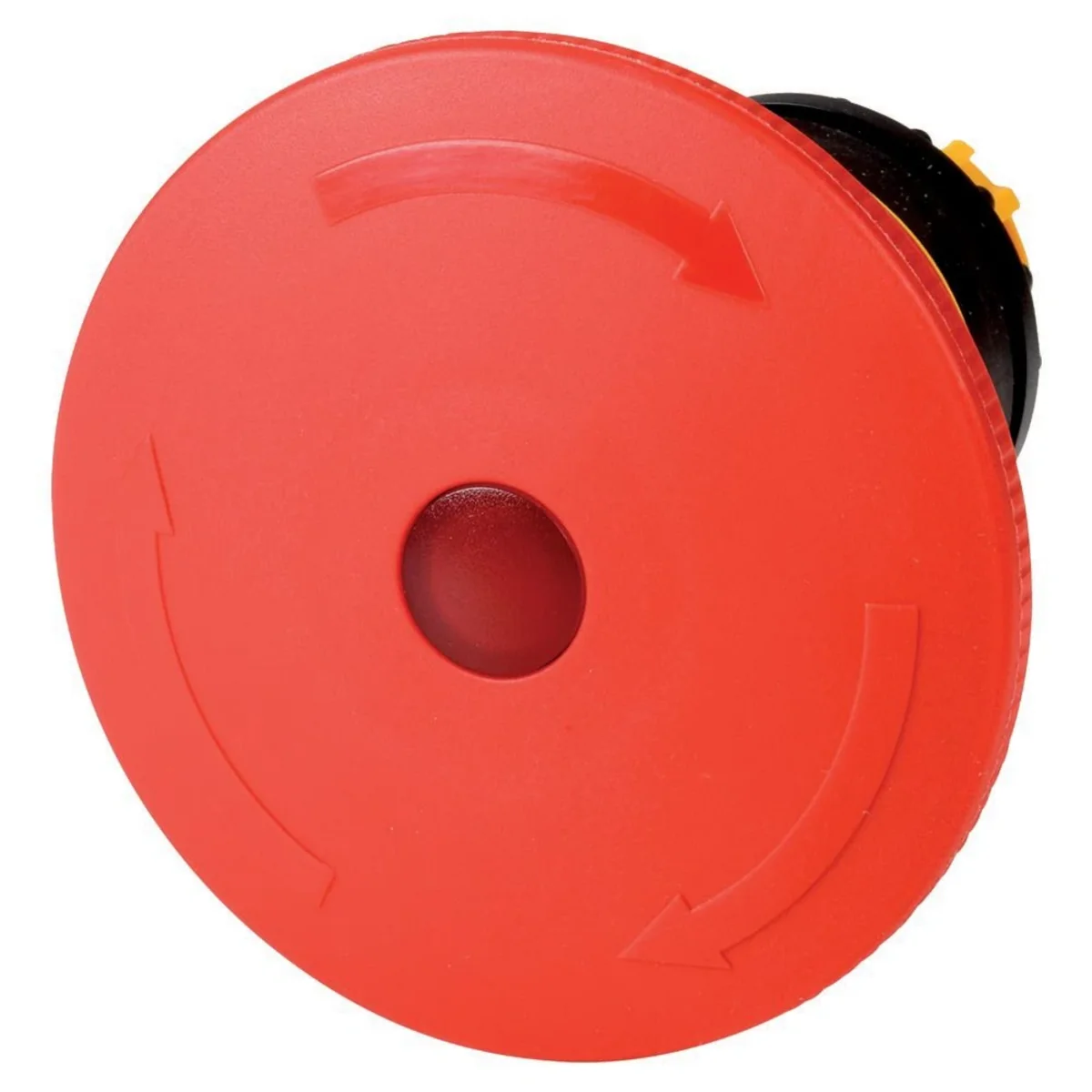

Safety button drive 60mm illuminated 121461

local index:
AKS452MOEL
Catalog No:
121461
EAN code:
4015081192816
Manufacturer: EATON
Button color: Red
Lens shape: Round
Level of security: IP66, IP67, IP69K
Price:
28,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Stop/Emergency stop button, Single device, with LED lighting, Turn to unlock.

Tamper-proof according to ISO 13850/EN 418, Color of mushroom: red, Colour Button base: yellow

Notes: Max. accessories: 4 x M22-(C)K01, …10 or 2 x M22-(C) )K02, …20, …11, Standards and regulations: IEC/EN 60947, VDE 0660

Technical data

  • Button color
    Red
  • Level of security
    IP66, IP67, IP69K
  • Hole diameter [mm]
    22
  • Lens shape
    Round
  • Diameter [mm]
    60
  • Execution
    Palm shape

Other technical data

  • Colour button
    Red
  • Diameter cap
    60 mm
  • Width opening
    0 mm
  • Degree of protection (IP)
    IP67/IP69K
  • Type of button
    High
  • With lighting
    No
  • Switching function latching
    Yes
  • With front ring
    No
  • Colour front ring
    Other
  • Unlocking method
    Turn-release
  • Construction type lens
    Round
  • Hole diameter
    22.5 mm
  • Height opening
    0 mm
  • Degree of protection (NEMA)
    4X
  • Suitable for illumination
    Yes
  • Supply voltage lamp
    0 V
  • Spring-return
    No
  • Material front ring
    Other
  • Suitable for emergency stop
    Yes

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,066
Volume (m3) 0,000
Width (m) 0,068
Length (m) 0,075
Depth (m) 0,065
