el12 Electrical apparatus contactors Contactor starter kits

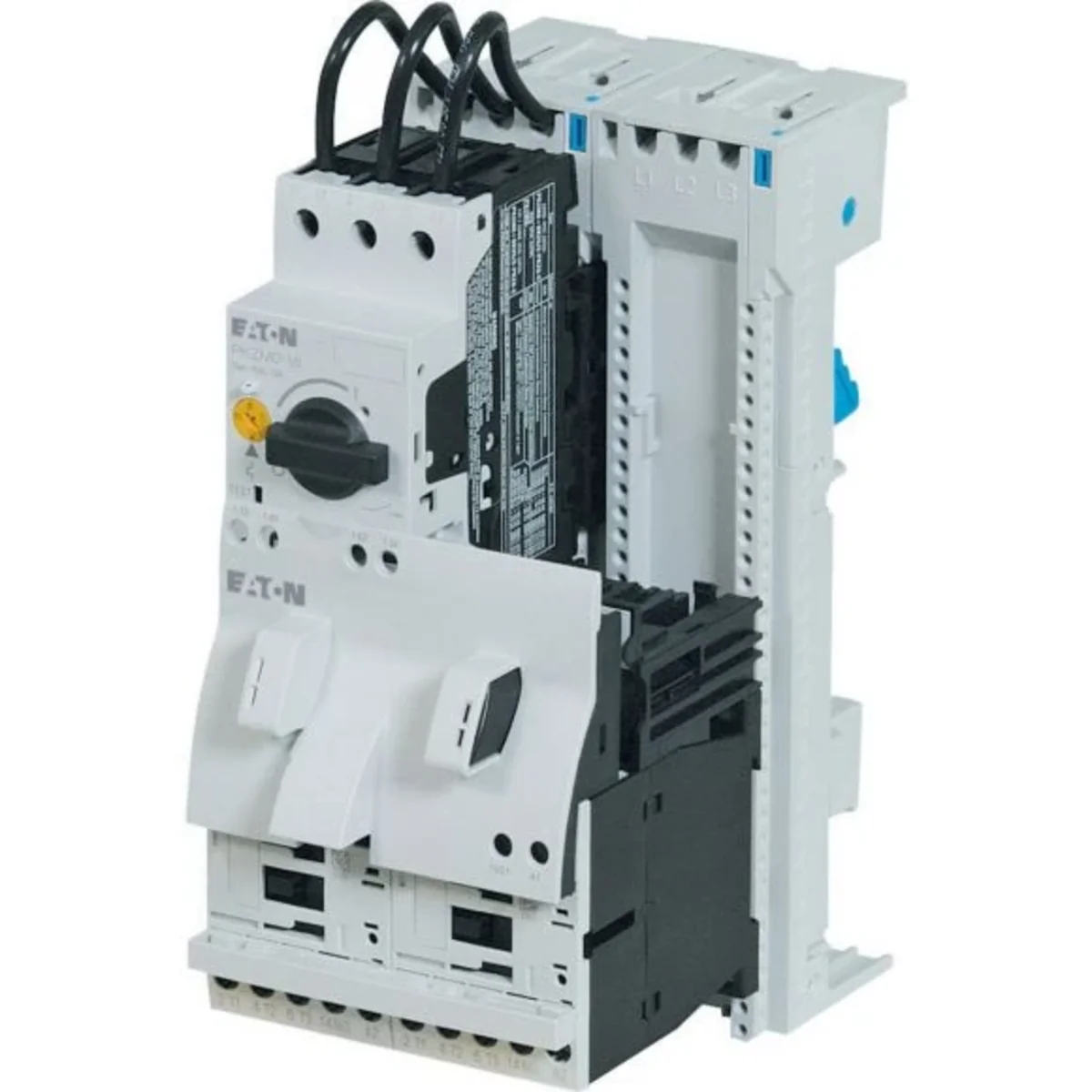

Reversing starter, MSC-R-1,6-M7(24VDC), + busbar adapter 103001

Lokaler Index:
ATR075MOEL
Katalognummer:
103001
EAN-Code:
4015081028405

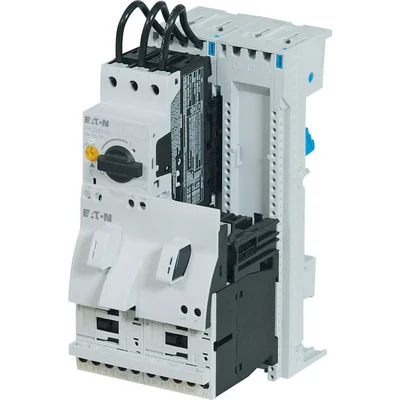

Reversing starter, MSC-R-1,6-M7(24VDC), + busbar adapter
Reversing starter, MSC-R-1,6-M7(24VDC), + busbar adapter
Reversing starter, MSC-R-1,6-M7(24VDC), + busbar adapter
Reversing starter, MSC-R-1,6-M7(24VDC), + busbar adapter
Reversing starter, MSC-R-1,6-M7(24VDC), + busbar adapter
Reversing starter, MSC-R-1,6-M7(24VDC), + busbar adapter

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: EATON
Number of poles: 3
Rated power for 400V [kW]: 0.18
Short-circuit current [kA]: 100
Siehe vollständige Beschreibung
Preis:
1 586,29 zł
gross / stk.
(inklusive MwSt 23%)
bis zu 4 Wochen
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Reversing starter, Basic device: MSC, Note: Also suitable for motors of the energy efficiency class IE3., IE3 compatible devices are marked with the corresponding logo on the packaging., Motor data Rated power AC-3 380 V 400 V 415 V: P = 0.37, 0.55 kW, Setting range of the overload release: Ir= 1 - 1.6 A, Assignment type "1", Assignment type "2", Actuation voltage: 24 V DC, Direct voltage

Technische Daten

  • Number of poles
    3
  • Short-circuit current [kA]
    100
  • PKWIU
    31.20.24-50.21
  • Rated power for 400V [kW]
    0.18
  • Rated operational current [A]
    1.5

Weitere technische Daten

  • Type of motor starter
    Reversing starter
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Rated operation power at AC-3, 230 V, 3-phase
    0.25 kW
  • Rated power, 460 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current Ie
    1.5 A
  • Overload release current setting
    1 ... 1.6 A
  • Rated conditional short-circuit current, type 1, 600 Y/347 V
    0 A
  • Rated conditional short-circuit current, type 2, 400 V
    50000 A
  • Number of auxiliary contacts as normally closed contact
    0
  • Temperature compensated overload protection
    Yes
  • Type of electrical connection of main circuit
    Screw connection
  • Rail mounting possible
    Yes
  • Number of command positions
    0
  • Coordination class according to IEC 60947-4-3
    Class 2
  • External reset possible
    No
  • Degree of protection (IP)
    IP20
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Height
    153 mm
  • With short-circuit release
    Yes
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Rated operation power at AC-3, 400 V
    0.55 kW
  • Rated power, 575 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current at AC-3, 400 V
    1.6 A
  • Rated conditional short-circuit current, type 1, 480 Y/277 V
    0 A
  • Rated conditional short-circuit current, type 2, 230 V
    50000 A
  • Number of auxiliary contacts as normally open contact
    0
  • Ambient temperature, upper operating limit
    55 °C
  • Release class
    CLASS 10 A
  • Type of electrical connection for auxiliary- and control current circuit
    Screw connection
  • With transformer
    No
  • Suitable for emergency stop
    No
  • Number of indicator lights
    0
  • With fuse
    No
  • Degree of protection (NEMA)
    Other
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Width
    90 mm
  • Depth
    200 mm

Hersteller-Details

  • Hersteller
    Eaton Electric Sp. z o.o.
  • Adresse
    80-299 Gdańsk Galaktyczna 30 Polska
  • E-Mail
    wsparcietech@eaton.com

Großpackungen

Eine Art Paket Skrzynia Karton
Menge 1 stk. 1 stk.
Gewicht (kg) 1,670 1,762
Volumen (m3) 0,003 0,005
Breite (m) 0,092 0,100
Länge (m) 0,202 0,290
Tiefe (m) 0,155 0,170
