Reversing starter, MSC-R-1,6-M7(230V50HZ) 283176
local index:
ATR011MOEL
Catalog No:
283176
EAN code:
4015082831769
Manufacturer:
EATON
Level of security: IP20
Price:
214,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

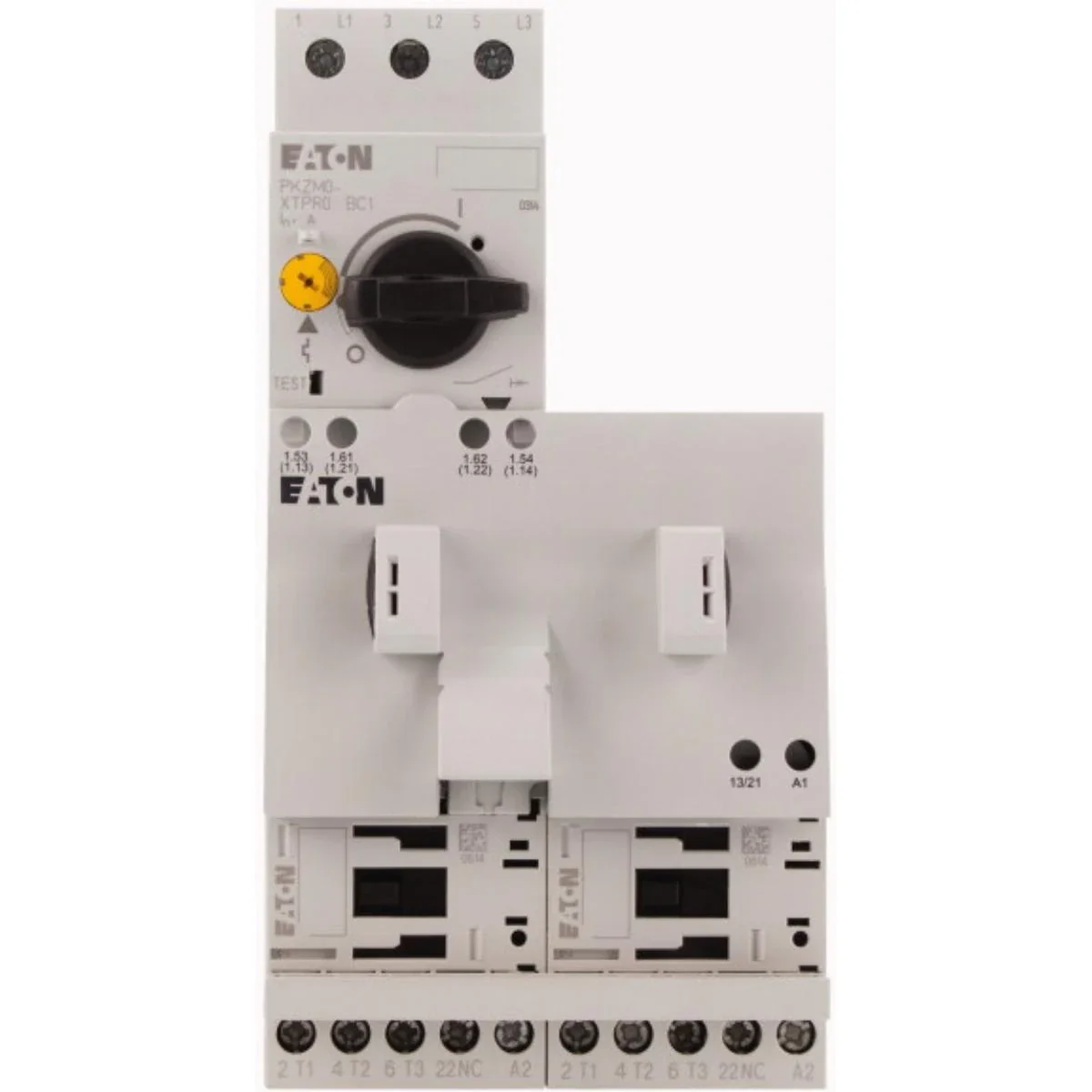

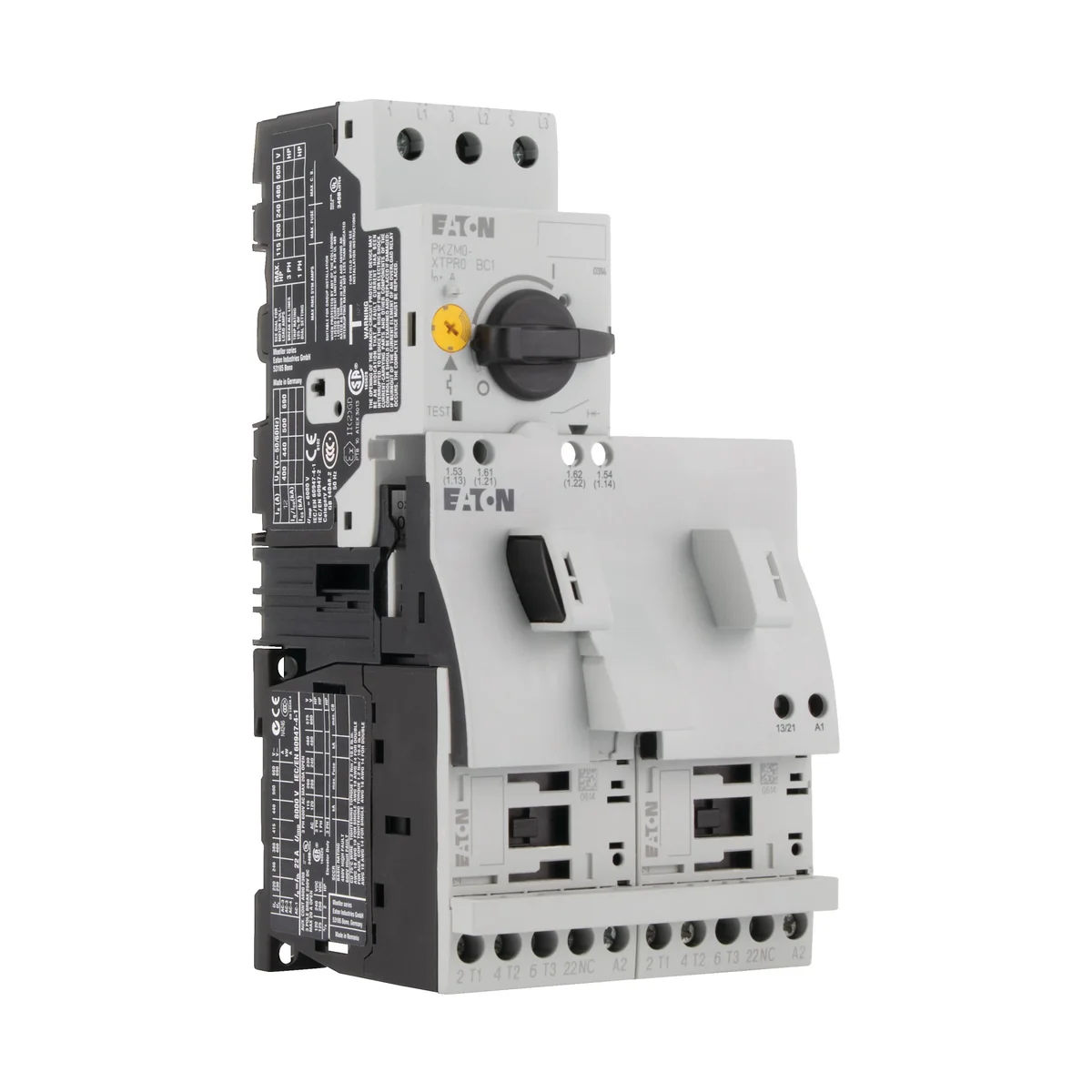

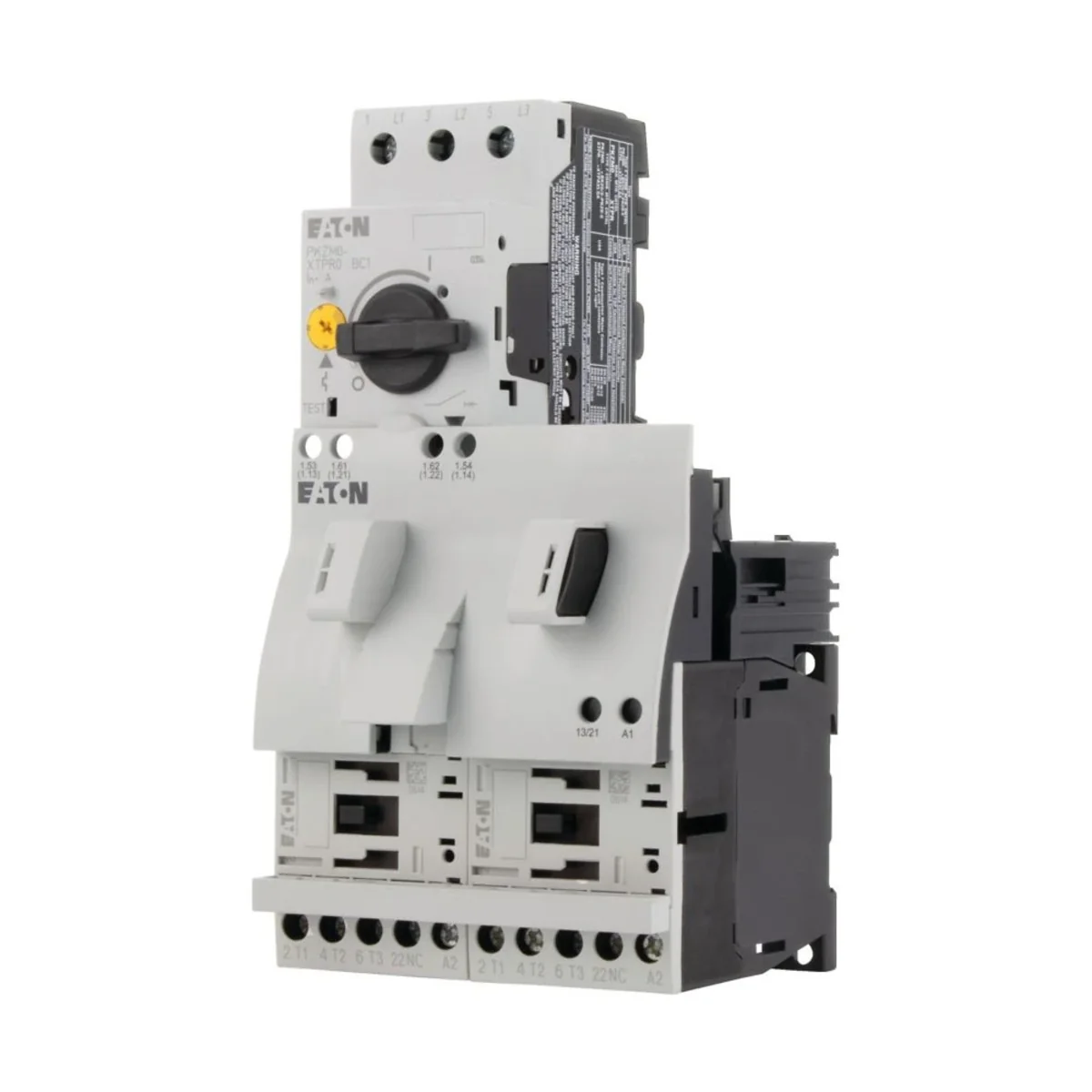

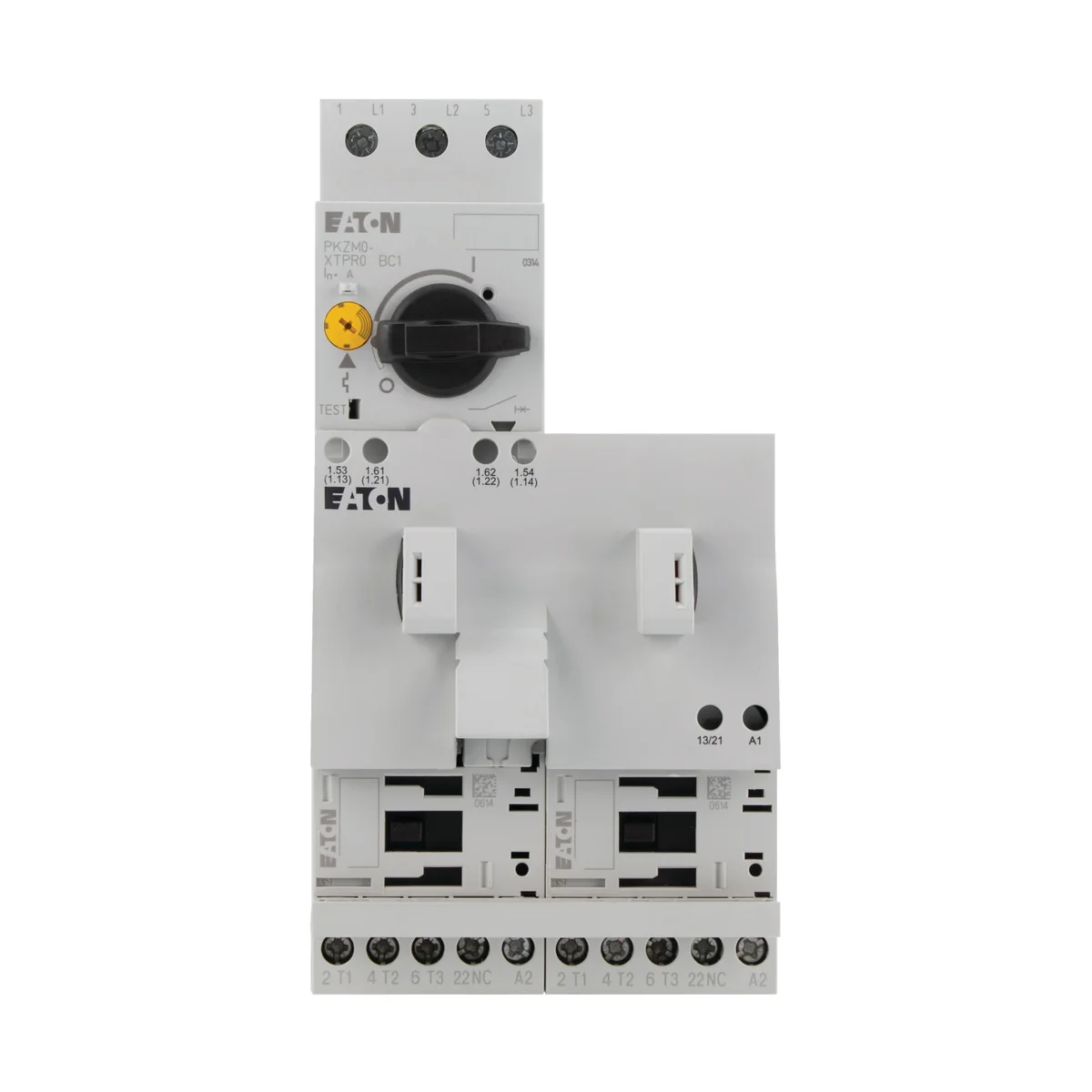

Reversing starter, MSC-R-1,6-M7(230V50HZ)
Technical data
-
Level of securityIP20
Other technical data
-
Type of motor starterReversing starter
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Rated control supply voltage DC0 ... 0 V
-
Rated operation power at AC-3, 230 V, 3-phase0.25 kW
-
Rated power, 460 V, 60 Hz, 3-phase0 kW
-
Rated operation current Ie1.5 A
-
Overload release current setting1 ... 1.6 A
-
Rated conditional short-circuit current, type 1, 600 Y/347 V0 A
-
Rated conditional short-circuit current, type 2, 400 V50000 A
-
Number of auxiliary contacts as normally closed contact0
-
Temperature compensated overload protectionYes
-
Type of electrical connection of main circuitScrew connection
-
Rail mounting possibleYes
-
Number of command positions0
-
Coordination class according to IEC 60947-4-3Class 2
-
External reset possibleNo
-
Degree of protection (IP)IP20
-
Supporting protocol for TCP/IPNo
-
Supporting protocol for CANNo
-
Supporting protocol for ASINo
-
Supporting protocol for Data-HighwayNo
-
Supporting protocol for SUCONETNo
-
Supporting protocol for PROFINET IONo
-
Supporting protocol for SERCOSNo
-
Supporting protocol for EtherNet/IPNo
-
Supporting protocol for DeviceNet SafetyNo
-
Supporting protocol for PROFIsafeNo
-
Supporting protocol for other bus systemsNo
-
Height95 mm
-
With short-circuit releaseYes
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingAC
-
Rated operation power at AC-3, 400 V0.55 kW
-
Rated power, 575 V, 60 Hz, 3-phase0 kW
-
Rated operation current at AC-3, 400 V1.6 A
-
Rated conditional short-circuit current, type 1, 480 Y/277 V0 A
-
Rated conditional short-circuit current, type 2, 230 V50000 A
-
Number of auxiliary contacts as normally open contact0
-
Ambient temperature, upper operating limit55 °C
-
Release classCLASS 10 A
-
Type of electrical connection for auxiliary- and control current circuitScrew connection
-
With transformerNo
-
Suitable for emergency stopNo
-
Number of indicator lights0
-
With fuseNo
-
Degree of protection (NEMA)Other
-
Supporting protocol for PROFIBUSNo
-
Supporting protocol for INTERBUSNo
-
Supporting protocol for ModbusNo
-
Supporting protocol for DeviceNetNo
-
Supporting protocol for LONNo
-
Supporting protocol for PROFINET CBANo
-
Supporting protocol for Foundation FieldbusNo
-
Supporting protocol for AS-Interface Safety at WorkNo
-
Supporting protocol for INTERBUS-SafetyNo
-
Supporting protocol for SafetyBUS pNo
-
Width90 mm
-
Depth185 mm
Manufacturer details
-
ManufacturerEATON ELECTRIC SP. Z O.O.
-
Address80-299 UL. GALAKTYCZNA 30
-
E-mail
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,930 | 1,006 |
| Volume (m3) | 0,002 | 0,002 |
| Width (m) | 0,090 | 0,100 |
| Length (m) | 0,185 | 0,220 |
| Depth (m) | 0,095 | 0,110 |
