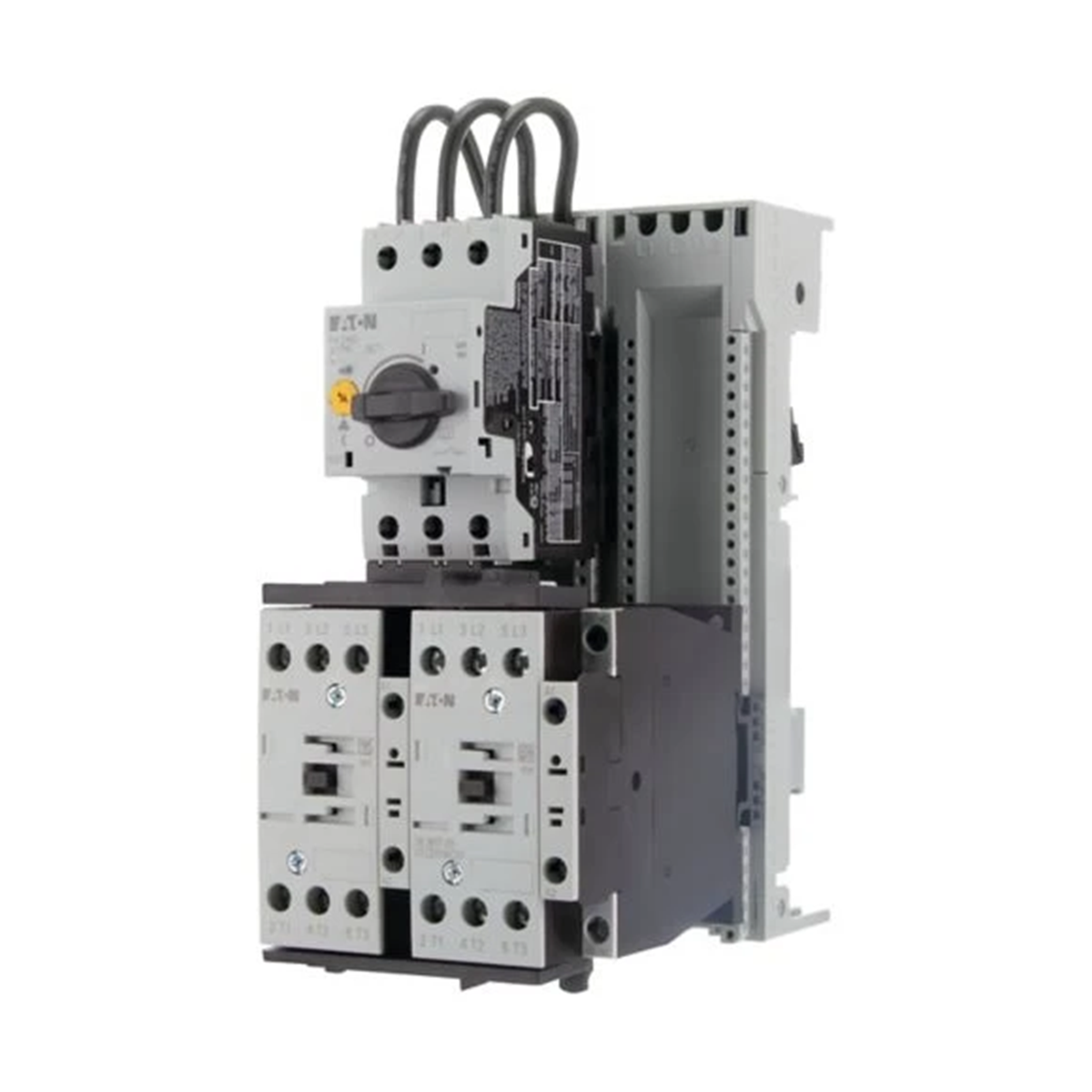

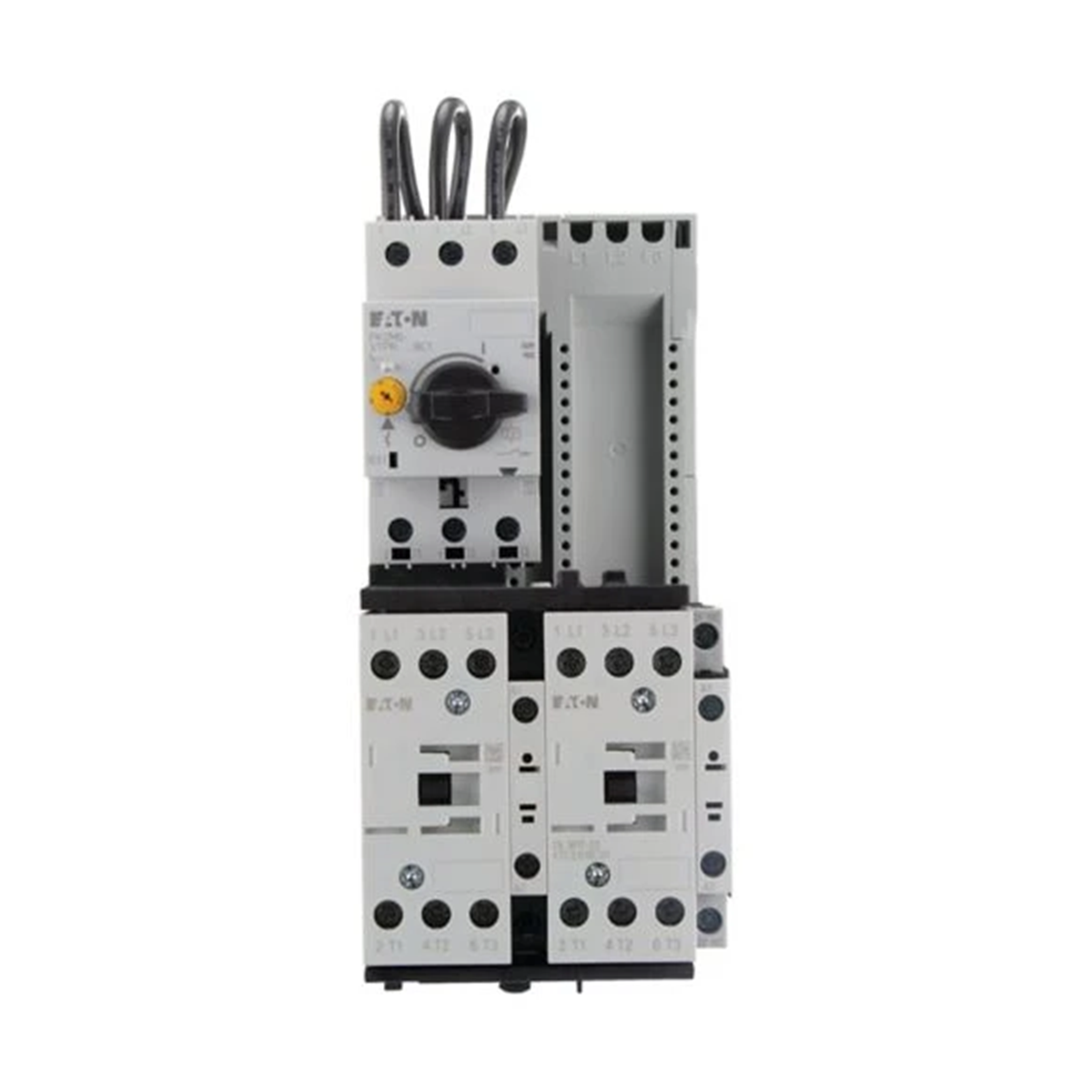

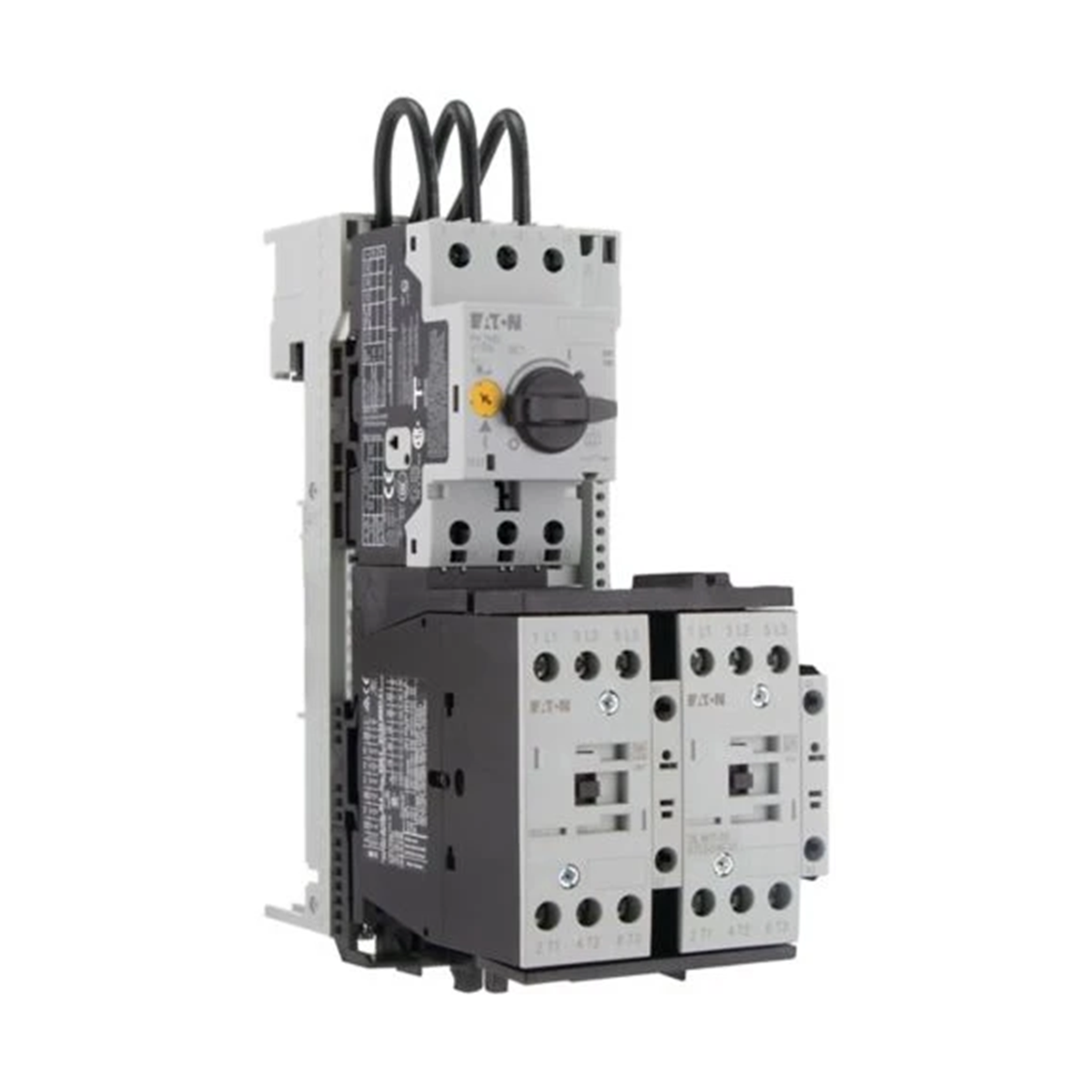

Reversing starter, MSC-R-12-M17(230V50HZ), + busbar adapter 102993
Indeks lokalny:
ATR067MOEL
Numer katalogowy:
102993
Kod EAN:
4015081028320
Cena:
1 757,88 zł
gross / szt.
(w tym VAT 23%)
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj
Zapytaj o produkt
Opis produktu
Reversing starter, Basic device: MSC, Note: Also suitable for motors of the energy efficiency class IE3., IE3 compatible devices are marked with the corresponding logo on the packaging., Motor data Rated power AC-3 380 V 400 V 415 V: P = 5.5 kW, Setting range of the overload release: Ir= 8 - 12 A, Type of assignment "1", Type of assignment "2", Start voltage: 230 V 50 Hz, 240 V 60 Hz, AC voltage
Dane techniczne
-
Number of poles3
-
Short-circuit current [kA]100
-
Rated power for 400V [kW]5.5
-
Rated operational current [A]11.3
Pozostałe dane techniczne
-
Type of motor starterReversing starter
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Rated control supply voltage DC0 ... 0 V
-
Rated operation power at AC-3, 230 V, 3-phase3 kW
-
Rated power, 460 V, 60 Hz, 3-phase0 kW
-
Rated operation current Ie11.3 A
-
Overload release current setting8 ... 12 A
-
Rated conditional short-circuit current, type 1, 600 Y/347 V0 A
-
Rated conditional short-circuit current, type 2, 400 V50000 A
-
Number of auxiliary contacts as normally closed contact0
-
Temperature compensated overload protectionYes
-
Type of electrical connection of main circuitScrew connection
-
Rail mounting possibleYes
-
Number of command positions0
-
Coordination class according to IEC 60947-4-3Class 2
-
External reset possibleNo
-
Degree of protection (IP)IP00
-
Supporting protocol for TCP/IPNo
-
Supporting protocol for CANNo
-
Supporting protocol for ASINo
-
Supporting protocol for Data-HighwayNo
-
Supporting protocol for SUCONETNo
-
Supporting protocol for PROFINET IONo
-
Supporting protocol for SERCOSNo
-
Supporting protocol for EtherNet/IPNo
-
Supporting protocol for DeviceNet SafetyNo
-
Supporting protocol for PROFIsafeNo
-
Supporting protocol for other bus systemsNo
-
Height157 mm
-
With short-circuit releaseYes
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingAC
-
Rated operation power at AC-3, 400 V5.5 kW
-
Rated power, 575 V, 60 Hz, 3-phase0 kW
-
Rated operation current at AC-3, 400 V12 A
-
Rated conditional short-circuit current, type 1, 480 Y/277 V0 A
-
Rated conditional short-circuit current, type 2, 230 V50000 A
-
Number of auxiliary contacts as normally open contact0
-
Ambient temperature, upper operating limit55 °C
-
Release classCLASS 10 A
-
Type of electrical connection for auxiliary- and control current circuitScrew connection
-
With transformerNo
-
Suitable for emergency stopNo
-
Number of indicator lights0
-
With fuseNo
-
Degree of protection (NEMA)Other
-
Supporting protocol for PROFIBUSNo
-
Supporting protocol for INTERBUSNo
-
Supporting protocol for ModbusNo
-
Supporting protocol for DeviceNetNo
-
Supporting protocol for LONNo
-
Supporting protocol for PROFINET CBANo
-
Supporting protocol for Foundation FieldbusNo
-
Supporting protocol for AS-Interface Safety at WorkNo
-
Supporting protocol for INTERBUS-SafetyNo
-
Supporting protocol for SafetyBUS pNo
-
Width90 mm
-
Depth200 mm
Dane producenta
-
ProducentEaton Electric Sp. z o.o.
-
Adres80-299 Gdańsk Galaktyczna 30 Polska
-
Email
Opakowania zbiorcze
| Rodzaj opakowania | Skrzynia | Karton |
| Ilość | 1 szt. | 1 szt. |
| Waga (kg) | 1,730 | 1,822 |
| Objętość (m3) | 0,003 | 0,005 |
| Szerokość (m) | 0,092 | 0,100 |
| Długość (m) | 0,202 | 0,290 |
| Głębokość (m) | 0,159 | 0,170 |
