el12 Electrical apparatus contactors Contactor starter kits

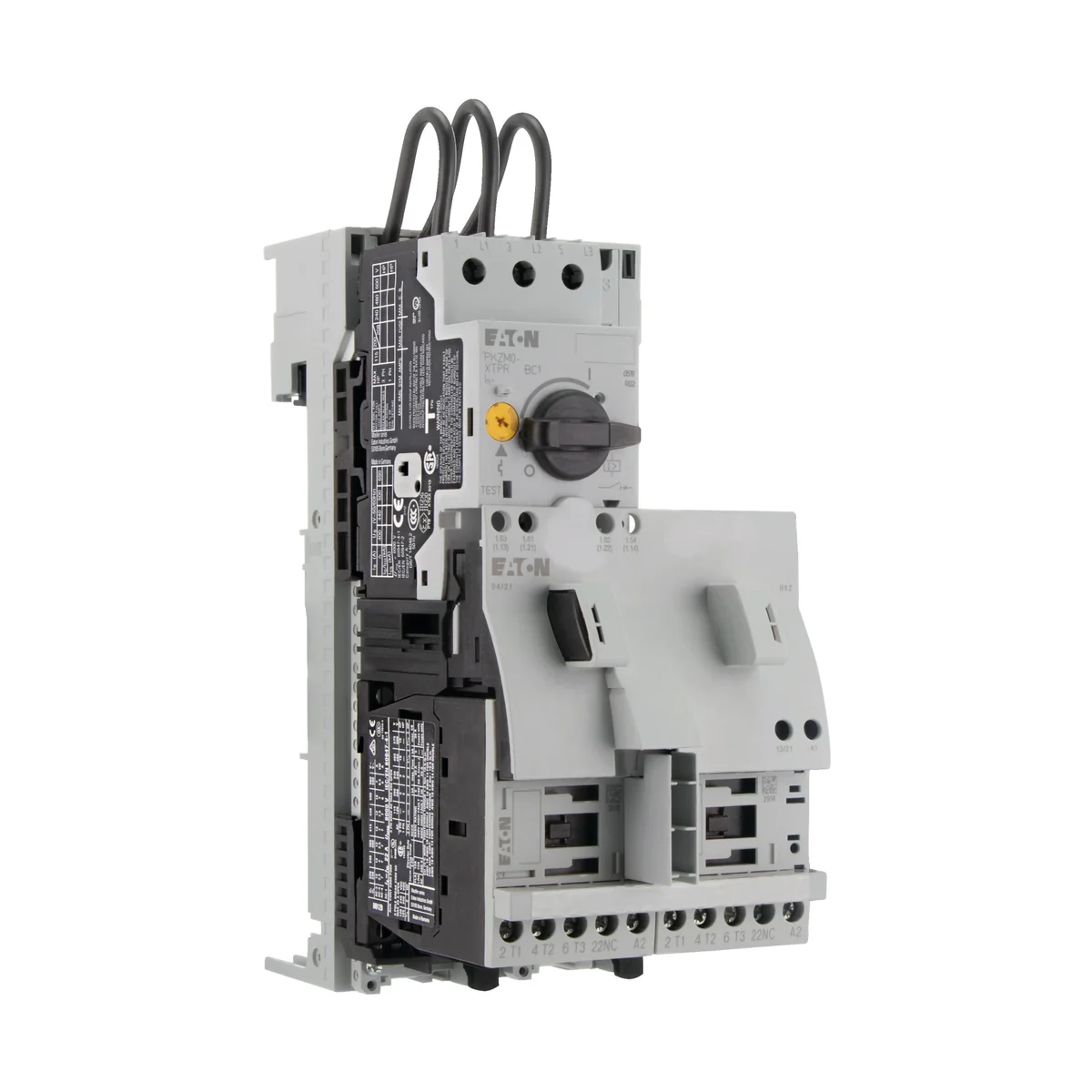

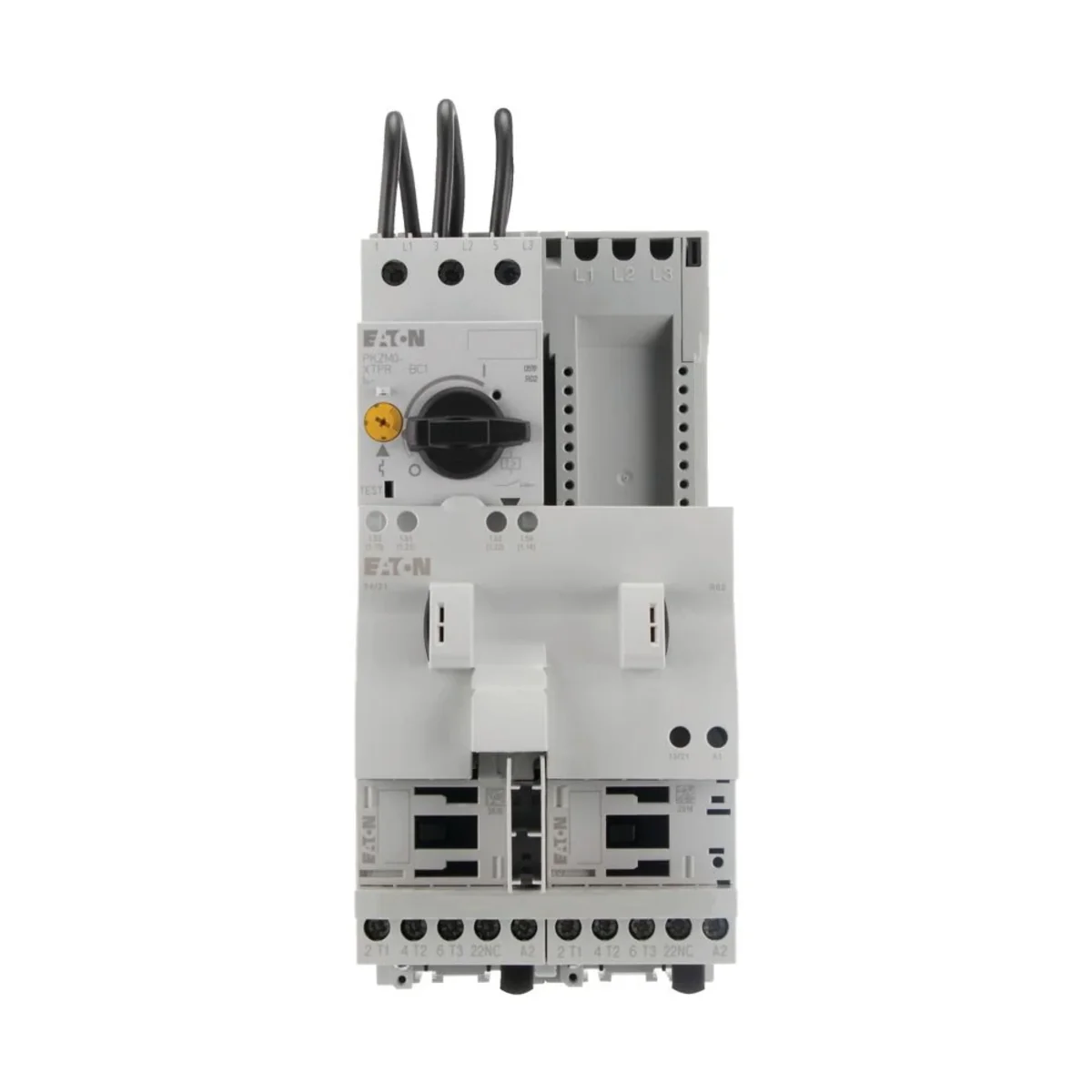

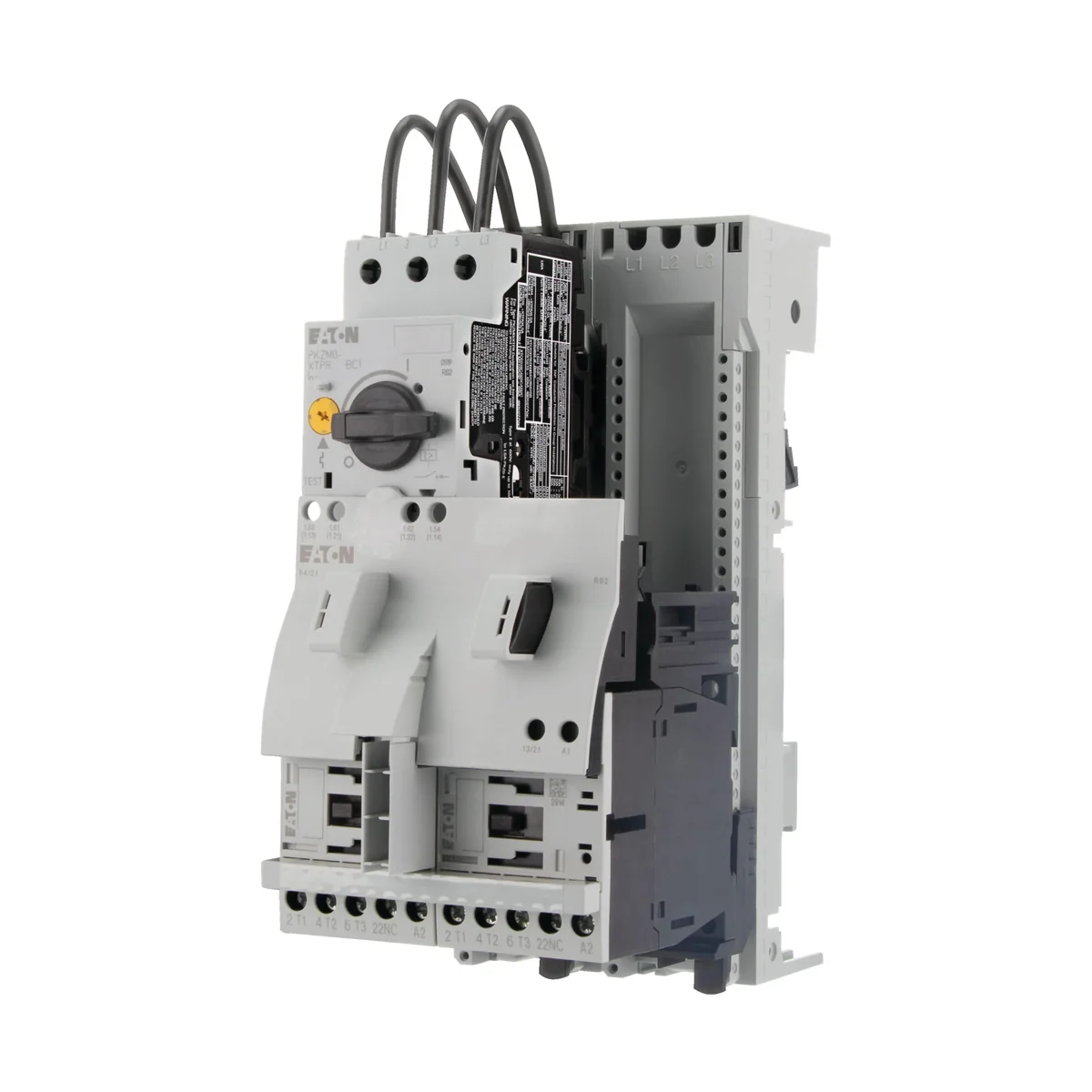

Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter 102991

Indice locale:
ATR065MOEL
Numero di catalogo:
102991
Codice EAN:
4015081028306
Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter
Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter
Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter
Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter
Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter
Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter
Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter
Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter
Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter
Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter
Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter
Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter
Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter
Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter
Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter
Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter
Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter
Reversing starter, MSC-R-12-M12(230V50HZ), + busbar adapter

Clicca sulla foto per ingrandire

Produttore: EATON
Number of poles: 3
Rated power for 400V [kW]: 5.5
Short-circuit current [kA]: 100
Vedi la descrizione completa
Prezzo:
1 666,70 zł
gross / pezzi
(inclusa IVA 23%)
fino a 4 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa
Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

Reversing starter, Basic device: MSC, Note: Also suitable for motors of the energy efficiency class IE3., IE3 compatible devices are marked with the corresponding logo on the packaging., Motor data Rated power AC-3 380 V 400 V 415 V: P = 5.5 kW, Setting range of the overload release: Ir= 8 - 12 A, Type of assignment "1", Start voltage: 230 V 50 Hz, 240 V 60 Hz, AC voltage

Dati tecnici

  • Number of poles
    3
  • Short-circuit current [kA]
    100
  • PKWIU
    31.20.24-50.21
  • Rated power for 400V [kW]
    5.5
  • Rated operational current [A]
    11.3

Altri dati tecnici

  • Type of motor starter
    Reversing starter
  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation power at AC-3, 230 V, 3-phase
    3 kW
  • Rated power, 460 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current Ie
    11.3 A
  • Overload release current setting
    8 ... 12 A
  • Rated conditional short-circuit current, type 1, 600 Y/347 V
    0 A
  • Rated conditional short-circuit current, type 2, 400 V
    100 A
  • Number of auxiliary contacts as normally closed contact
    0
  • Temperature compensated overload protection
    Yes
  • Type of electrical connection of main circuit
    Screw connection
  • Rail mounting possible
    Yes
  • Number of command positions
    0
  • Coordination class according to IEC 60947-4-3
    Class 1
  • External reset possible
    No
  • Degree of protection (IP)
    IP20
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Height
    153 mm
  • With short-circuit release
    Yes
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    AC
  • Rated operation power at AC-3, 400 V
    5.5 kW
  • Rated power, 575 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current at AC-3, 400 V
    12 A
  • Rated conditional short-circuit current, type 1, 480 Y/277 V
    0 A
  • Rated conditional short-circuit current, type 2, 230 V
    0 A
  • Number of auxiliary contacts as normally open contact
    0
  • Ambient temperature, upper operating limit
    55 °C
  • Release class
    CLASS 10 A
  • Type of electrical connection for auxiliary- and control current circuit
    Screw connection
  • With transformer
    No
  • Suitable for emergency stop
    No
  • Number of indicator lights
    0
  • With fuse
    No
  • Degree of protection (NEMA)
    Other
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Width
    90 mm
  • Depth
    200 mm

Dettagli del produttore

  • Produttore
    Eaton Electric Sp. z o.o.
  • Indirizzo
    80-299 Gdańsk Galaktyczna 30 Polska
  • Email
    wsparcietech@eaton.com

Imballaggio sfuso

Una specie di pacchetto Skrzynia Karton
Quantità 1 pezzi 1 pezzi
Peso (kg) 1,560 1,652
Volume (m3) 0,003 0,005
Larghezza (m) 0,092 0,100
Lunghezza (m) 0,202 0,290
Profondità (m) 0,155 0,170
