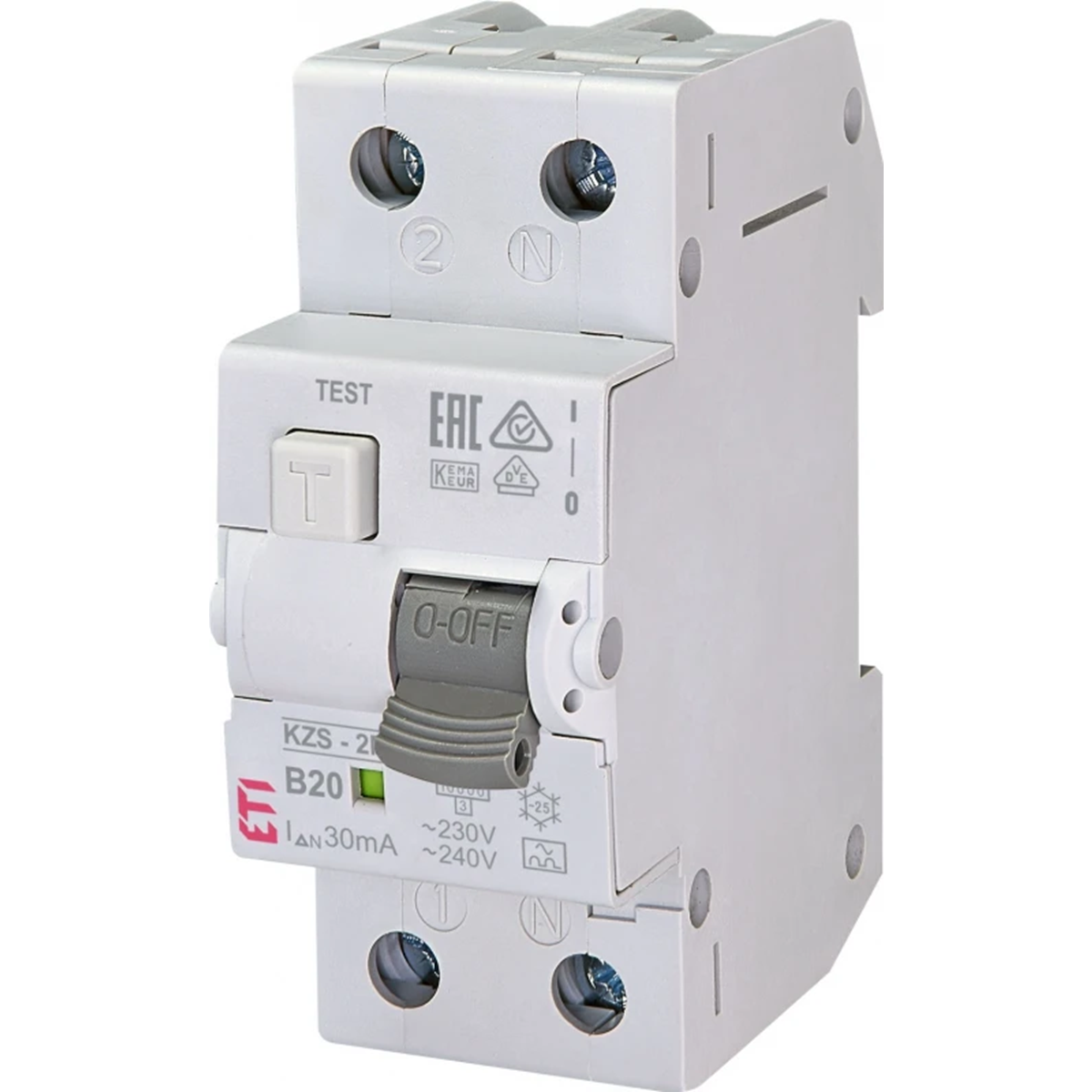

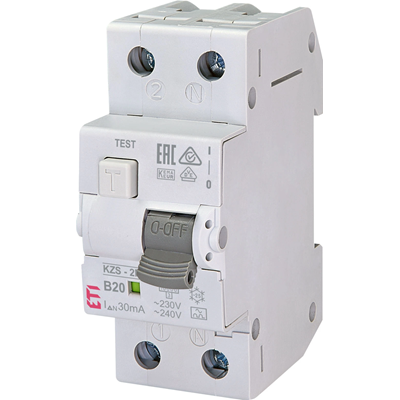

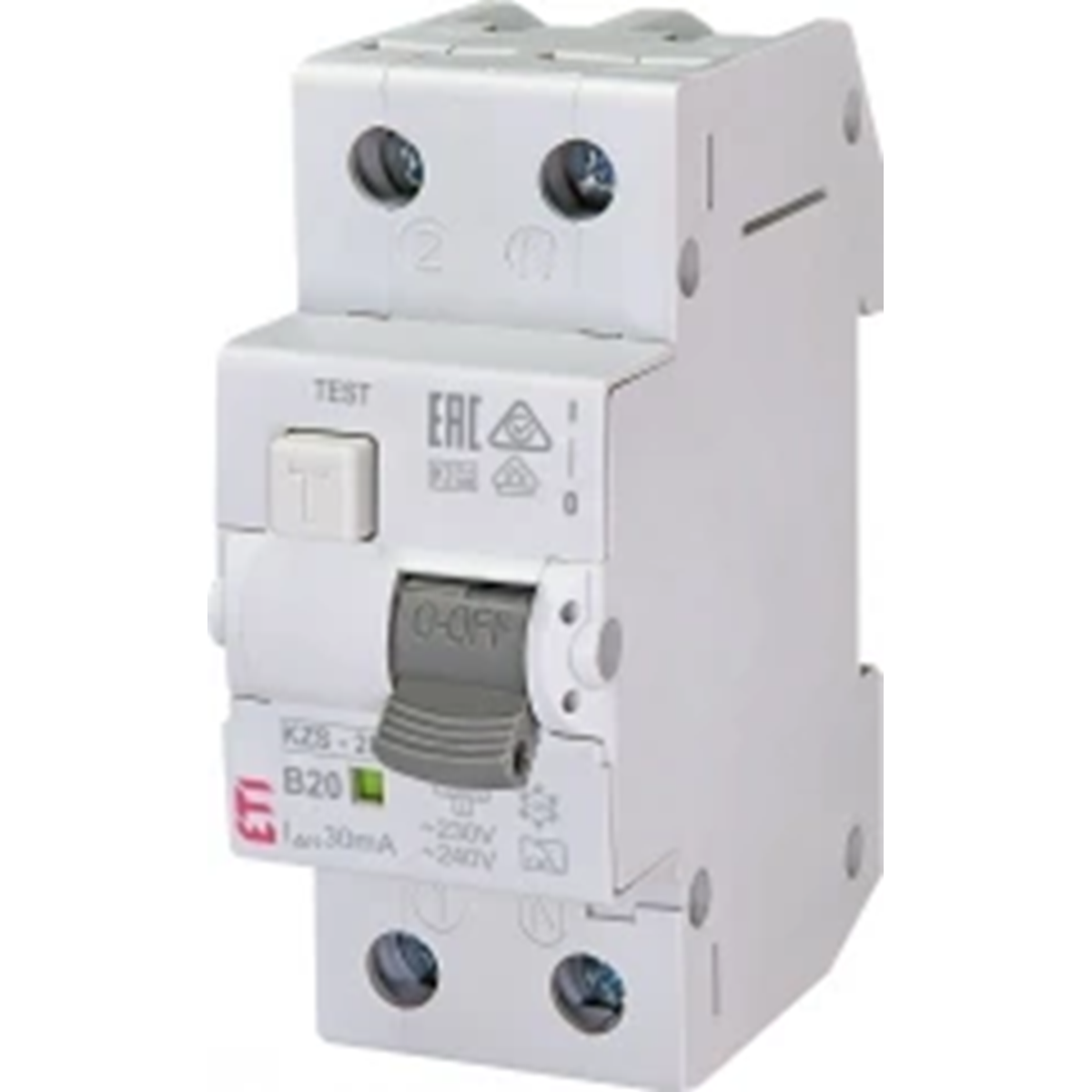

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A 002173205

Lokaler Index:

ABO099ETIP

Katalognummer:

002173205

EAN-Code:

3838895278412

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A

Residual current protection switch with overcurrent element KZS-2M B 20/0.03A, A

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: ETI POLAM

Rated voltage [V]: 230

Terminal capacity: 1-25mm2 (max. 3Nm)

Rated current [A]: 20

Siehe vollständige Beschreibung

Preis:

66,85 €

gross / stk.

(inklusive MwSt 23%)

319,86 € gross/kg.

Lieferung in 3h

bis zu 2 Wochen (Arbeitstage)

Abholung in 1 Stunde

Menge stk.

(mehrere:

1

)

Zur Zwischenablage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Dateien zum Herunterladen

Produktbeschreibung

This circuit breaker is a combination of an electric shock and overcurrent circuit breaker. It is manufactured in a two-pole version, with both poles switching off each time.

Technische Daten

Rated voltage [V]

230
Rated current [A]

20
Working temperature [°C]

From -25 to +40
Weight [g]

209
PKWIU

27.12.22.0

Terminal capacity

1-25mm2 (max. 3Nm)
Level of security

IP20/40
Trigger type

AND
Rated short-circuit capacity [kA]

10 kA

Weitere technische Daten

Number of poles (total)

2
Rated voltage

230 V
Rated current

20 A
Leakage current type

A
Rated short-circuit breaking capacity according to EN 61009

10 kA
Frequency

50 Hz
Concurrently switching neutral conductor

Yes
Built-in depth

69 mm
Connectable conductor cross section solid-core

1 ... 25 mm²

Number of protected poles

1
Rated insulation voltage Ui

500 V
Rated fault current

0.03 A
Current limiting class

3
Voltage type

AC
Release characteristic

B
Width in number of modular spacings

2
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
