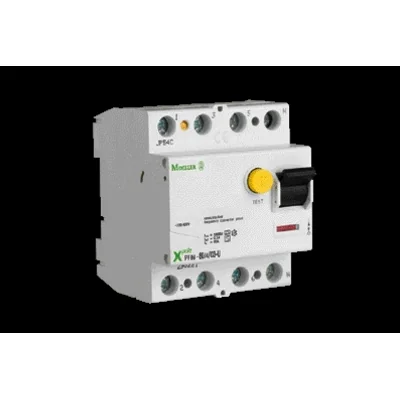

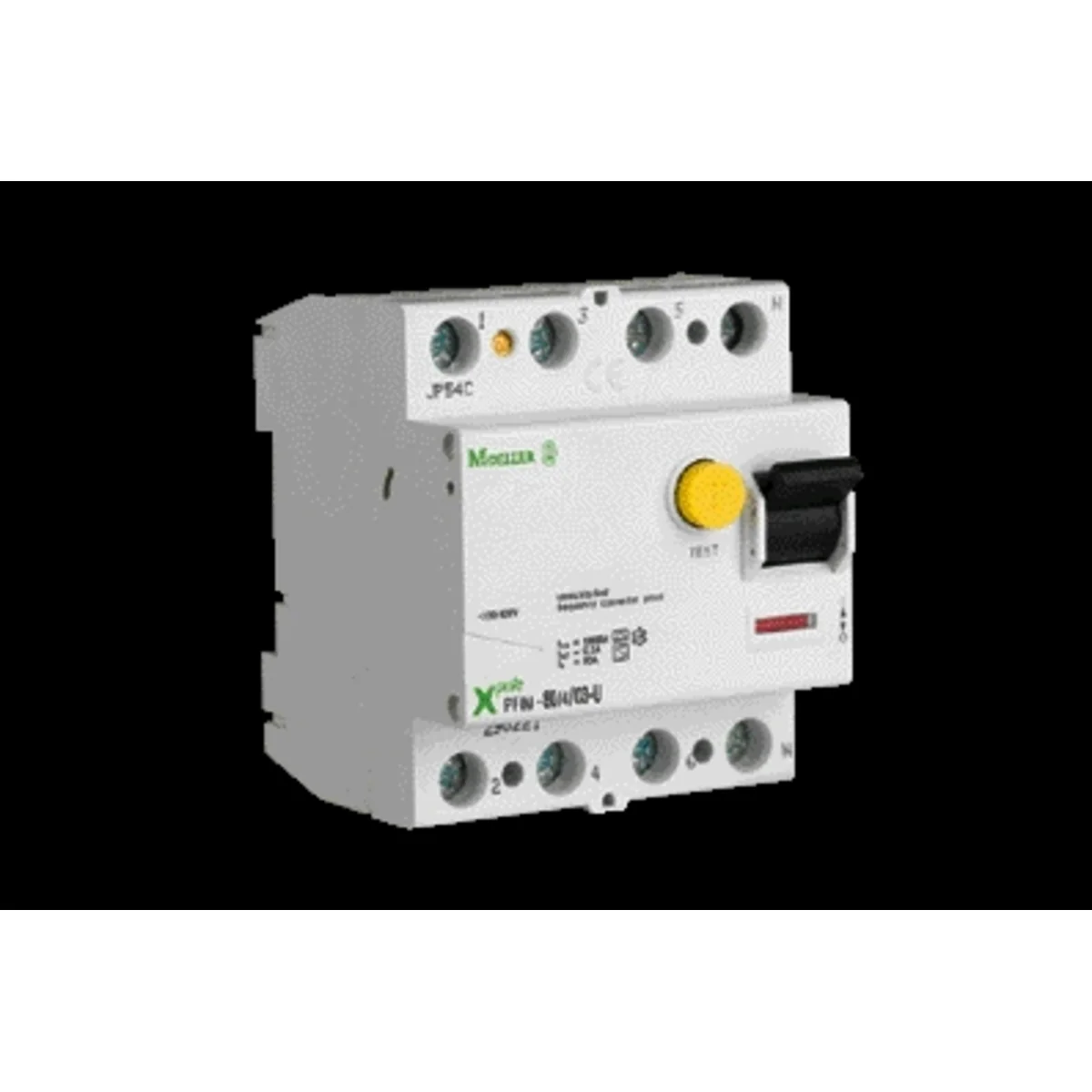

Residual current device, PFIM-63/4/01-G-MW 235458

local index:
ARP386MOEL
Catalog No:
235458
EAN code:
4015082354589
Manufacturer: EATON
Number of poles: 4
Differential current [mA]: 100
Rated current [A]: 63
Price:
227,38 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Residual current device, PFIM-63/4/01-G-MW

Technical data

  • Number of poles
    4
  • Rated current [A]
    63
  • Differential current [mA]
    100
  • Trigger type
    AC

Other technical data

  • Number of poles
    4
  • Rated current
    63 A
  • Rated insulation voltage Ui
    440 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    10 kA
  • Frequency
    50 Hz
  • With interlocking device
    Yes
  • Width in number of modular spacings
    4
  • Ambient temperature during operating
    -25 ... 60 °C
  • Connectable conductor cross section multi-wired
    1.5 ... 16 mm²
  • Rated voltage
    400 V
  • Rated fault current
    0.1 mA
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    AC
  • Short-time delayed tripping
    Yes
  • Surge current capacity
    3 kA
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Built-in depth
    70.5 mm
  • Pollution degree
    2
  • Connectable conductor cross section solid-core
    1.5 ... 35 mm²

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 30 pcs.
Weight (kg) 0,366 11,179
Volume (m3) 0,000 0,016
Width (m) 0,073 0,180
Length (m) 0,086 0,385
Depth (m) 0,075 0,230
