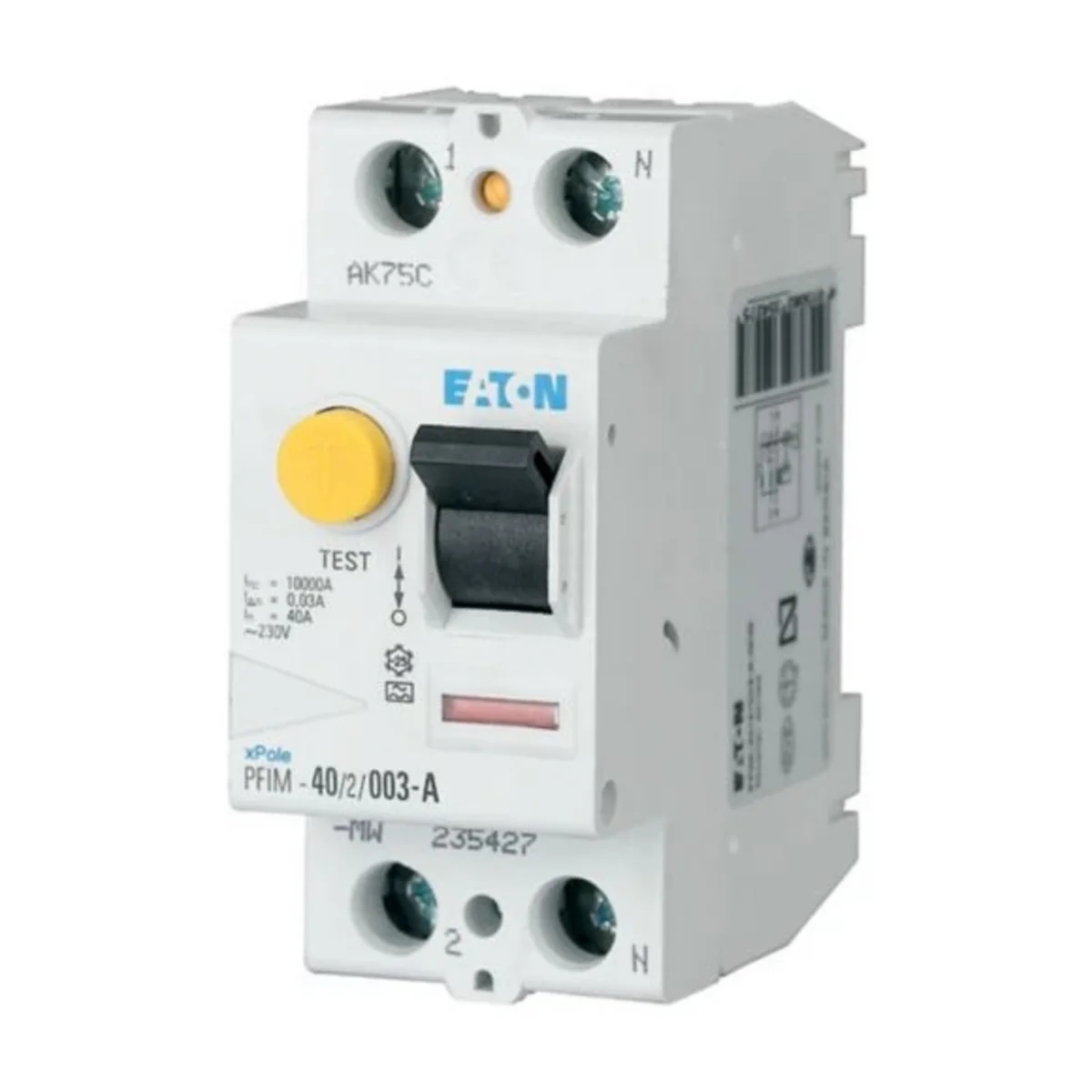

Residual current device PFIM, 2-pole 0.1A 102874
local index:
ARB022MOEL
Catalog No:
102874
EAN code:
4015081027194
Manufacturer:
EATON
Tenderness: sensitive to impulse current
Number of poles: 2
Rated current [A]: 100
Price:
125,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Residual current device for residential and commercial applications. Conditionally resistant to overvoltage 250 A.
Technical data
-
Tendernesssensitive to impulse current
-
Rated current [A]100
-
TypeAC
-
Number of poles2
-
SeriesPFIM
-
Differential current [A]0.1
Other technical data
-
Number of poles2
-
Rated current100 A
-
Rated insulation voltage Ui440 V
-
Mounting methodDIN rail
-
Selective protectionNo
-
Short-circuit breaking capacity (Icw)10 kA
-
Voltage typeAC
-
Frequency50 Hz
-
Degree of protection (IP)IP20
-
Built-in depth70.5 mm
-
Pollution degree2
-
Connectable conductor cross section solid-core1.5 ... 35 mm²
-
Rated voltage230 V
-
Rated fault current0.1 A
-
Rated impulse withstand voltage Uimp4 kV
-
Leakage current typeAC
-
Short-time delayed trippingNo
-
Surge current capacity0.25 kA
-
With interlocking deviceYes
-
Additional equipment possibleYes
-
Width in number of modular spacings2
-
Ambient temperature during operating-25 ... 60 °C
-
Connectable conductor cross section multi-wired1.5 ... 16 mm²
-
Explosion-proofNo
Bulk packaging
| A kind of package | Skrzynia | Karton |
| Quantity | 1 pcs. | 60 pcs. |
| Weight (kg) | 0,211 | 12,859 |
| Volume (m3) | 0,000 | 0,016 |
| Width (m) | 0,037 | 0,180 |
| Length (m) | 0,086 | 0,385 |
| Depth (m) | 0,075 | 0,230 |
