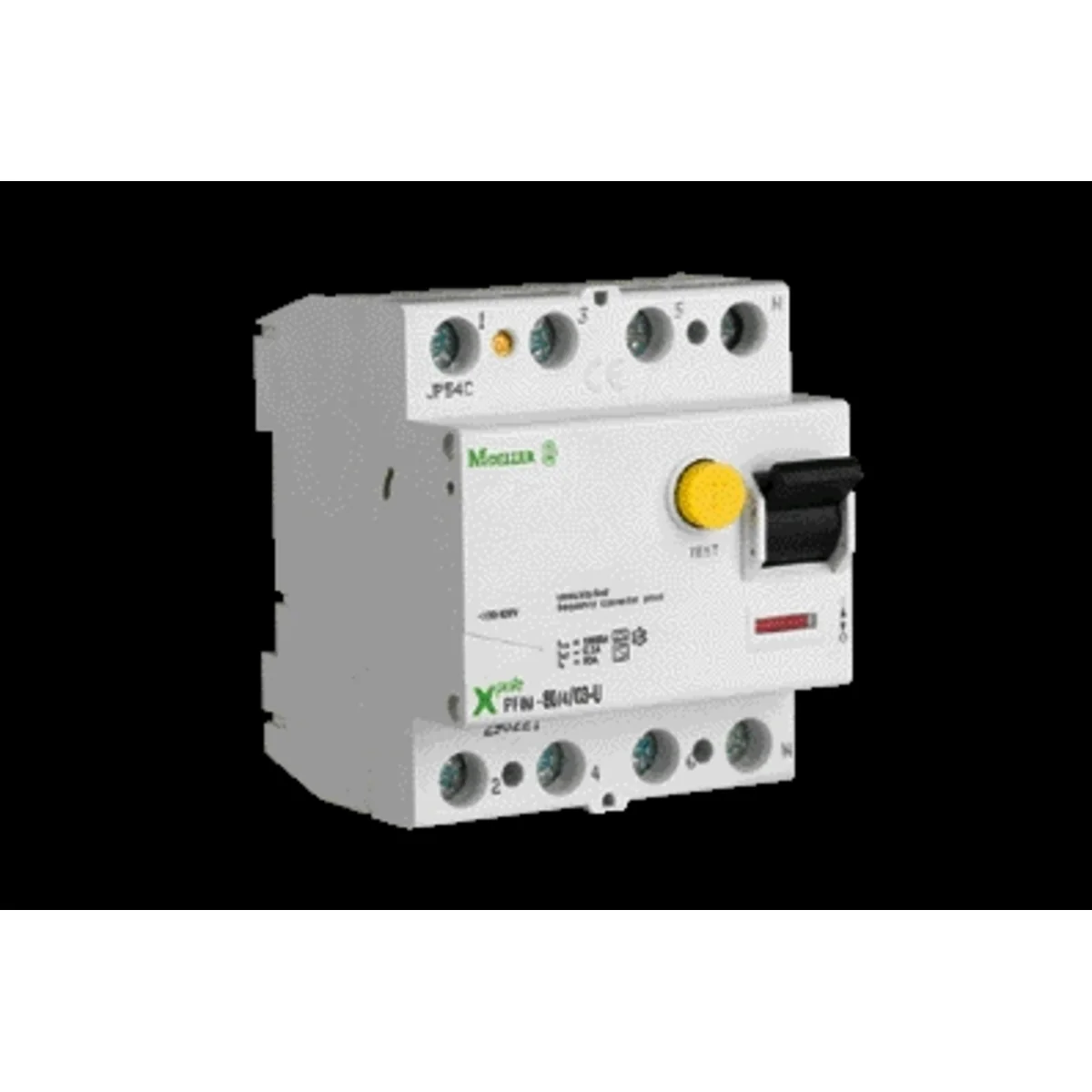

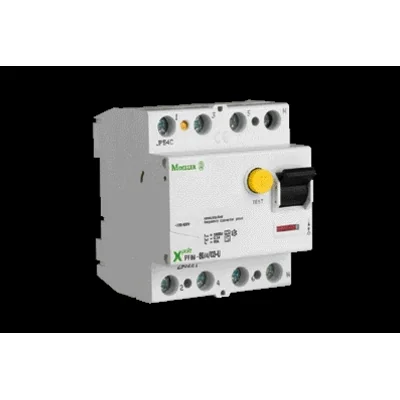

Residual current device, PFIM-100/4/01 102824
local index:
ARP359MOEL
Catalog No:
102824
EAN code:
4015081026692
Price:
176,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Residual current circuit breakers PFIM - withstand current surge 250 A, type AC.
Technical data
-
Number of poles4
-
Rated current [A]100
-
Differential current [mA]100
Other technical data
-
Number of poles4
-
Rated current100 A
-
Rated insulation voltage Ui440 V
-
Mounting methodDIN rail
-
Selective protectionNo
-
Short-circuit breaking capacity (Icw)10 kA
-
Voltage typeAC
-
Frequency50 Hz
-
Degree of protection (IP)IP20
-
Built-in depth70.5 mm
-
Pollution degree2
-
Connectable conductor cross section solid-core1.5 ... 35 mm²
-
Rated voltage400 V
-
Rated fault current0.1 A
-
Rated impulse withstand voltage Uimp4 kV
-
Leakage current typeAC
-
Short-time delayed trippingNo
-
Surge current capacity0.25 kA
-
With interlocking deviceYes
-
Additional equipment possibleYes
-
Width in number of modular spacings4
-
Ambient temperature during operating-25 ... 60 °C
-
Connectable conductor cross section multi-wired1.5 ... 16 mm²
-
Explosion-proofNo
Bulk packaging
| A kind of package | Skrzynia | Karton | Karton |
| Quantity | 1 pcs. | 3 pcs. | 30 pcs. |
| Weight (kg) | 0,131 | 0,392 | 11,959 |
| Volume (m3) | 0,000 | 0,000 | 0,016 |
| Width (m) | 0,072 | 0,073 | 0,180 |
| Length (m) | 0,082 | 0,086 | 0,385 |
| Depth (m) | 0,078 | 0,075 | 0,230 |
