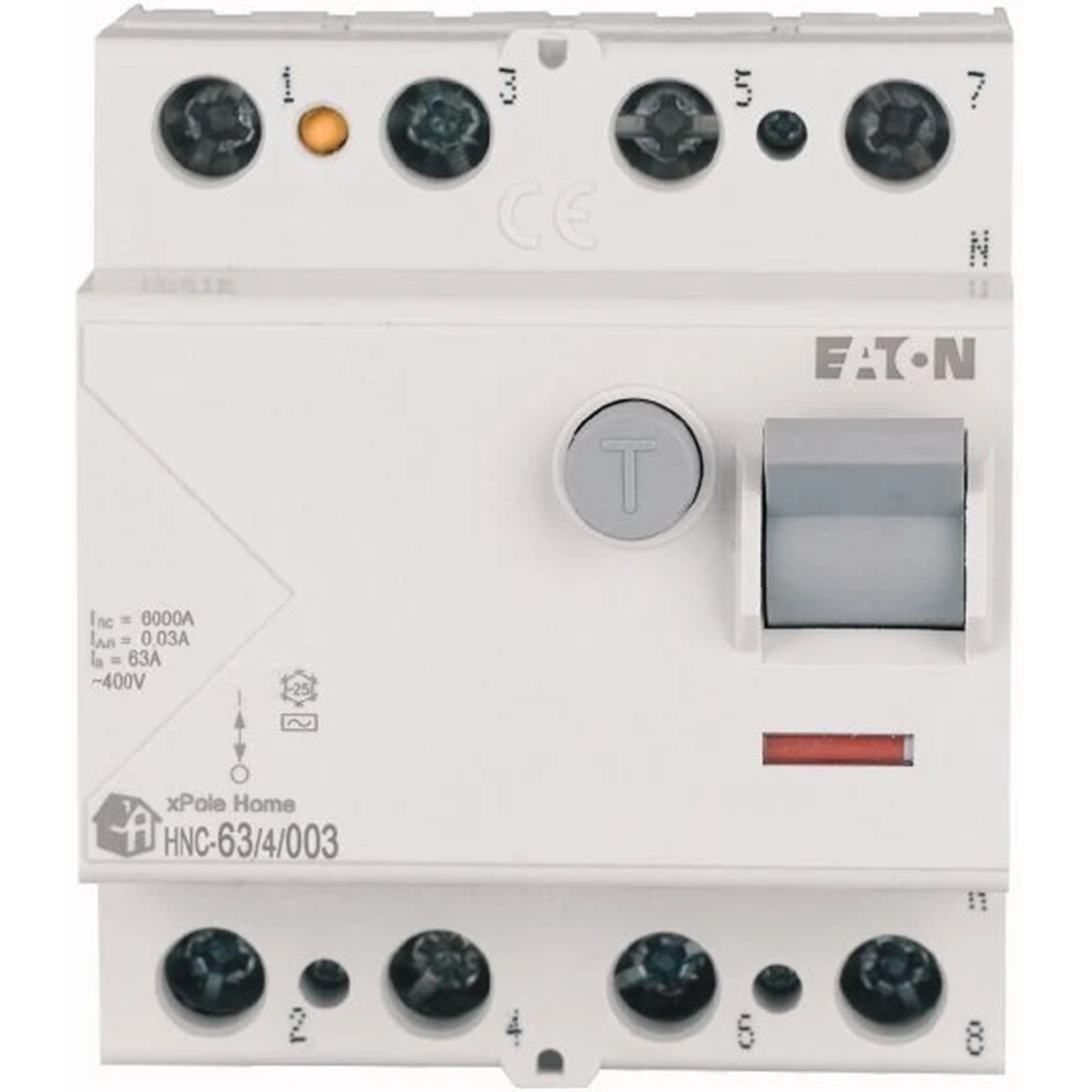

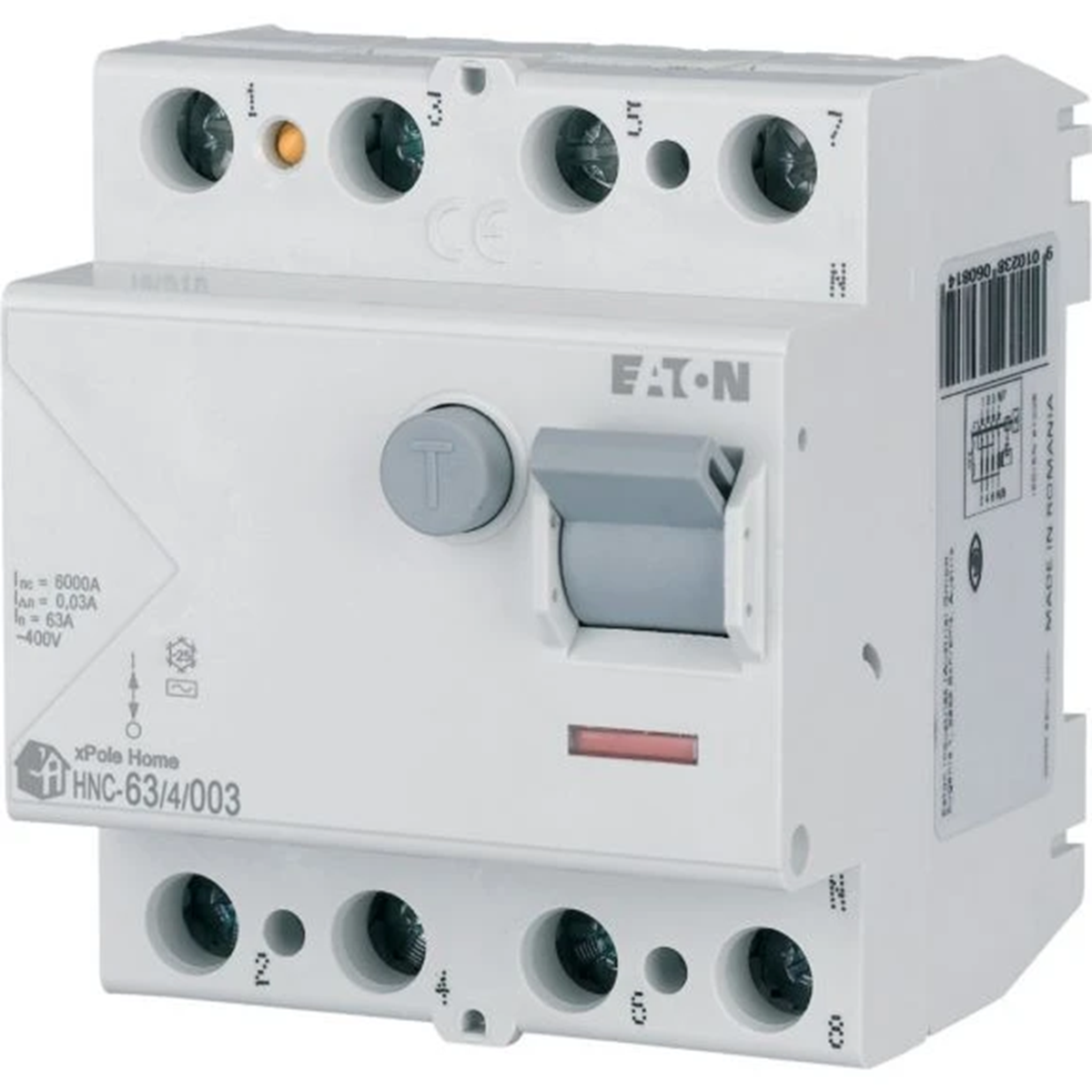

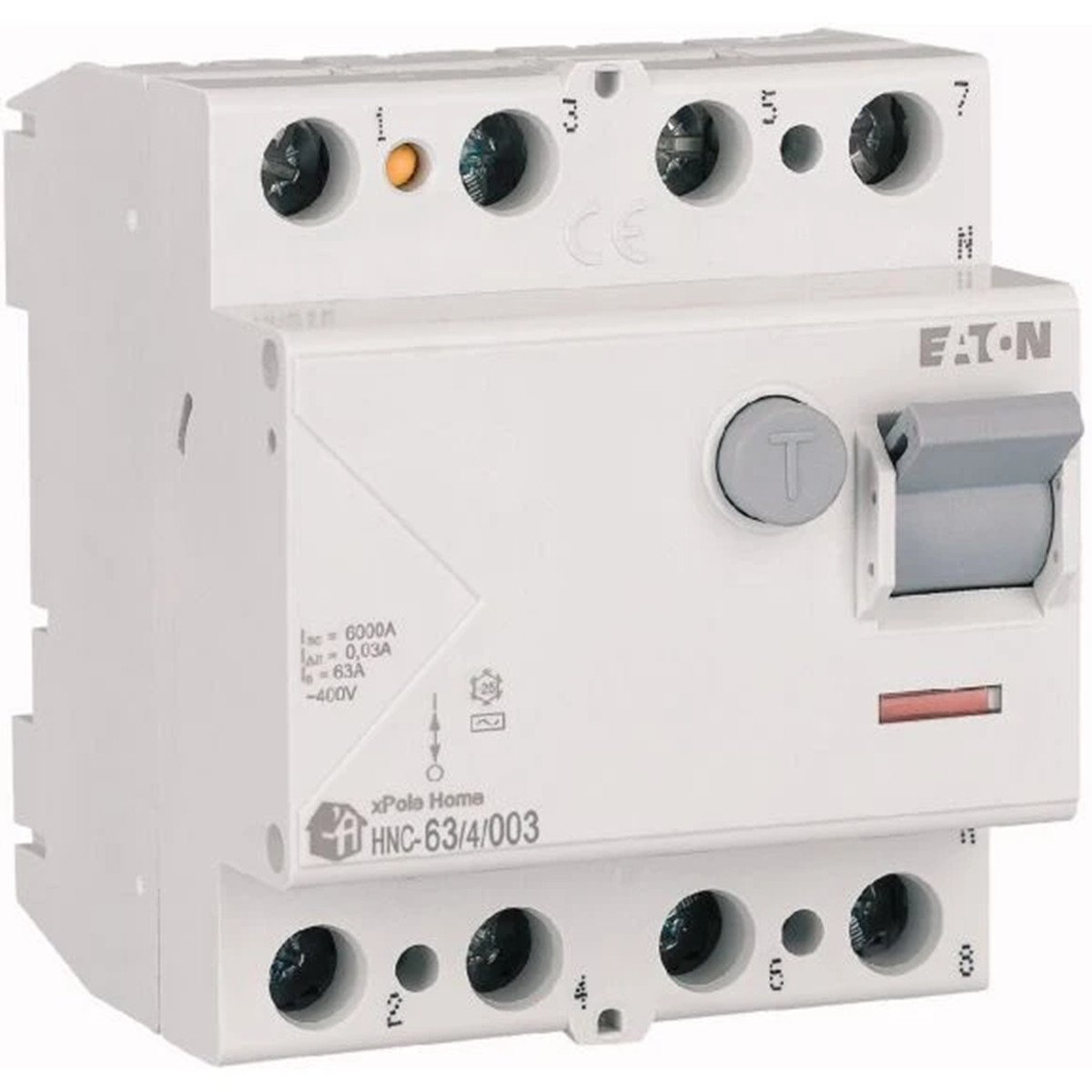

Residual current circuit breaker HNC-63/4/003 63A 4P 6kA 230/400V IP20 type AC 194695

local index:
ARP079MOEL
Catalog No:
194695
EAN code:
9010238060852
Manufacturer: EATON
Number of poles: 4
Installation: On the TH-35 rail
Rated insulation voltage [V]: 440
Price:
70,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 125 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The new xPole Home product series, comprising the entire range of HN, HNB combined and HNC residual current circuit breakers, has been developed with maximum design safety and efficiency in mind. This series is characterized by a simplified design, reliability and full compliance with the relevant standards. In addition, the xPole Home series devices are easily accessible and easy to install. xPole Home circuit breakers for residential applications are easily identified by the gray house pictogram on each product in this series, which means increased safety. Simplified design, and at the same time resistance and resistance to aggressive environments are the main advantages of EATON products. All xPole Home circuit breakers have a wide range of proven features that further enhance operational safety and ease of use. The new EATON modular switchgear can be equipped with accessories: auxiliary contacts, shunt release, undervoltage release, reclosing device, connecting bars, padlock lock.

Technical data

  • Number of poles
    4
  • Rated insulation voltage [V]
    440
  • Level of security
    IP20
  • Width [number of modules]
    4
  • Type
    AC
  • Rated impulse voltage [kV]
    4
  • Differential current [A]
    0.03
  • Electrical durability [Number of operations]
    >20000
  • PKWIU
    27.12.22.0
  • Installation
    On the TH-35 rail
  • Rated current [A]
    63
  • Degree of contamination
    2
  • Mechanical durability [Number of connections]
    >4000
  • Short-circuit strength [kA]
    6
  • Maximum operating voltage [V]
    230/400
  • Voltage type
    AC
  • Rated switching capacity [A]
    630

Other technical data

  • Number of poles
    4
  • Rated current
    63 A
  • Rated insulation voltage Ui
    440 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    6 kA
  • Voltage type
    AC
  • Frequency
    50 Hz
  • Degree of protection (IP)
    IP20
  • Built-in depth
    45 mm
  • Pollution degree
    2
  • Connectable conductor cross section solid-core
    1.5 ... 35 mm²
  • Rated voltage
    230 V
  • Rated fault current
    0.03 A
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    AC
  • Short-time delayed tripping
    No
  • Surge current capacity
    0.25 kA
  • With interlocking device
    Yes
  • Additional equipment possible
    Yes
  • Width in number of modular spacings
    4
  • Ambient temperature during operating
    -25 ... 60 °C
  • Connectable conductor cross section multi-wired
    1.5 ... 16 mm²
  • Explosion-proof
    No

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 30 pcs.
Weight (kg) 0,322 9,660
Volume (m3) 0,000 0,016
Width (m) 0,070 0,180
Length (m) 0,080 0,385
Depth (m) 0,076 0,230
