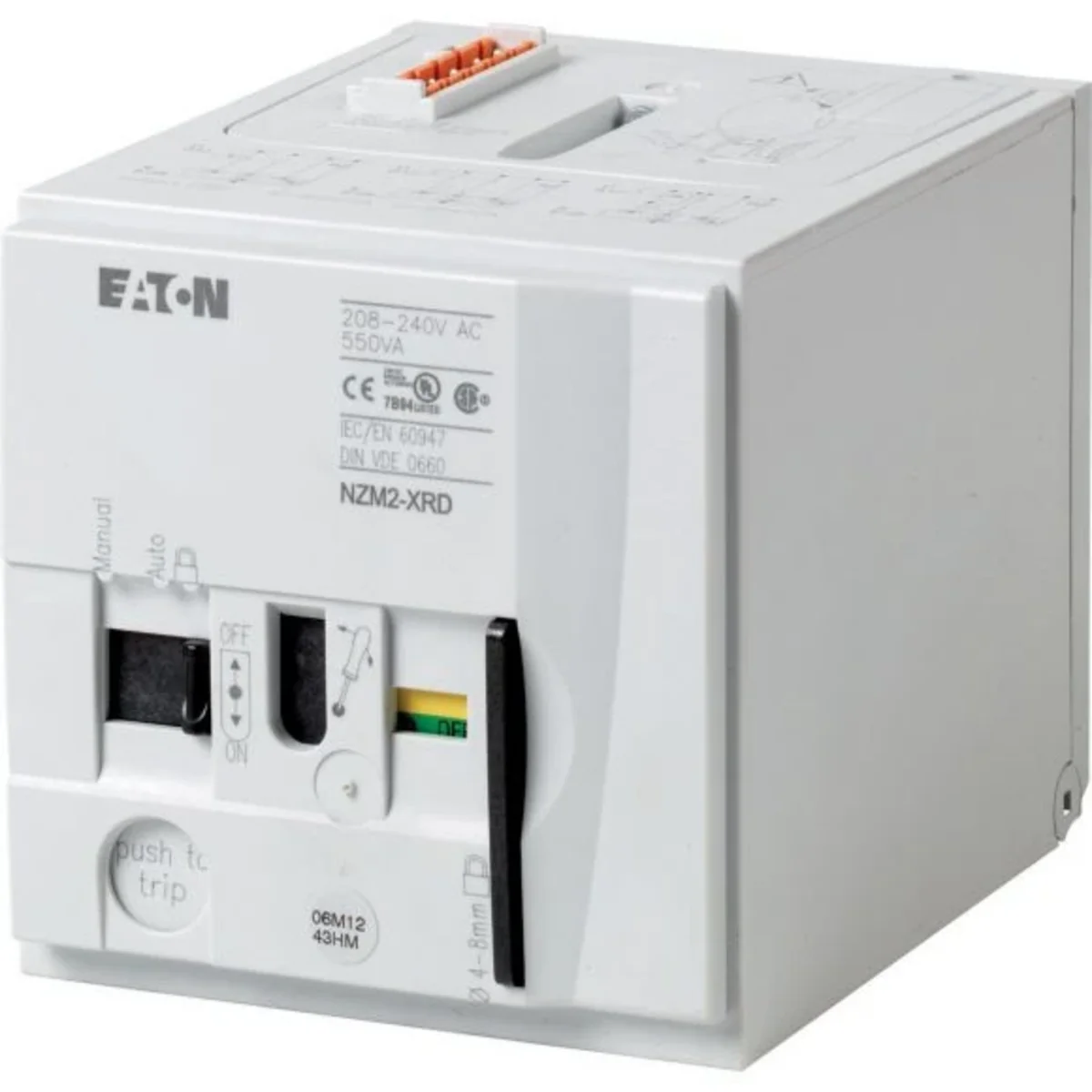

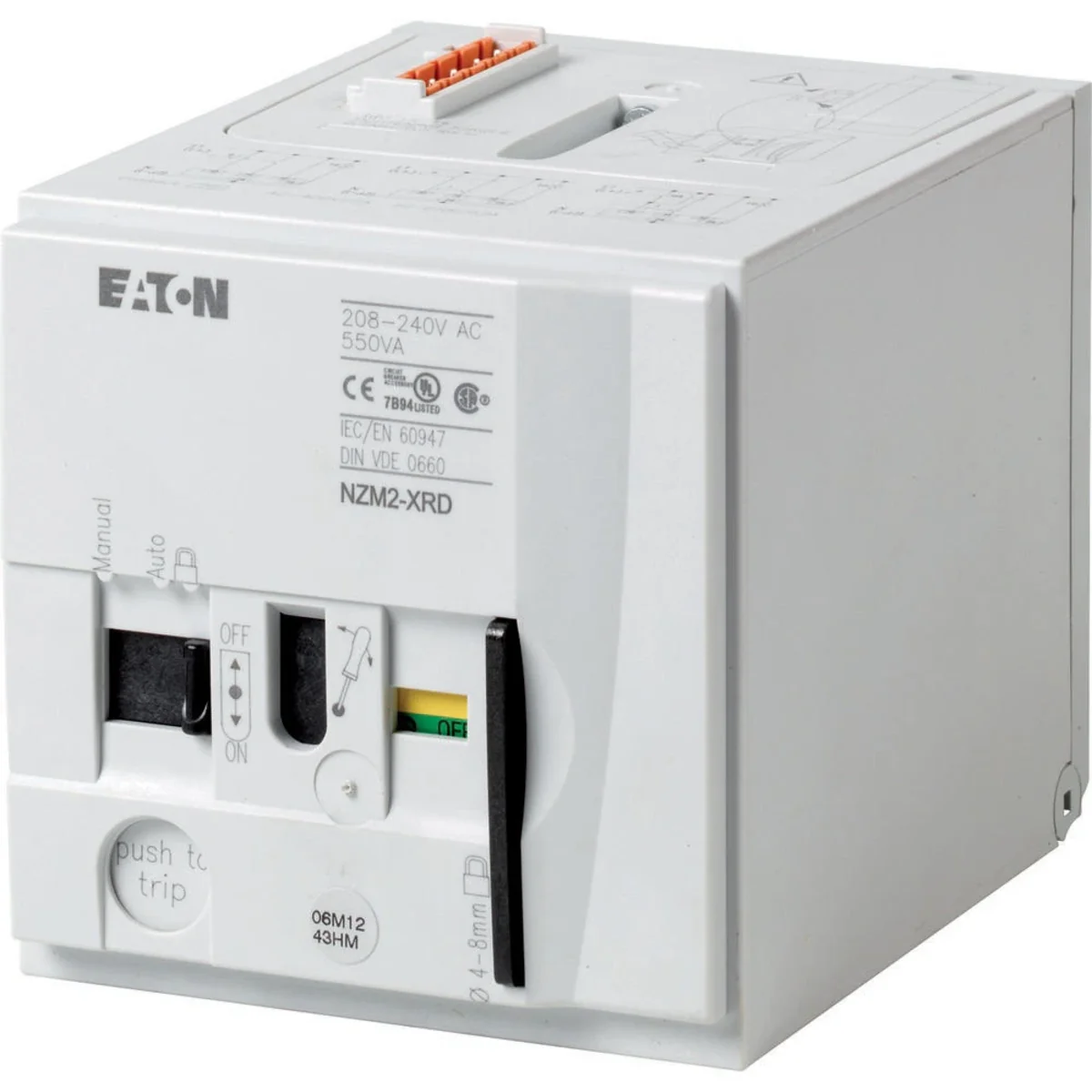

Remote drive for NZM2, NZM2-XRD208-240AC 115391

local index:
ASN526MOEL
Catalog No:
115391
EAN code:
4015081151233
Manufacturer: EATON
Rated control circuit voltage [V]: 230
Price:
484,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Remote drives. For remote closing of circuit breakers and circuit breakers. Enable, disable and reset with continuous and pulse control. On time 110–170ms, off time 110–170ms. Local manual activation possible. In position 0, the remote drive can be locked with 3 padlocks (shackle thickness: 4/8 mm). Sliding switch for “Auto“ or “Manual“. max. number of auxiliary contacts:
– Normal auxiliary contacts: 2
– Trip indicator: 1
Cannot be combined with PN power switch…
Cannot be combined with mechanical interlock.

Technical data

  • Rated control circuit voltage [V]
    230

Other technical data

  • Type of switch drive
    Motor drive
  • Rated control supply voltage AC 60 Hz
    208 ... 240 V
  • Voltage type for actuating
    AC
  • Rated control supply voltage AC 50 Hz
    208 ... 240 V
  • Rated control supply voltage DC
    0 ... 0 V

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 1,330
Volume (m3) 0,002
Width (m) 0,105
Length (m) 0,150
Depth (m) 0,105
