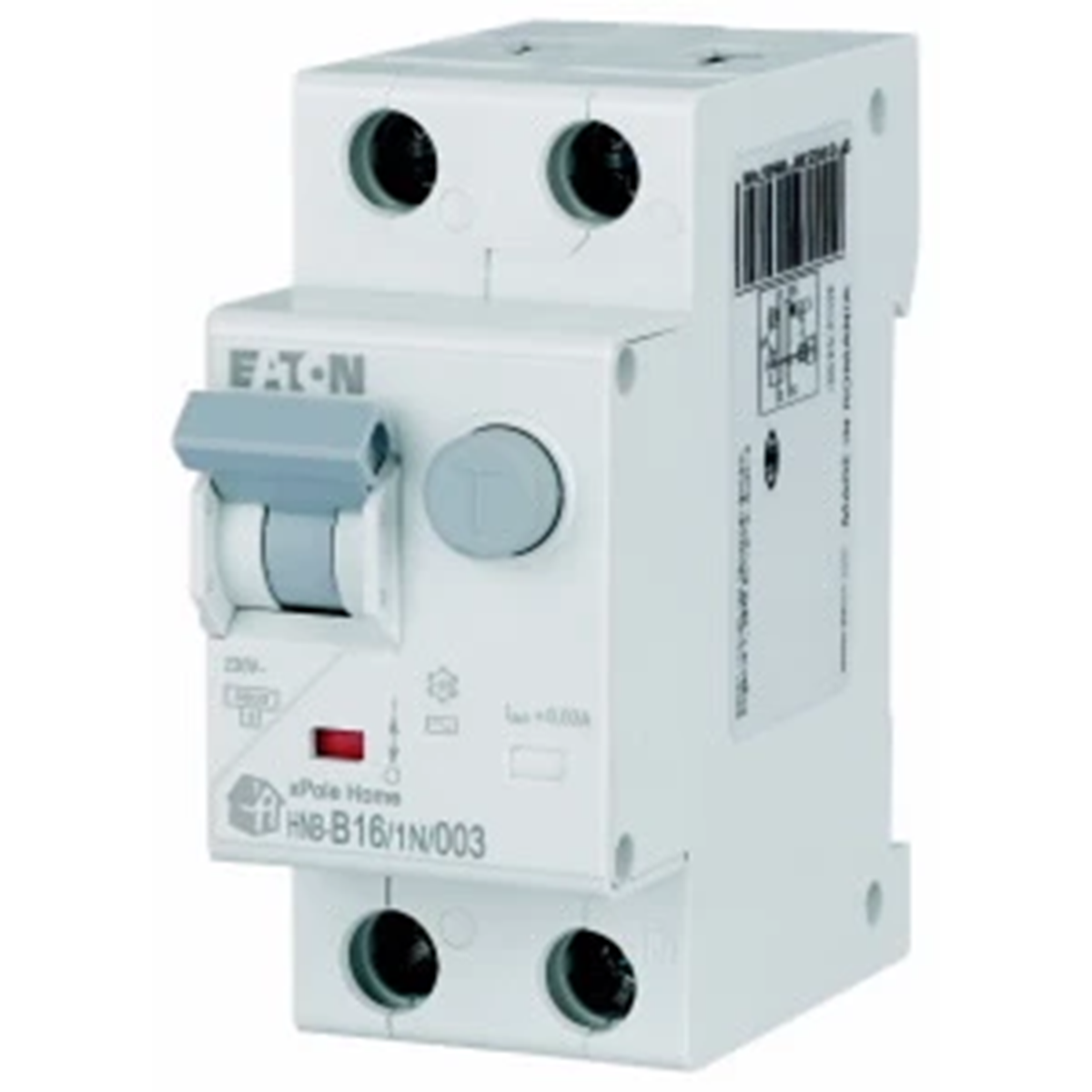

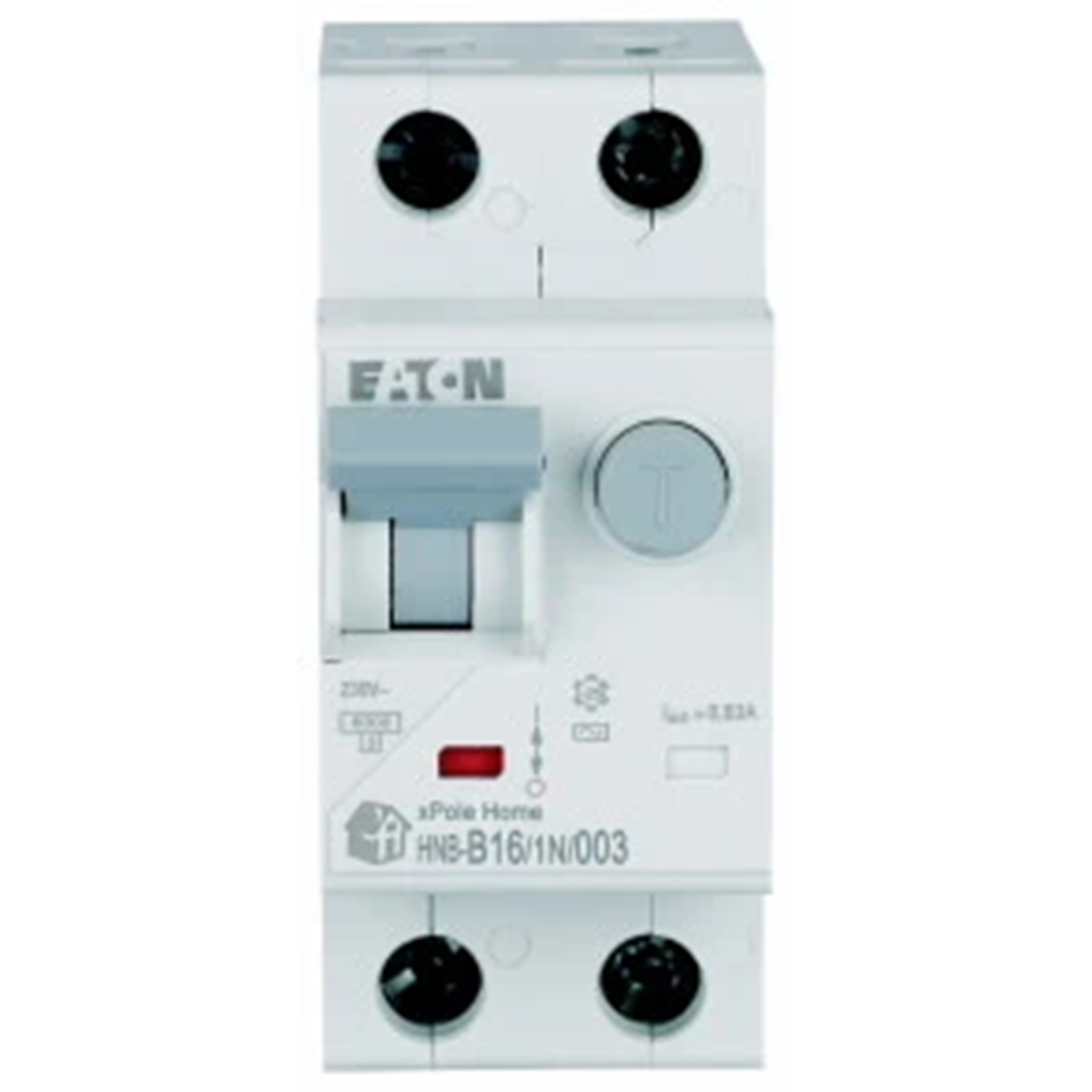

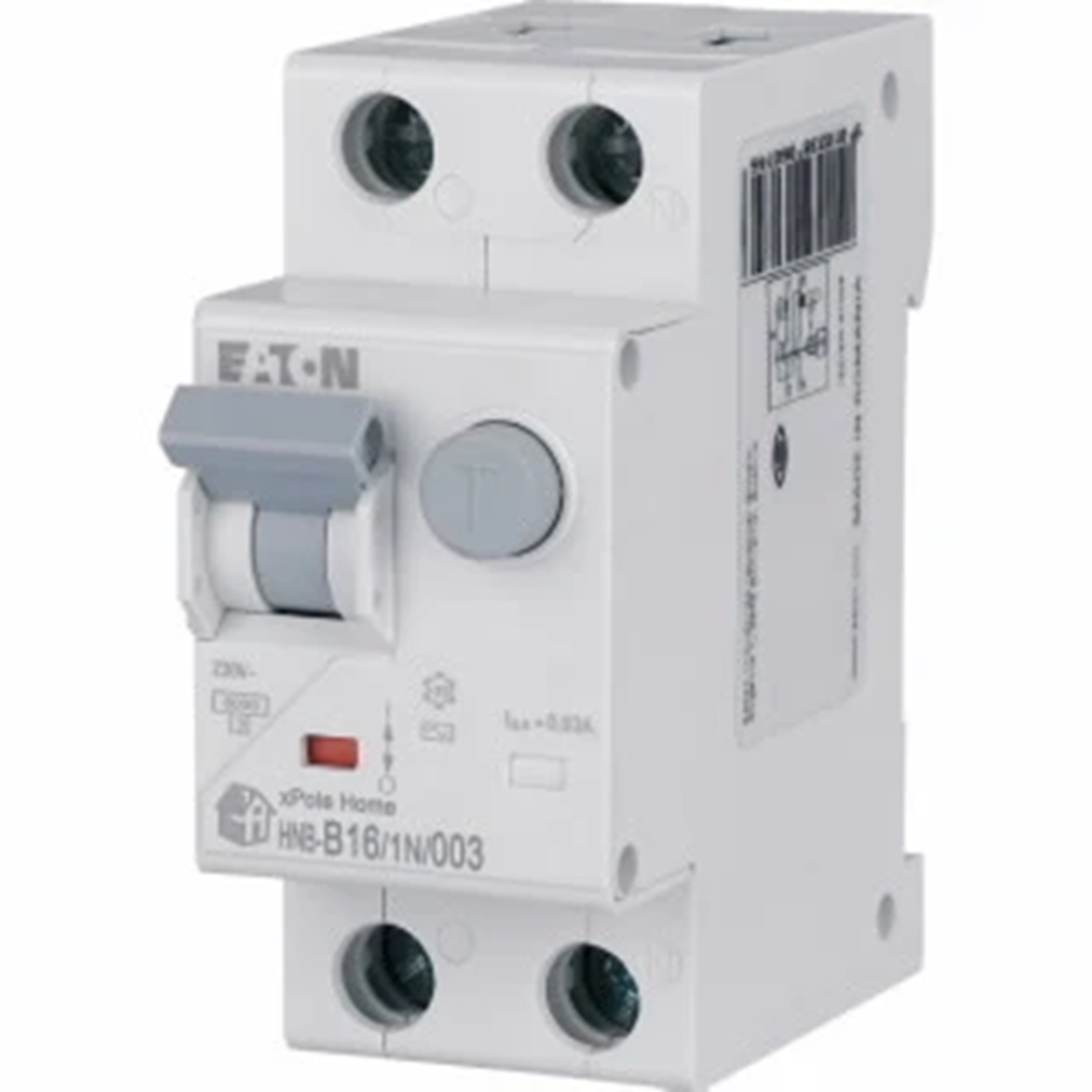

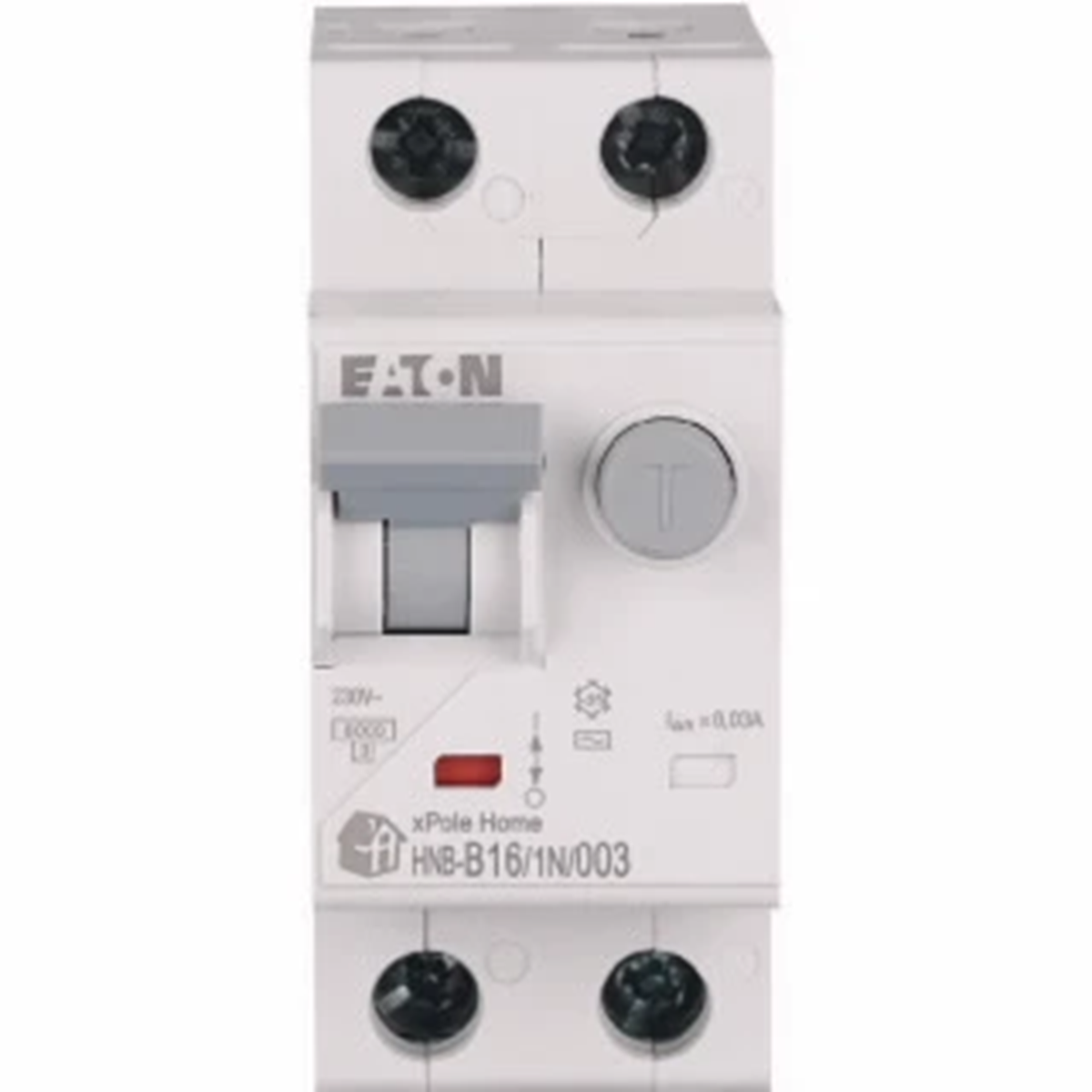

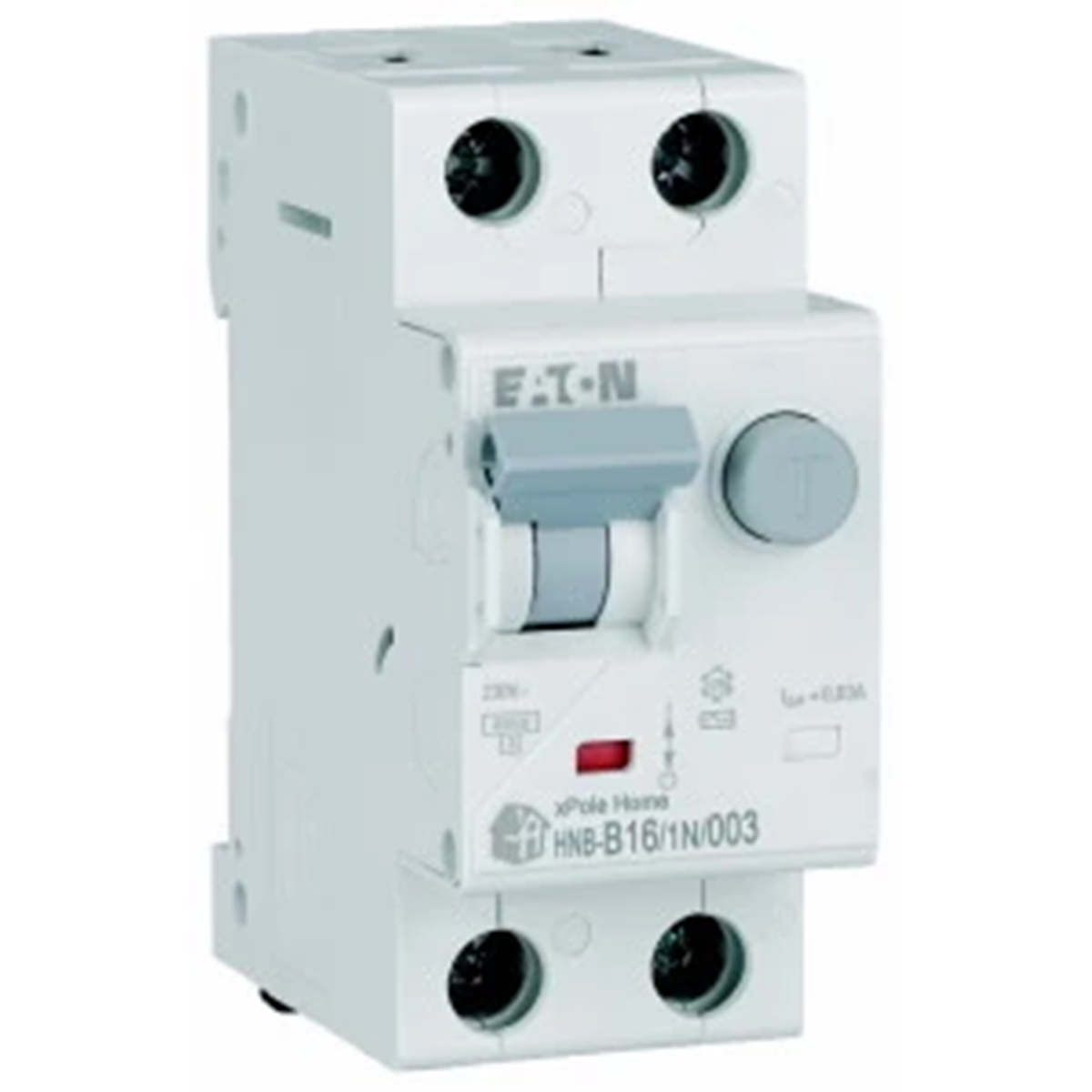

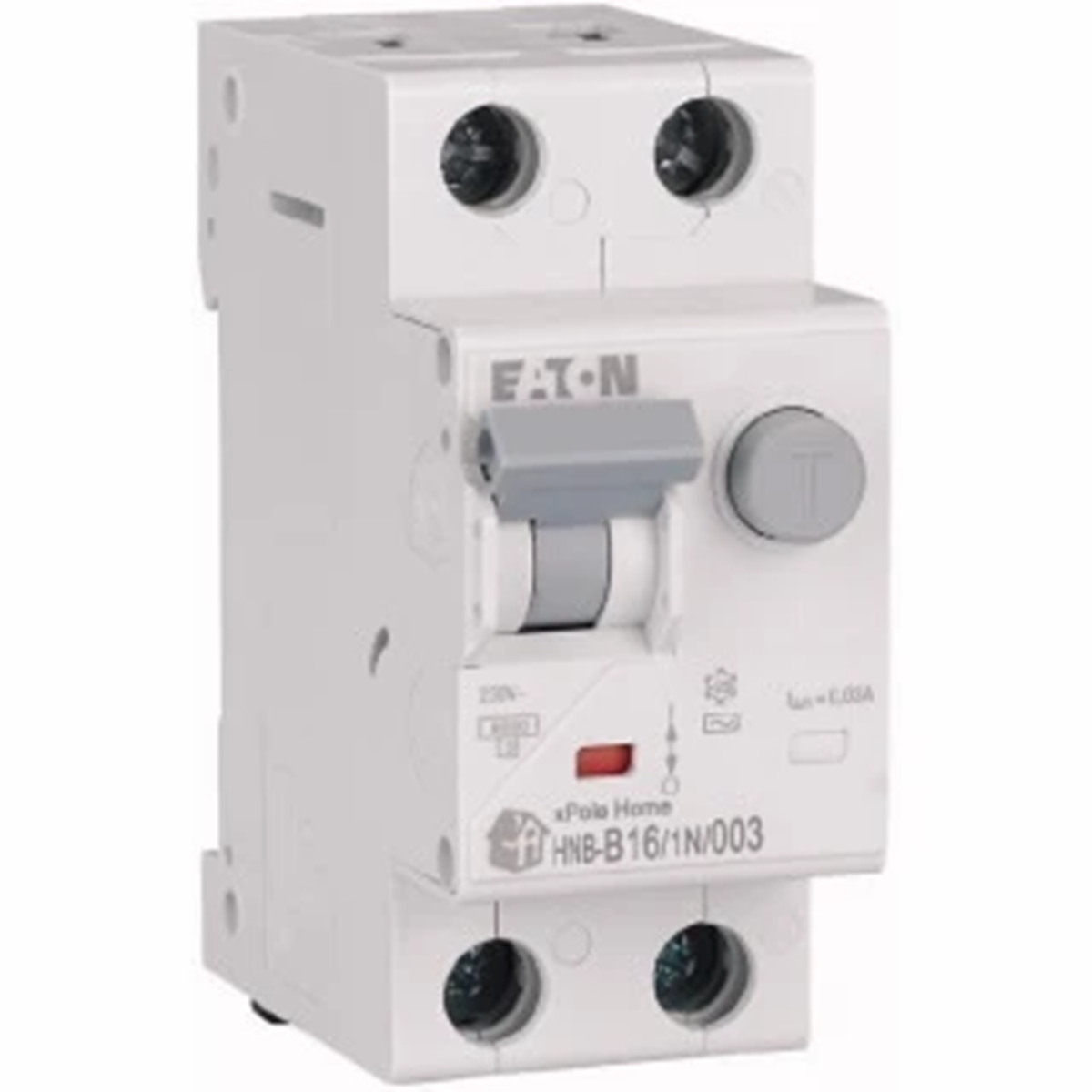

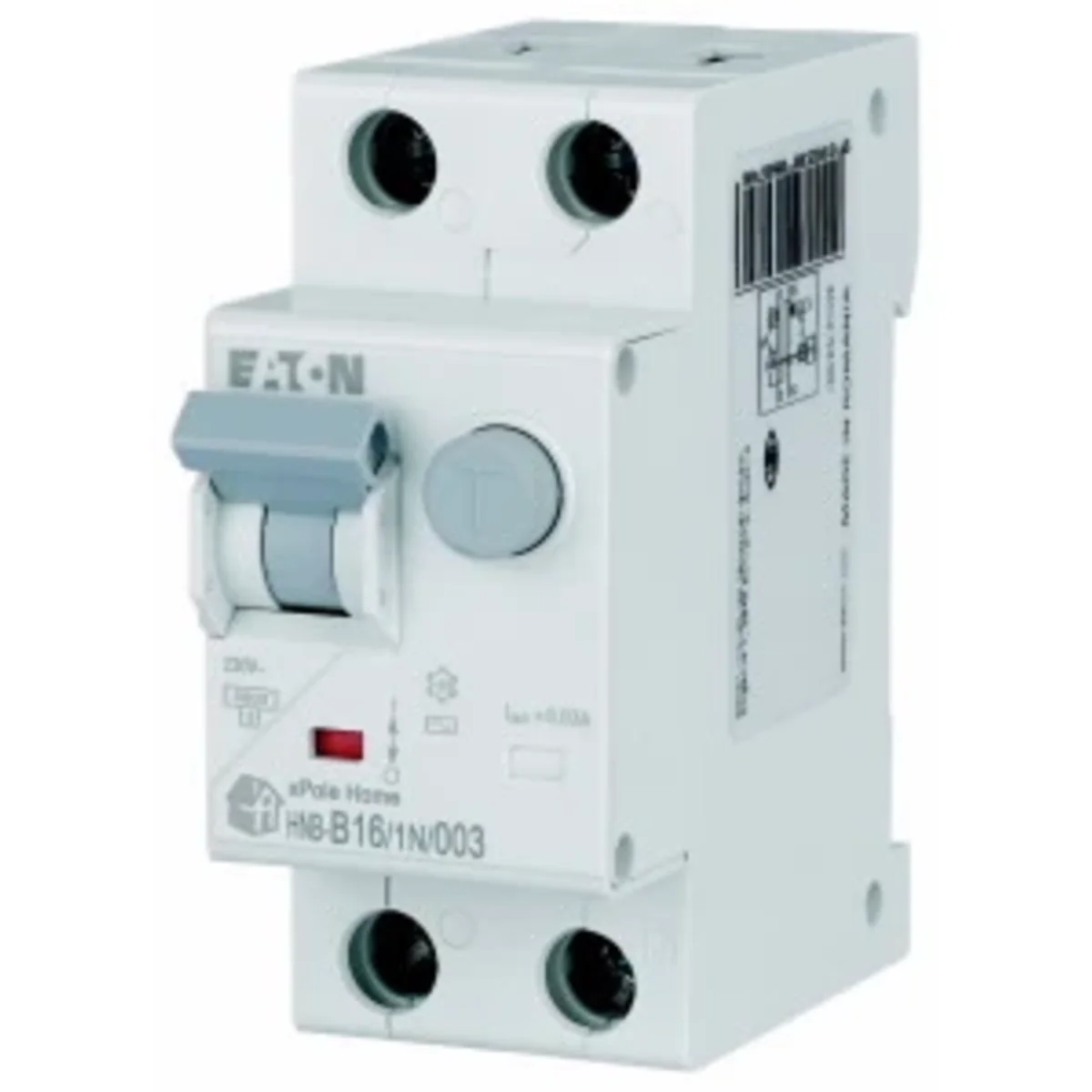

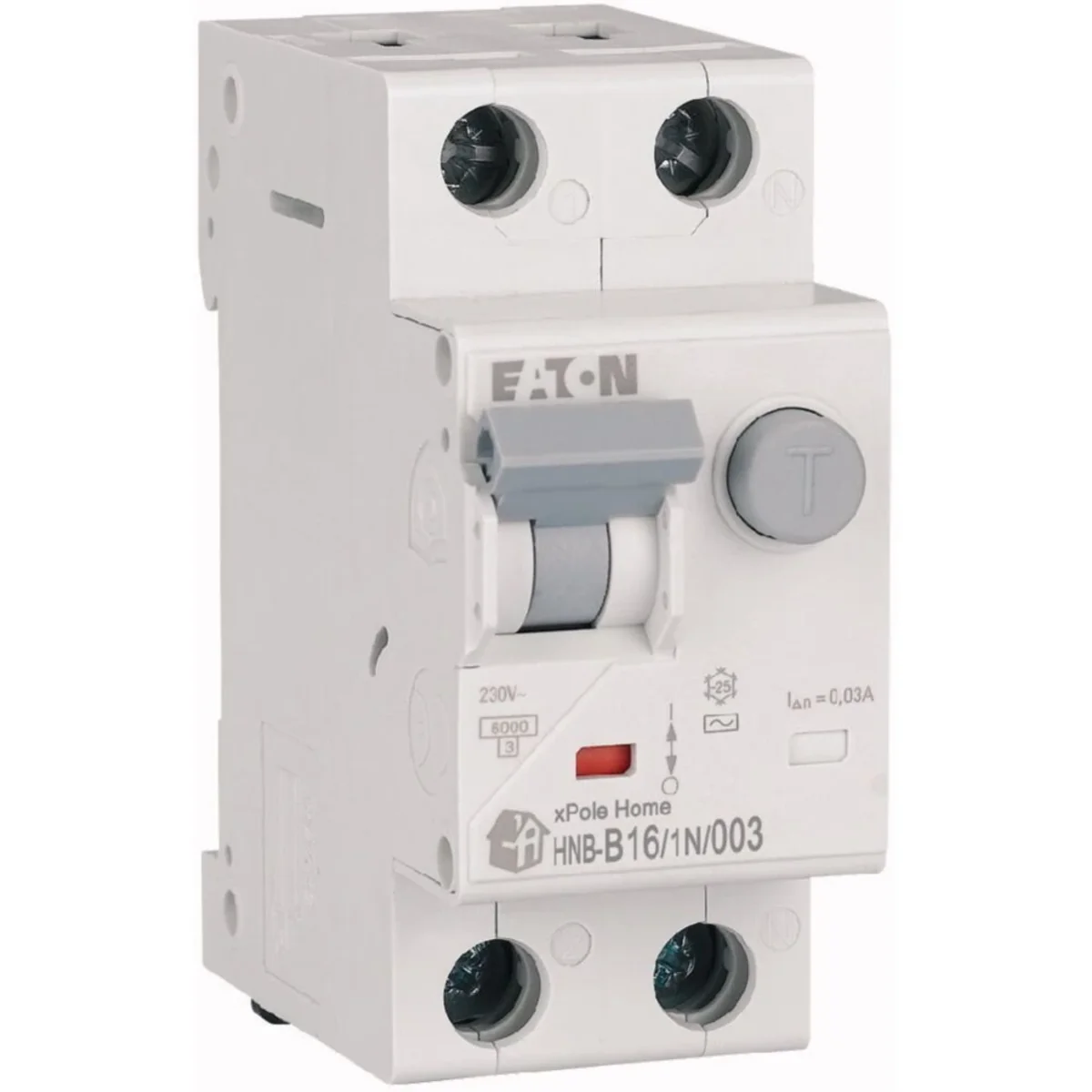

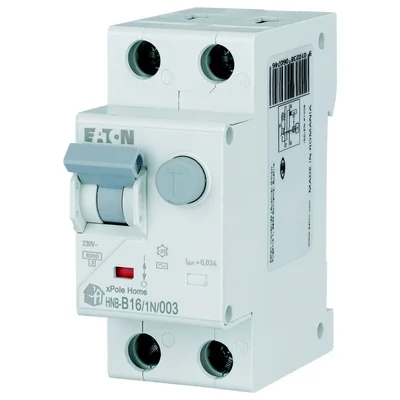

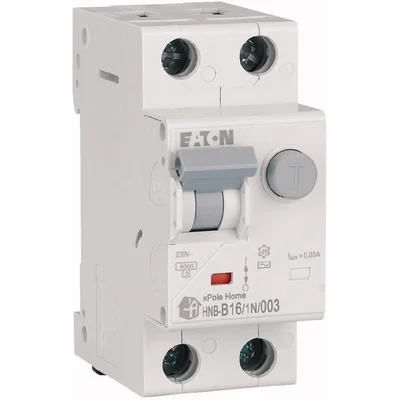

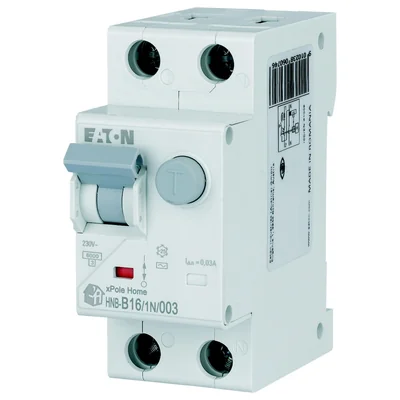

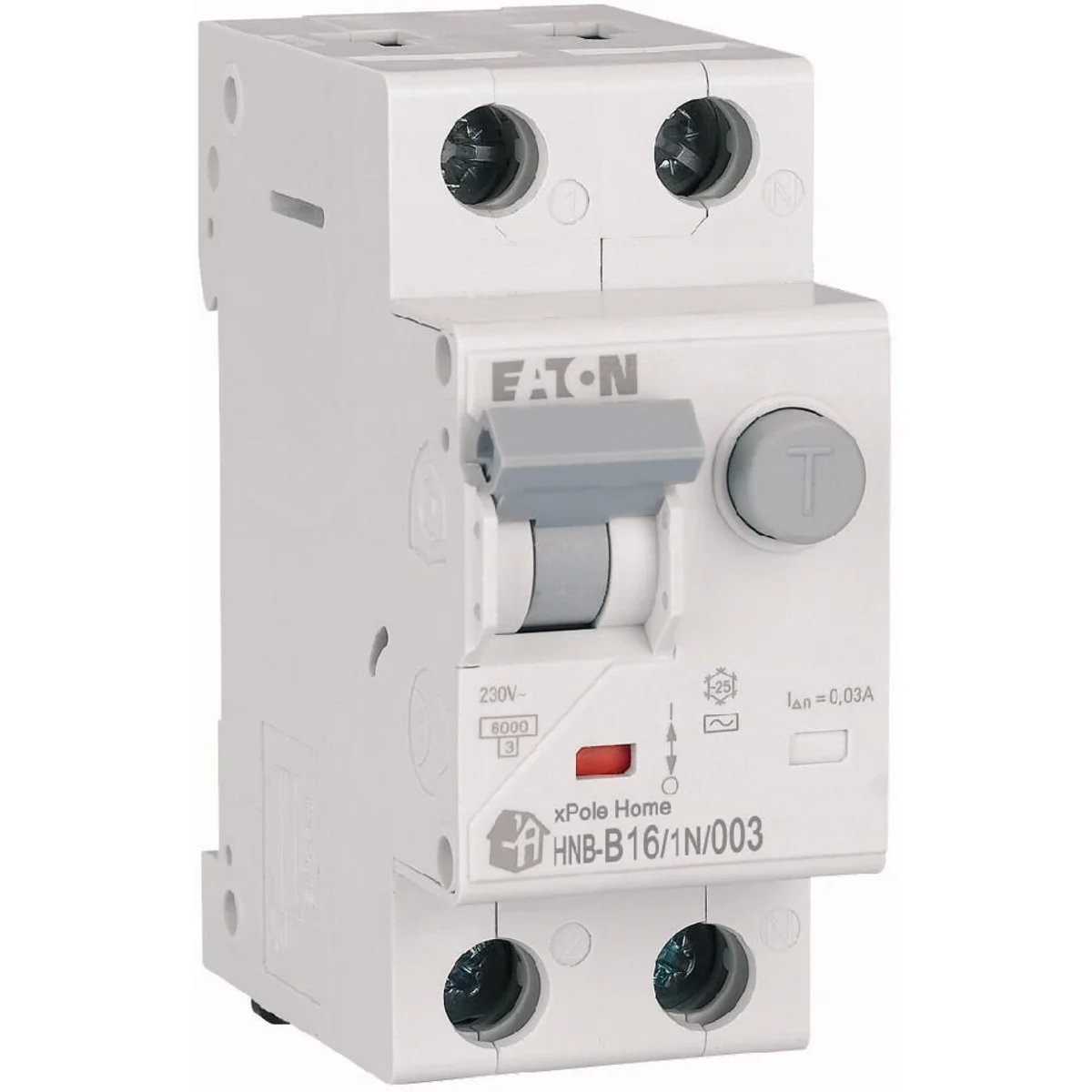

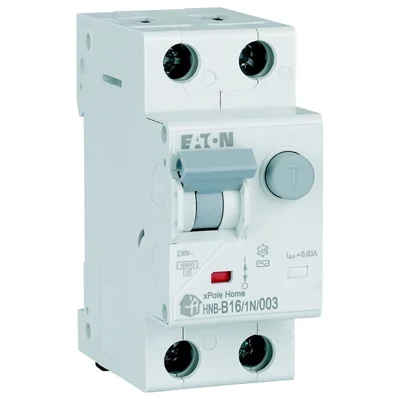

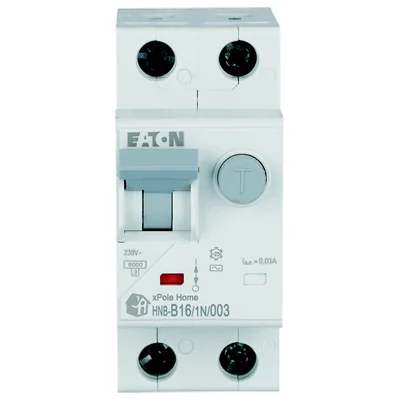

RCD 1P+N-pole B 16A 30mA 6kA AC 195121

Índice local:
ARB099MOEL
Número de catálogo:
195121
Código EAN:
9010238060746
Fabricante: EATON
Characteristic: b
Tenderness: AC
Depth [mm]: 45
Los más vendidos
Precio:
30,06 €
gross / uds.
(IVA incluido 23%)
Precio más bajo a partir de 30 días antes del descuento: 31,76 € gross -1,70 €
Precio base: 32,71 € gross
Entrega en 3h
Accesible 186 uds.
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

RCD 1P+N-pole B 16A 30mA 6kA AC

Datos técnicos

  • Characteristic
    b
  • Depth [mm]
    45
  • Number of poles
    1+N
  • Installation
    On the TH-35 rail
  • Rated insulation voltage [V]
    500
  • Rated current [A]
    16
  • Degree of contamination
    2
  • Width [mm]
    35
  • Electrical endurance (number of cycles)
    >4000
  • Clamps
    Elevator Rail
  • Rated impulse voltage [kV]
    4
  • Terminal cross-section [mm²]
    1-25
  • Maximum fuse [A]
    100
  • Tenderness
    AC
  • Energy limitation class
    3
  • Fixing
    Clip
  • Rated voltage [V]
    230
  • Differential current [mA]
    thirty
  • Level of security
    IP20
  • Width [number of modules]
    2
  • Height [mm]
    80
  • Mechanical durability (number of cycles)
    >20000
  • Rated switching capacity [kA]
    6
  • Voltage type
    AC
  • Surge current resistance [A]
    250
  • PKWIU
    27.12.22.0

Otros datos técnicos

  • Number of poles (total)
    2
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated fault current
    0.03 A
  • Current limiting class
    3
  • Rated short-circuit breaking capacity according to IEC 60947-2
    0 kA
  • Disconnection characteristic
    Undelayed
  • Voltage type
    AC
  • Release characteristic
    B
  • With interlocking device
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    2
  • Flush-mounted installation
    No
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Number of protected poles
    1
  • Rated insulation voltage Ui
    500 V
  • Rated current
    16 A
  • Leakage current type
    AC
  • Rated short-circuit breaking capacity according to EN 61009
    6 kA
  • Rated short-circuit breaking capacity Icn according to EN 61009-1
    6 kA
  • Surge current capacity
    0.25 kA
  • Frequency
    50 Hz
  • Concurrently switching neutral conductor
    Yes
  • Over voltage category
    3
  • Ambient temperature during operating
    -25 ... 40 °C
  • Built-in depth
    69.5 mm
  • Anti-nuisance tripping version
    No
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Detalles del fabricante

  • Fabricante
    Eaton Electric Sp. z o.o.
  • Dirección
    80-299 Gdańsk Galaktyczna 30 Polska

Empaquetado a granel

una especie de paquete Skrzynia Karton Skrzynia Karton
Cantidad 1 uds. 60 uds. 1 uds. 60 uds.
Peso (kg) 0,216 13,185 0,216 13,185
Volumen (m3) 0,000 0,016 0,000 0,016
Ancho (m) 0,037 0,180 0,037 0,180
Longitud (m) 0,086 0,385 0,086 0,385
Profundidad (m) 0,075 0,230 0,075 0,230
