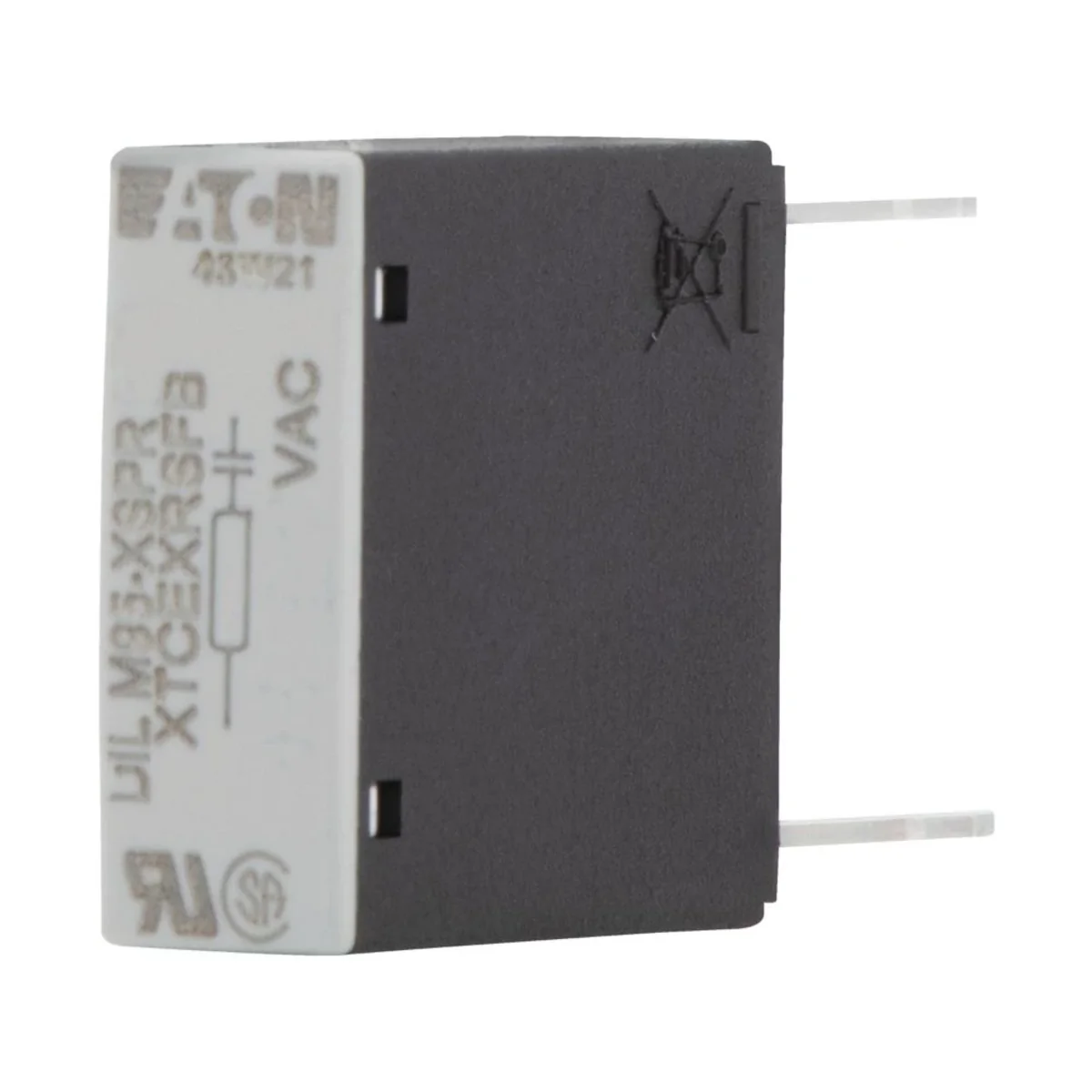

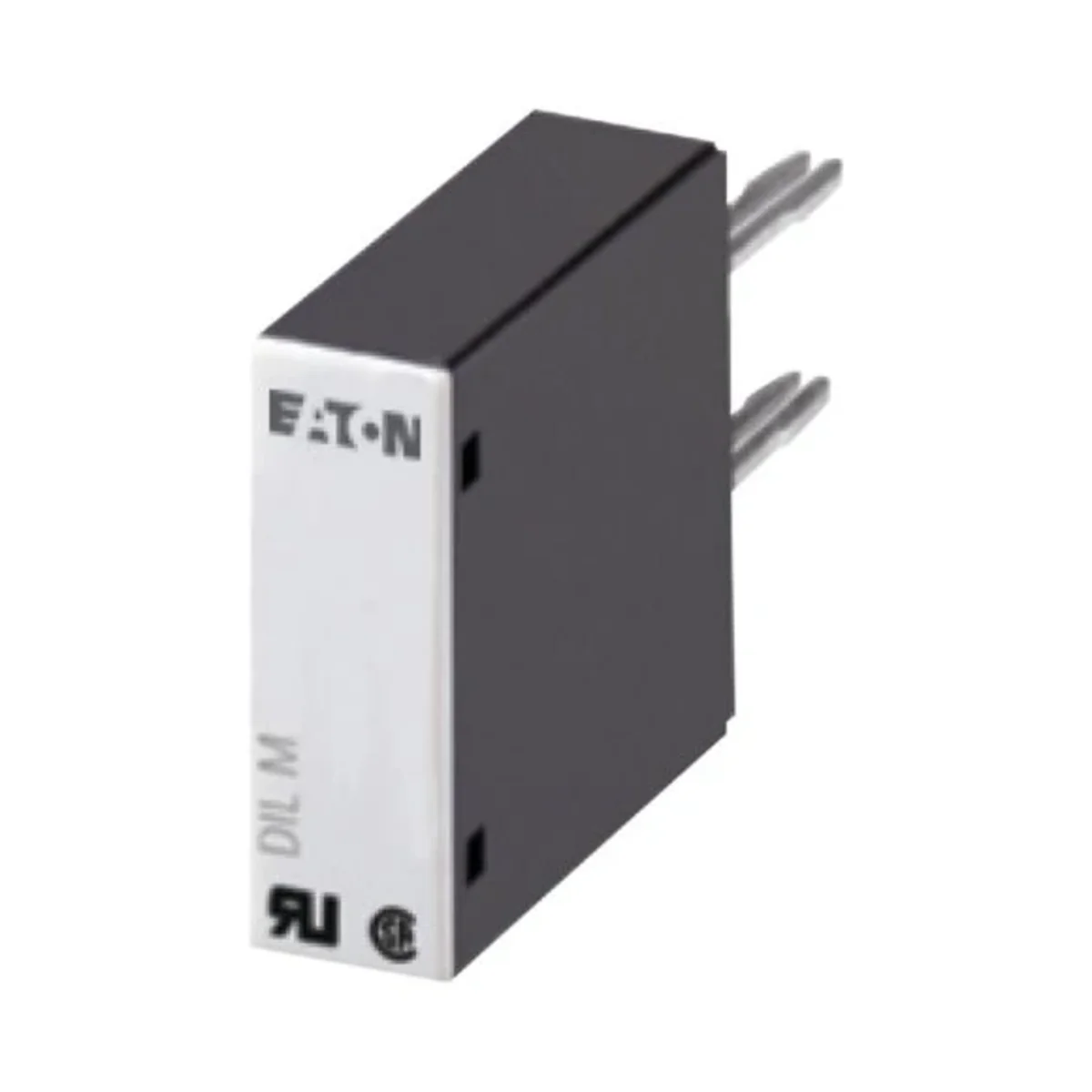

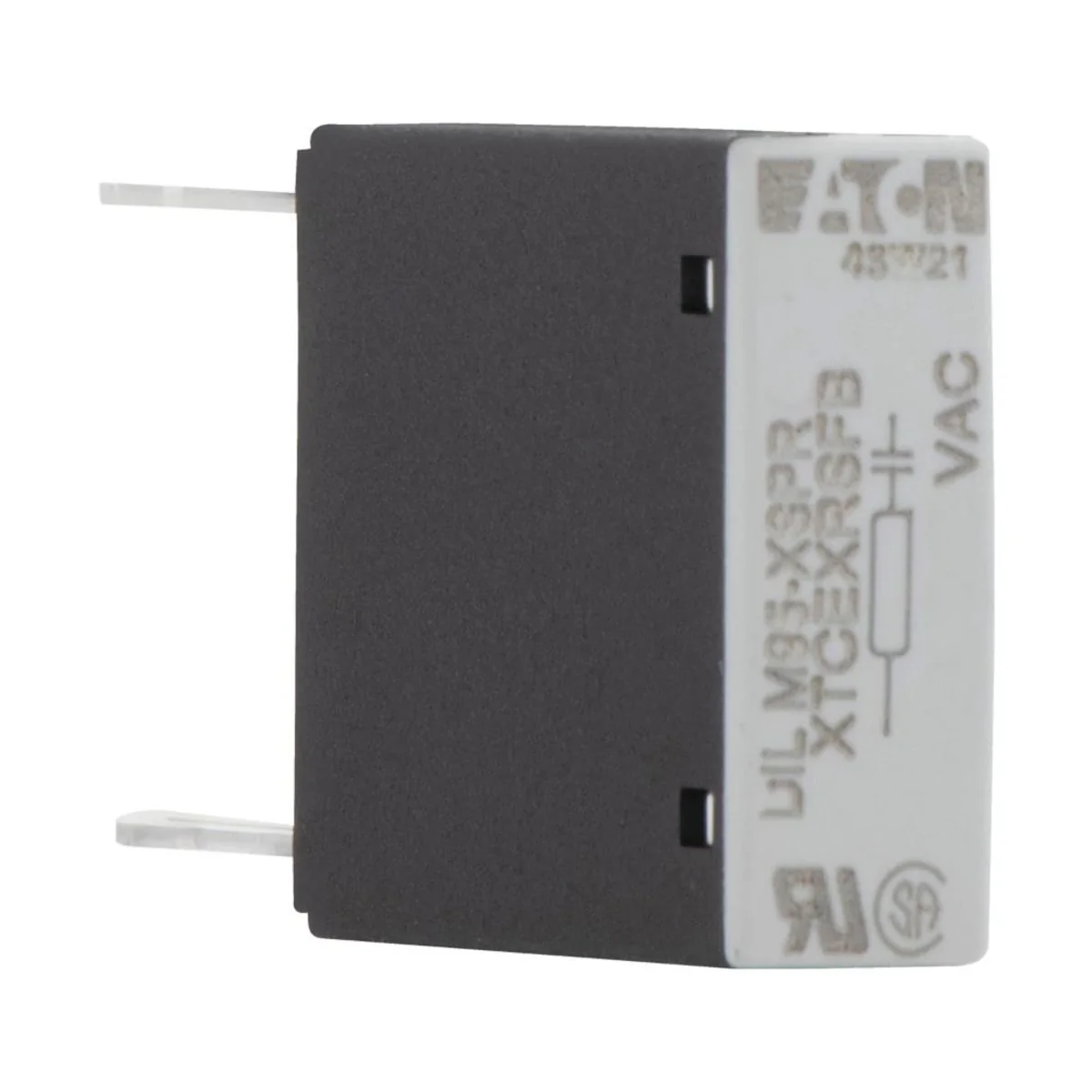

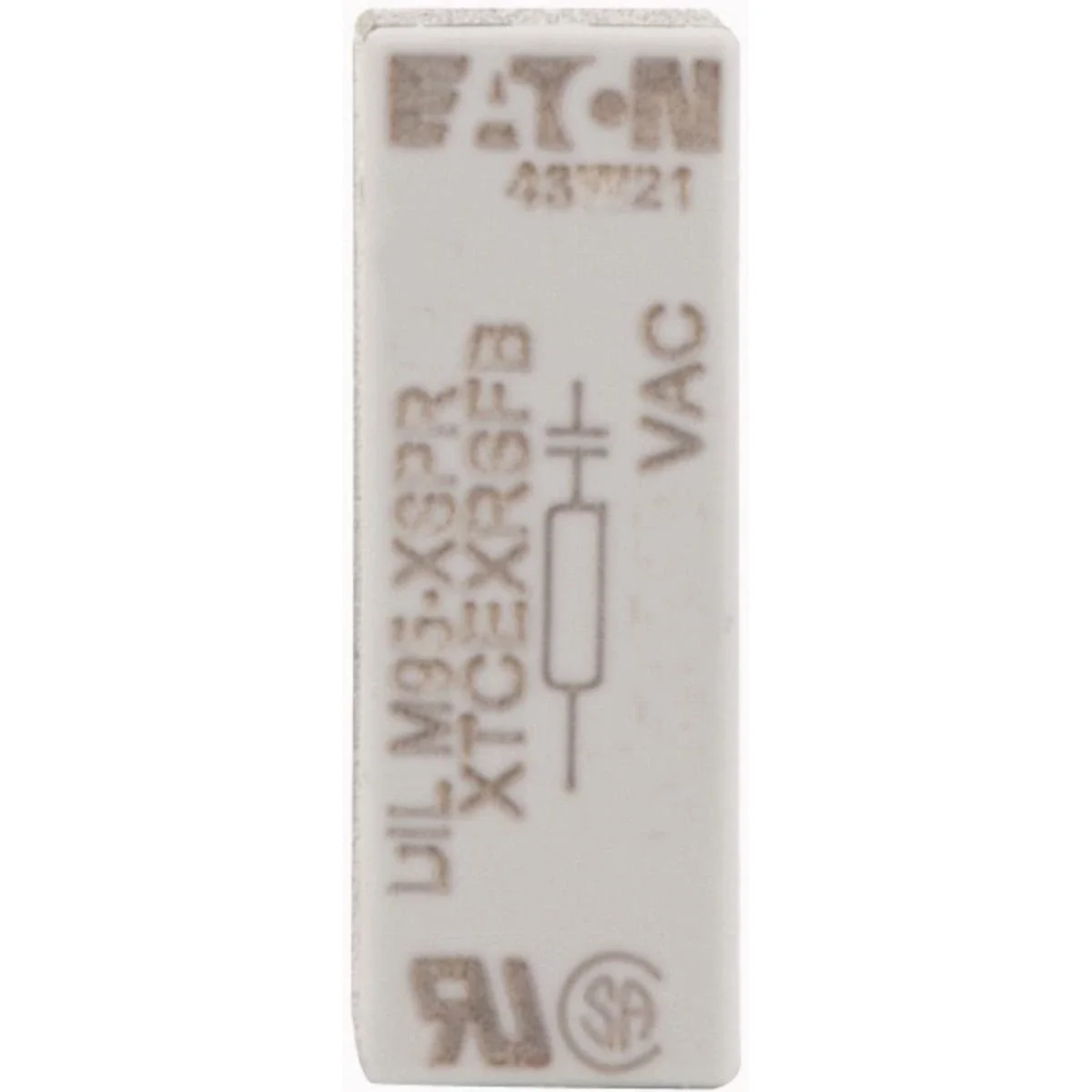

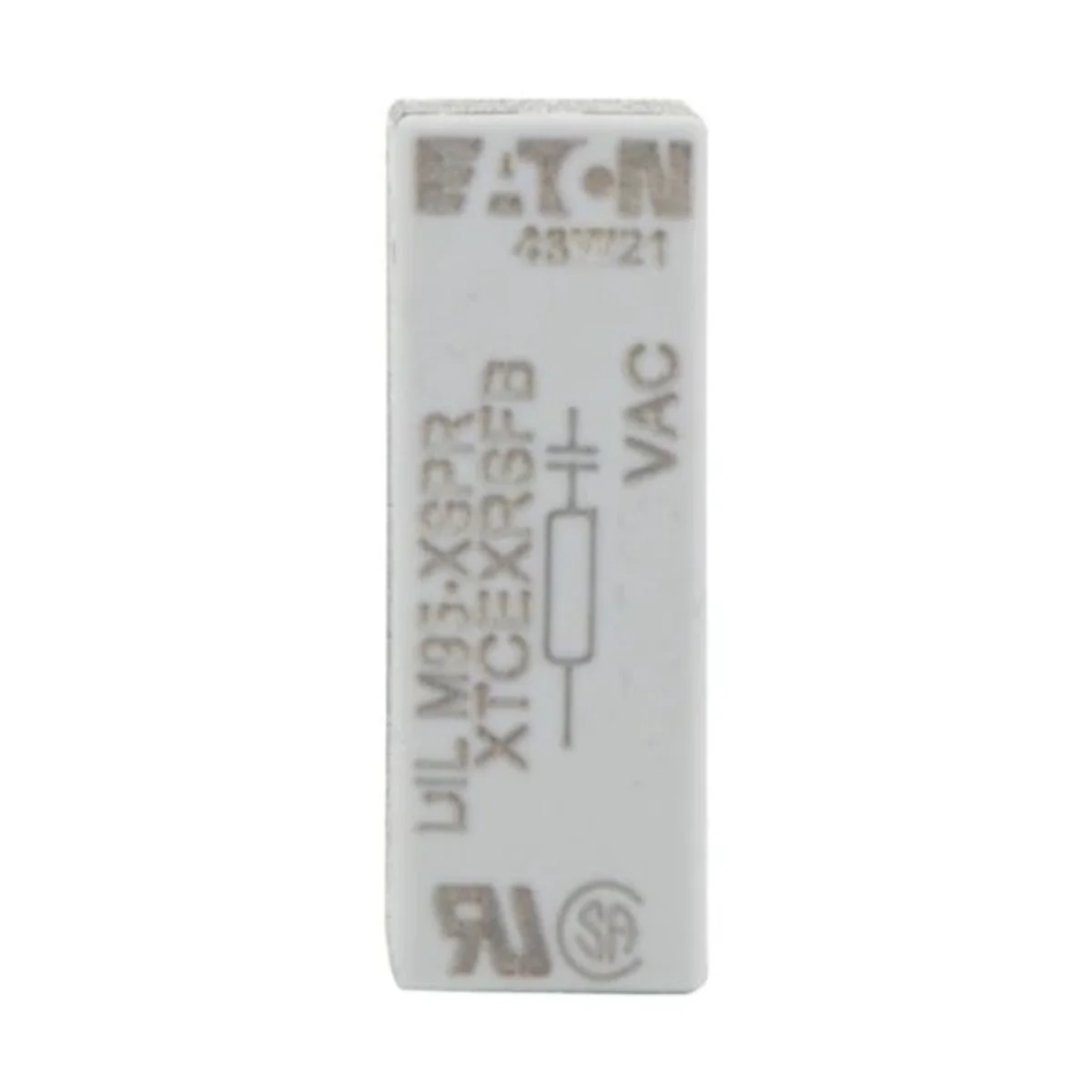

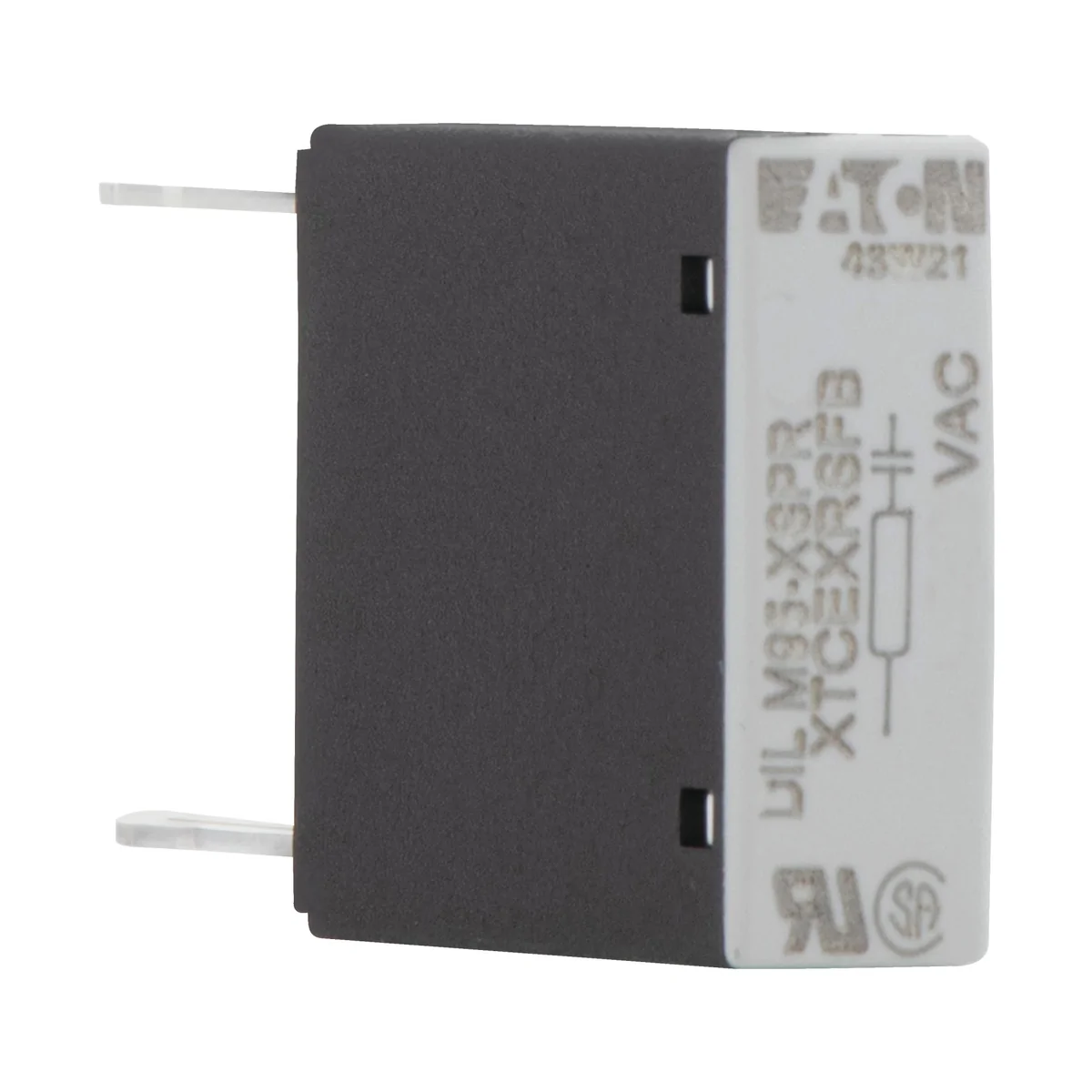

RC protection circuit for DILM40..95, DILM95-XSPR240 281206

local index:
ATA199MOEL
Catalog No:
281206
EAN code:
4015082812065
Manufacturer: EATON
Type of control voltage: AC
Price:
30,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
10
)
Add to clipboard
Print

Product description

Protective systems - suppressing RC. For contactors with 50–60 Hz AC coil. The DC coil contactors and the DILM115 and DILM150 contactors already have a protective circuit built in. Note the drop-out time.

Technical data

  • Type of control voltage
    AC

Other technical data

  • Function
    Varistor (voltage-sensitive resistor)
  • Rated control supply voltage AC 60 Hz
    110 ... 240 V
  • Voltage type for actuating
    AC
  • Rated control supply voltage AC 50 Hz
    110 ... 240 V
  • Rated control supply voltage DC
    0 ... 0 V
  • With LED indication
    No

Manufacturer details

  • Manufacturer
    EATON ELECTRIC SP. Z O.O.
  • Address
    80-299 UL. GALAKTYCZNA 30
  • Tax identification number
    5841022327

Bulk packaging

A kind of package Skrzynia Karton Skrzynia Karton
Quantity 1 pcs. 10 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,007 0,067 0,007 0,067
Volume (m3) 0,000 0,000 0,000 0,000
Width (m) 0,011 0,075 0,011 0,075
Length (m) 0,045 0,070 0,045 0,070
Depth (m) 0,027 0,065 0,027 0,065
