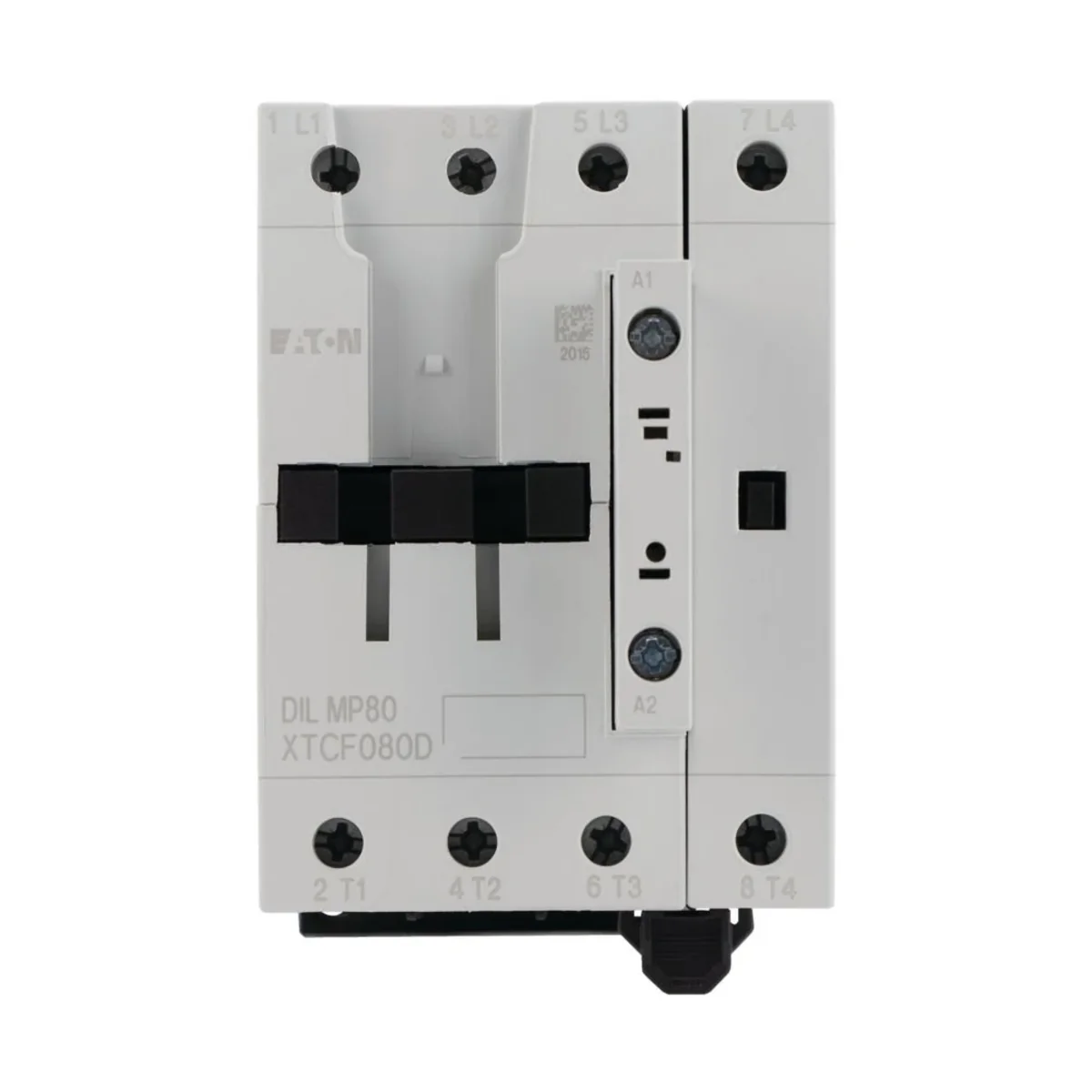

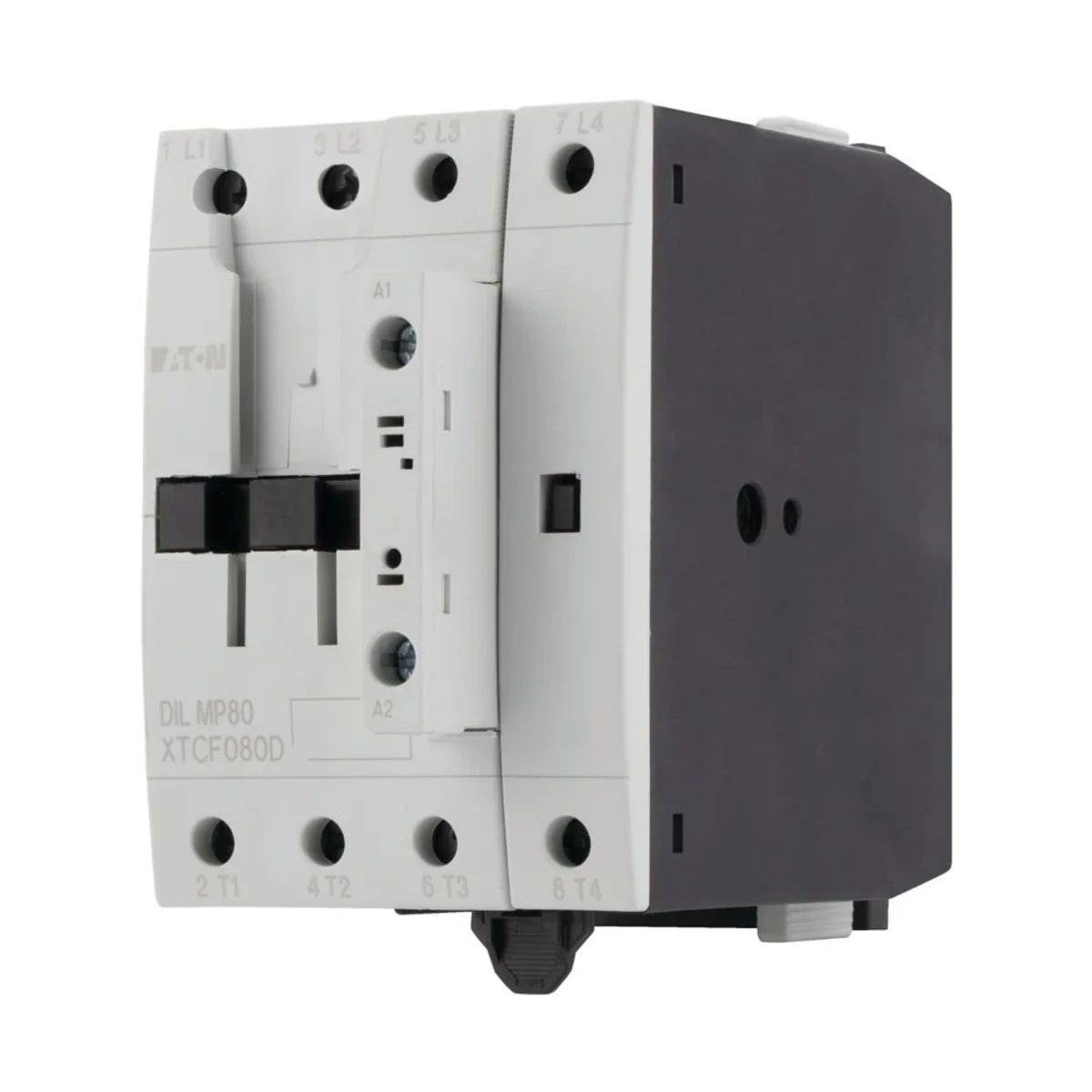

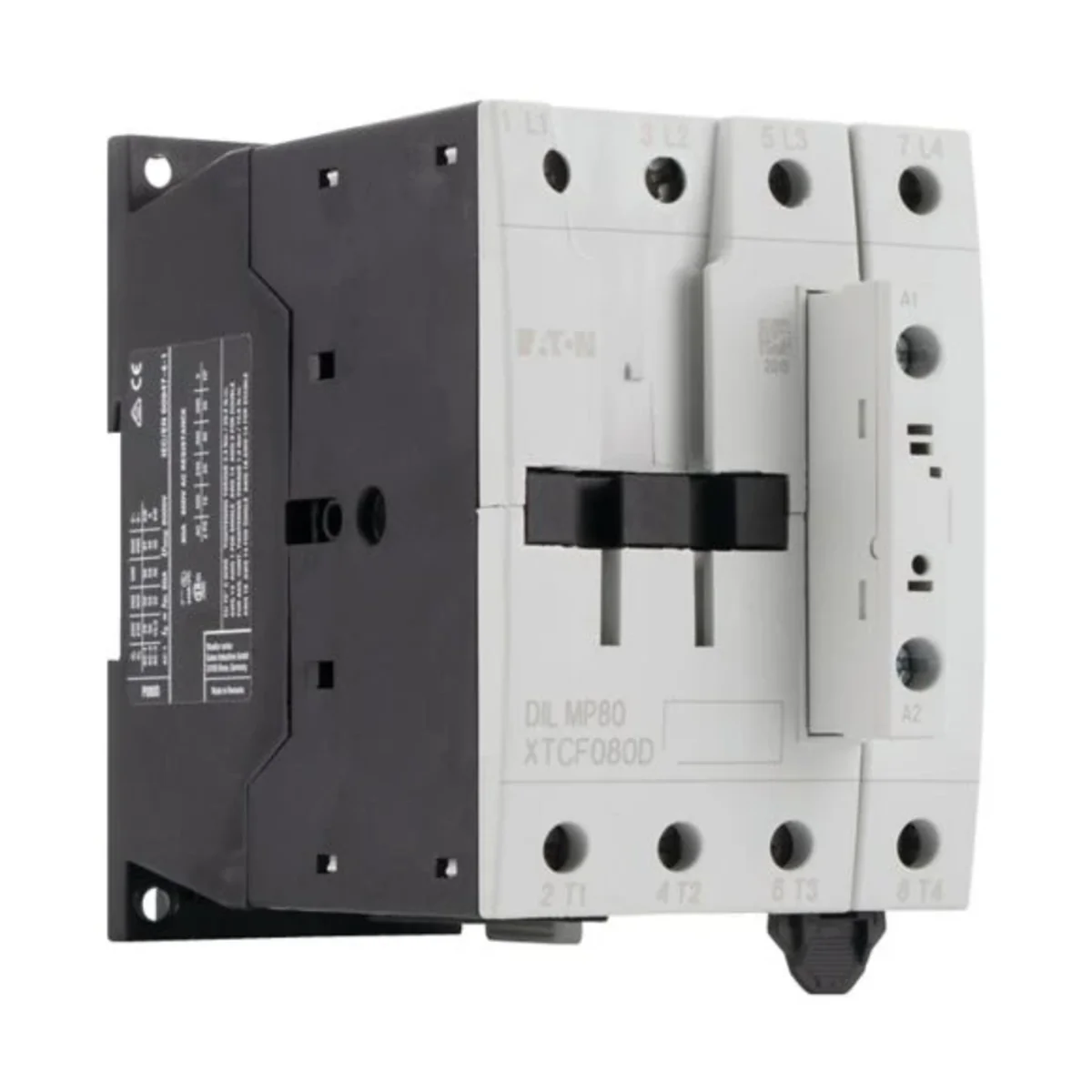

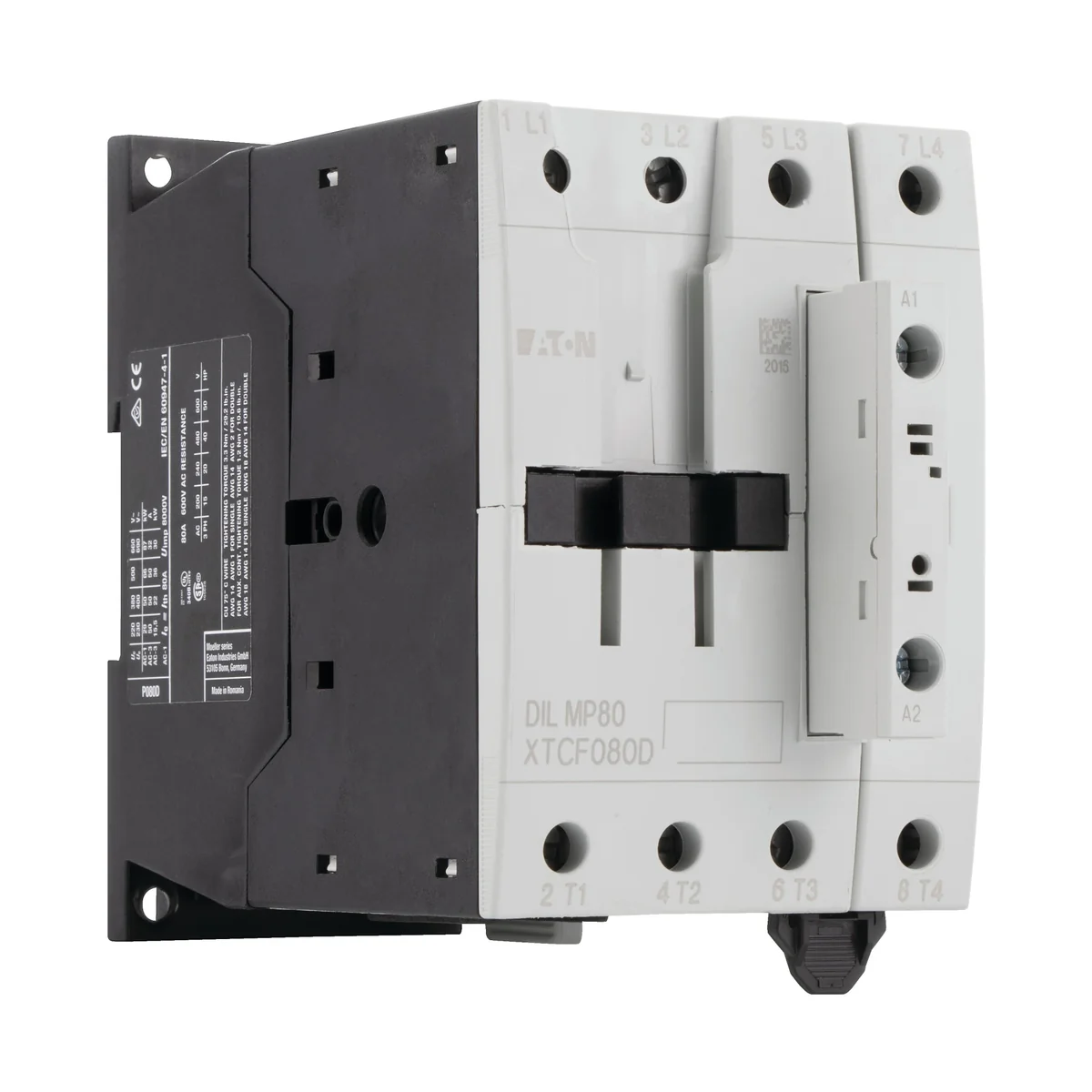

Power contactor, DILMP80(RDC24), 80A, 4-pole 109898
local index:
ATA184MOEL
Catalog No:
109898
EAN code:
4015081094646
Price:
452,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power contactor for 4-pin loads, Power contactors up to 200 A, 4-pin,
AC-1: Non-inductive or weakly inductive load, resistance furnaces,
AC- 3: Squirrel-cage motors: starting, stopping during operation,
Connection method: Screw terminals, Poles: 4-pole, 380 V 400 V: Ie= 50 A, conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith =Ie= 80 A, enclosed: Ith= 64 A, conventional thermal current 1-pole open: Ith= 207 A, enclosed: Ith= 186 A, 220 V 230 V : P= 15.5 kW, 380 V 400 V: P= 22 kW, 660 V 690 V: P= 30 kW, Notes: Switching elements according to EN 50012., Built-in protection circuit in the control electronics., Type of current AC/DC: DC operation
Technical data
-
Number of poles4
-
Rated current [A]80
Other technical data
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC24 ... 27 V
-
Rated operation current Ie at AC-1, 400 V80 A
-
Rated operation power at AC-3, 400 V22 kW
-
Rated operation power at AC-4, 400 V20 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Rated operation current Ie at AC-3, 400 V50 A
-
Rated operation current Ie at AC-4, 400 V40 A
-
Rated operation power NEMA29.8 kW
-
Number of auxiliary contacts as normally open contact0
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact4
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 1,252 |
| Volume (m3) | 0,002 |
| Width (m) | 0,095 |
| Length (m) | 0,150 |
| Depth (m) | 0,148 |
