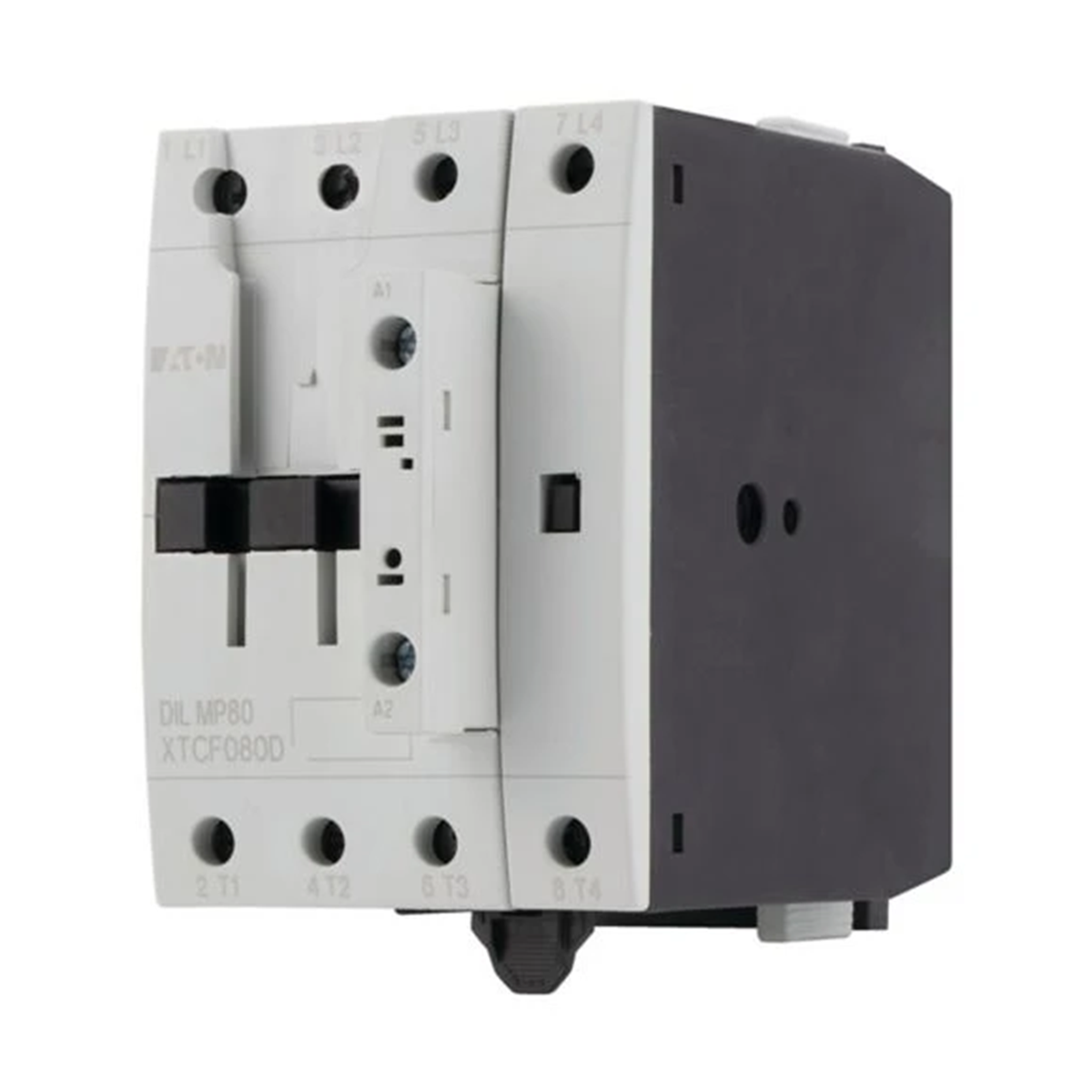

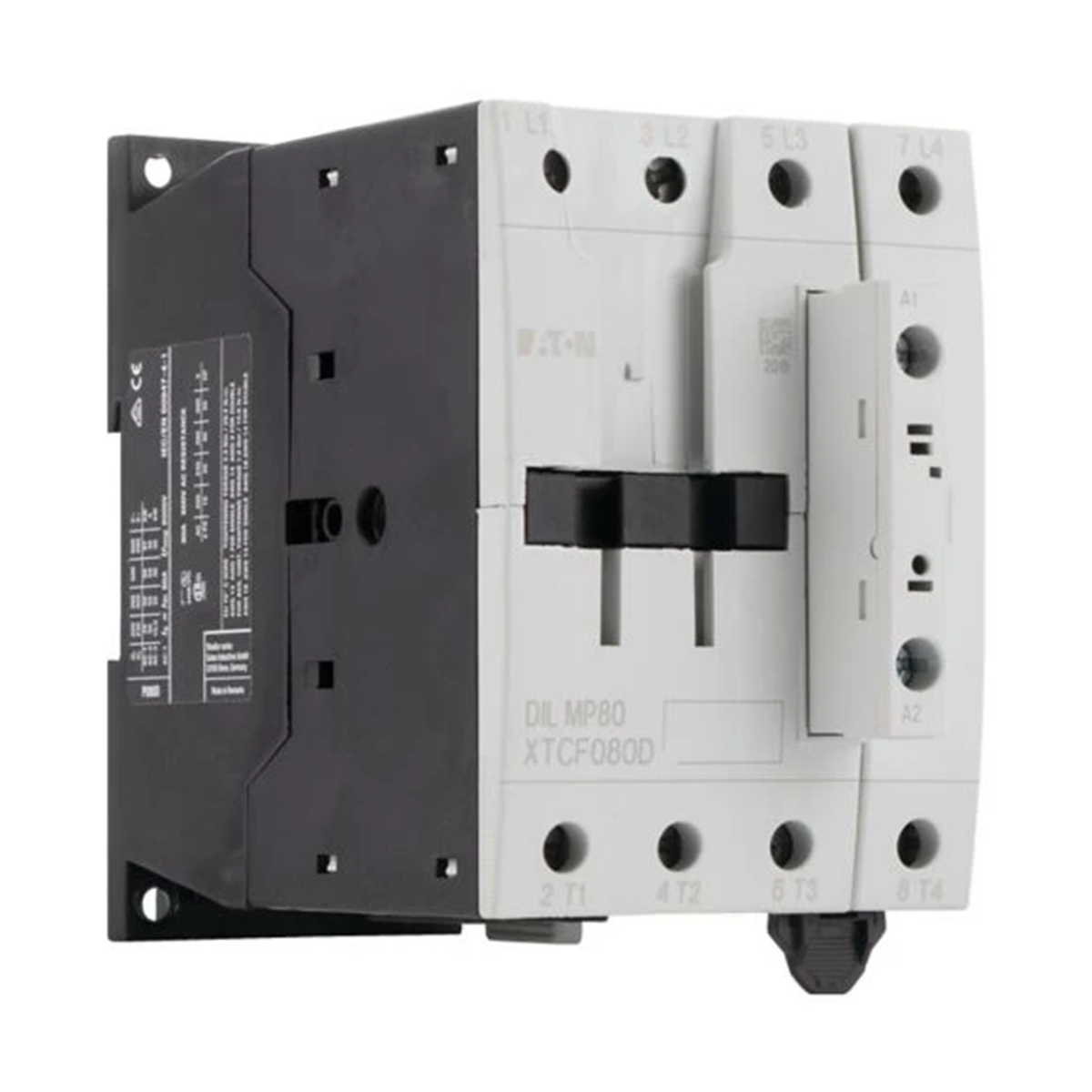

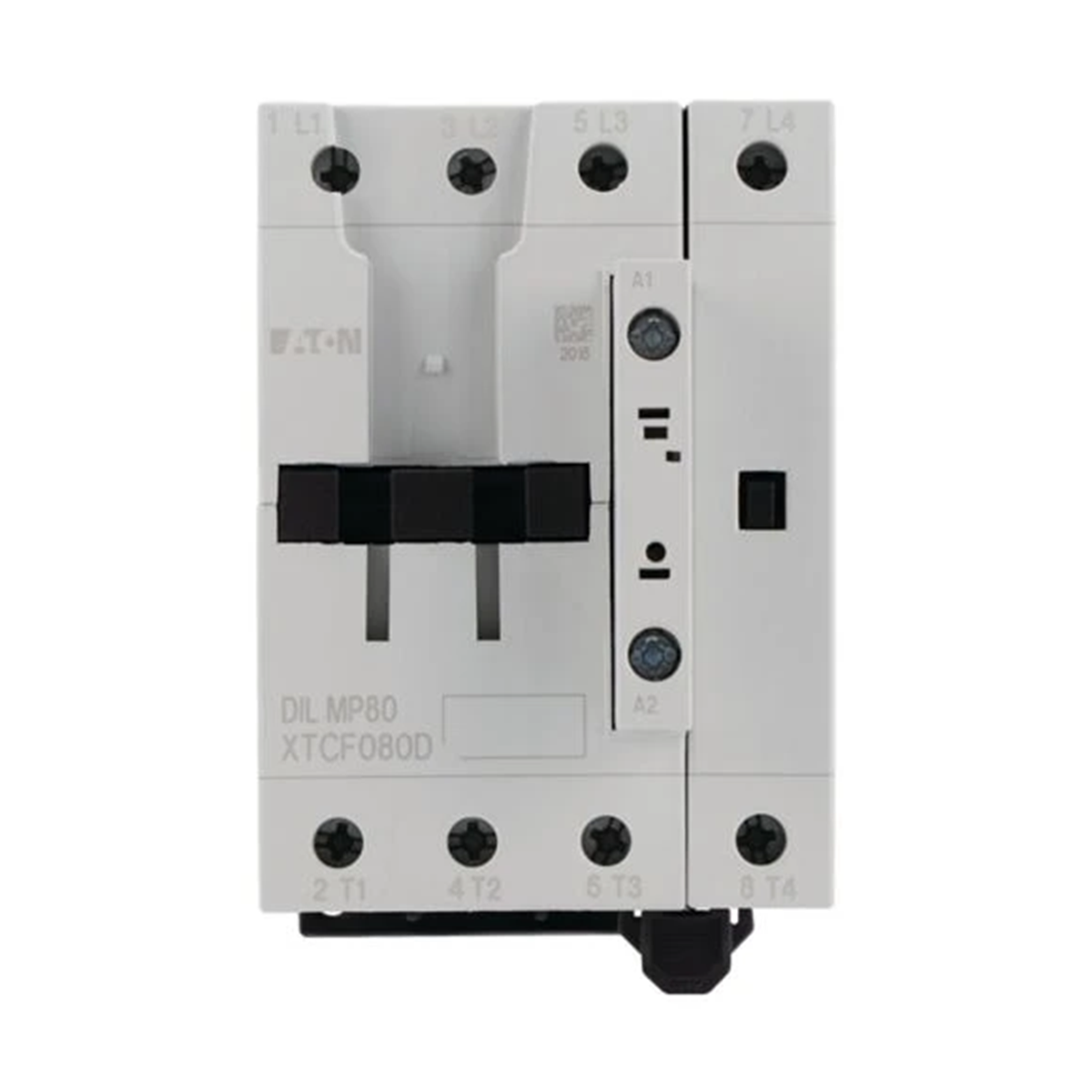

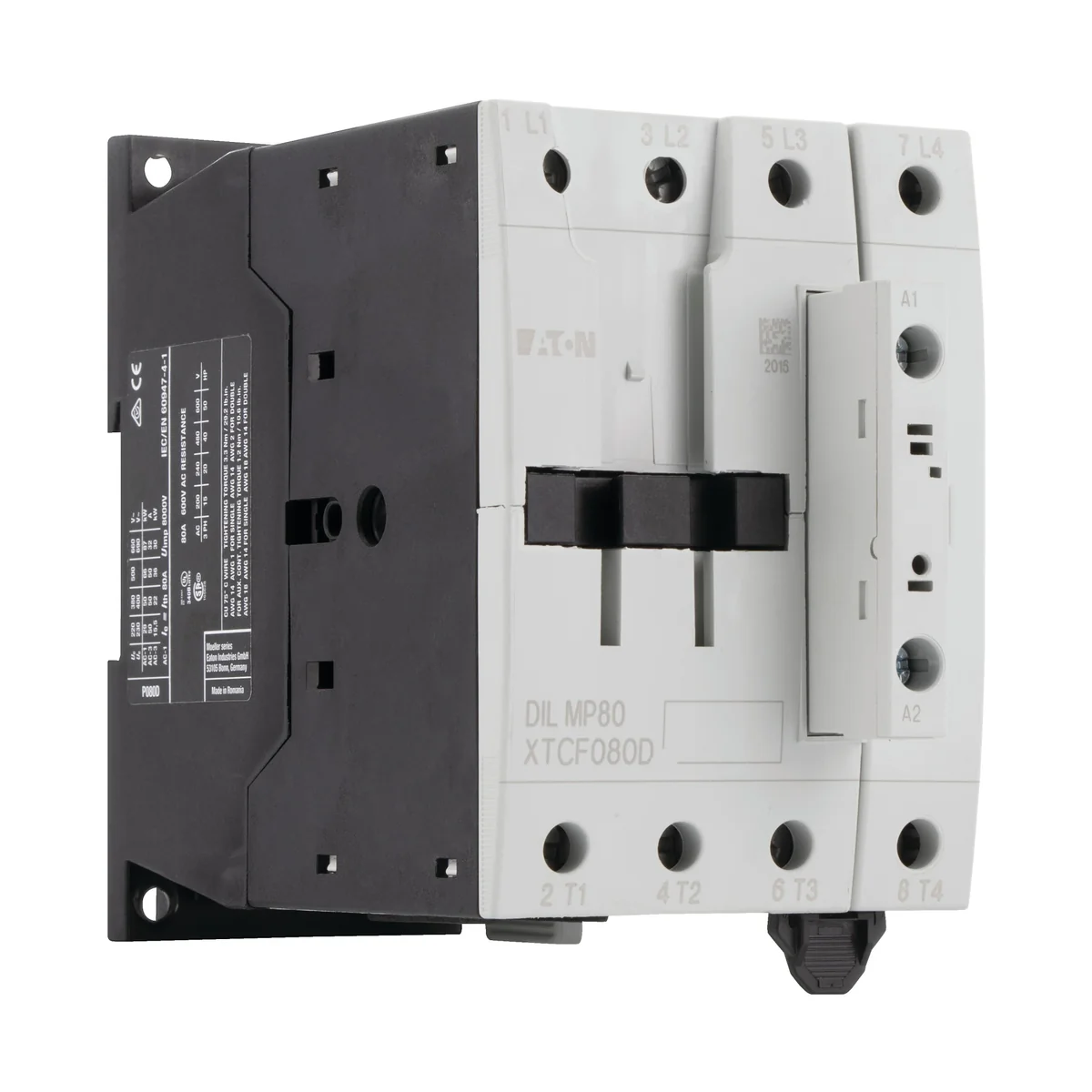

Power contactor for 4-pin loads, Power contactors up to 200 A, 4-pin,

AC-1: Non-inductive or weakly inductive load, resistance furnaces,

AC- 3: Squirrel-cage motors: starting, stopping during operation,

Connection method: Screw terminals, Poles: 4-pole, 380 V 400 V: Ie= 50 A, conventional thermal, 3-pole, 50 - 60 Hz open at 40 °C: Ith =Ie= 80 A, enclosed: Ith= 64 A, conventional thermal current 1-pole open: Ith= 207 A, enclosed: Ith= 186 A, 220 V 230 V : P= 15.5 kW, 380 V 400 V: P= 22 kW, 660 V 690 V: P= 30 kW, Notes: Switching elements according to EN 50012., Type of AC/DC current: AC operation

Number of poles

4

Rated current [A]

80

Other technical data

Rated control supply voltage AC 50 Hz

24 ... 24 V
Rated control supply voltage DC

0 ... 0 V
Rated operation current Ie at AC-1, 400 V

80 A
Rated operation power at AC-3, 400 V

22 kW
Rated operation power at AC-4, 400 V

20 kW
Modular version

No
Number of auxiliary contacts as normally closed contact

0
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

24 ... 24 V
Voltage type for actuating

AC
Rated operation current Ie at AC-3, 400 V

50 A
Rated operation current Ie at AC-4, 400 V

40 A
Rated operation power NEMA

29.8 kW
Number of auxiliary contacts as normally open contact

0
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

4
