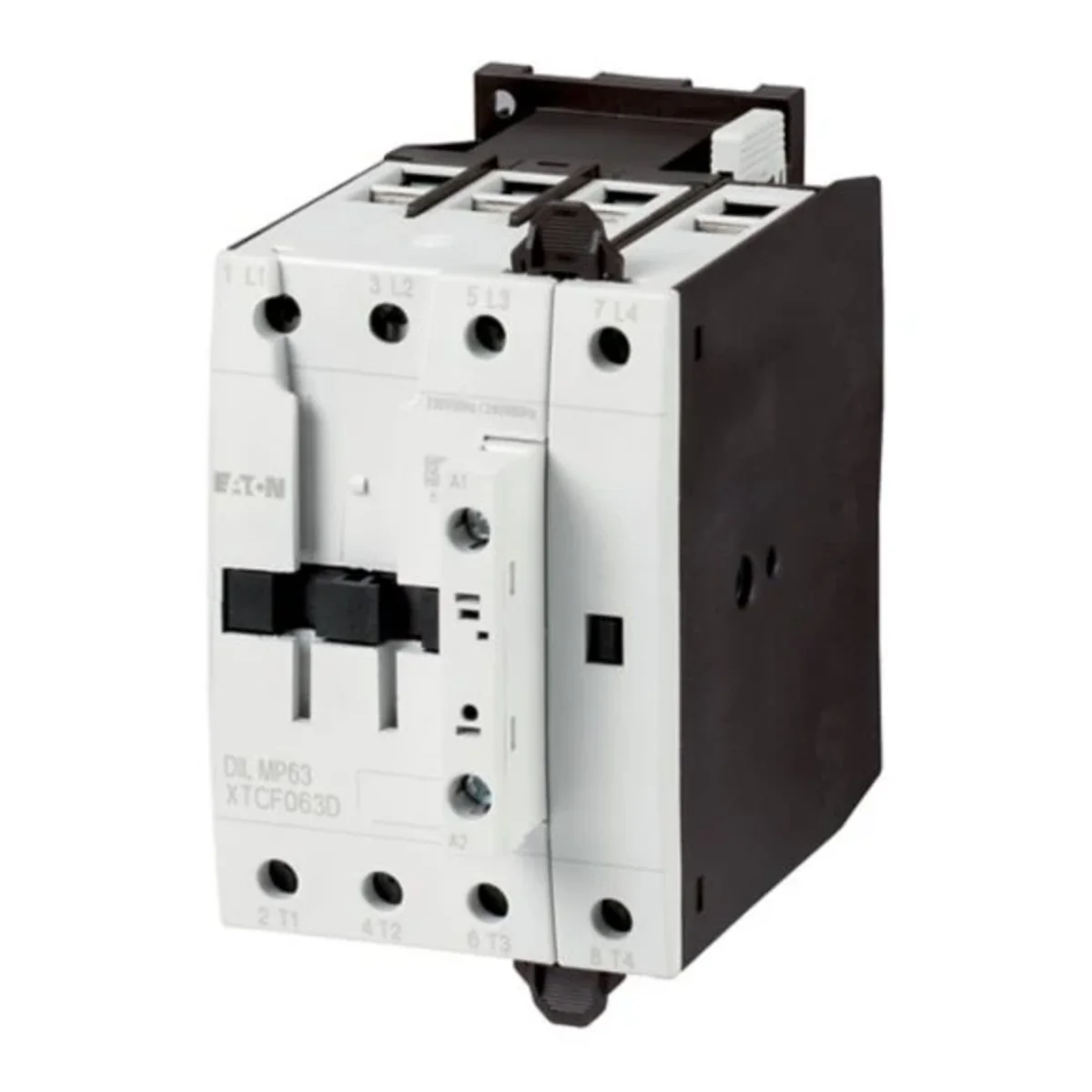

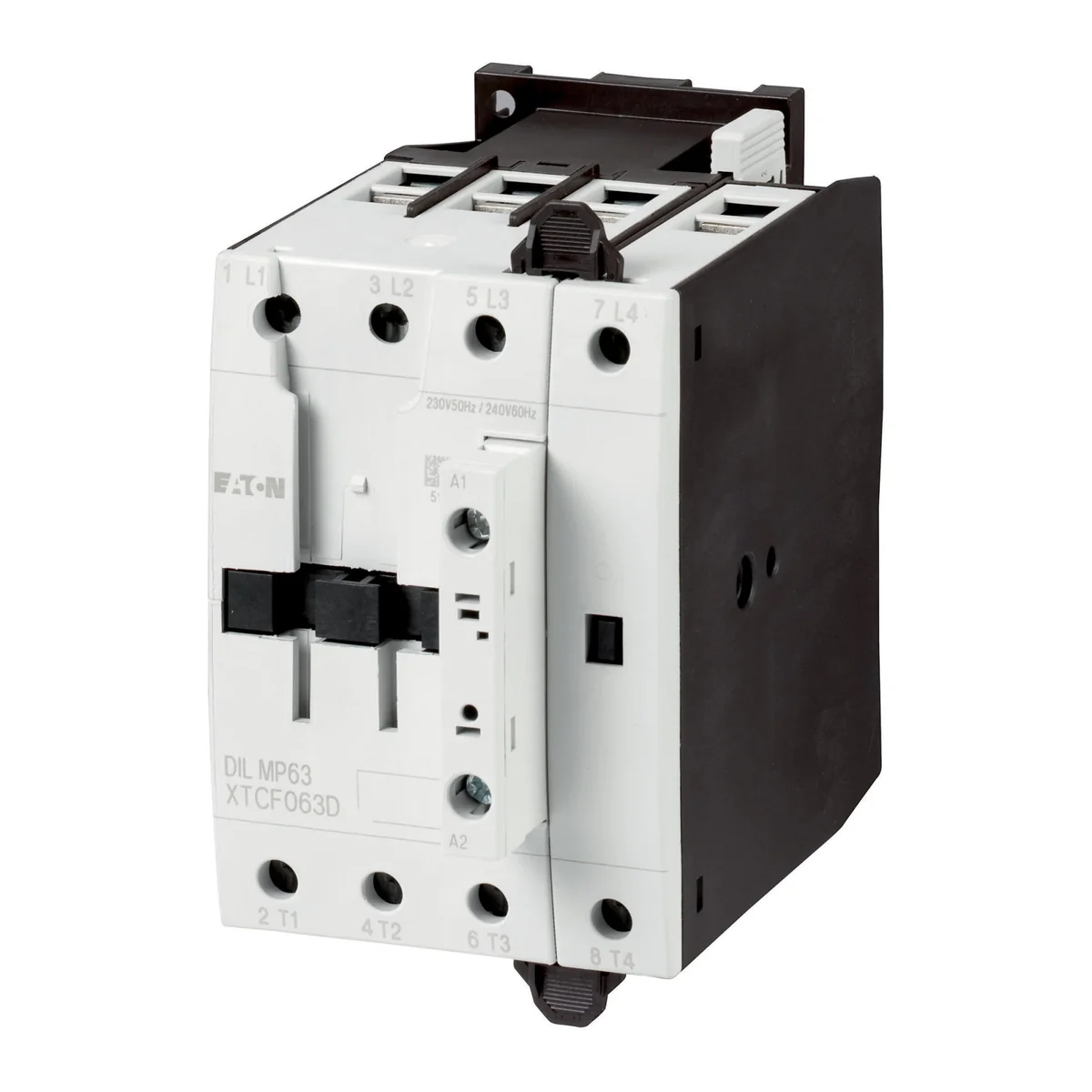

Power contactor for 4-pin loads, Power contactors up to 200 A, 4-pin,

AC-1: Non-inductive or weakly inductive load, resistance furnaces,

AC- 3: Squirrel-cage motors: starting, stopping during operation,

Connection method: Screw terminals, Poles: 4-pole, 380 V 400 V: Ie= 40 A, conventional thermal, 3-pole, 50 - 60 Hz open at 40 °C: Ith =Ie= 63 A, enclosed: Ith= 50 A, conventional thermal current 1-pole open: Ith= 162 A, enclosed: Ith= 146 A, 220 V 230 V : P= 12.5 kW, 380 V 400 V: P= 18.5 kW, 660 V 690 V: P= 23 kW, Notes: Switching elements according to EN 50012., Type of AC/DC current: AC operation

Number of poles

4

Rated current [A]

63

Other technical data

Rated control supply voltage AC 50 Hz

24 ... 24 V
Rated control supply voltage DC

0 ... 0 V
Rated operation current Ie at AC-1, 400 V

63 A
Rated operation power at AC-3, 400 V

18.5 kW
Rated operation power at AC-4, 400 V

12 kW
Modular version

No
Number of auxiliary contacts as normally closed contact

0
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

24 ... 24 V
Voltage type for actuating

AC
Rated operation current Ie at AC-3, 400 V

40 A
Rated operation current Ie at AC-4, 400 V

25 A
Rated operation power NEMA

22 kW
Number of auxiliary contacts as normally open contact

0
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

4

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	1,040	1,092
Volume (m3)	0,001	0,002
Width (m)	0,074	0,095
Length (m)	0,132	0,150
Depth (m)	0,115	0,148
