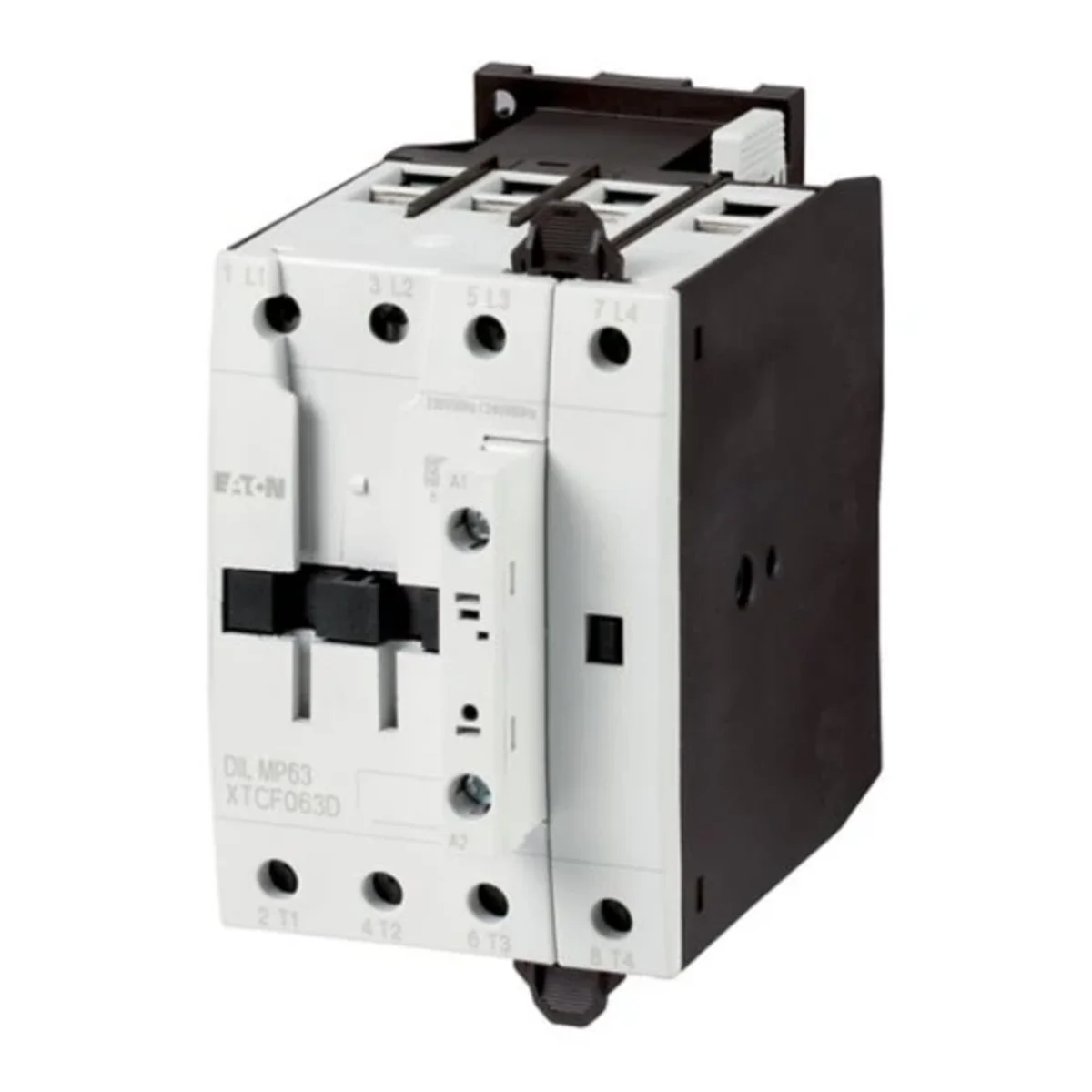

Power contactor, DILMP63(110V50HZ,120V60HZ), 63A, 4b+1ZZ 109848

local index:
ATA131MOEL
Catalog No:
109848
EAN code:
4015081094165
Manufacturer: EATON
Rated current [A]: 63
Price:
218,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power contactor for 4-pin loads, Power contactors up to 200 A, 4-pin,

AC-1: Non-inductive or weakly inductive load, resistance furnaces,

AC- 3: Squirrel cage motors: starting, stopping during operation,

Connection method: Screw terminals, Poles: 4-pole, 380 V 400 V: Ie= 40 A, conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith =Ie= 63 A, enclosed: Ith= 50 A, conventional thermal current 1-pole open: Ith= 162 A, enclosed: Ith= 146 A, 220 V 230 V : P= 12.5 kW, 380 V 400 V: P= 18.5 kW, 660 V 690 V: P= 23 kW, Notes: Switching elements according to EN 50012., Type of AC/DC current: AC operation

Technical data

  • Rated current [A]
    63

Other technical data

  • Rated control supply voltage AC 50 Hz
    110 ... 110 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation current Ie at AC-1, 400 V
    63 A
  • Rated operation power at AC-3, 400 V
    18.5 kW
  • Rated operation power at AC-4, 400 V
    12 kW
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    120 ... 120 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    40 A
  • Rated operation current Ie at AC-4, 400 V
    25 A
  • Rated operation power NEMA
    22 kW
  • Number of auxiliary contacts as normally open contact
    0
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    4

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 1,092
Volume (m3) 0,002
Width (m) 0,095
Length (m) 0,150
Depth (m) 0,148
