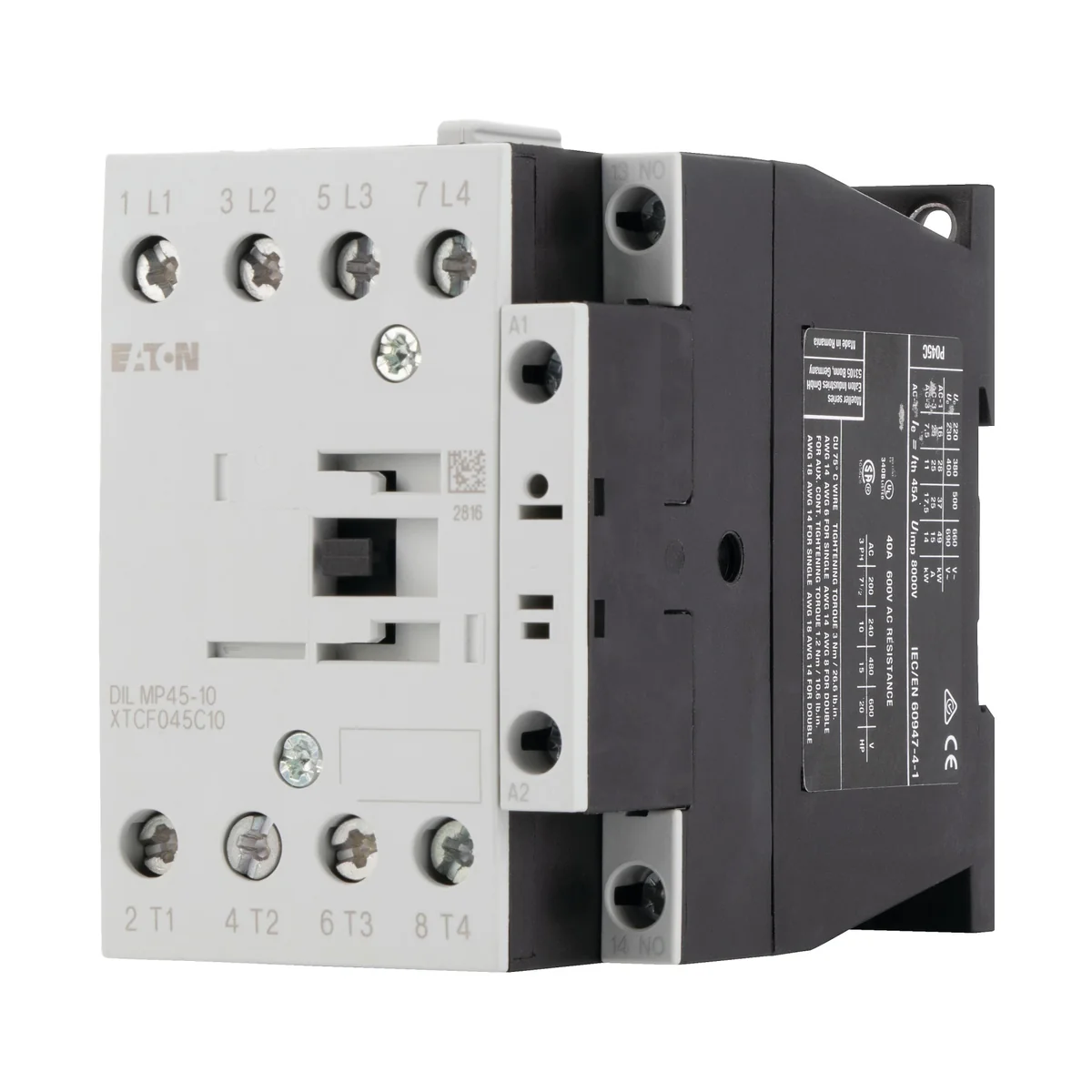

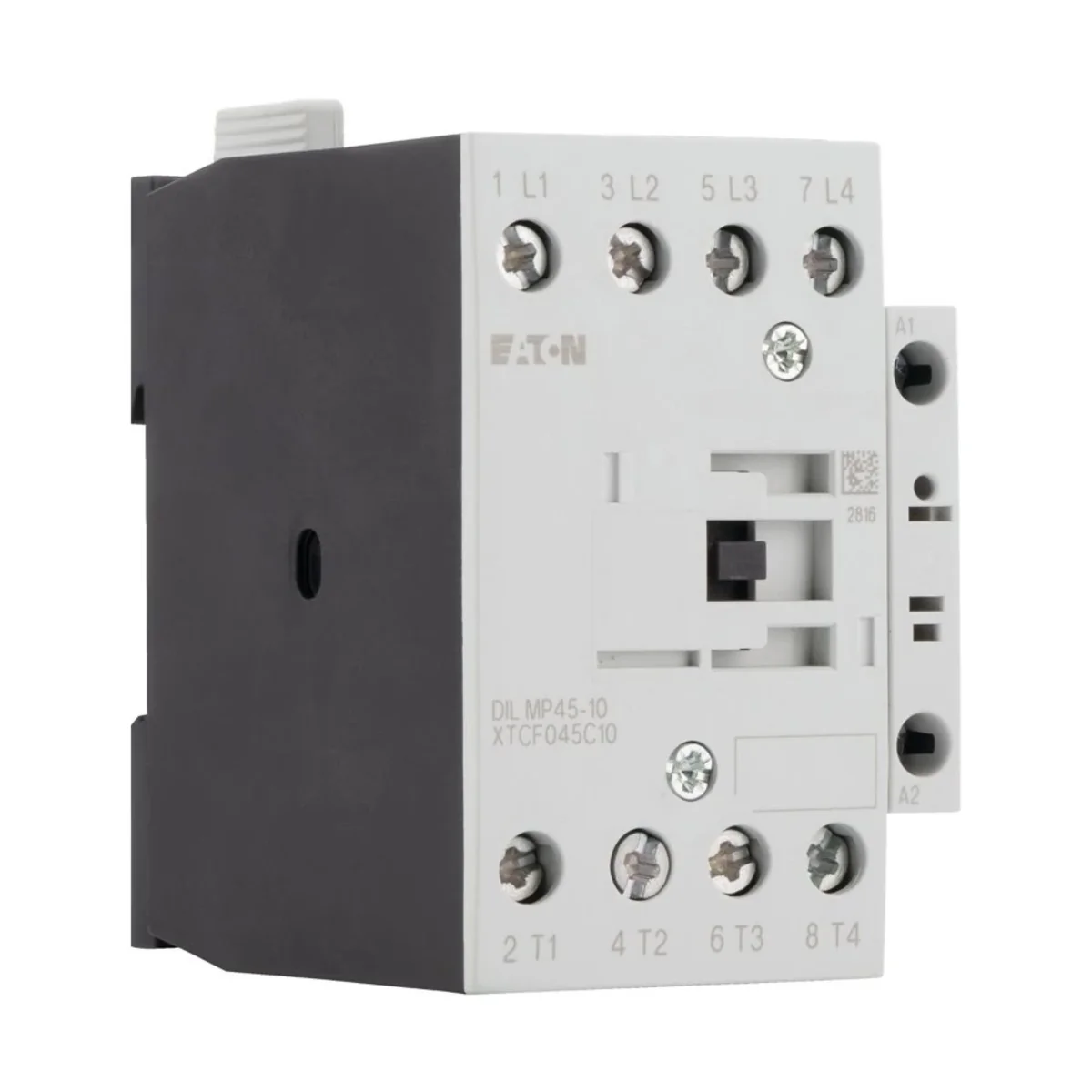

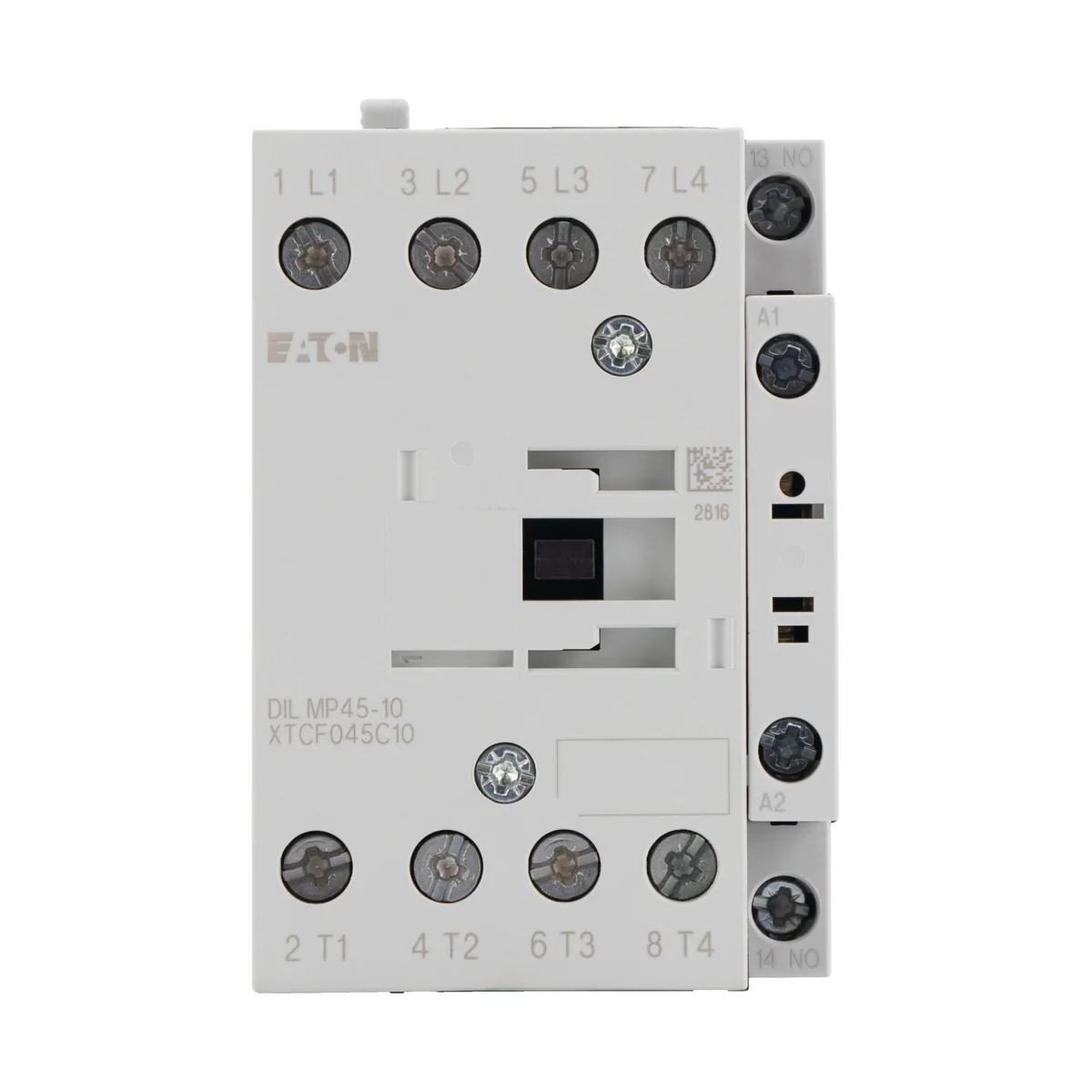

Power contactor, DILMP45-10(24V50/60HZ), 45A, 4b+1ZZ 109828
local index:
ATA130MOEL
Catalog No:
109828
EAN code:
4015081093984
Manufacturer:
EATON
Rated current [A]: 45
Price:
90,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power contactor for 4-pin loads, Power contactors up to 200 A, 4-pin,
AC-1: Non-inductive or weakly inductive load, resistance furnaces,
AC- 3: Squirrel-cage motors: starting, stopping during operation,
Connection method: Screw terminals, Poles: 4-pole, 380 V 400 V: Ie= 25 A, conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith =Ie= 45 A, enclosed: Ith= 36 A, conventional thermal current 1-pole open: Ith= 117 A, enclosed: Ith= 105 A, 220 V 230 V : P= 7.5 kW, 380 V 400 V: P= 11 kW, 660 V 690 V: P= 14 kW, Contact equipment Z = NO contact: 1 NO contact, Notes: Switching elements according to EN 50012., Type of current AC/DC: AC operation
Technical data
-
Rated current [A]45
Other technical data
-
Rated control supply voltage AC 50 Hz24 ... 24 V
-
Rated control supply voltage DC0 ... 0 V
-
Rated operation current Ie at AC-1, 400 V45 A
-
Rated operation power at AC-3, 400 V11 kW
-
Rated operation power at AC-4, 400 V7 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz24 ... 24 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V25 A
-
Rated operation current Ie at AC-4, 400 V15 A
-
Rated operation power NEMA11 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact4
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,516 |
| Volume (m3) | 0,001 |
| Width (m) | 0,069 |
| Length (m) | 0,112 |
| Depth (m) | 0,101 |
