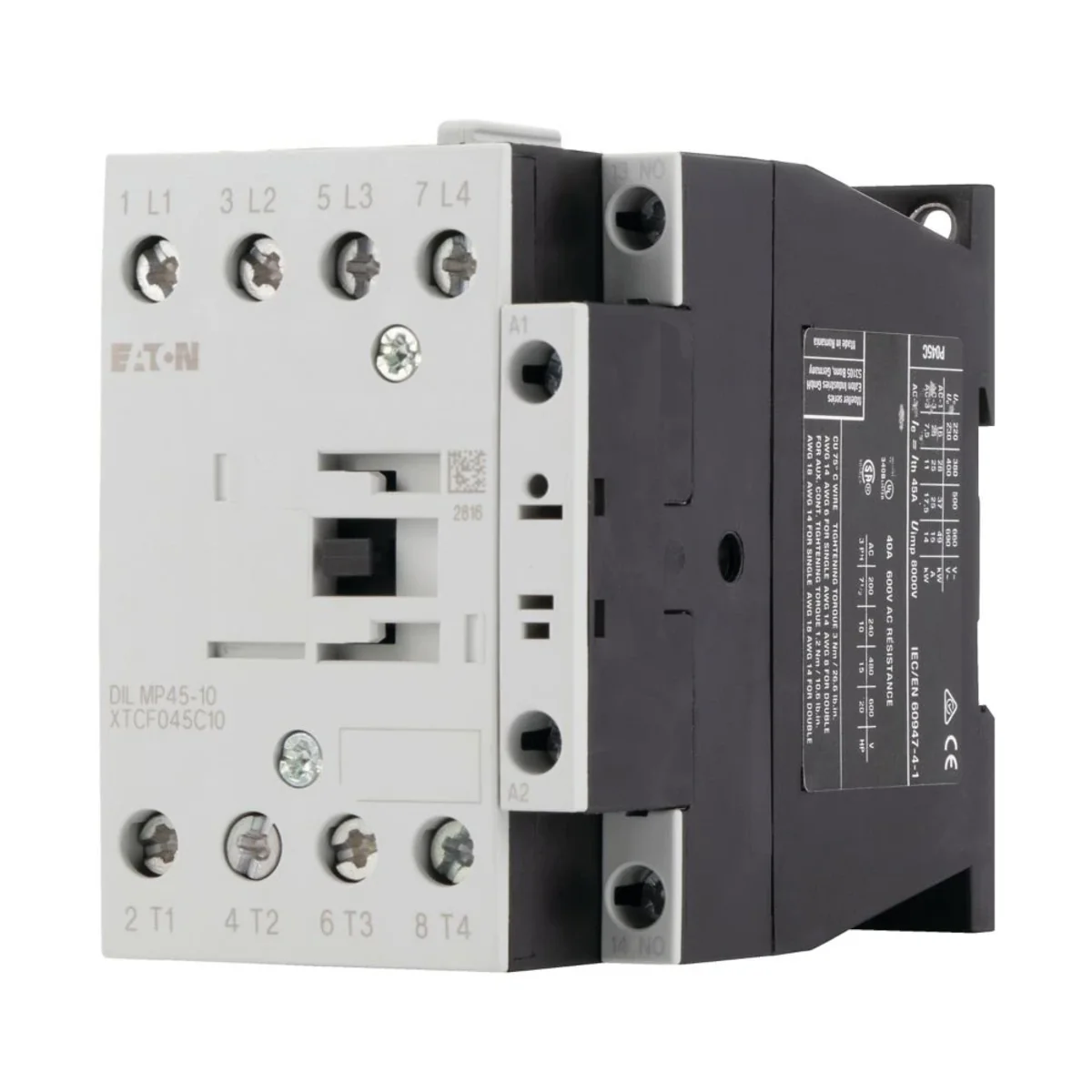

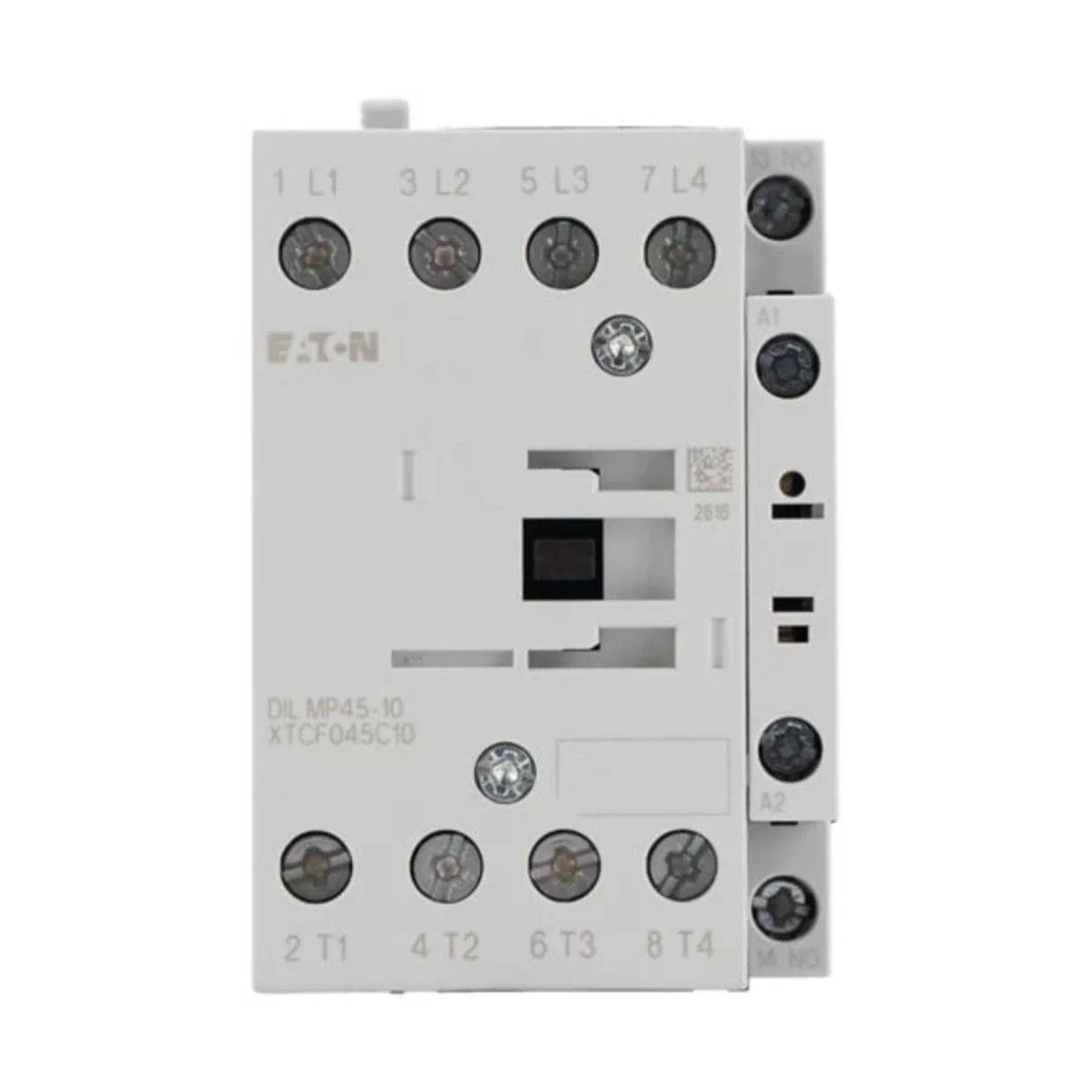

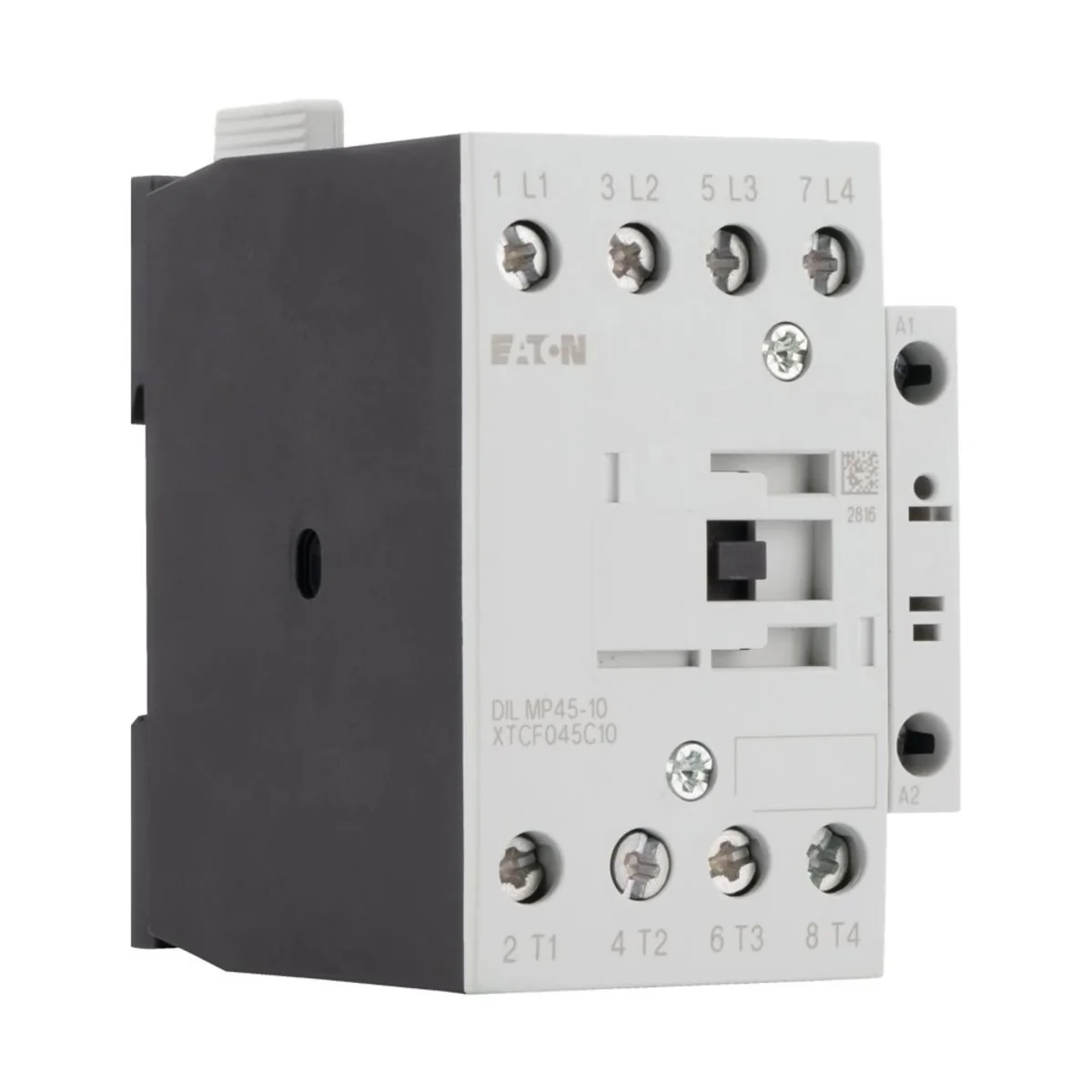

Power contactor, DILMP45-10(110V50HZ,120V60HZ), 45A, 4b+1ZZ 109819

Name: Power contactor, DILMP45-10(110V50HZ,120V60HZ), 45A, 4b+1ZZ
Brand: EATON
SKU: ATA129MOEL
Price: 91.13 PLN

local index:

ATA129MOEL

Catalog No:

109819

EAN code:

4015081093892

Power contactor, DILMP45-10(110V50HZ,120V60HZ), 45A, 4b+1ZZ

Click on the photo to enlarge

Manufacturer: EATON

Rated current [A]: 45

See full description

Price:

91,13 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Power contactor for 4-pin loads, Power contactors up to 200 A, 4-pin,

AC-1: Non-inductive or weakly inductive load, resistance furnaces,

AC- 3: Squirrel-cage motors: starting, stopping during operation,

Connection method: Screw terminals, Poles: 4-pole, 380 V 400 V: Ie= 25 A, conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith =Ie= 45 A, enclosed: Ith= 36 A, conventional thermal current 1-pole open: Ith= 117 A, enclosed: Ith= 105 A, 220 V 230 V : P= 7.5 kW, 380 V 400 V: P= 11 kW, 660 V 690 V: P= 14 kW, Contact equipment Z = NO contact: 1 NO contact, Notes: Switching elements according to EN 50012., Type of current AC/DC: AC operation

Technical data

Rated current [A]

45

Other technical data

Rated control supply voltage AC 50 Hz

110 ... 110 V
Rated control supply voltage DC

0 ... 0 V
Rated operation current Ie at AC-1, 400 V

45 A
Rated operation power at AC-3, 400 V

11 kW
Rated operation power at AC-4, 400 V

7 kW
Modular version

No
Number of auxiliary contacts as normally closed contact

0
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

120 ... 120 V
Voltage type for actuating

AC
Rated operation current Ie at AC-3, 400 V

25 A
Rated operation current Ie at AC-4, 400 V

15 A
Rated operation power NEMA

11 kW
Number of auxiliary contacts as normally open contact

1
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

4

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

Bulk packaging

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	0,490	0,516
Volume (m3)	0,000	0,001
Width (m)	0,058	0,069
Length (m)	0,097	0,112
Depth (m)	0,085	0,101
