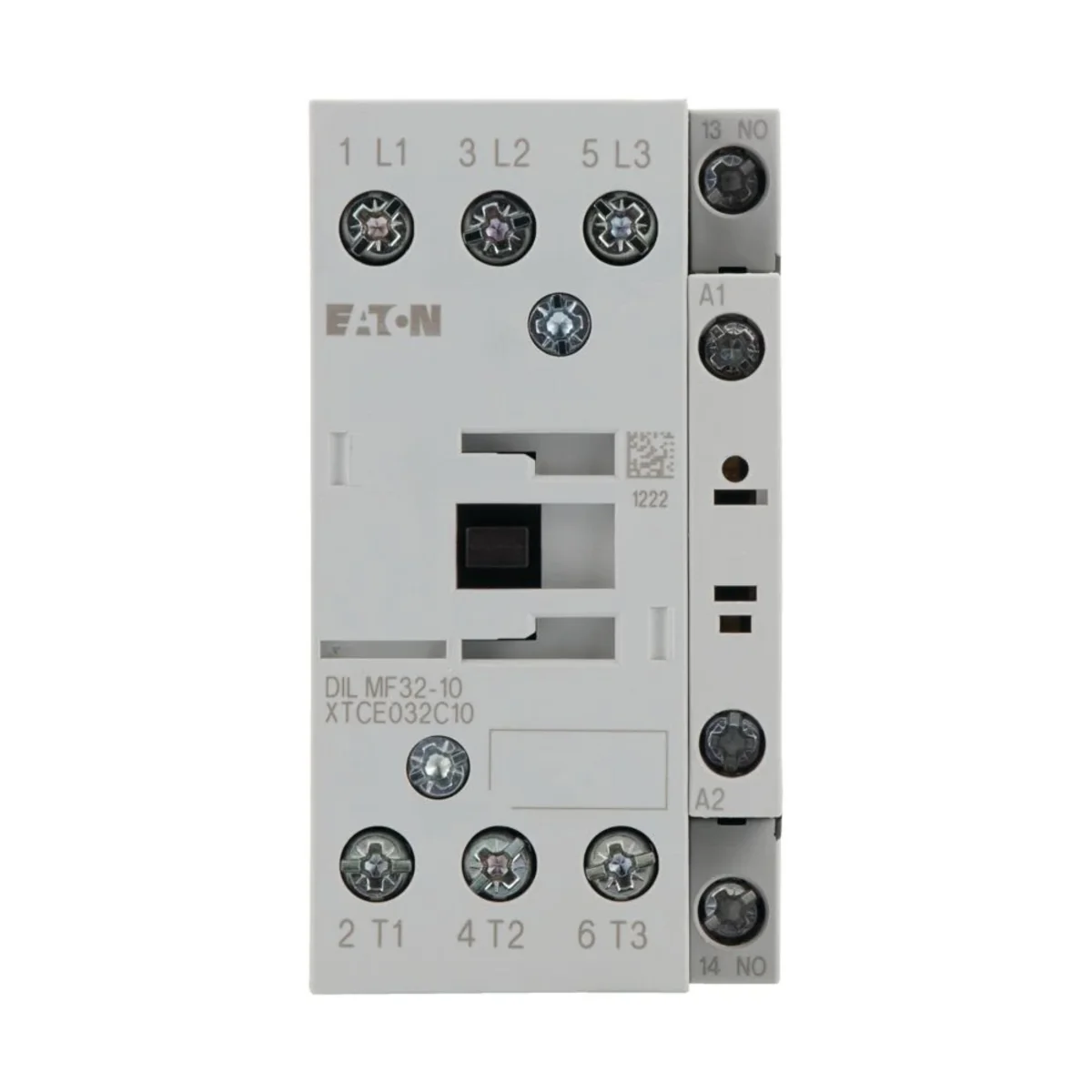

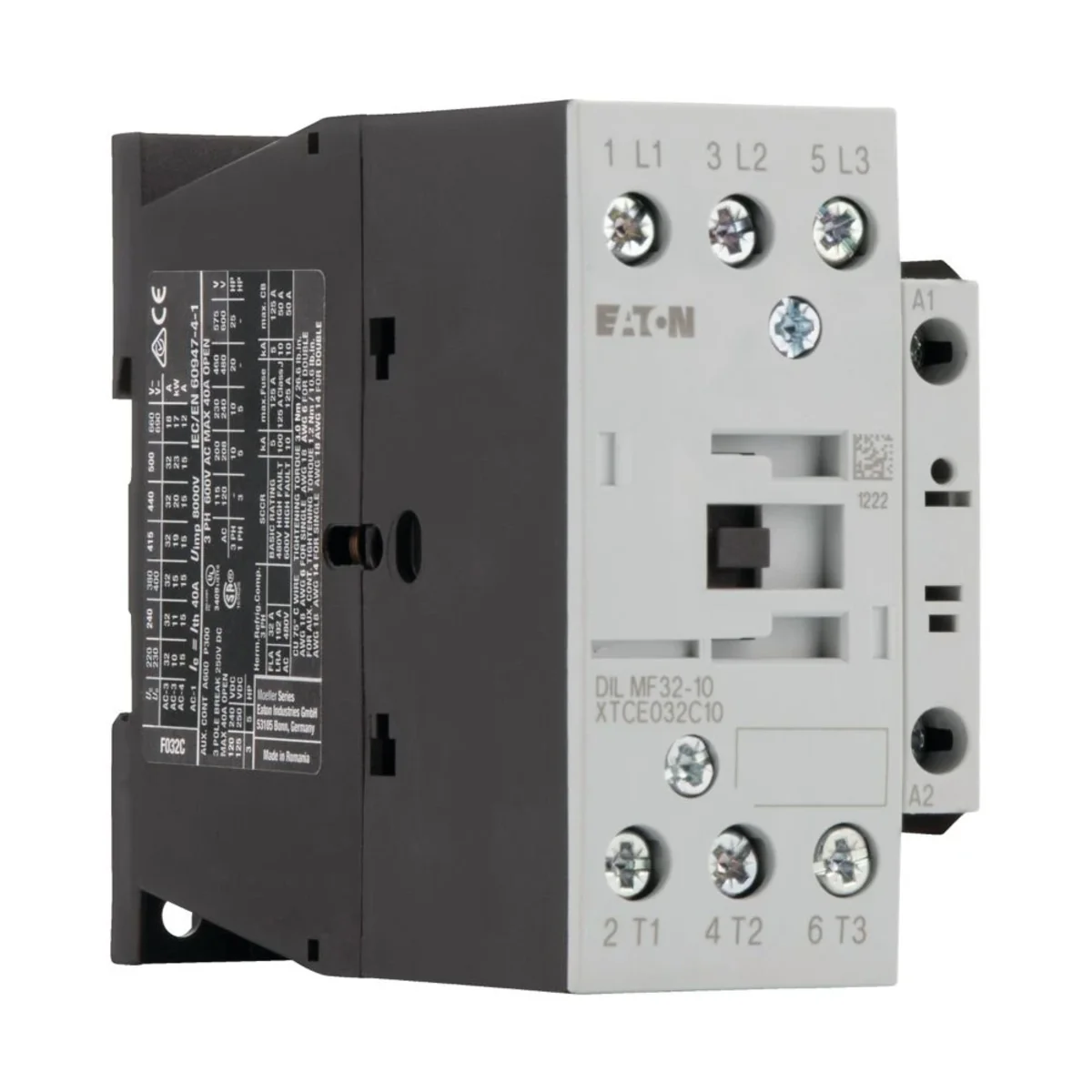

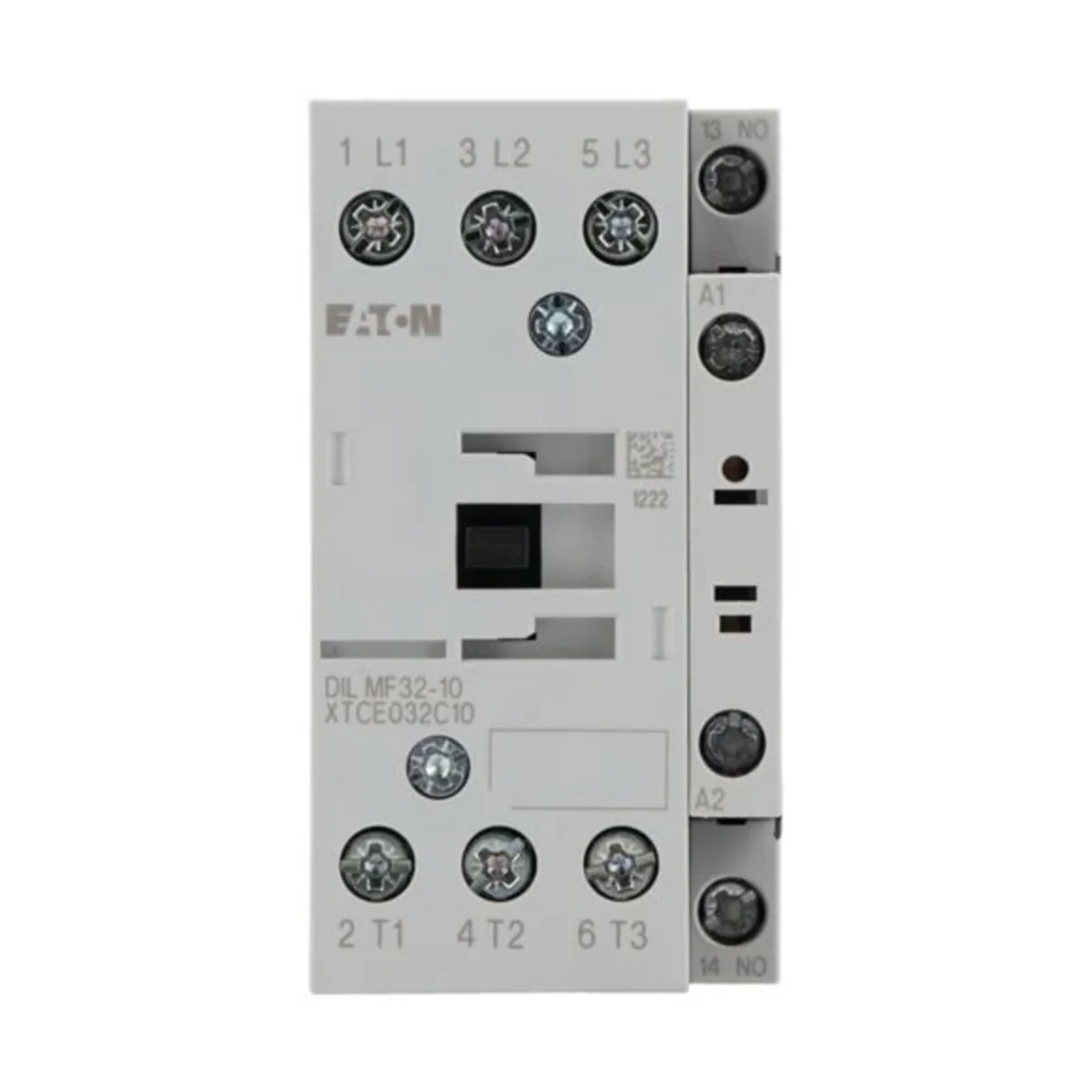

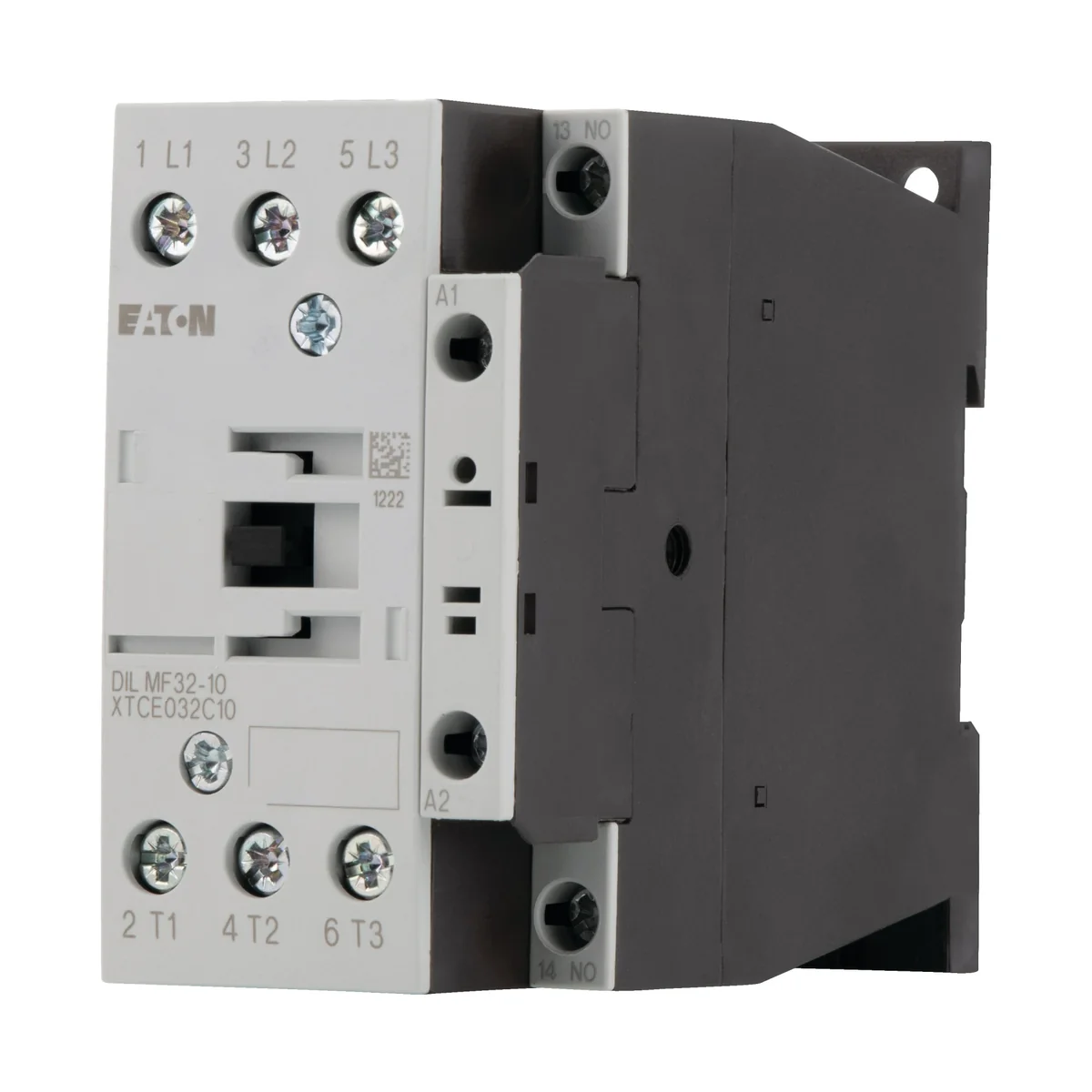

Power contactor, DILMP32-10(24V50/60HZ), 32A, 4b+1ZZ 109799

local index:
ATA126MOEL
Catalog No:
109799
EAN code:
4015081093717
Manufacturer: EATON
Rated current [A]: 32
Price:
70,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power contactor for 4-pin loads, Power contactors up to 200 A, 4-pin,

AC-1: Non-inductive or weakly inductive load, resistance furnaces,

AC- 3: Squirrel-cage motors: starting, stopping during operation,

Connection method: Screw terminals, Poles: 4-pole, 380 V 400 V: Ie= 18 A, conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith =Ie= 32 A, enclosed: Ith= 27 A, conventional thermal current 1-pole open: Ith= 84 A, enclosed: Ith= 76 A, 220 V 230 V : P= 5 kW, 380 V 400 V: P= 7.5 kW, 660 V 690 V: P= 11 kW, Contact equipment Z = NO contact: 1 NO contact, Notes: Switching elements according to EN 50012., Type of current AC/DC: AC operation

Technical data

  • Rated current [A]
    32

Other technical data

  • Rated control supply voltage AC 50 Hz
    24 ... 24 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation current Ie at AC-1, 400 V
    32 A
  • Rated operation power at AC-3, 400 V
    7.5 kW
  • Rated operation power at AC-4, 400 V
    7 kW
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    24 ... 24 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    18 A
  • Rated operation current Ie at AC-4, 400 V
    15 A
  • Rated operation power NEMA
    11 kW
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    4

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,516
Volume (m3) 0,001
Width (m) 0,069
Length (m) 0,112
Depth (m) 0,101
