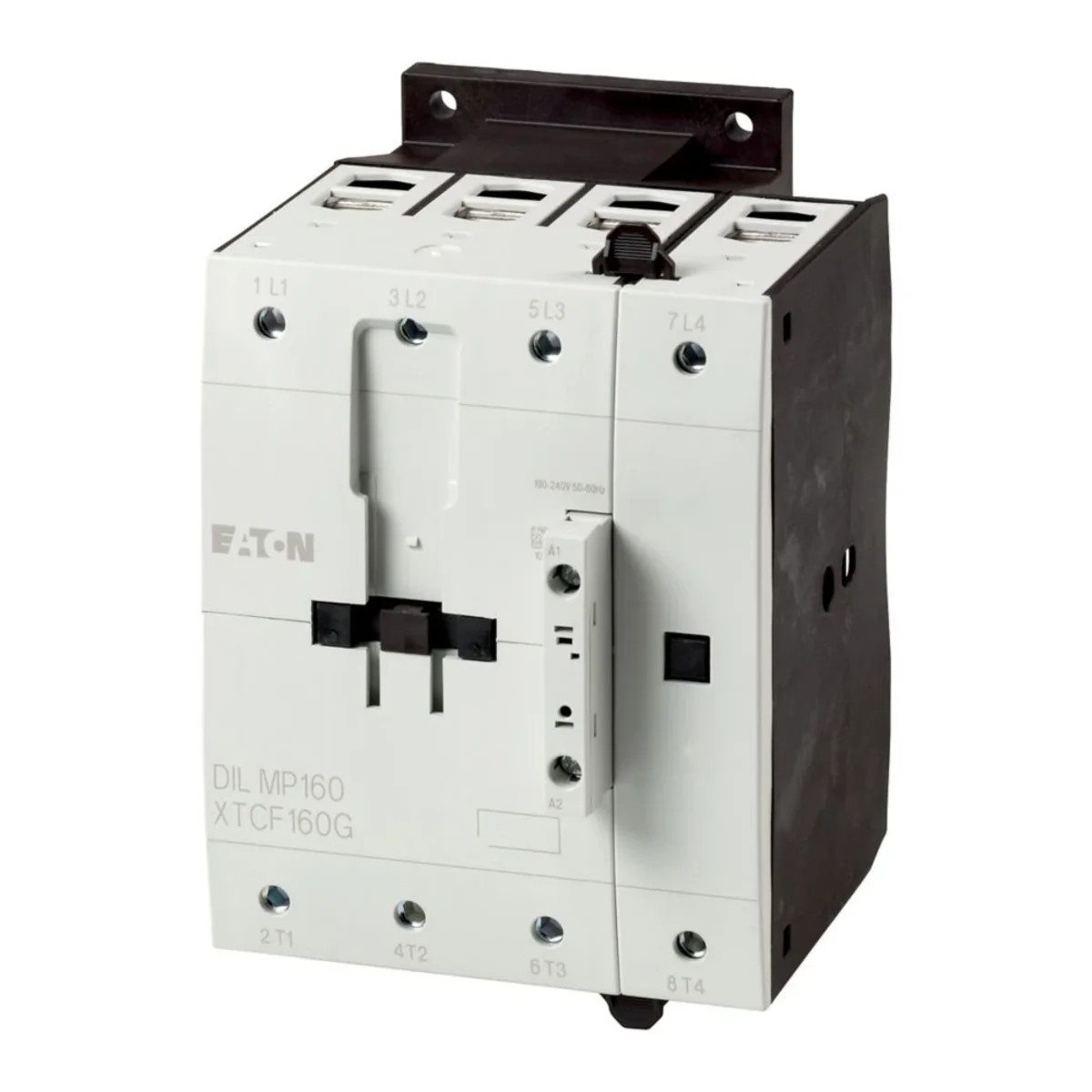

Power contactor for 4-pin loads, Power contactors up to 200 A, 4-pin,

AC-1: Non-inductive or weakly inductive load, resistance furnaces,

AC- 3: Squirrel cage motors: starting, stopping during operation,

Connection method: Screw terminals, Poles: 4-pole, 380 V 400 V: Ie= 95 A, conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith =Ie= 160 A, enclosed: Ith= 128 A, conventional thermal current 1-pole open: Ith= 415 A, enclosed: Ith= 373 A, 220 V 230 V : P= 30 kW, 380 V 400 V: P= 45 kW, 660 V 690 V: P= 75 kW, Notes: Switching elements according to EN 50012., Built-in protection circuit in the control electronics., Type of AC/DC current: DC operation

Number of poles

4

Rated current [A]

160

Other technical data

Rated control supply voltage AC 50 Hz

0 ... 0 V
Rated control supply voltage DC

24 ... 27 V
Rated operation current Ie at AC-1, 400 V

160 A
Rated operation power at AC-3, 400 V

45 kW
Rated operation power at AC-4, 400 V

33 kW
Modular version

No
Number of auxiliary contacts as normally closed contact

0
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

0 ... 0 V
Voltage type for actuating

DC
Rated operation current Ie at AC-3, 400 V

95 A
Rated operation current Ie at AC-4, 400 V

65 A
Rated operation power NEMA

55 kW
Number of auxiliary contacts as normally open contact

0
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

4

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	2,826	2,922
Volume (m3)	0,004	0,004
Width (m)	0,134	0,134
Length (m)	0,177	0,177
Depth (m)	0,183	0,183
