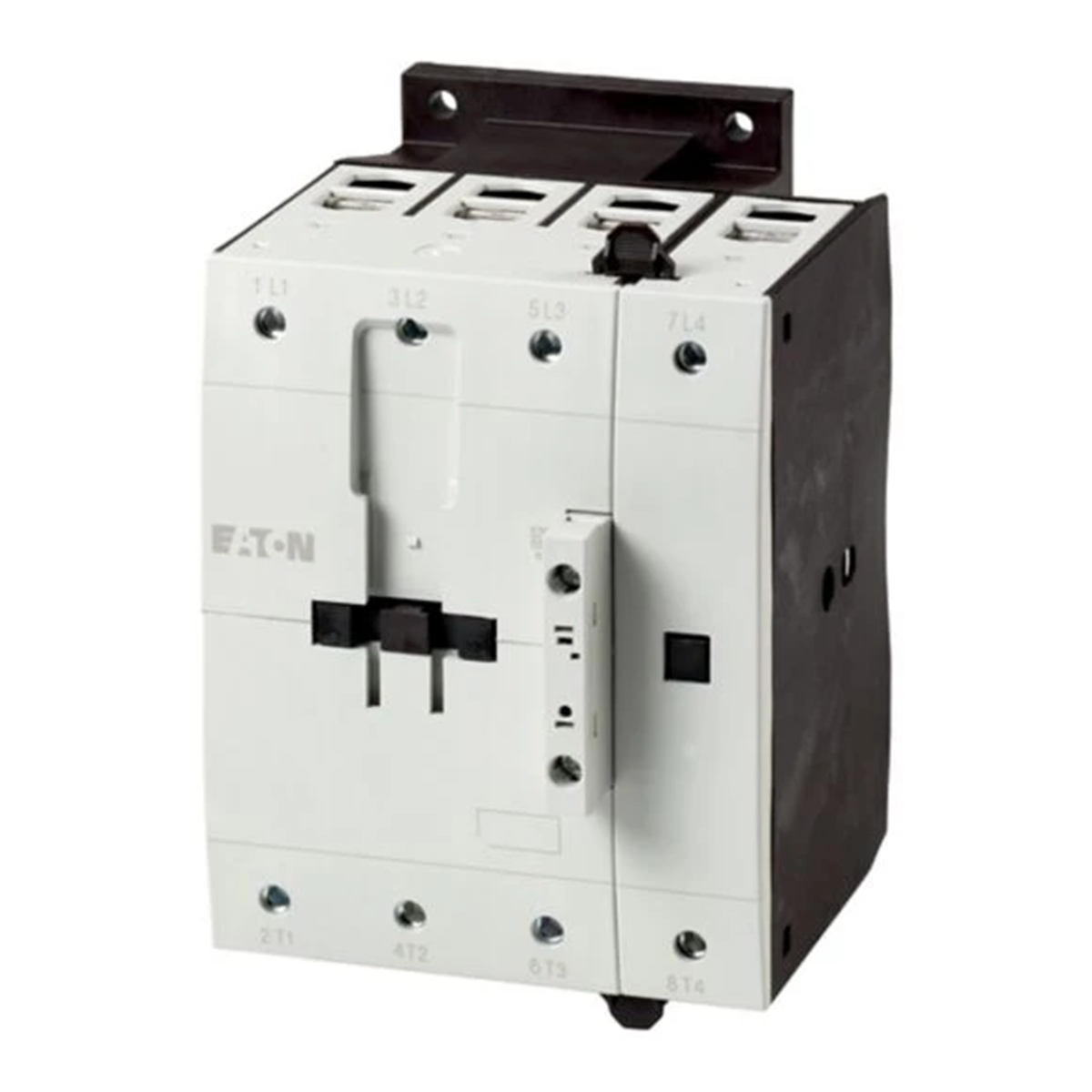

Power Contactor, DILMP125(RDC24), 125A, 4 Pole 109910

Name: Power Contactor, DILMP125(RDC24), 125A, 4 Pole
Brand: EATON
SKU: ATA193MOEL
Price: 470.65 PLN

Indeks lokalny:

ATA193MOEL

Nr katalogowy:

109910

Kod EAN:

4015081094769

Power Contactor, DILMP125(RDC24), 125A, 4 Pole

Kliknij zdjęcie, aby powiększyć

Producent: EATON

Number of poles: 4

Rated current [A]: 125

Zobacz cały opis

Cena:

470,65 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 4 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Power contactor for 4-pin loads, Power contactors up to 200 A, 4-pin,

AC-1: Non-inductive or weakly inductive load, resistance furnaces,

AC- 3: Squirrel-cage motors: starting, stopping during operation,

Connection method: Screw terminals, Poles: 4-pole, 380 V 400 V: Ie= 80 A, conventional thermal, 3-pole, 50 - 60 Hz open at 40 °C: Ith =Ie= 125 A, enclosed: Ith= 100 A, conventional thermal current 1-pole open: Ith= 325 A, enclosed: Ith= 292 A, 220 V 230 V : P= 25 kW, 380 V 400 V: P= 37 kW, 660 V 690 V: P= 63 kW, Notes: Switching elements according to EN 50012., Built-in protection circuit in the control electronics., Type of AC/DC current: DC operation

Dane techniczne

Number of poles

4

Rated current [A]

125

Pozostałe dane techniczne

Rated control supply voltage AC 50 Hz

0 ... 0 V
Rated control supply voltage DC

24 ... 27 V
Rated operation current Ie at AC-1, 400 V

125 A
Rated operation power at AC-3, 400 V

37 kW
Rated operation power at AC-4, 400 V

28 kW
Modular version

No
Number of auxiliary contacts as normally closed contact

0
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

0 ... 0 V
Voltage type for actuating

DC
Rated operation current Ie at AC-3, 400 V

80 A
Rated operation current Ie at AC-4, 400 V

115 A
Rated operation power NEMA

44.7 kW
Number of auxiliary contacts as normally open contact

0
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

4

Dane producenta

Producent

EATON Electric Sp. z o.o.
Adres

80-299 Gdańsk ul. Galaktyczna 30
NIP

5841022327

Opakowania zbiorcze

Rodzaj opakowania	Skrzynia
Ilość	1 szt.
Waga (kg)	2,826
Objętość (m3)	0,004
Szerokość (m)	0,134
Długość (m)	0,177
Głębokość (m)	0,183
