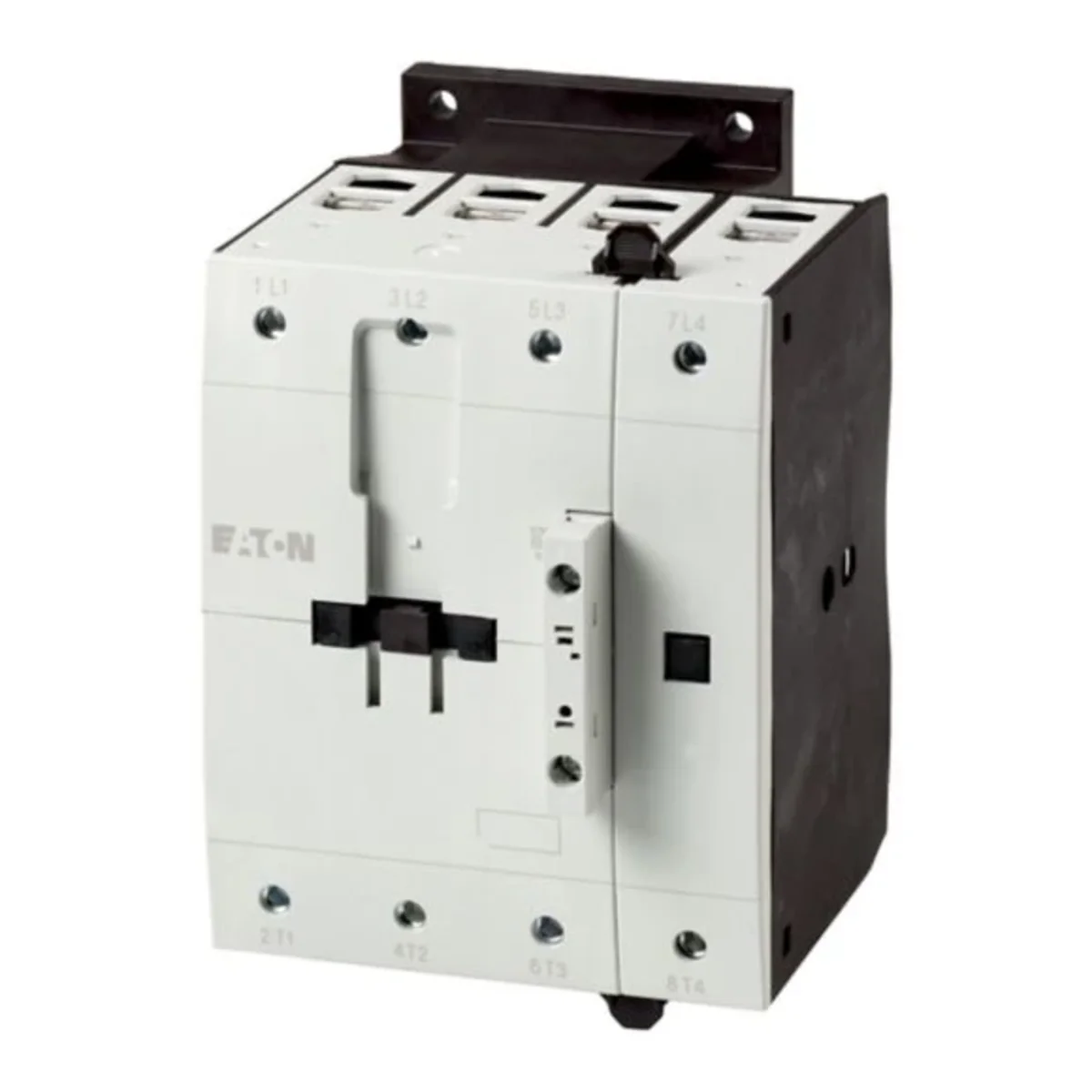

Power Contactor, DILMP125(RDC24), 125A, 4 Pole 109910
local index:
ATA193MOEL
Catalog No:
109910
EAN code:
4015081094769
Price:
458,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power contactor for 4-pin loads, Power contactors up to 200 A, 4-pin,
AC-1: Non-inductive or weakly inductive load, resistance furnaces,
AC- 3: Squirrel-cage motors: starting, stopping during operation,
Connection method: Screw terminals, Poles: 4-pole, 380 V 400 V: Ie= 80 A, conventional thermal, 3-pole, 50 - 60 Hz open at 40 °C: Ith =Ie= 125 A, enclosed: Ith= 100 A, conventional thermal current 1-pole open: Ith= 325 A, enclosed: Ith= 292 A, 220 V 230 V : P= 25 kW, 380 V 400 V: P= 37 kW, 660 V 690 V: P= 63 kW, Notes: Switching elements according to EN 50012., Built-in protection circuit in the control electronics., Type of AC/DC current: DC operation
Technical data
-
Number of poles4
-
Rated current [A]125
Other technical data
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC24 ... 27 V
-
Rated operation current Ie at AC-1, 400 V125 A
-
Rated operation power at AC-3, 400 V37 kW
-
Rated operation power at AC-4, 400 V28 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Rated operation current Ie at AC-3, 400 V80 A
-
Rated operation current Ie at AC-4, 400 V115 A
-
Rated operation power NEMA44.7 kW
-
Number of auxiliary contacts as normally open contact0
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact4
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 2,826 |
| Volume (m3) | 0,004 |
| Width (m) | 0,134 |
| Length (m) | 0,177 |
| Depth (m) | 0,183 |
