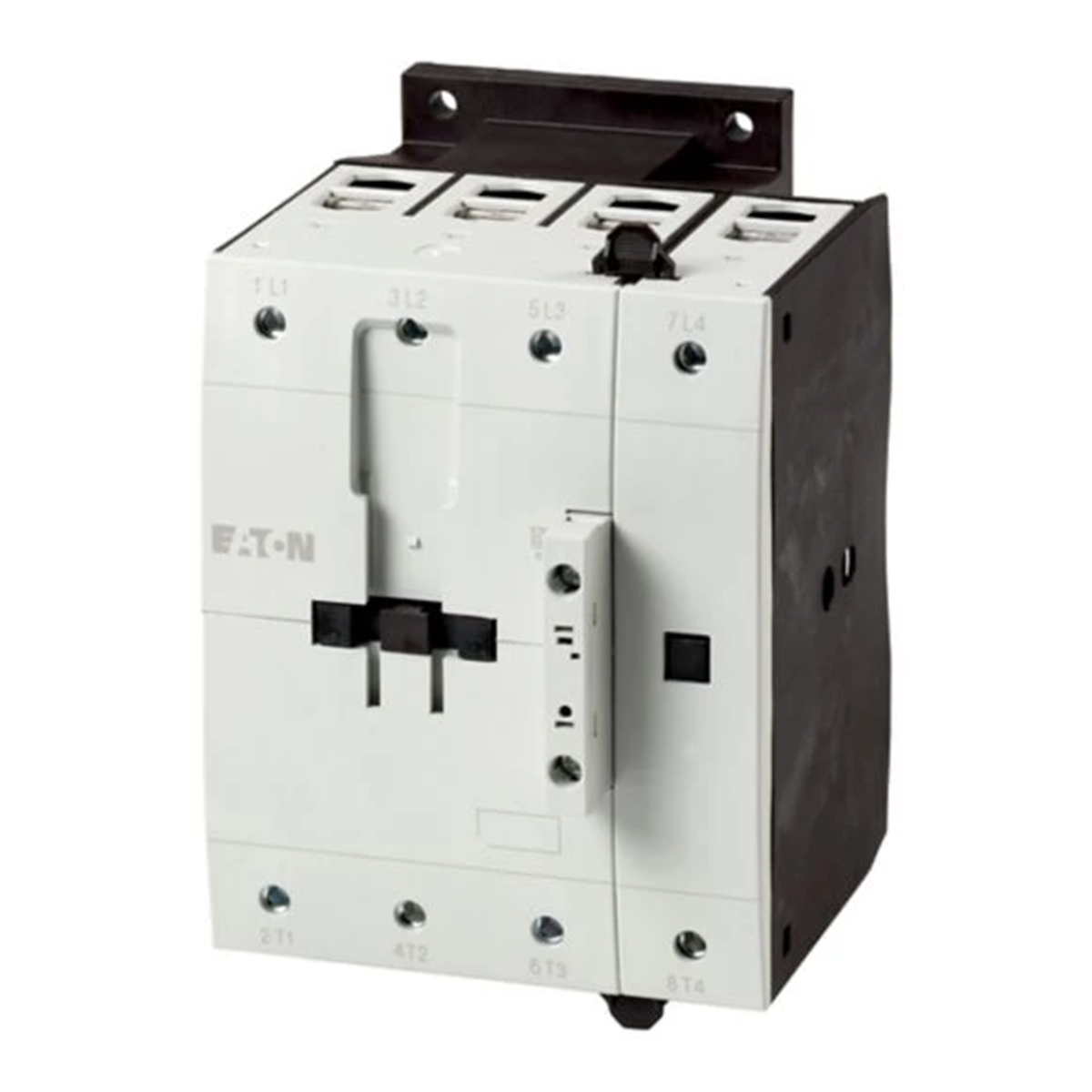

Power contactor, DILMP125(RAC24), 125A, 4 pole 109904

local index:
ATA190MOEL
Catalog No:
109904
EAN code:
4015081094707
Manufacturer: EATON
Number of poles: 4
Rated current [A]: 125
Price:
411,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power contactor for 4-pin loads, Power contactors up to 200 A, 4-pin,

AC-1: Non-inductive or weakly inductive load, resistance furnaces,

AC- 3: Squirrel cage motors: starting, stopping during operation,

Connection method: Screw terminals, Poles: 4-pole, 380 V 400 V: Ie= 80 A, conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith =Ie= 125 A, enclosed: Ith= 100 A, conventional thermal current 1-pole open: Ith= 325 A, enclosed: Ith= 292 A, 220 V 230 V : P= 25 kW, 380 V 400 V: P= 37 kW, 660 V 690 V: P= 63 kW, Notes: Switching elements according to EN 50012., Built-in protection circuit in the control electronics., Type of AC/DC current: AC work

Technical data

  • Number of poles
    4
  • Rated current [A]
    125

Other technical data

  • Rated control supply voltage AC 50 Hz
    24 ... 24 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation current Ie at AC-1, 400 V
    125 A
  • Rated operation power at AC-3, 400 V
    37 kW
  • Rated operation power at AC-4, 400 V
    28 kW
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    24 ... 24 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    80 A
  • Rated operation current Ie at AC-4, 400 V
    115 A
  • Rated operation power NEMA
    44.7 kW
  • Number of auxiliary contacts as normally open contact
    0
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    4

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 2,826
Volume (m3) 0,004
Width (m) 0,134
Length (m) 0,177
Depth (m) 0,183
