Power Contactor, DILMP125(RAC120), 125A, 4 Pole 109903

Name: Power Contactor, DILMP125(RAC120), 125A, 4 Pole
Brand: EATON
SKU: ATA189MOEL
Price: 2166.17 PLN
Availability: BackOrder

local index:

ATA189MOEL

Catalog number:

109903

EAN code:

4015081094691

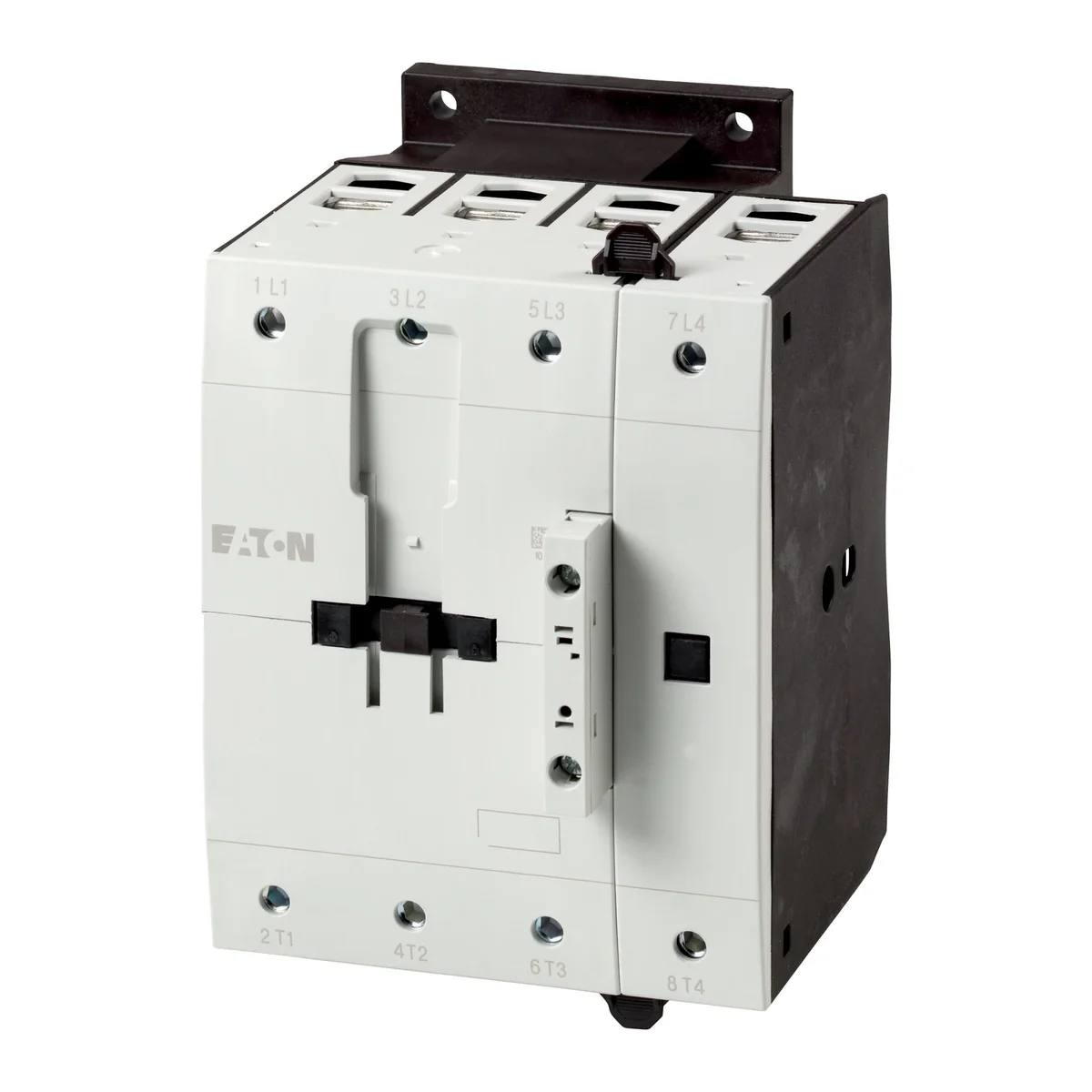

Power Contactor, DILMP125(RAC120), 125A, 4 Pole

Click on the photo to enlarge

Manufacturer: EATON

Number of poles: 4

Rated current [A]: 125

See full description

Price:

2 166,17 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Power contactor for 4-pin loads, Power contactors up to 200 A, 4-pin,

AC-1: Non-inductive or weakly inductive load, resistance furnaces,

AC- 3: Squirrel cage motors: starting, stopping during operation,

Connection method: Screw terminals, Poles: 4-pole, 380 V 400 V: Ie= 80 A, conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith =Ie= 125 A, enclosed: Ith= 100 A, conventional thermal current 1-pole open: Ith= 325 A, enclosed: Ith= 292 A, 220 V 230 V : P= 25 kW, 380 V 400 V: P= 37 kW, 660 V 690 V: P= 63 kW, Notes: Switching elements according to EN 50012., Built-in protection circuit in the control electronics., Type of AC/DC current: AC work

Technical data

Number of poles

4

Rated current [A]

125

Other technical data

Rated control supply voltage AC 50 Hz

100 ... 120 V
Rated control supply voltage DC

0 ... 0 V
Rated operation current Ie at AC-1, 400 V

125 A
Rated operation power at AC-3, 400 V

37 kW
Rated operation power at AC-4, 400 V

28 kW
Modular version

No
Number of auxiliary contacts as normally closed contact

0
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

100 ... 120 V
Voltage type for actuating

AC
Rated operation current Ie at AC-3, 400 V

80 A
Rated operation current Ie at AC-4, 400 V

115 A
Rated operation power NEMA

44.7 kW
Number of auxiliary contacts as normally open contact

0
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

4

Manufacturer details

Manufacturer

Eaton Electric Sp. z o.o.
Address

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Bulk packaging

A kind of package	Skrzynia	Karton
Quantity	1 pcs.	1 pcs.
Weight (kg)	2,730	2,826
Volume (m3)	0,003	0,004
Width (m)	0,124	0,134
Length (m)	0,162	0,177
Depth (m)	0,172	0,183
