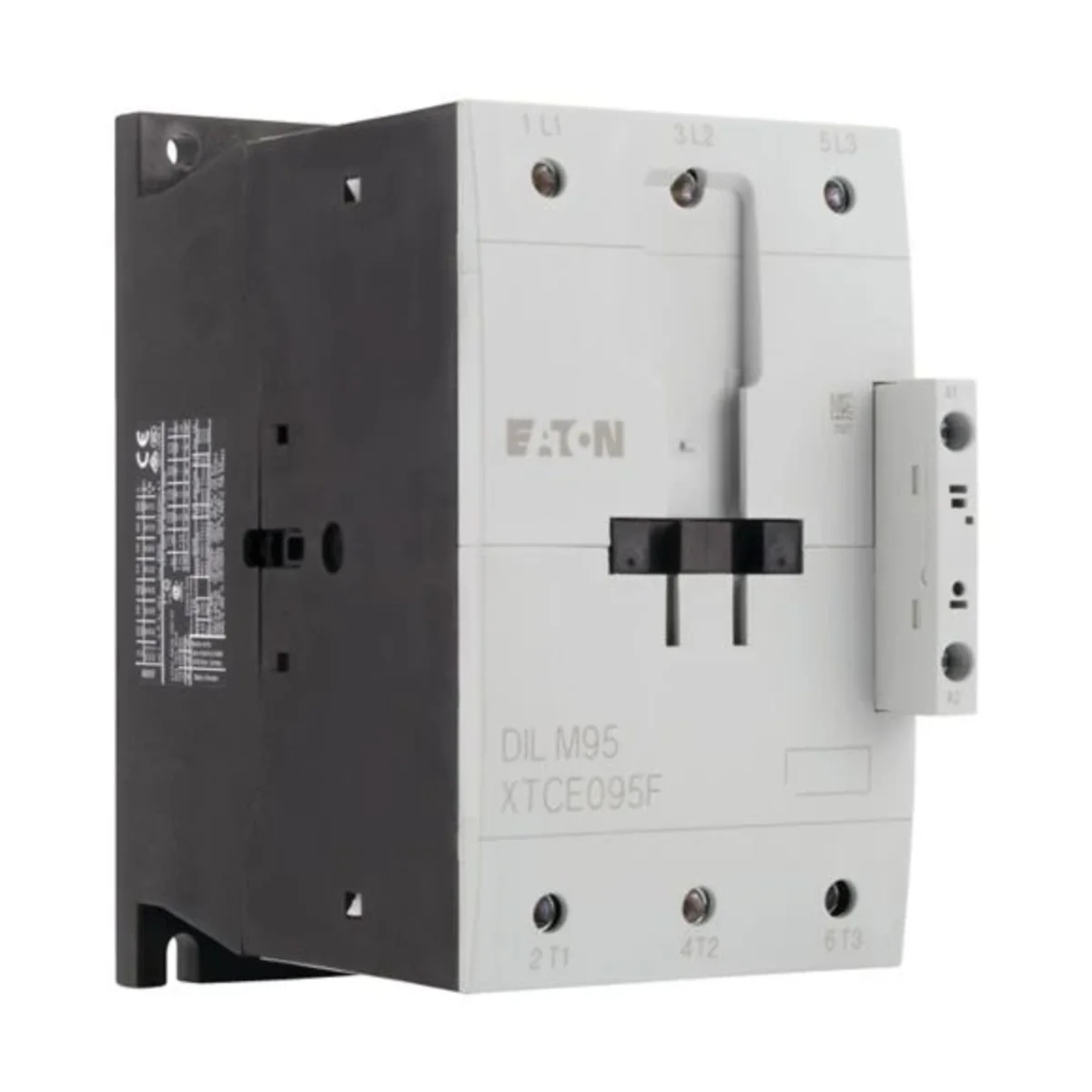

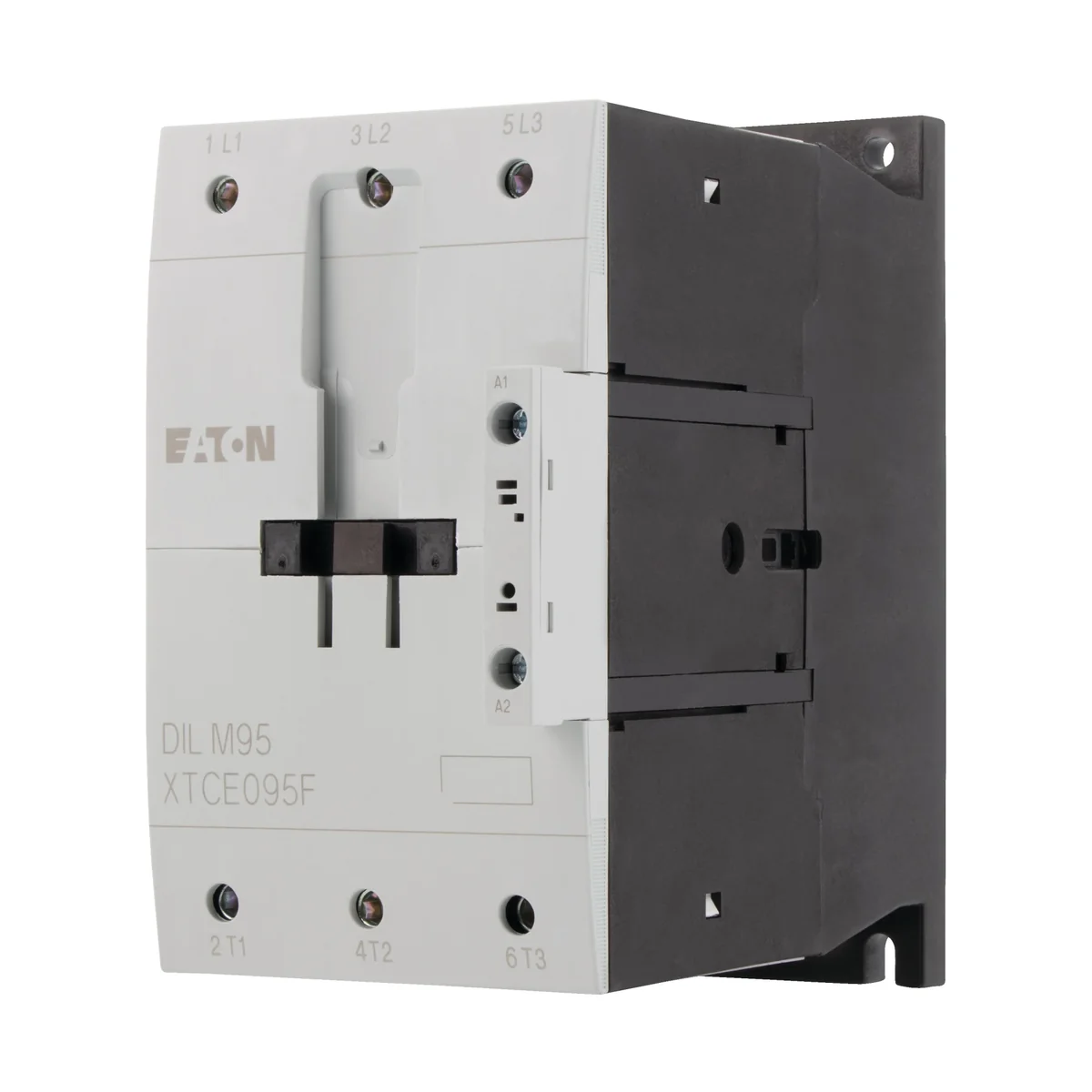

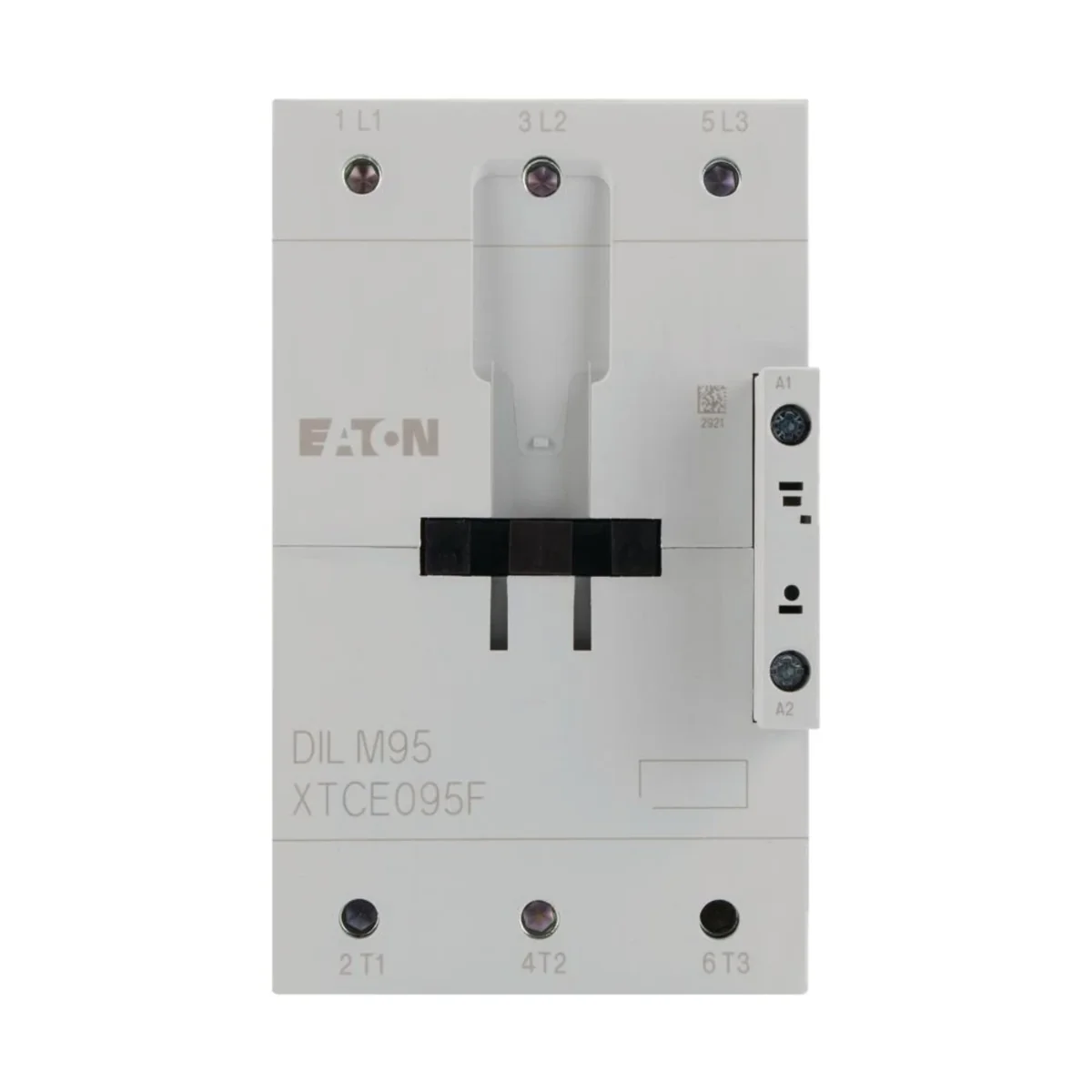

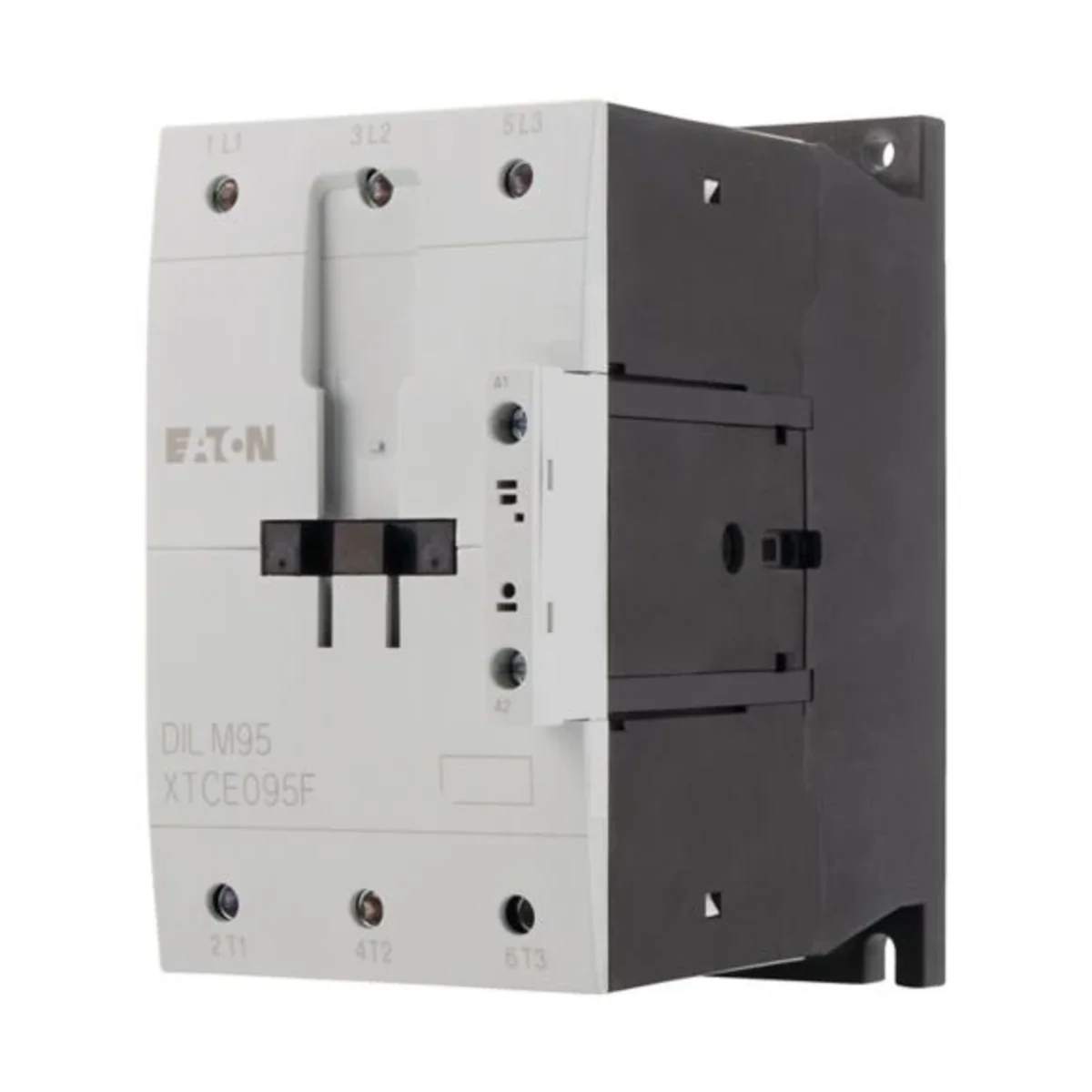

Power contactor, DILM95, 95A 239510

local index:
ATD050MOEL
Catalog No:
239510
EAN code:
4015082395100
Manufacturer: EATON
Rated voltage [V]: 24
Rated current [A]: 95
Price:
535,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

DILM power contactors, operating voltage 24 V DC

Technical data

  • Rated voltage [V]
    24
  • Rated current [A]
    95

Other technical data

  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 27 V
  • Rated operation current Ie at AC-1, 400 V
    130 A
  • Rated operation power at AC-3, 400 V
    45 kW
  • Rated operation power at AC-4, 400 V
    26 kW
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Rated operation current Ie at AC-3, 400 V
    95 A
  • Rated operation current Ie at AC-4, 400 V
    50 A
  • Rated operation power NEMA
    55 kW
  • Number of auxiliary contacts as normally open contact
    0
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 2,418
Volume (m3) 0,005
Width (m) 0,176
Length (m) 0,176
Depth (m) 0,177
