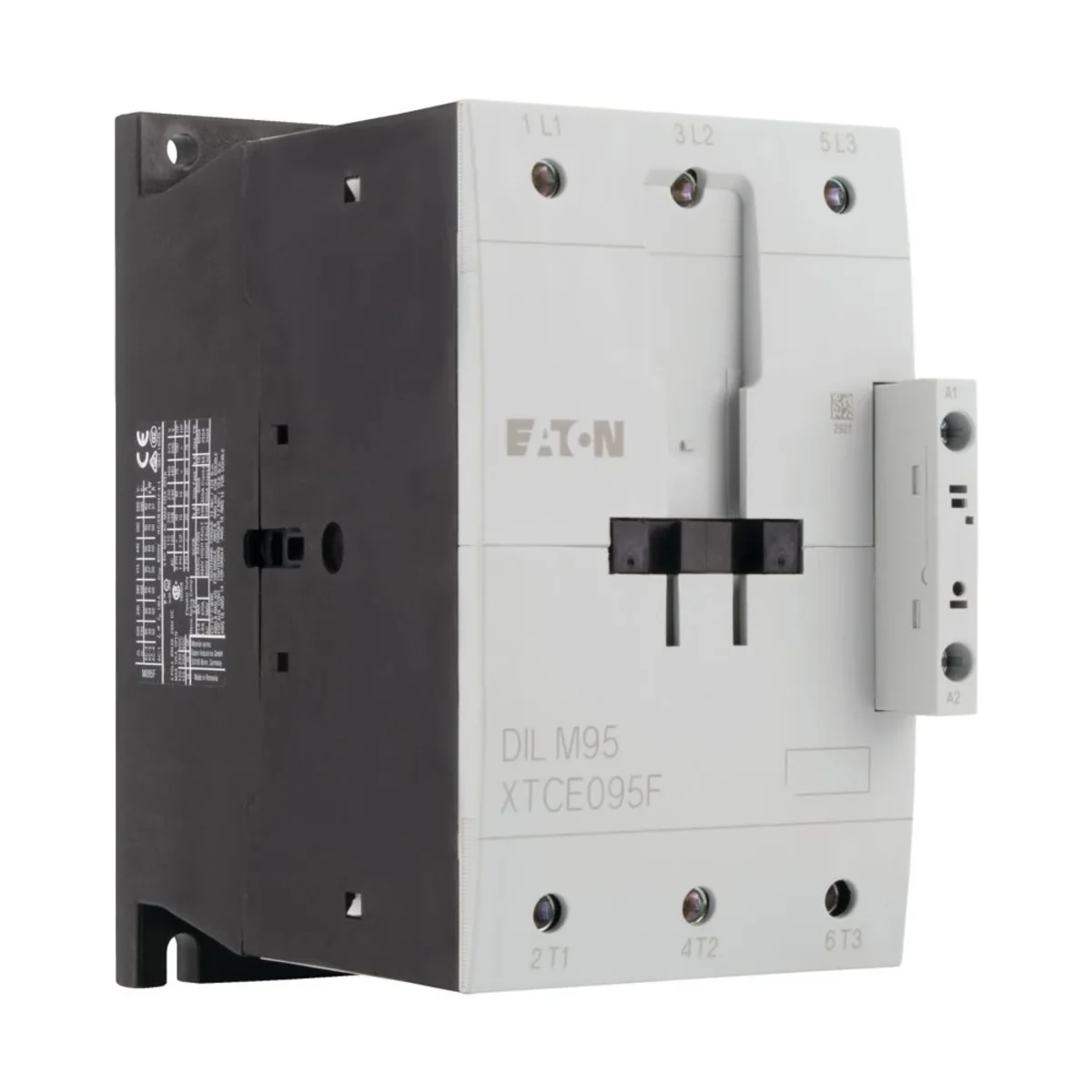

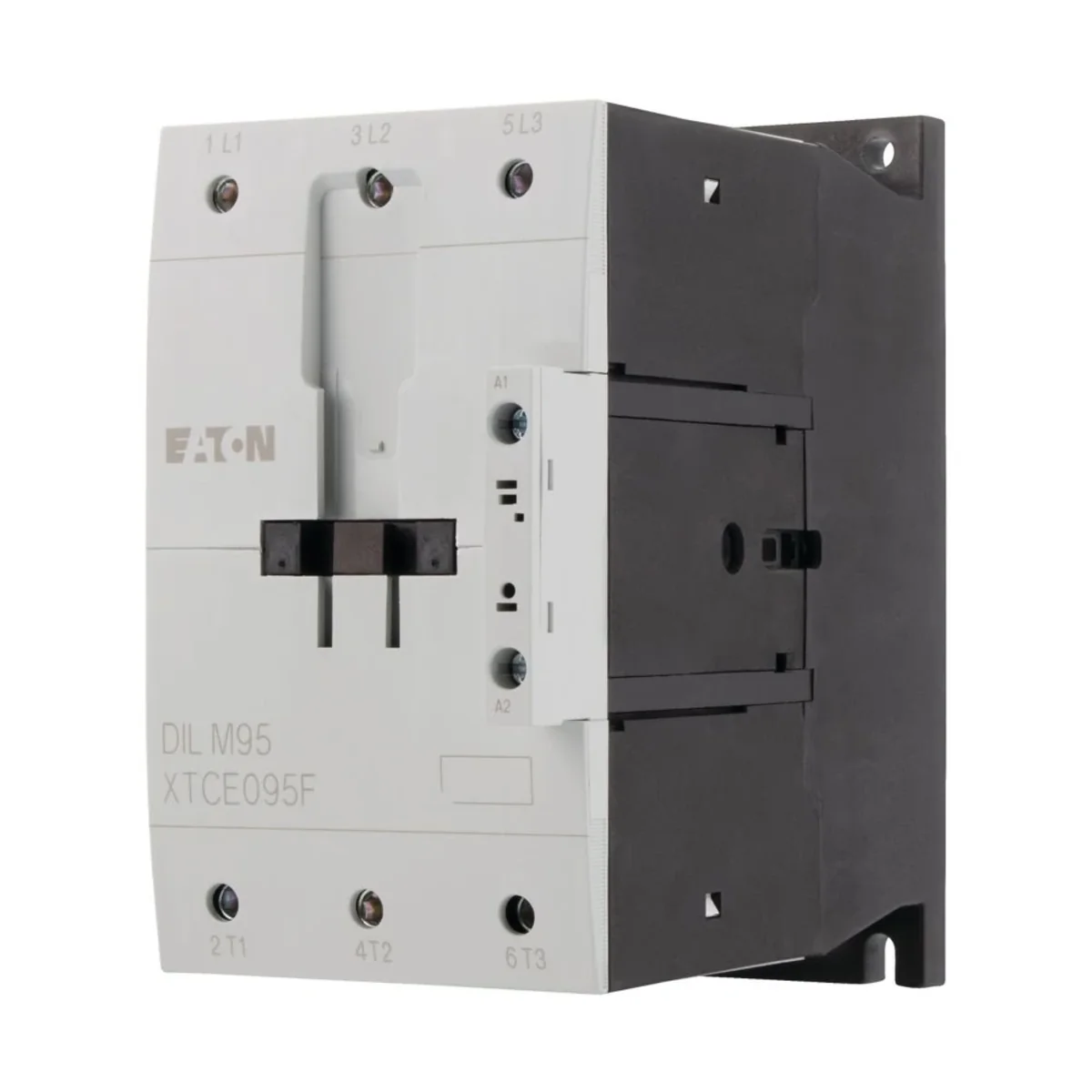

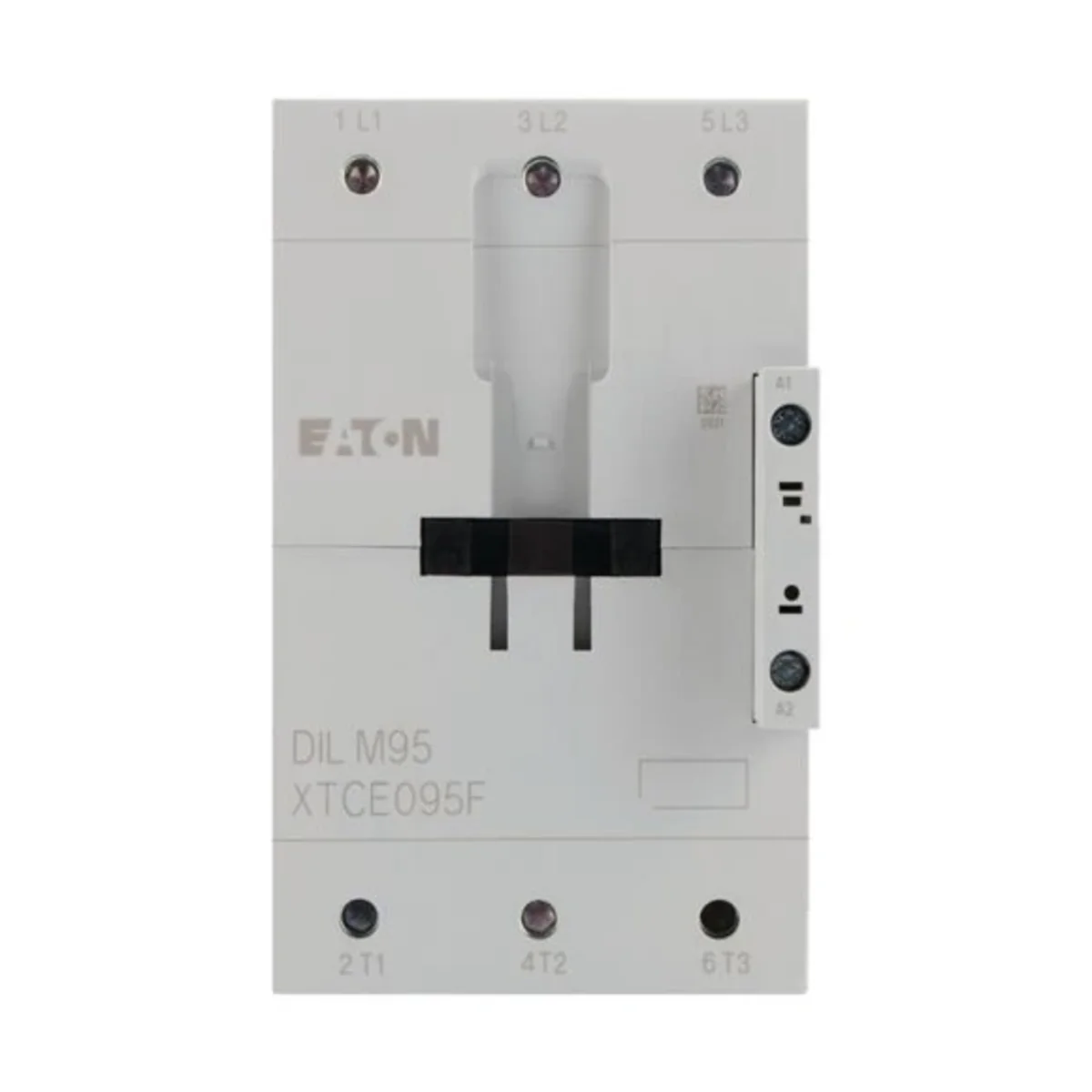

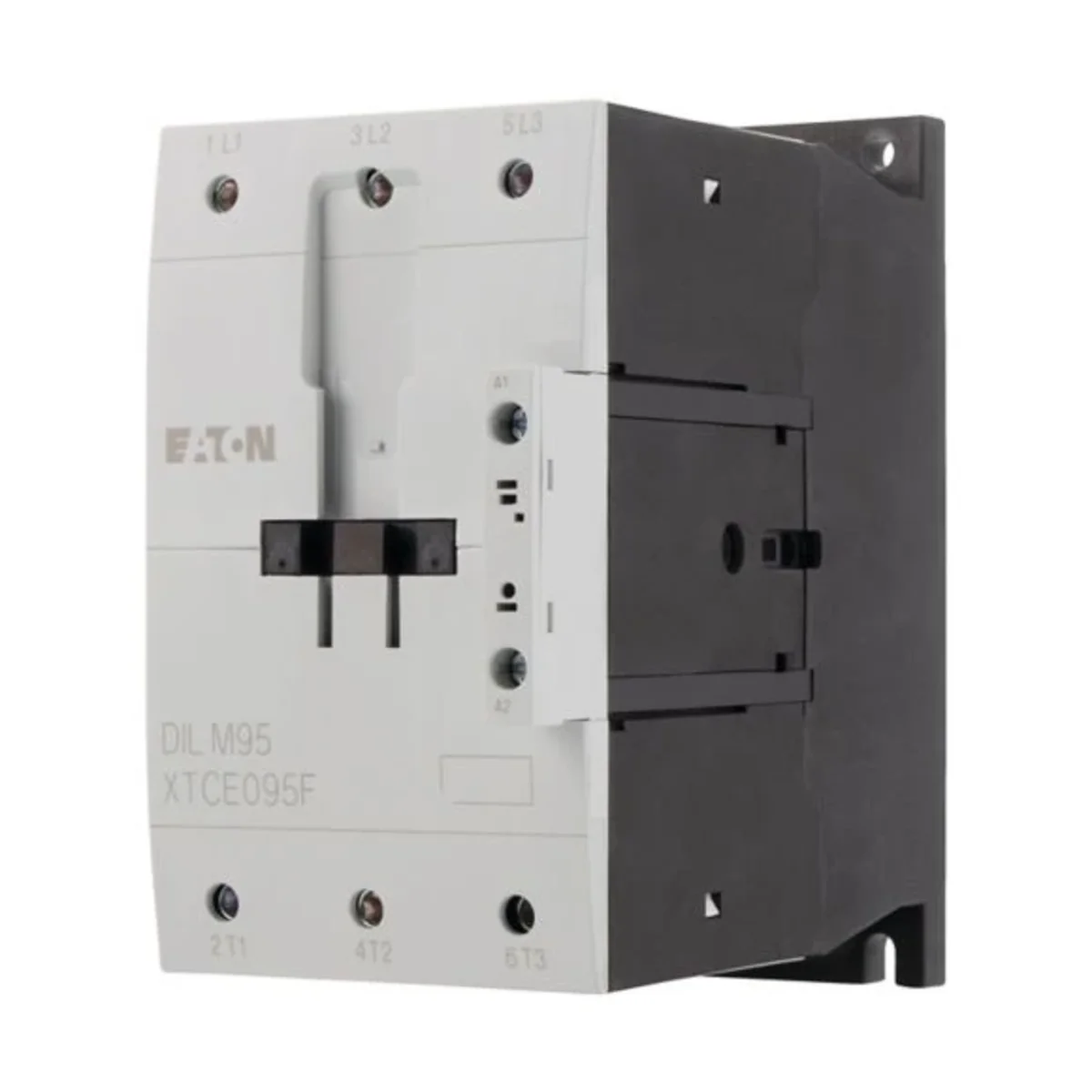

Power contactor, DILM95, 95A 239480
Índice local:
ATA191MOEL
Número de catálogo:
239480
Código EAN:
4015082394806
Precio:
394,01 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir
Pregunta por el producto
Descripción del producto
DILM power contactors. For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.
Datos técnicos
-
Rated voltage [V]230
-
Rated current [A]95
Otros datos técnicos
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Rated control supply voltage DC0 ... 0 V
-
Rated operation current Ie at AC-1, 400 V130 A
-
Rated operation power at AC-3, 400 V45 kW
-
Rated operation power at AC-4, 400 V26 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz240 ... 240 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V95 A
-
Rated operation current Ie at AC-4, 400 V50 A
-
Rated operation power NEMA55 kW
-
Number of auxiliary contacts as normally open contact0
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
Detalles del fabricante
-
FabricanteEATON ELECTRIC SP. Z O.O.
-
Dirección80-299 UL. GALAKTYCZNA 30
-
Email
-
NIF5841022327
Empaquetado a granel
| una especie de paquete | Skrzynia |
| Cantidad | 1 uds. |
| Peso (kg) | 2,278 |
| Volumen (m3) | 0,005 |
| Ancho (m) | 0,176 |
| Longitud (m) | 0,176 |
| Profundidad (m) | 0,177 |
