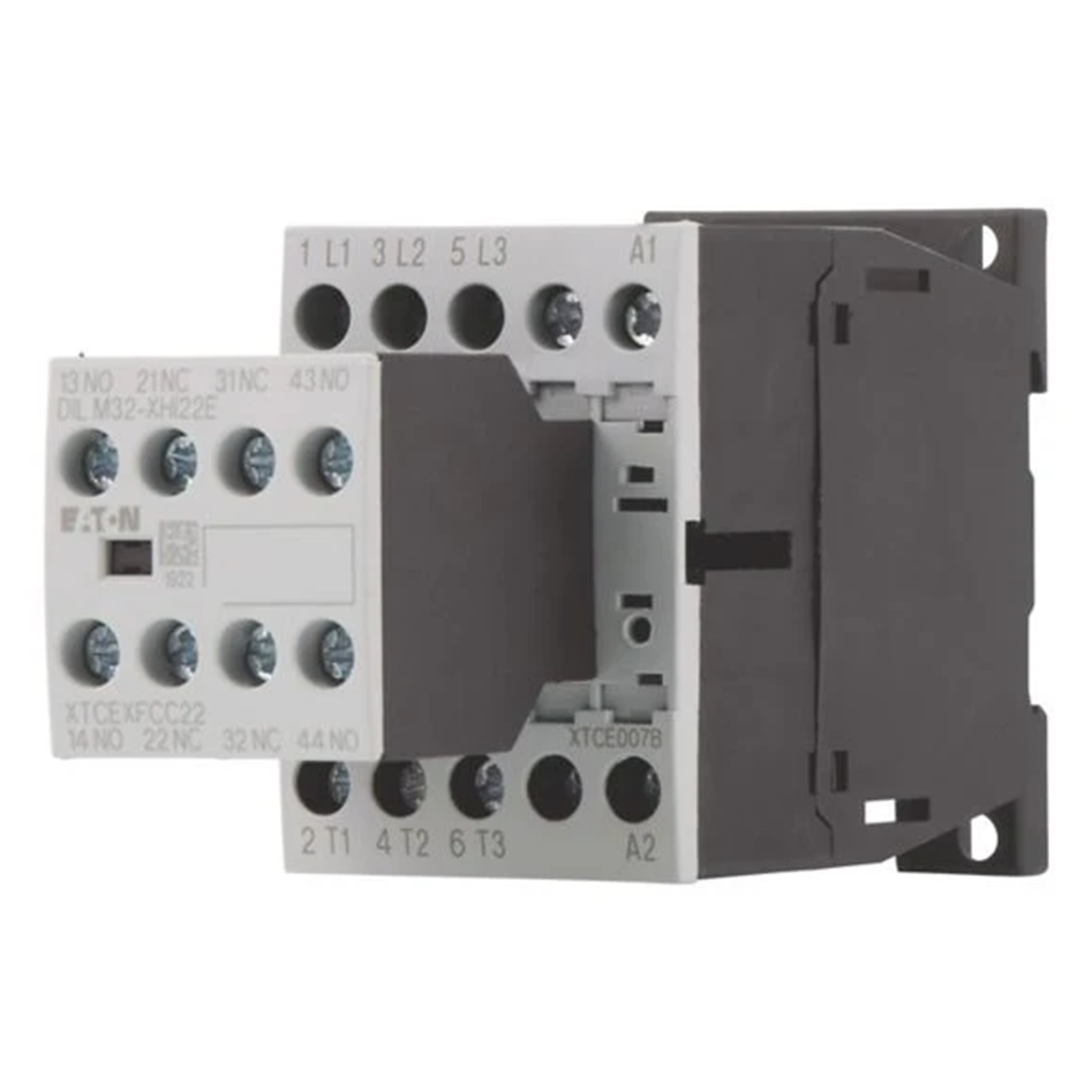

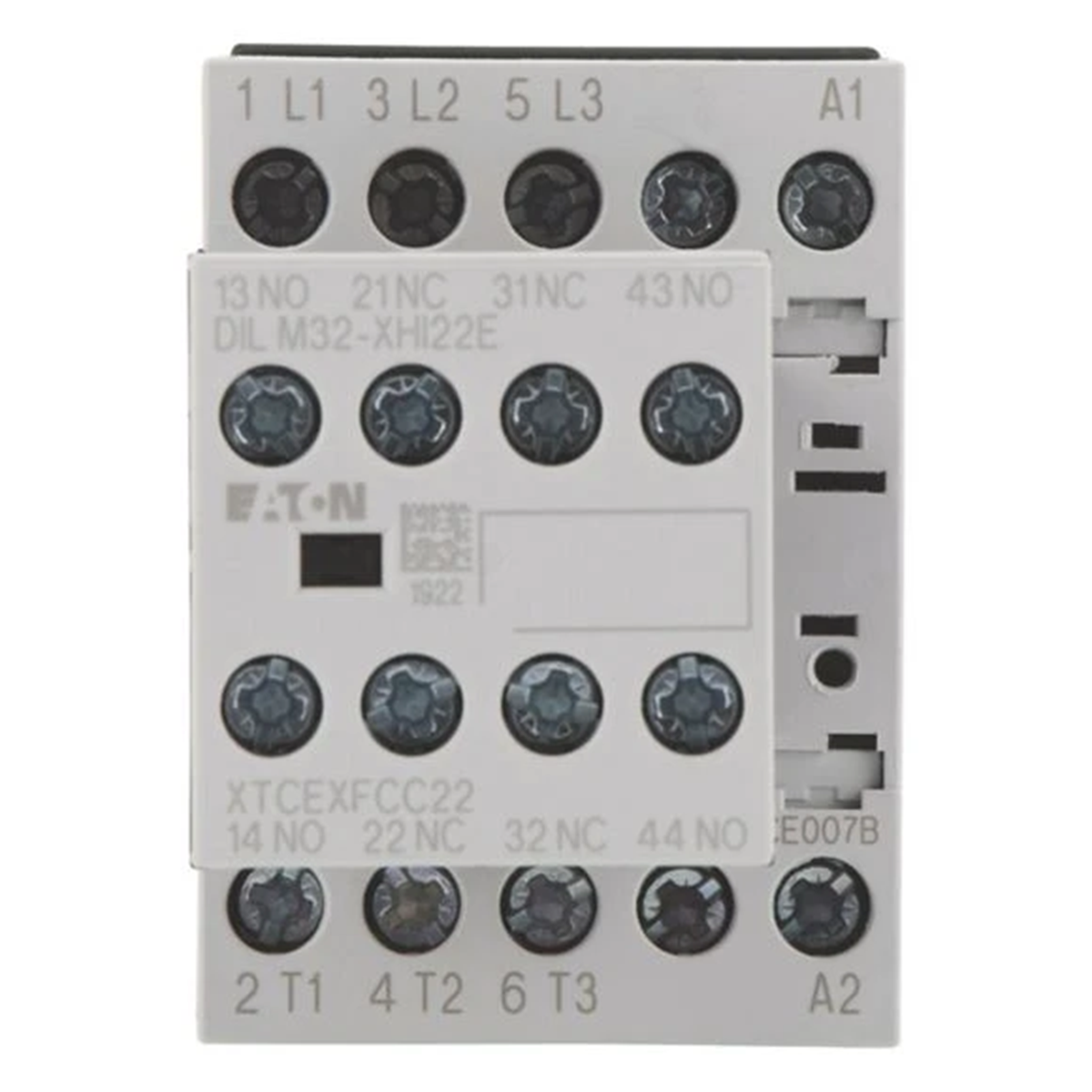

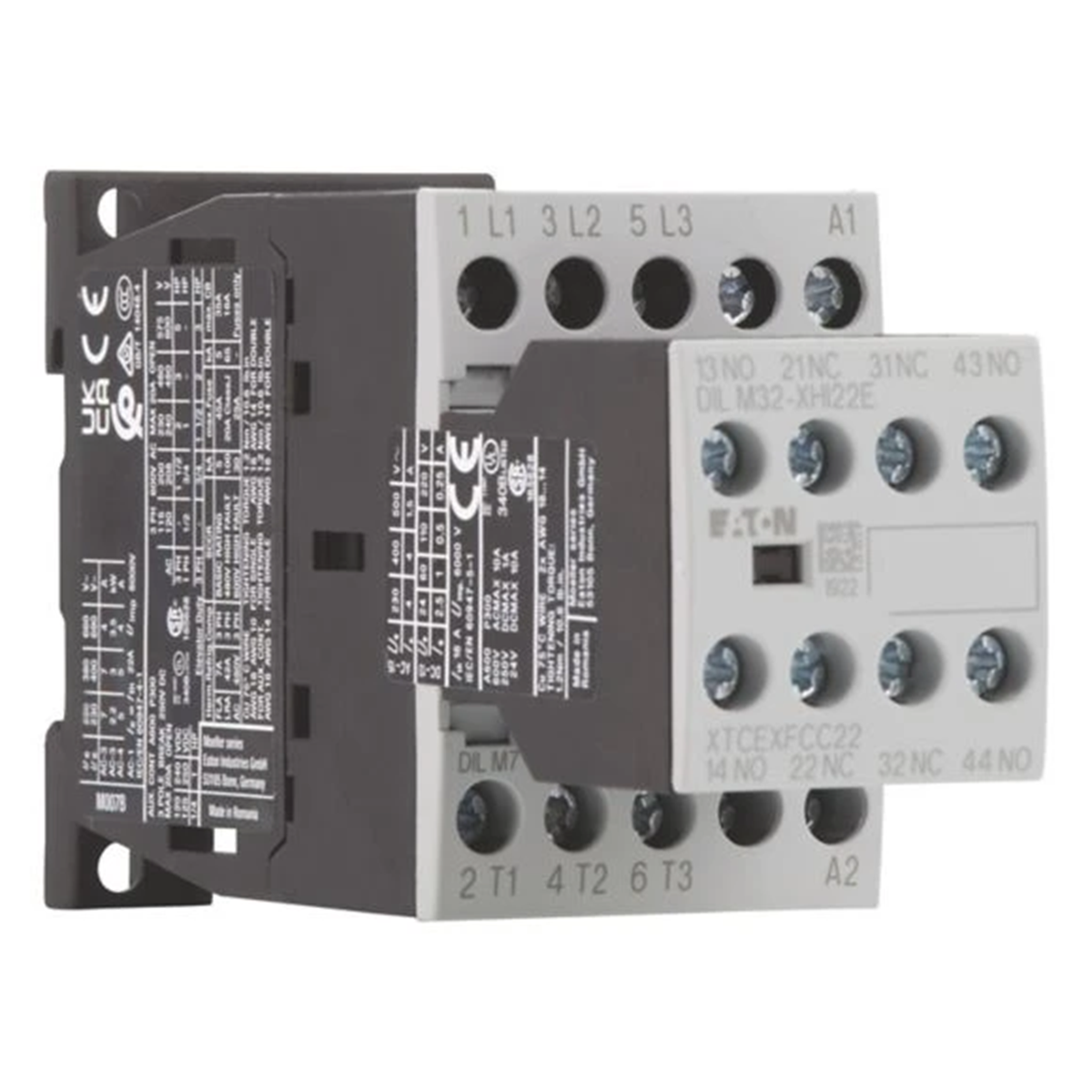

Power contactor, DILM7-22, 7A, 2NO 2NC 106360

local index:
ATA084MOEL
Catalog No:
106360
EAN code:
4015081061303
Manufacturer: EATON
Rated voltage [V]: 230
Rated current [A]: 7
Price:
64,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

DILM power contactors. For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.

Technical data

  • Rated voltage [V]
    230
  • Rated current [A]
    7

Other technical data

  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation current Ie at AC-1, 400 V
    22 A
  • Rated operation power at AC-3, 400 V
    3 kW
  • Rated operation power at AC-4, 400 V
    2.2 kW
  • Modular version
    no
  • Number of auxiliary contacts as normally closed contact
    2
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    240 ... 240 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    7 A
  • Rated operation current Ie at AC-4, 400 V
    5 A
  • Rated operation power NEMA
    2.2 kW
  • Number of auxiliary contacts as normally open contact
    2
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,315
Volume (m3) 0,000
Width (m) 0,045
Length (m) 0,138
Depth (m) 0,078
