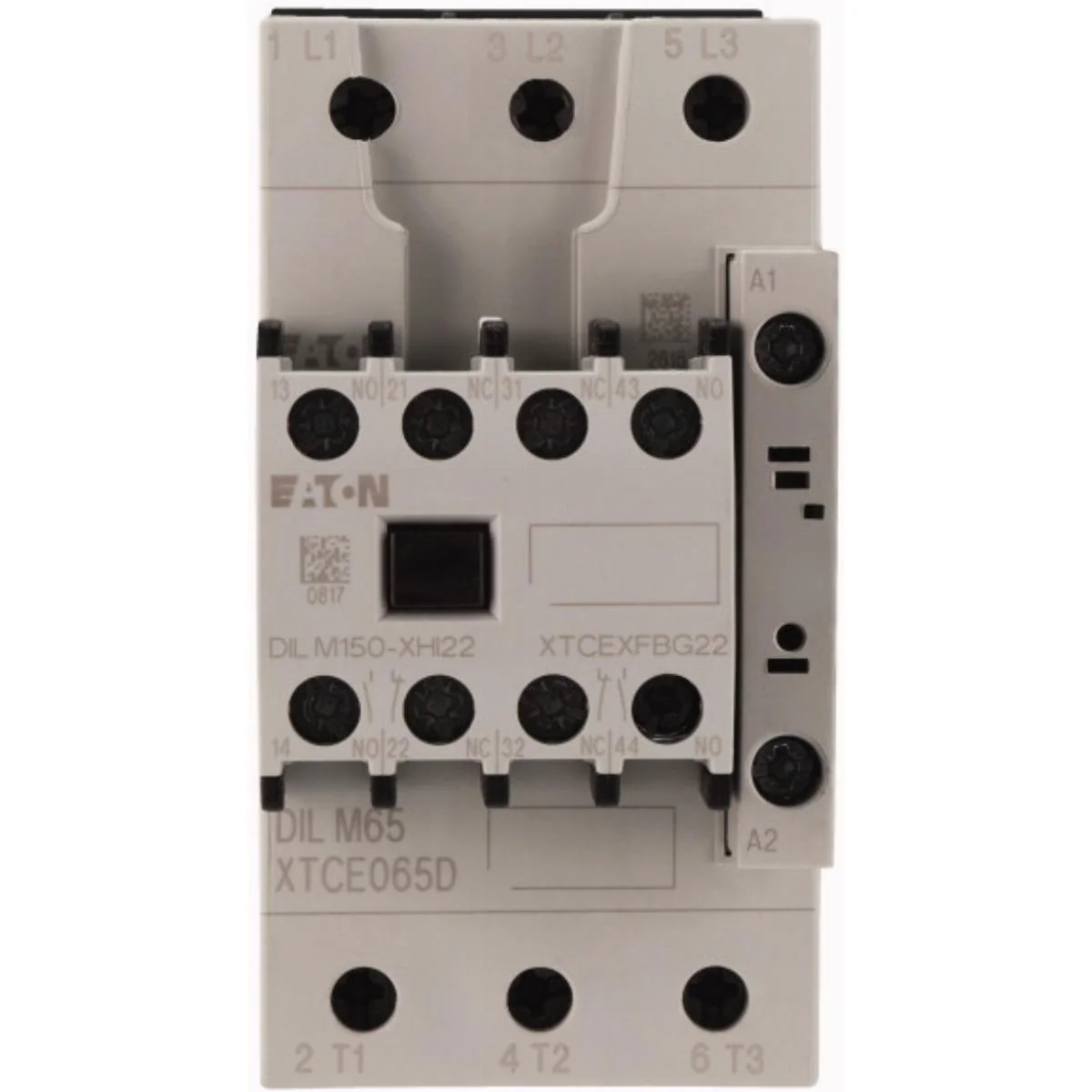

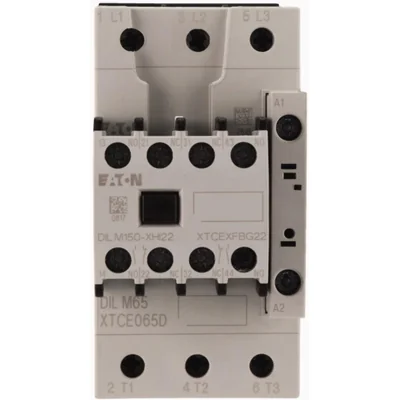

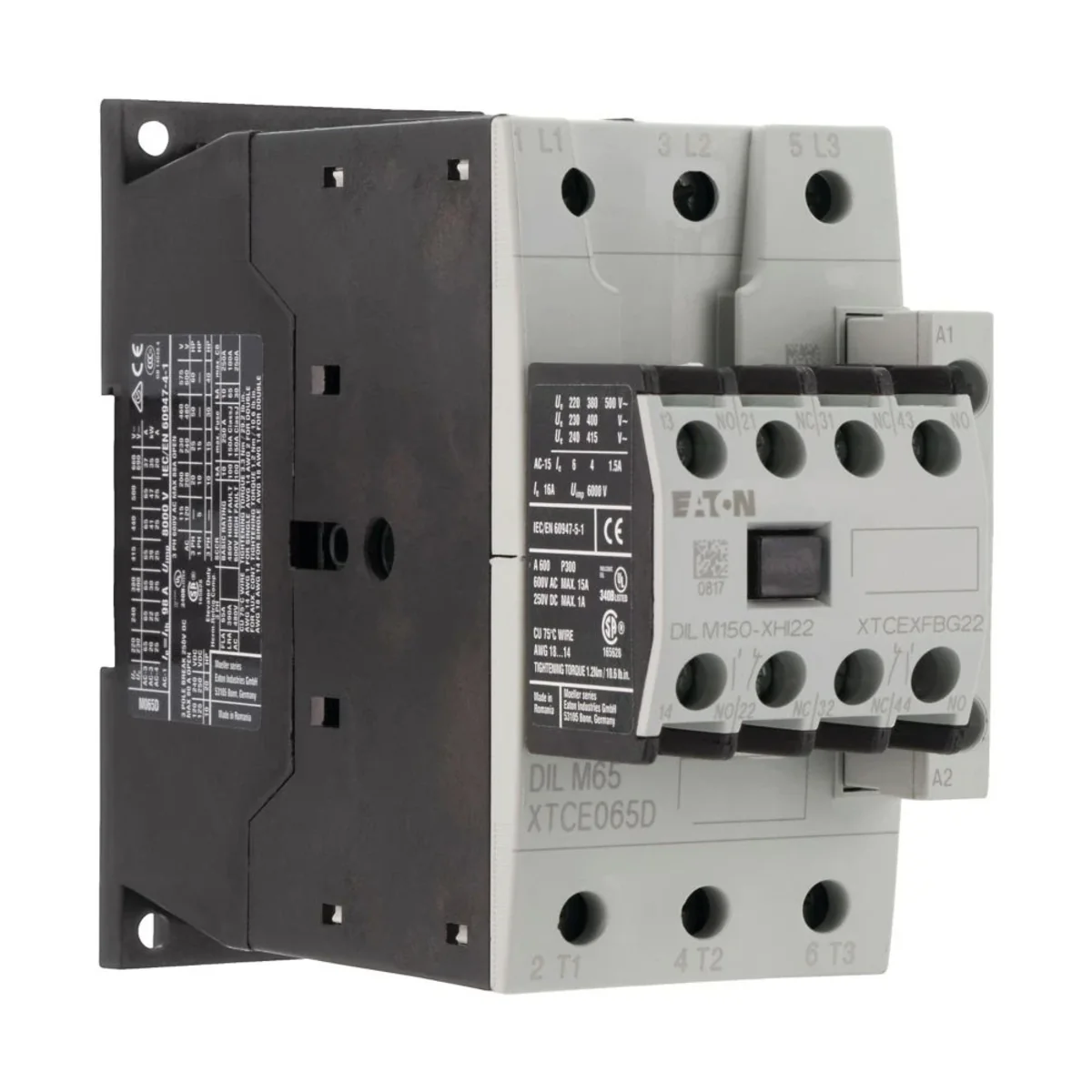

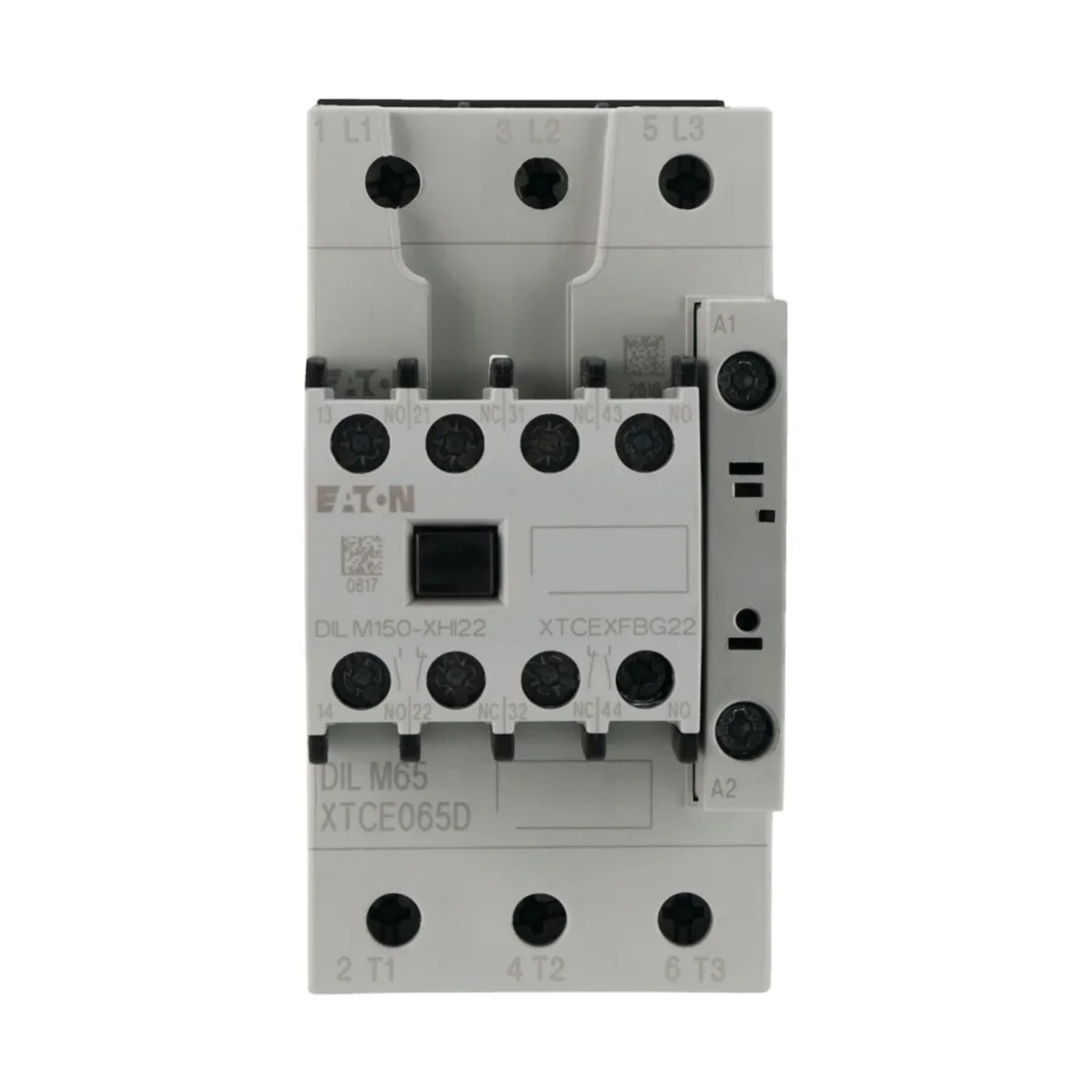

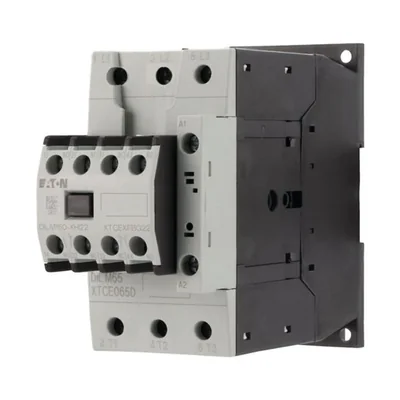

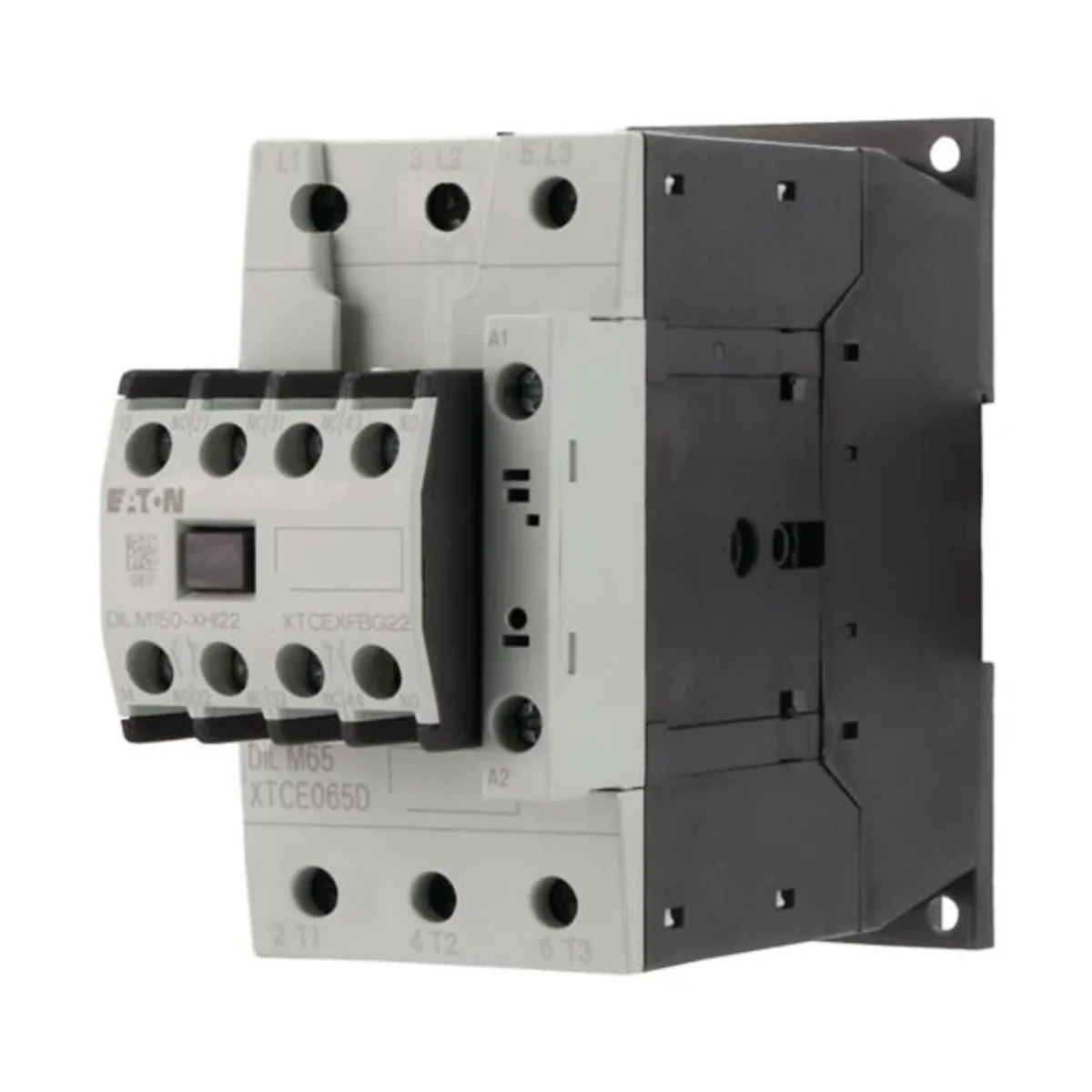

Power contactor, DILM65, 65A, 2NO 2NC 277926
local index:
ATA413MOEL
Catalog No:
277926
EAN code:
4015082779269
Price:
316,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
DILM power contactors.For DC operated contactors DILM17 – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.
Technical data
-
Rated voltage [V]230
-
Rated current [A]65
Other technical data
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Rated control supply voltage DC0 ... 0 V
-
Rated operation current Ie at AC-1, 400 V98 A
-
Rated operation power at AC-3, 400 V30 kW
-
Rated operation power at AC-4, 400 V12 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact2
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz240 ... 240 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V65 A
-
Rated operation current Ie at AC-4, 400 V25 A
-
Rated operation power NEMA37 kW
-
Number of auxiliary contacts as normally open contact2
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,973 |
| Volume (m3) | 0,001 |
| Width (m) | 0,057 |
| Length (m) | 0,151 |
| Depth (m) | 0,118 |
