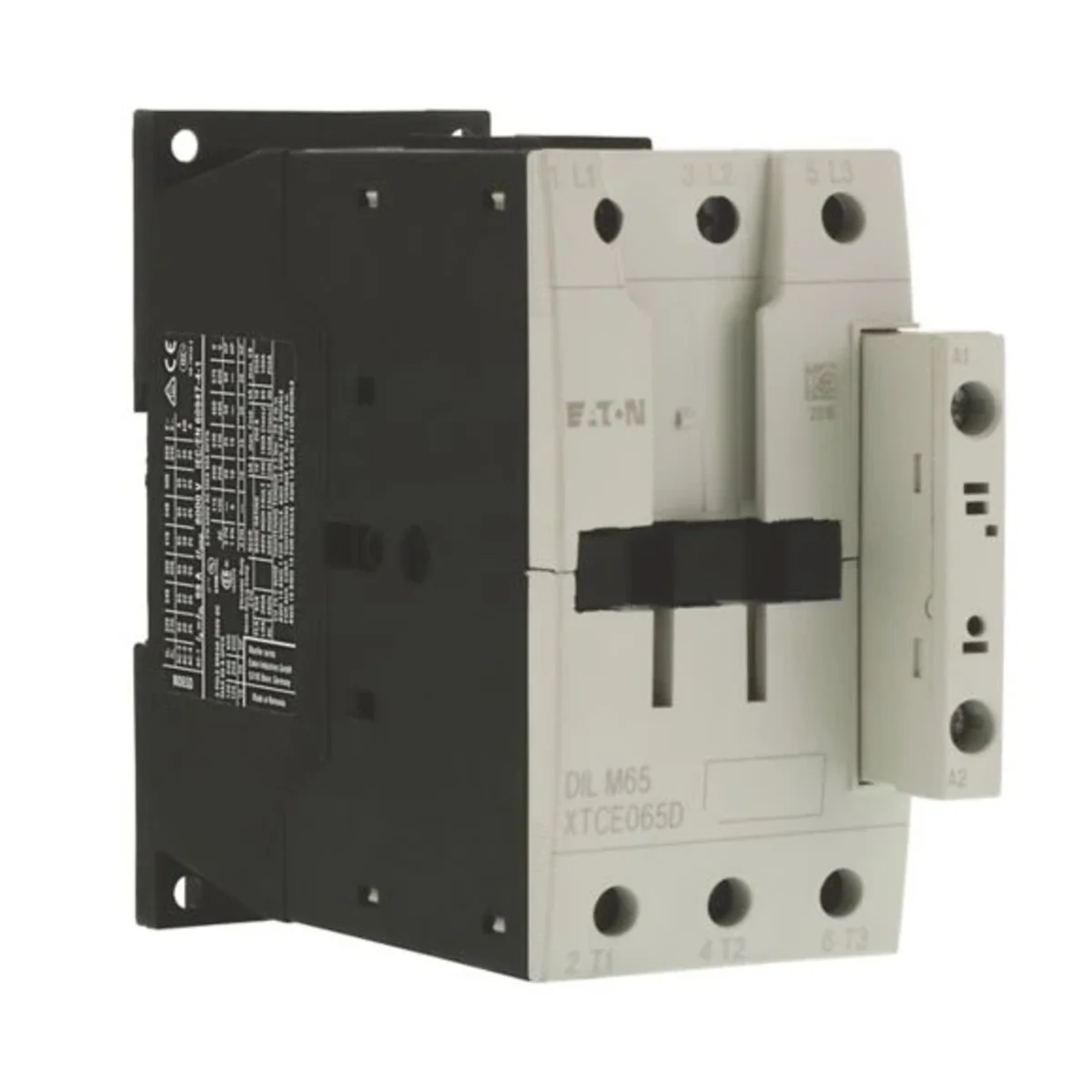

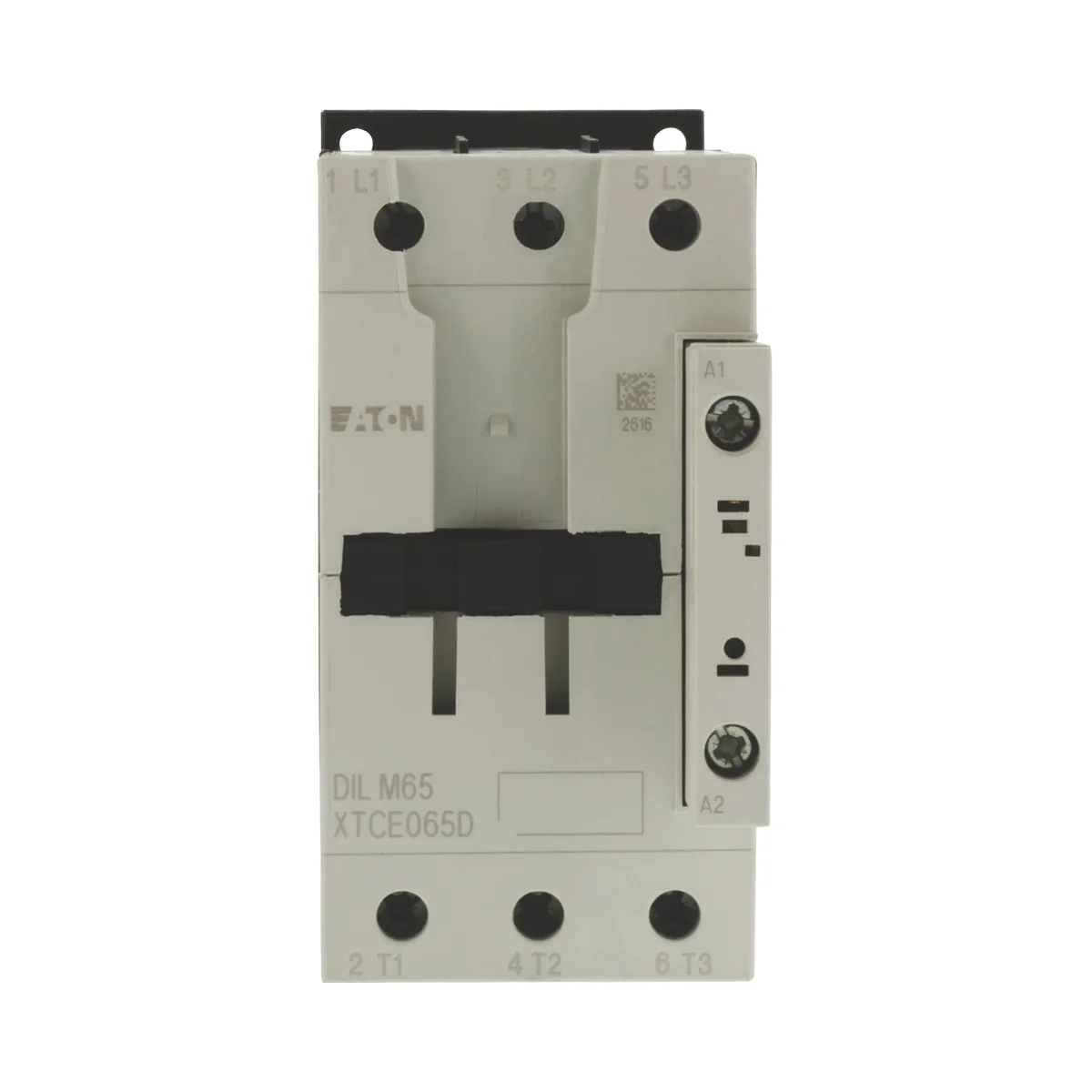

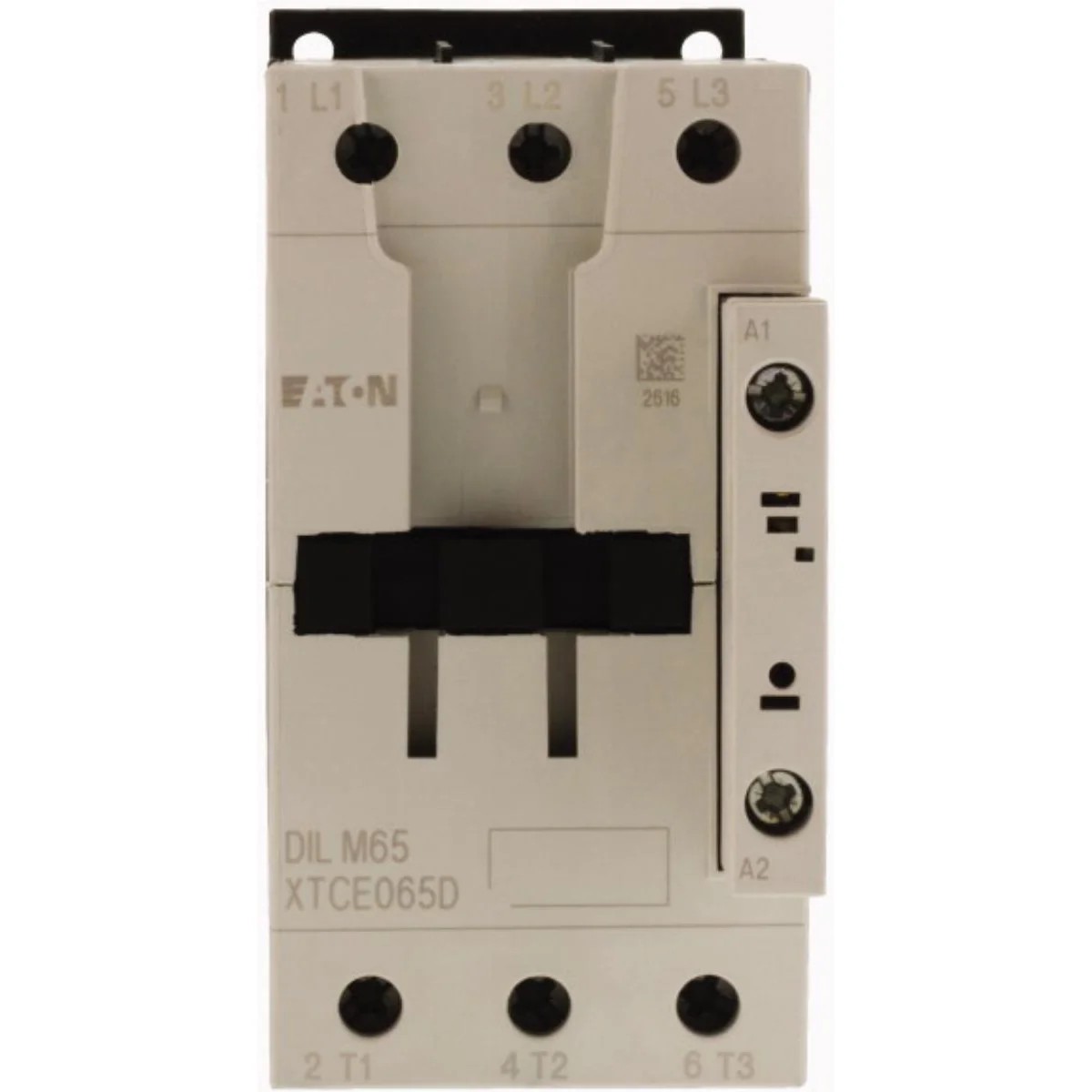

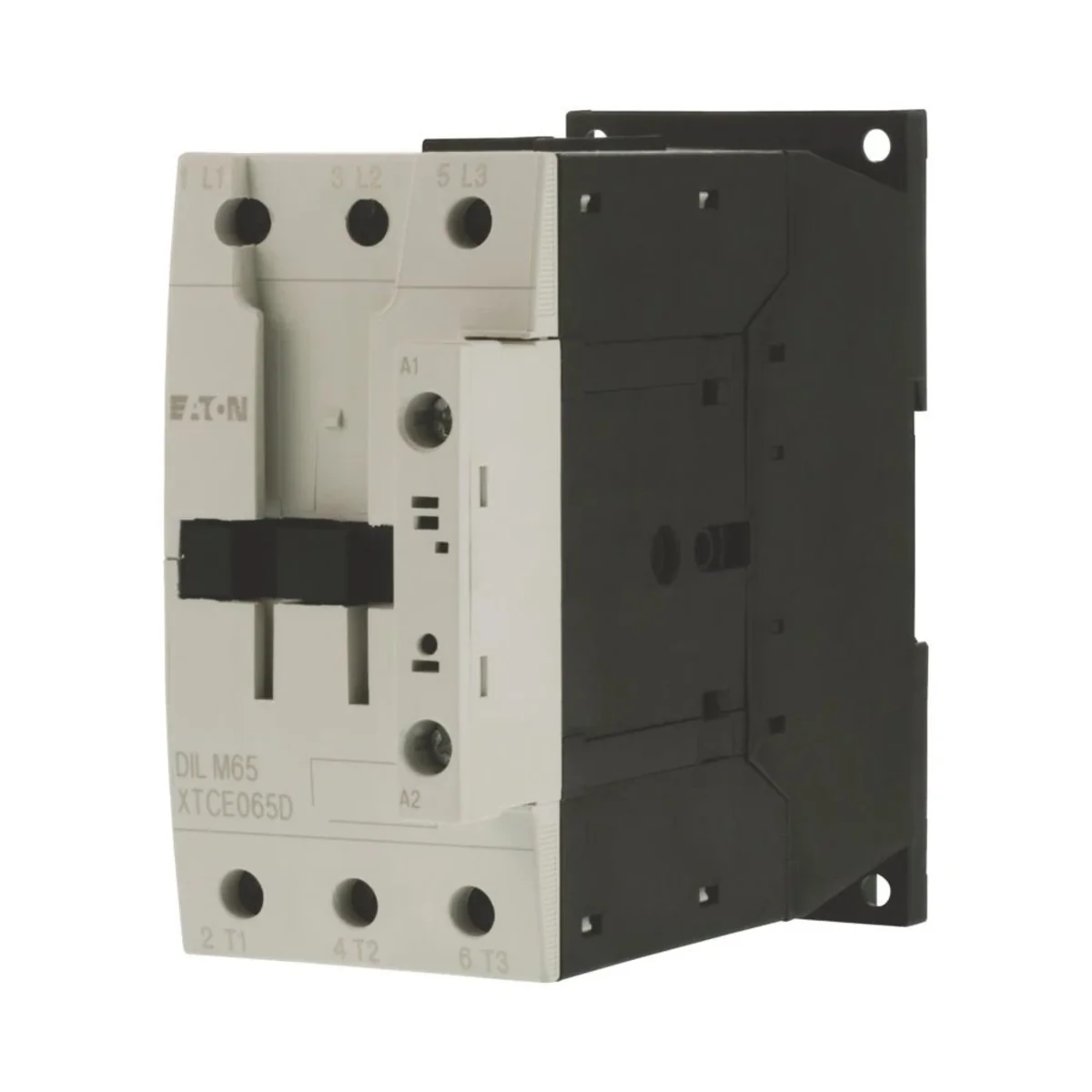

Power contactor, DILM65, 65A 277908

Indeks lokalny:
ATA168MOEL
Nr katalogowy:
277908
Kod EAN:
4015082779085
Producent: EATON
Rated voltage [V]: 24
Rated current [A]: 65
Cena:
466,59 €
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
do 2 tygodni (dni robocze)
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

DILM power contactors. For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.

Dane techniczne

  • Rated voltage [V]
    24
  • Rated current [A]
    65

Pozostałe dane techniczne

  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 27 V
  • Rated operation current Ie at AC-1, 400 V
    98 A
  • Rated operation power at AC-3, 400 V
    30 kW
  • Rated operation power at AC-4, 400 V
    12 kW
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Rated operation current Ie at AC-3, 400 V
    65 A
  • Rated operation current Ie at AC-4, 400 V
    25 A
  • Rated operation power NEMA
    37 kW
  • Number of auxiliary contacts as normally open contact
    0
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Skrzynia Skrzynia
Ilość 1 szt. 1 szt.
Waga (kg) 1,103 1,103
Objętość (m3) 0,001 0,001
Szerokość (m) 0,057 0,057
Długość (m) 0,151 0,151
Głębokość (m) 0,118 0,118
