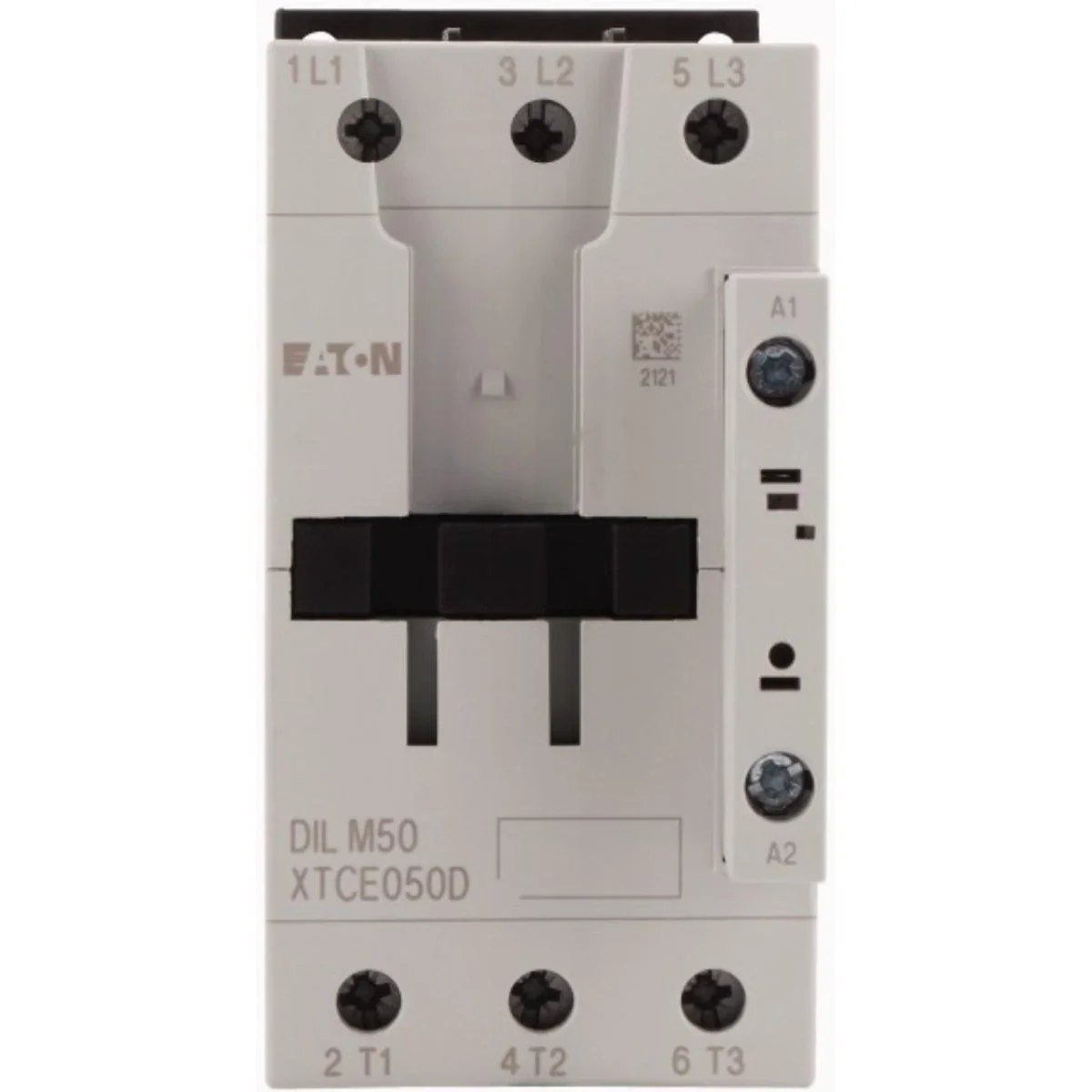

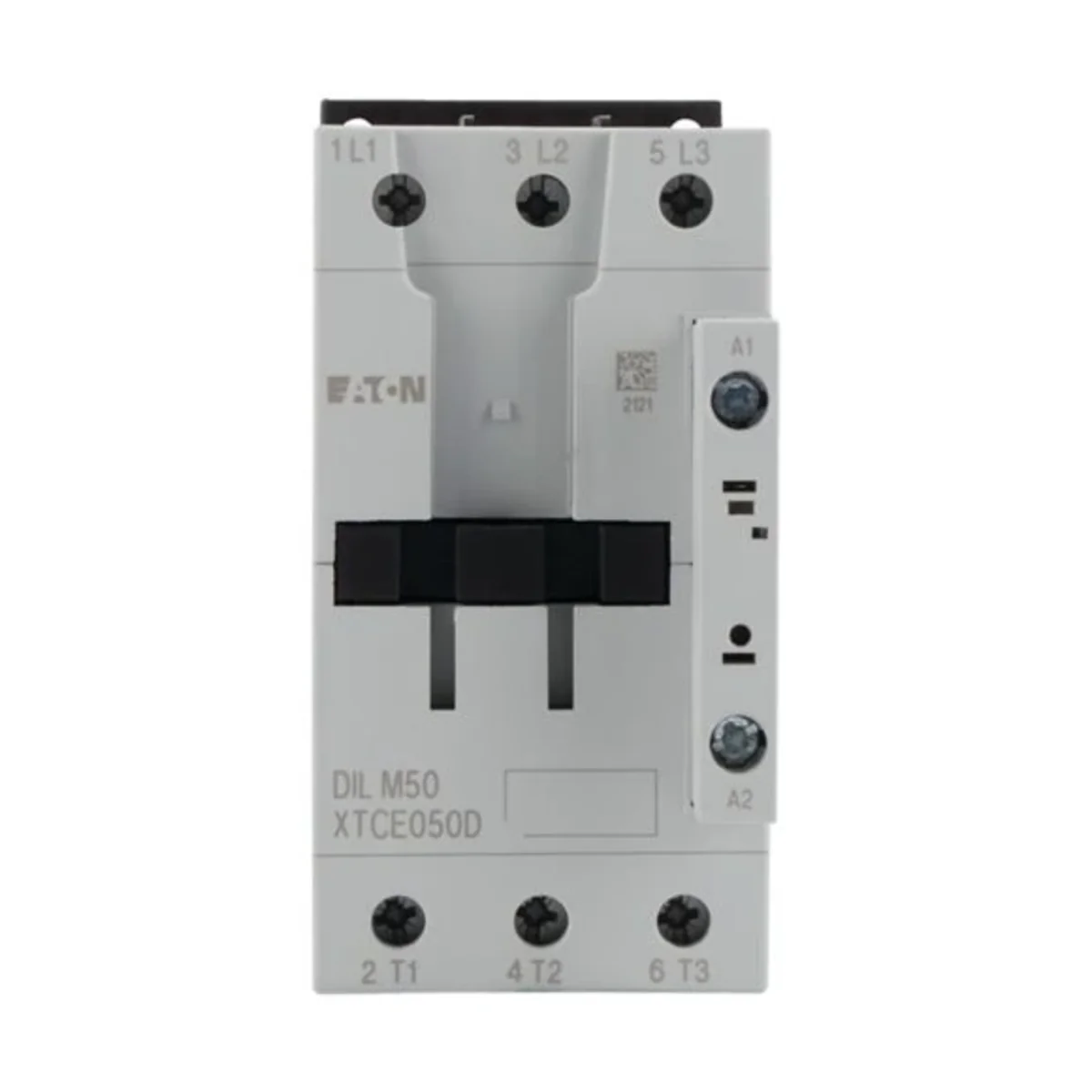

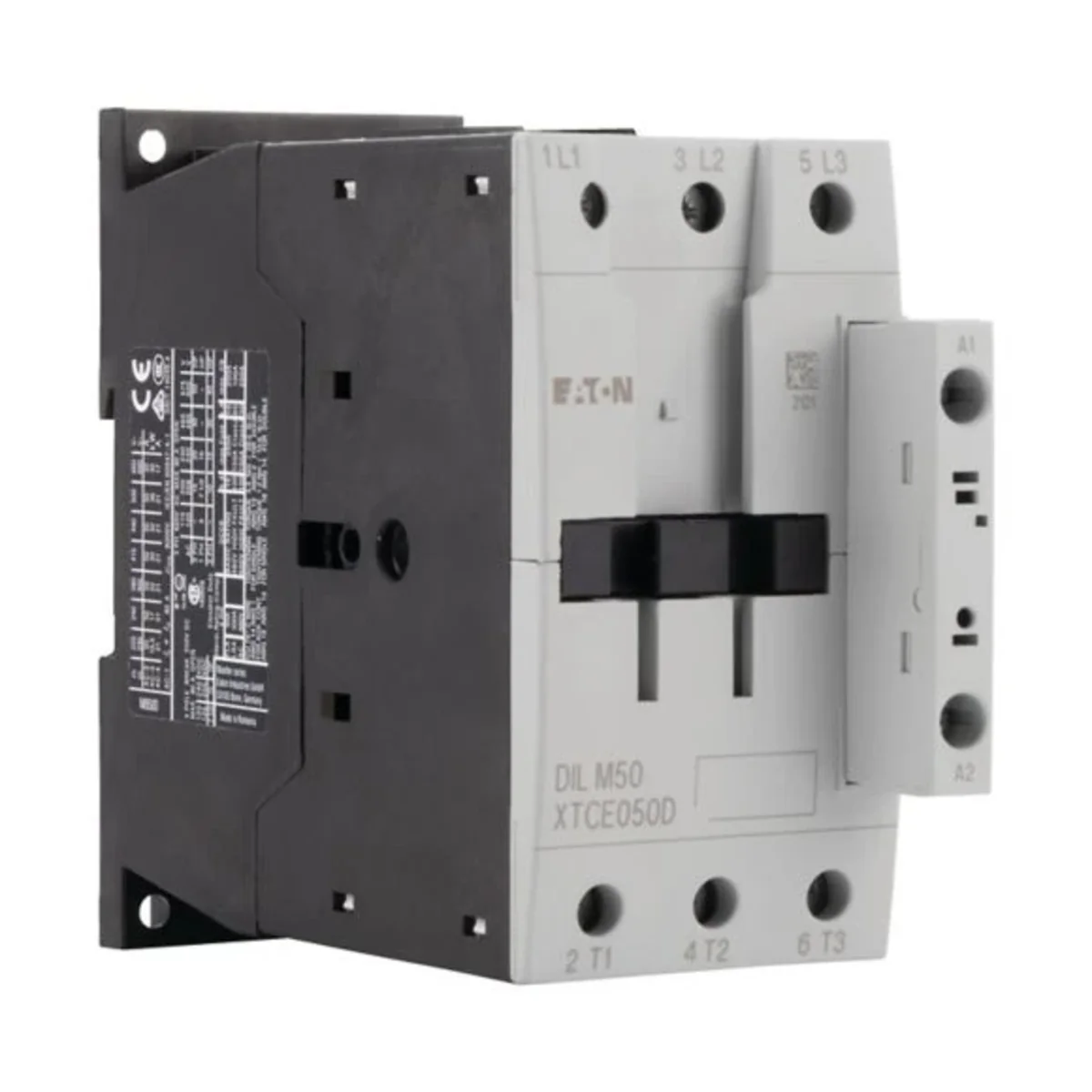

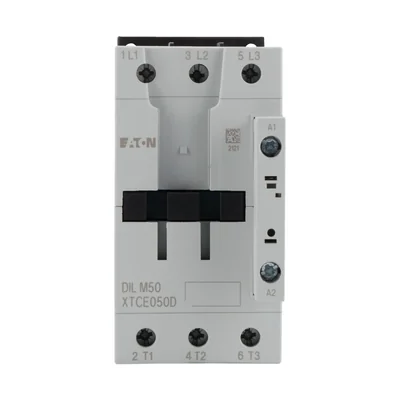

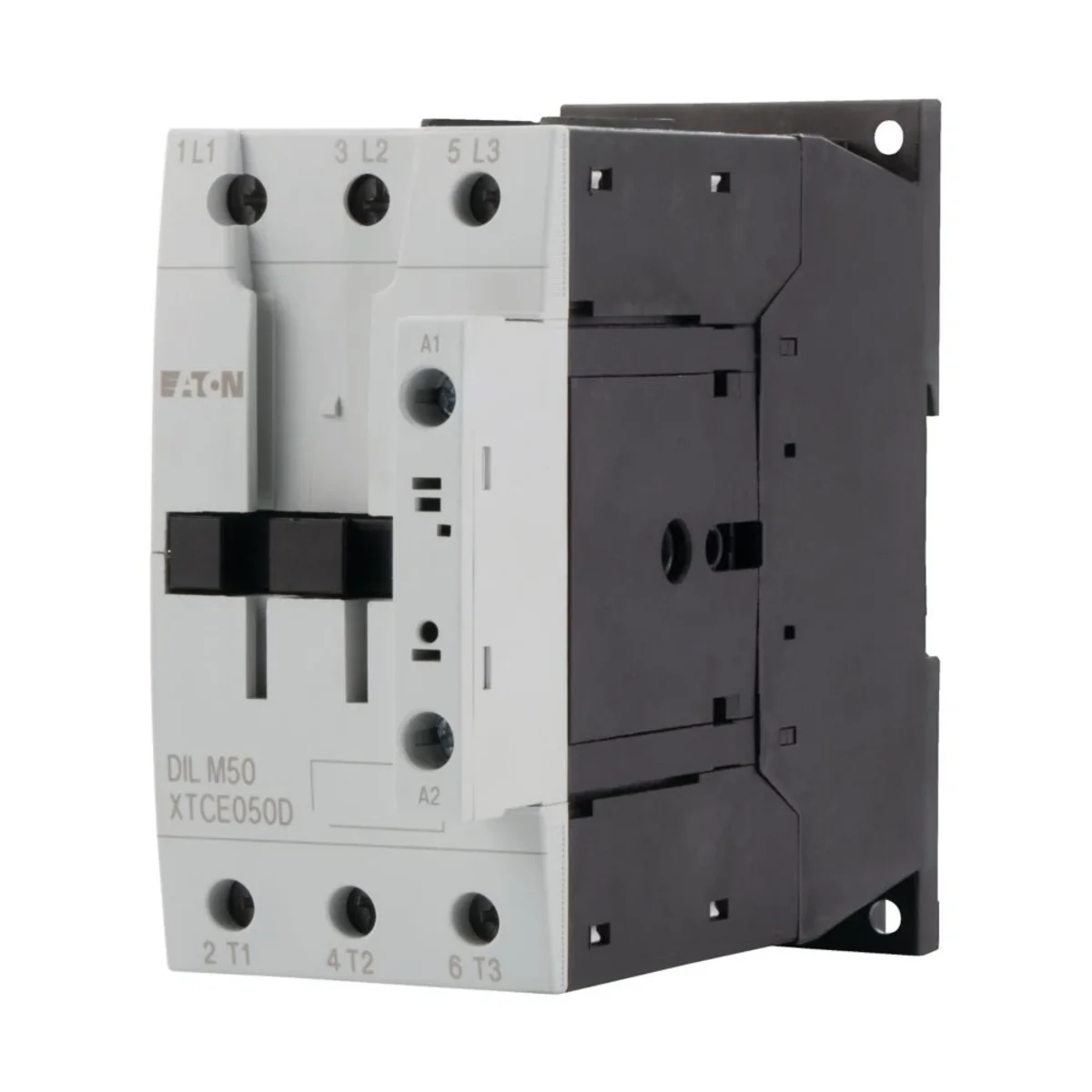

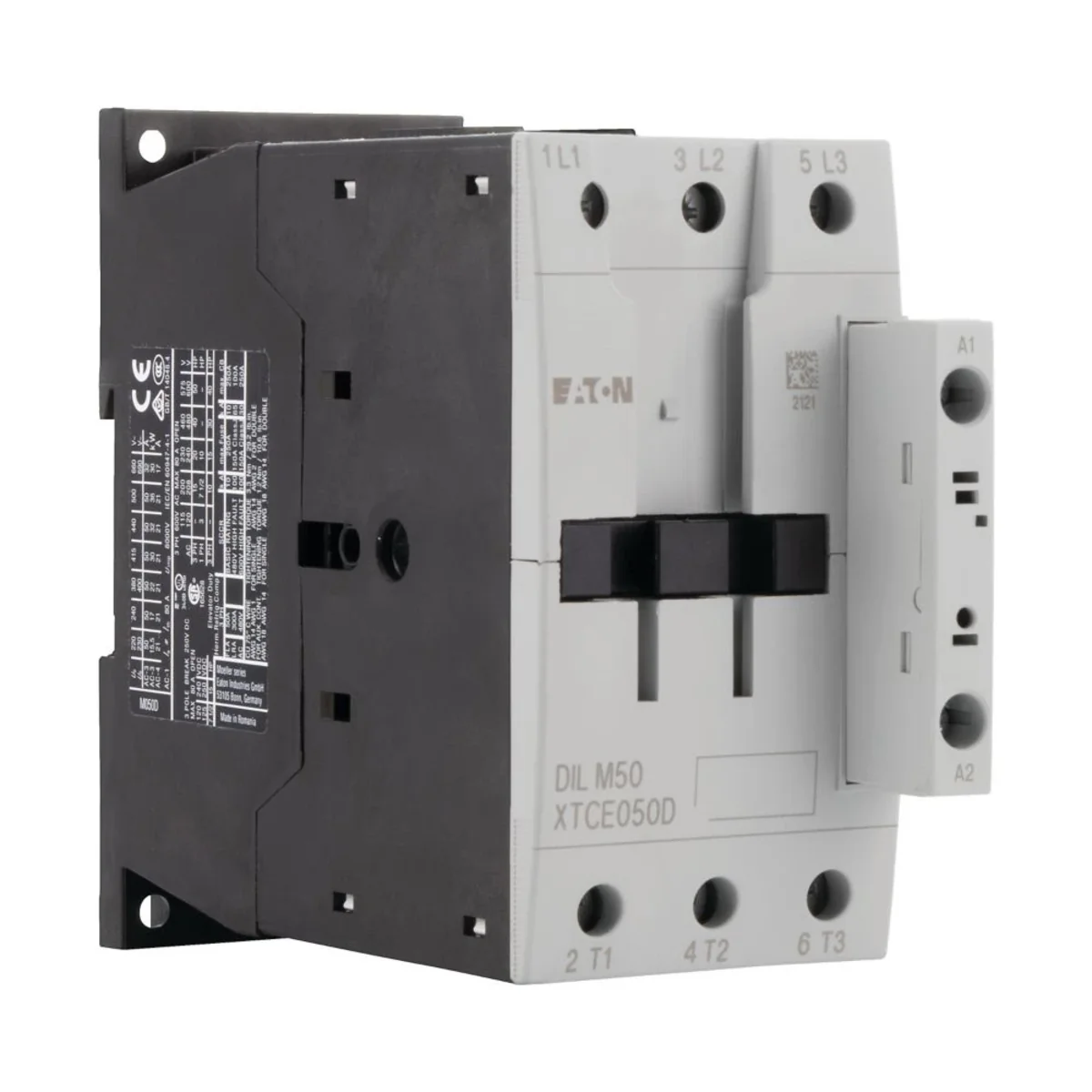

Power contactor, DILM50, 50A 277826
Místní index:
ATA032MOEL
Katalogové číslo.:
277826
EAN kód:
4015082778262
Cena:
947,59 zł
gross / kusů.
(včetně DPH 23%)
Dodání do 3 hodin
Vyzvednutí za 1h
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout
Dotaz na výrobek
Popis produktu
DILM power contactors. For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.
Technické údaje
-
Rated voltage [V]42
-
Rated current [A]50
Další technické údaje
-
Rated control supply voltage AC 50 Hz42 ... 42 V
-
Rated control supply voltage DC0 ... 0 V
-
Rated operation current Ie at AC-1, 400 V80 A
-
Rated operation power at AC-3, 400 V22 kW
-
Rated operation power at AC-4, 400 V10 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz48 ... 48 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V50 A
-
Rated operation current Ie at AC-4, 400 V21 A
-
Rated operation power NEMA29.8 kW
-
Number of auxiliary contacts as normally open contact0
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
Podrobnosti o výrobci
-
VýrobceEaton Electric Sp. z o.o.
-
Adresa80-299 Gdańsk Galaktyczna 30 Polska
-
E-mail
Velkoobjemová balení
| Typ obalu | Skrzynia |
| Množství | 1 kusů. |
| Hmotnost (kg) | 0,923 |
| Objem (m3) | 0,001 |
| Šířka (m) | 0,057 |
| Délka (m) | 0,151 |
| Hloubka (m) | 0,118 |
