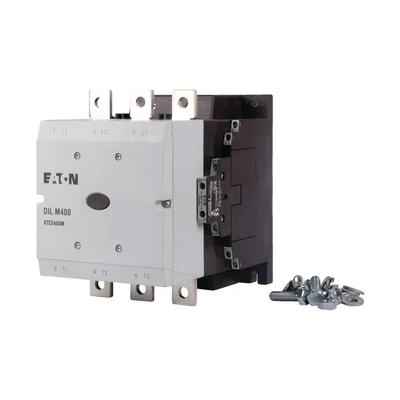

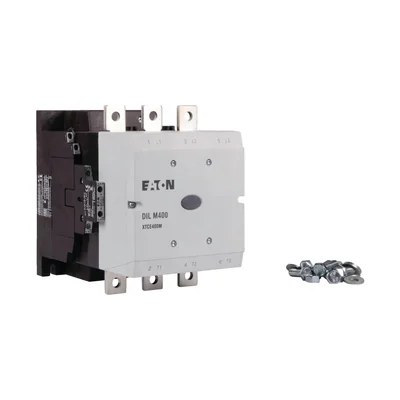

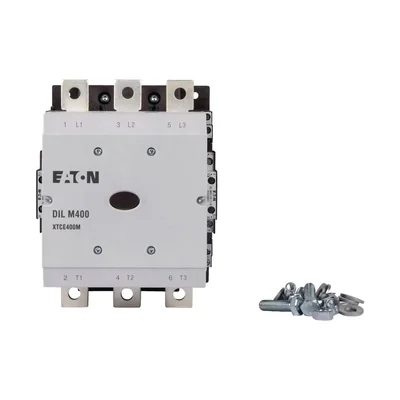

Power contactor, DILM400/22, 400A, 2NO 2NC 208209
local index:
ATA030MOEL
Catalog No:
208209
EAN code:
4015082082093
Price:
1401,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
DILM power contactors. For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.
Technical data
-
Rated voltage [V]230
-
Rated current [A]400
Other technical data
-
Rated control supply voltage AC 50 Hz110 ... 250 V
-
Rated control supply voltage DC110 ... 250 V
-
Rated operation current Ie at AC-1, 400 V612 A
-
Rated operation power at AC-3, 400 V200 kW
-
Rated operation power at AC-4, 400 V160 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact2
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz110 ... 250 V
-
Voltage type for actuatingAC/DC
-
Rated operation current Ie at AC-3, 400 V400 A
-
Rated operation current Ie at AC-4, 400 V296 A
-
Rated operation power NEMA223 kW
-
Number of auxiliary contacts as normally open contact2
-
Type of electrical connection of main circuitRail connection
-
Number of normally open contacts as main contact3
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 8,963 |
| Volume (m3) | 0,013 |
| Width (m) | 0,190 |
| Length (m) | 0,262 |
| Depth (m) | 0,255 |
