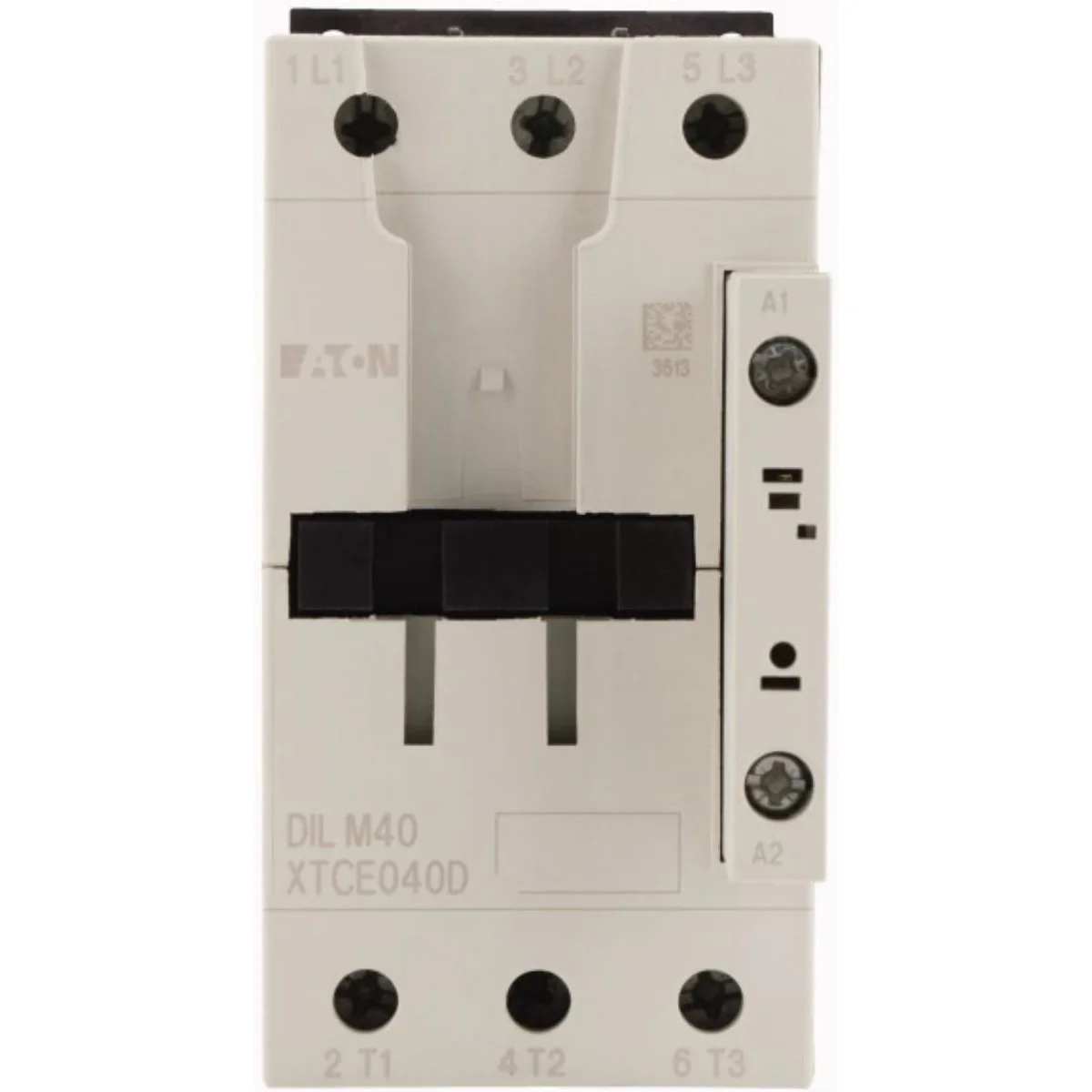

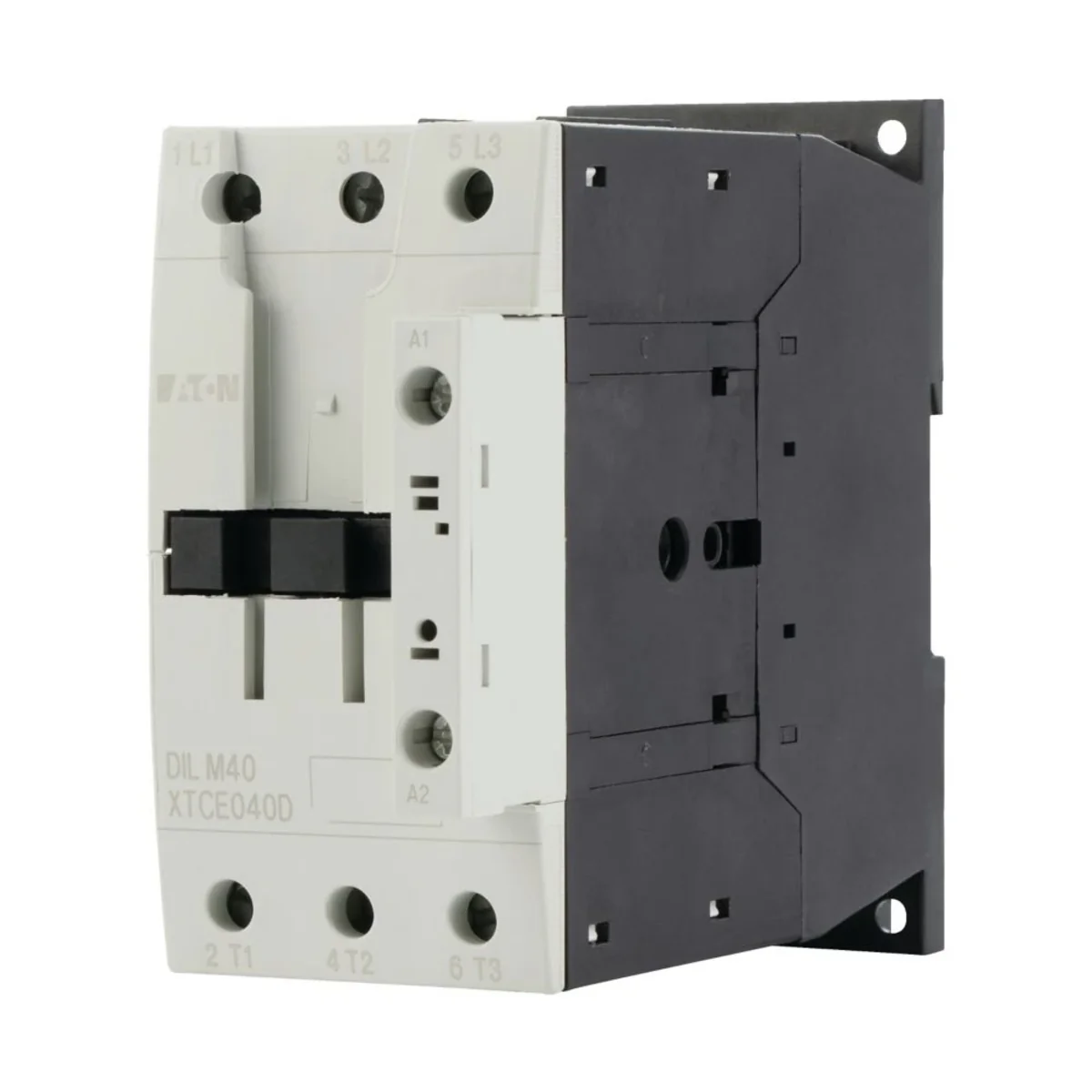

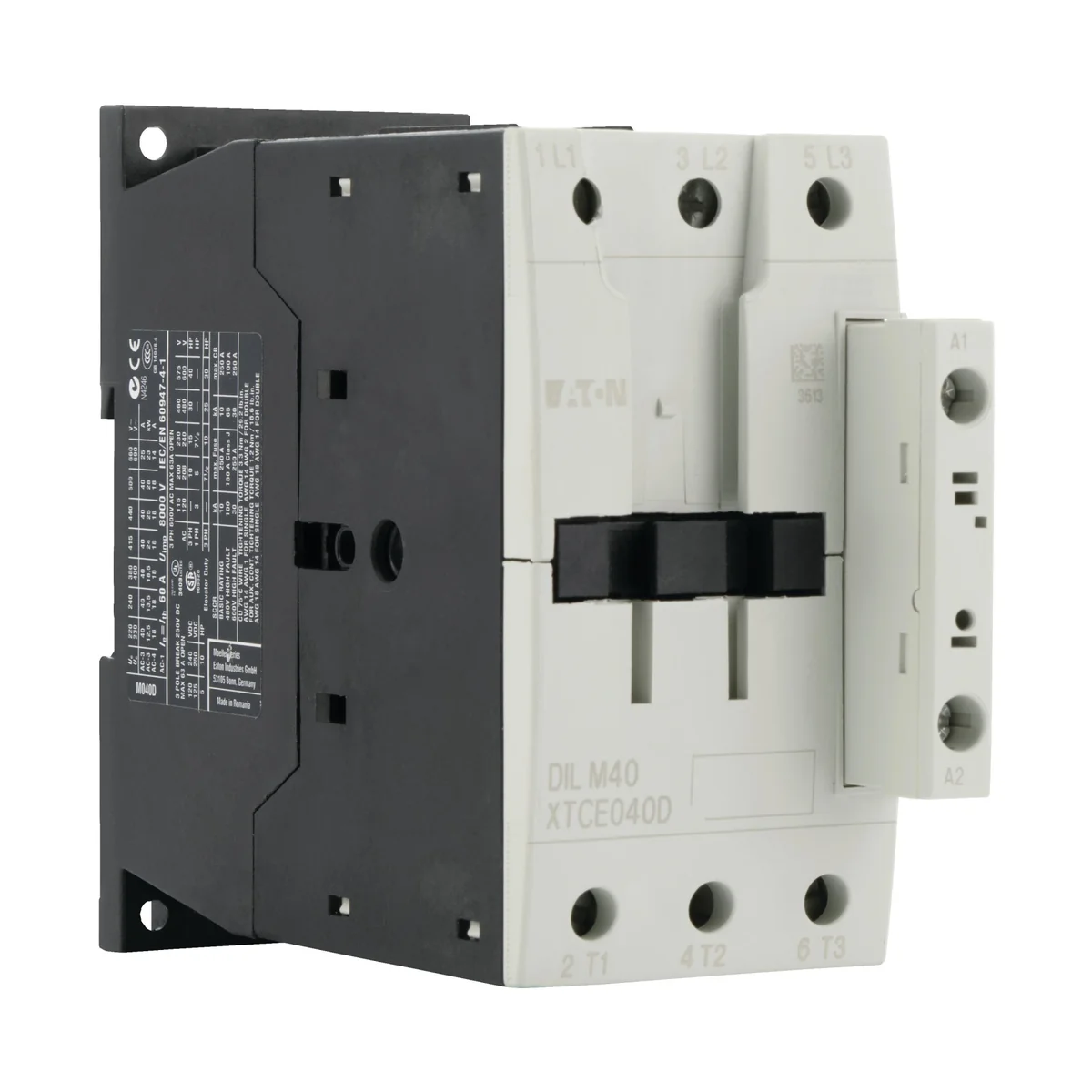

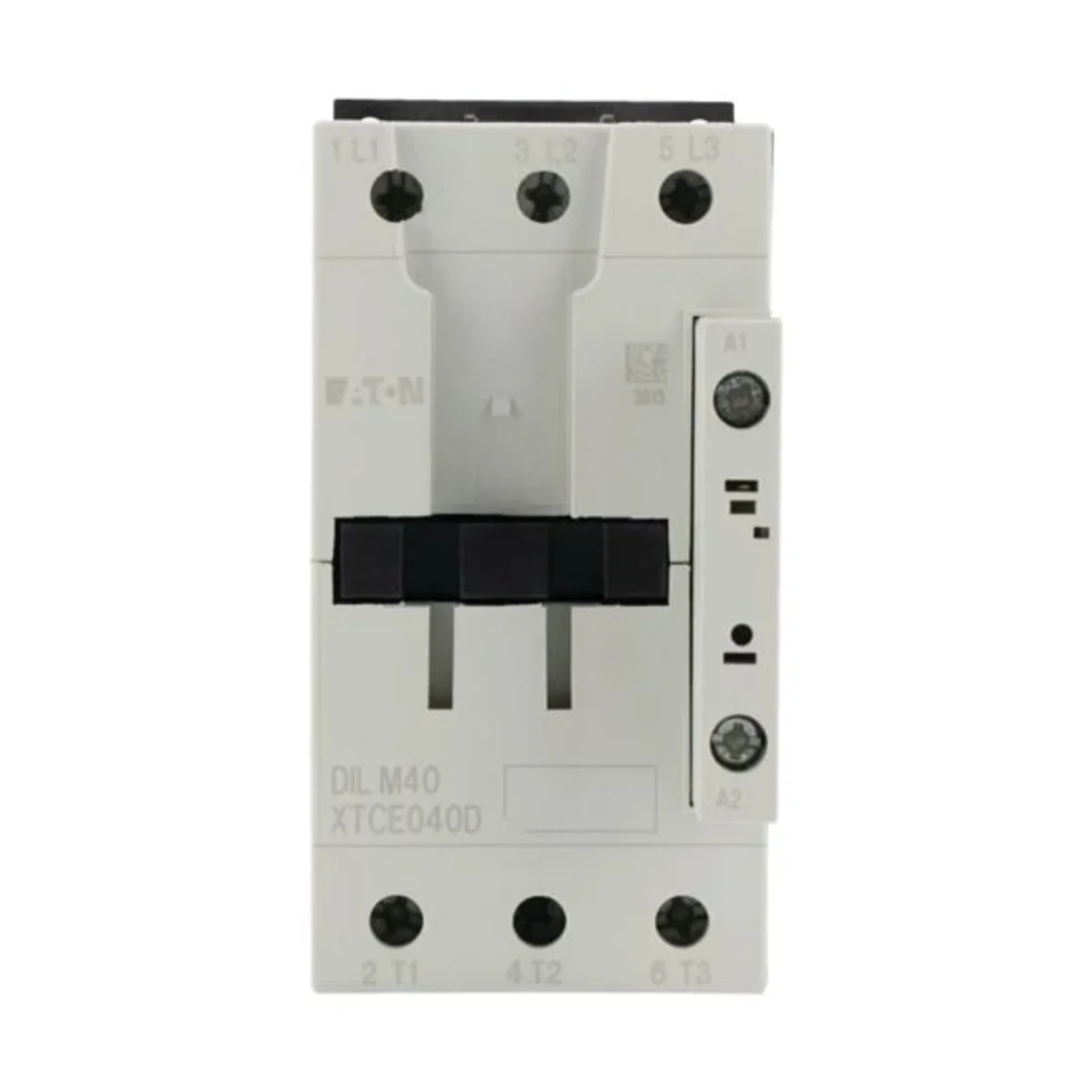

Power contactor, DILM40, 40A 277768
Lokaler Index:
ATA198MOEL
Katalognummer:
277768
EAN-Code:
4015082777685
Preis:
167,17 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
DILM power contactors. For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.
Technische Daten
-
Rated voltage [V]420
-
Rated current [A]40
Weitere technische Daten
-
Rated control supply voltage AC 50 Hz400 ... 400 V
-
Rated control supply voltage DC0 ... 0 V
-
Rated operation current Ie at AC-1, 400 V60 A
-
Rated operation power at AC-3, 400 V18.5 kW
-
Rated operation power at AC-4, 400 V9 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz440 ... 440 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V40 A
-
Rated operation current Ie at AC-4, 400 V18 A
-
Rated operation power NEMA22 kW
-
Number of auxiliary contacts as normally open contact0
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
Hersteller-Details
-
HerstellerEATON ELECTRIC SP. Z O.O.
-
Adresse80-299 UL. GALAKTYCZNA 30
-
E-Mail
-
Steueridentifikationsnummer5841022327
Großpackungen
| Eine Art Paket | Skrzynia |
| Menge | 1 stk. |
| Gewicht (kg) | 0,923 |
| Volumen (m3) | 0,001 |
| Breite (m) | 0,057 |
| Länge (m) | 0,151 |
| Tiefe (m) | 0,118 |
