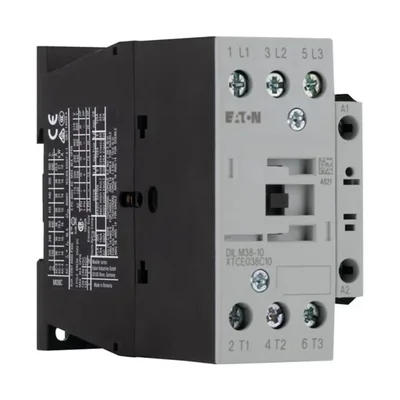

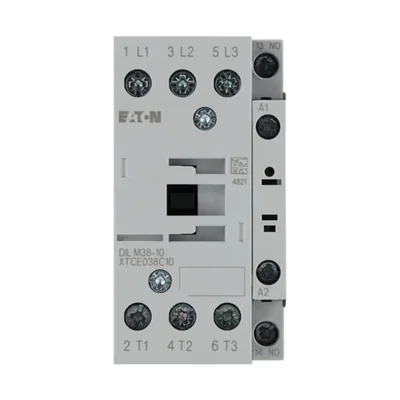

Power contactor, DILM38-10(230V50/60HZ), 38A, 3b+1ZZ 112436

local index:
ATA229MOEL
Catalog No:
112436
EAN code:
4015081119943
Manufacturer: EATON
Rated current [A]: 38
Price:
181,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Motor contactor, Contactors up to 170 A, 3-pole,

AC-1: Non-inductive or weakly inductive loads, resistance furnaces,

AC-3: Motors squirrel-cage motors: starting, switching off during operation,

AC-4: Squirrel-cage motors: starting, counter-current brakes, reversing mode, impulse mode,

Connection method: Screw terminals, Note: Not suitable for motors of energy efficiency class IE3., Poles: 3-pole, Rated operational current AC-3 380 V 400 V: Ie= 38 A, Rated operational current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith =Ie= 45 A, enclosed: Ith= 36 A, Rated operational current AC-1 conventional thermal current 1-pole open: Ith= 100 A, enclosed: Ith= 90 A, Max power rated power of three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 11 kW, 380 V 400 V: P= 18.5 kW, 660 V 690 V: P= 21 kW, Max. rated power of three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 4 kW, 380 V 400 V: P= 7 kW, 660 V 690 V: P= 10 kW, to be combined with auxiliary switch module: DILM32-XHI.., DILA-XHI( V).., DILM32-XHI11-S, Contact configuration Z = NO contact: 1 NO contact, Notes: Switching elements according to EN 50012., Type of AC/DC current: AC operation

Technical data

  • Rated current [A]
    38

Other technical data

  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation current Ie at AC-1, 400 V
    45 A
  • Rated operation power at AC-3, 400 V
    18.5 kW
  • Rated operation power at AC-4, 400 V
    7 kW
  • Modular version
    no
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    230 ... 230 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    38 A
  • Rated operation current Ie at AC-4, 400 V
    15 A
  • Rated operation power NEMA
    14.9 kW
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,447
Volume (m3) 0,000
Width (m) 0,047
Length (m) 0,099
Depth (m) 0,087
