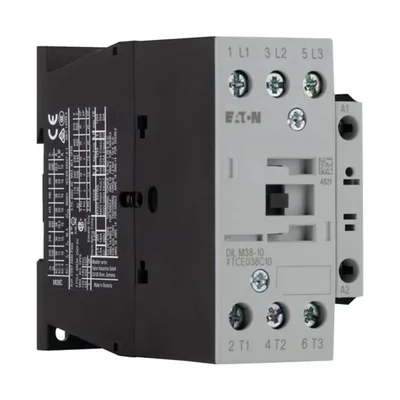

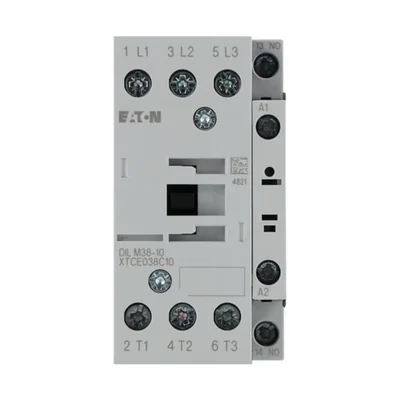

Power contactor, DILM38-10(190V50HZ,220V60HZ), 38A, 3b+1ZZ 112426

Motor contactor, Contactors up to 170 A, 3-pole,

AC-1: Non-inductive or weakly inductive loads, resistance furnaces,

AC-3: Motors squirrel-cage motors: starting, switching off during operation,

AC-4: Squirrel-cage motors: starting, counter-current brakes, reversing mode, impulse mode,

Connection method: Screw terminals, Note: Not suitable for motors of energy efficiency class IE3., Poles: 3-pole, Rated operational current AC-3 380 V 400 V: Ie= 38 A, Rated operational current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith =Ie= 45 A, enclosed: Ith= 36 A, Rated operational current AC-1 conventional thermal current 1-pole open: Ith= 100 A, enclosed: Ith= 90 A, Max power rated power of three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 11 kW, 380 V 400 V: P= 18.5 kW, 660 V 690 V: P= 21 kW, Max. rated power of three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 4 kW, 380 V 400 V: P= 7 kW, 660 V 690 V: P= 10 kW, to be combined with auxiliary switch module: DILM32-XHI.., DILA-XHI( V).., DILM32-XHI11-S, Contact configuration Z = NO contact: 1 NO contact, Notes: Switching elements according to EN 50012., Type of AC/DC current: AC operation
