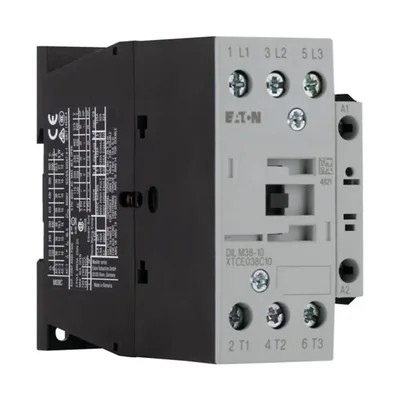

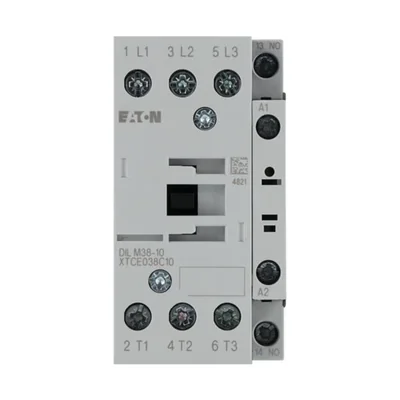

Power contactor, DILM38-10 112425

local index:
ATA505MOEL
Catalog No:
112425
EAN code:
4015081119837
Manufacturer: EATON
Rated voltage [V]: 120
Price:
174,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power contactor, DILM38-10

Technical data

  • Rated voltage [V]
    120

Other technical data

  • Rated control supply voltage AC 50 Hz
    110 ... 110 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation current Ie at AC-1, 400 V
    45 A
  • Rated operation power at AC-3, 400 V
    18.5 kW
  • Rated operation power at AC-4, 400 V
    7 kW
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    120 ... 120 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    38 A
  • Rated operation current Ie at AC-4, 400 V
    15 A
  • Rated operation power NEMA
    14.9 kW
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,447
Volume (m3) 0,000
Width (m) 0,047
Length (m) 0,099
Depth (m) 0,087
