EATON

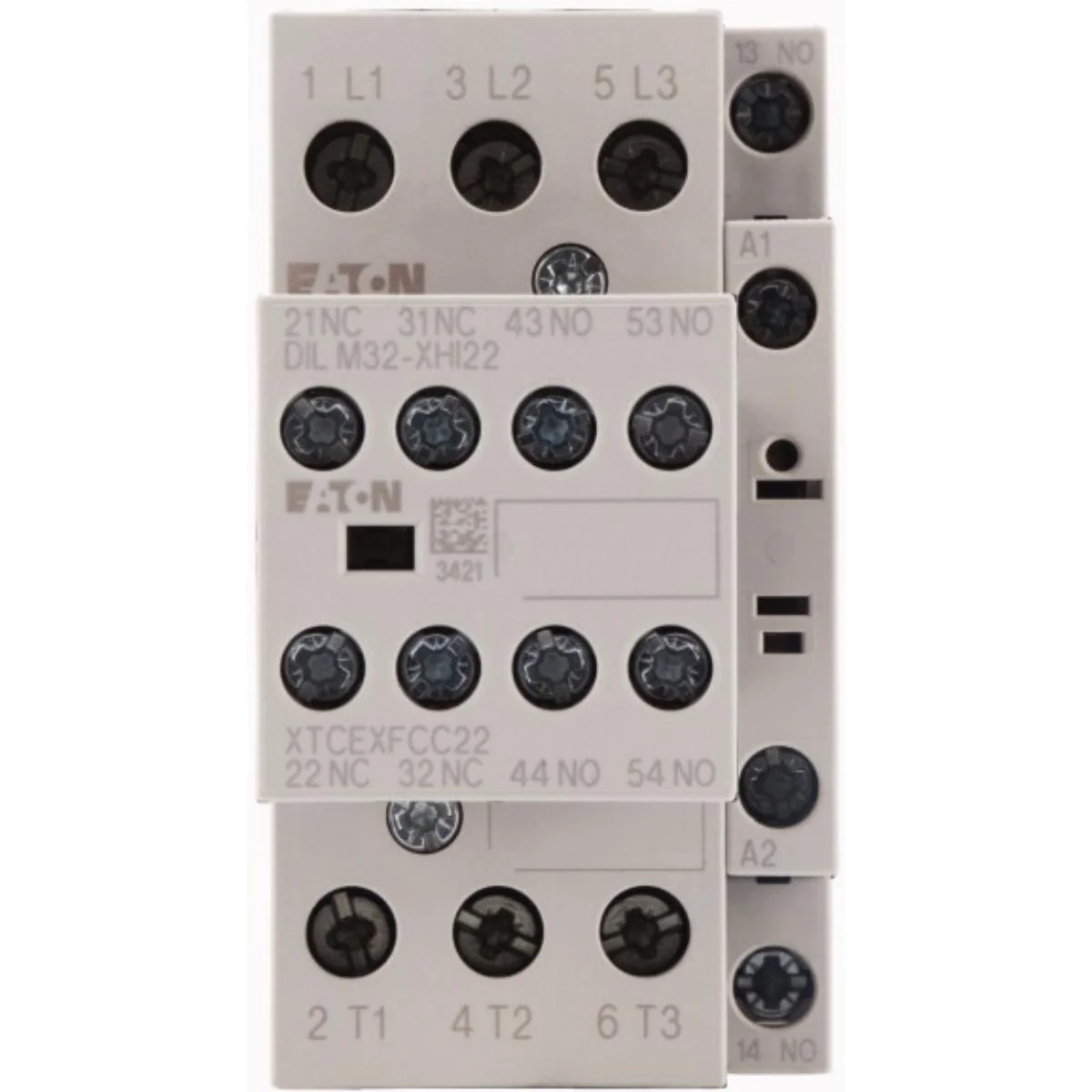

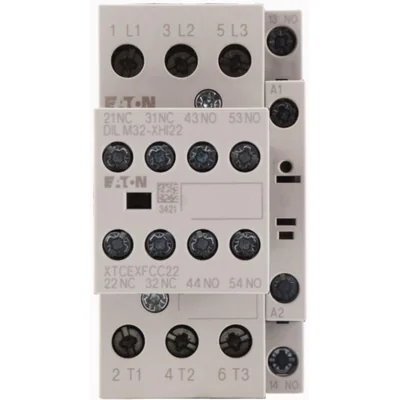

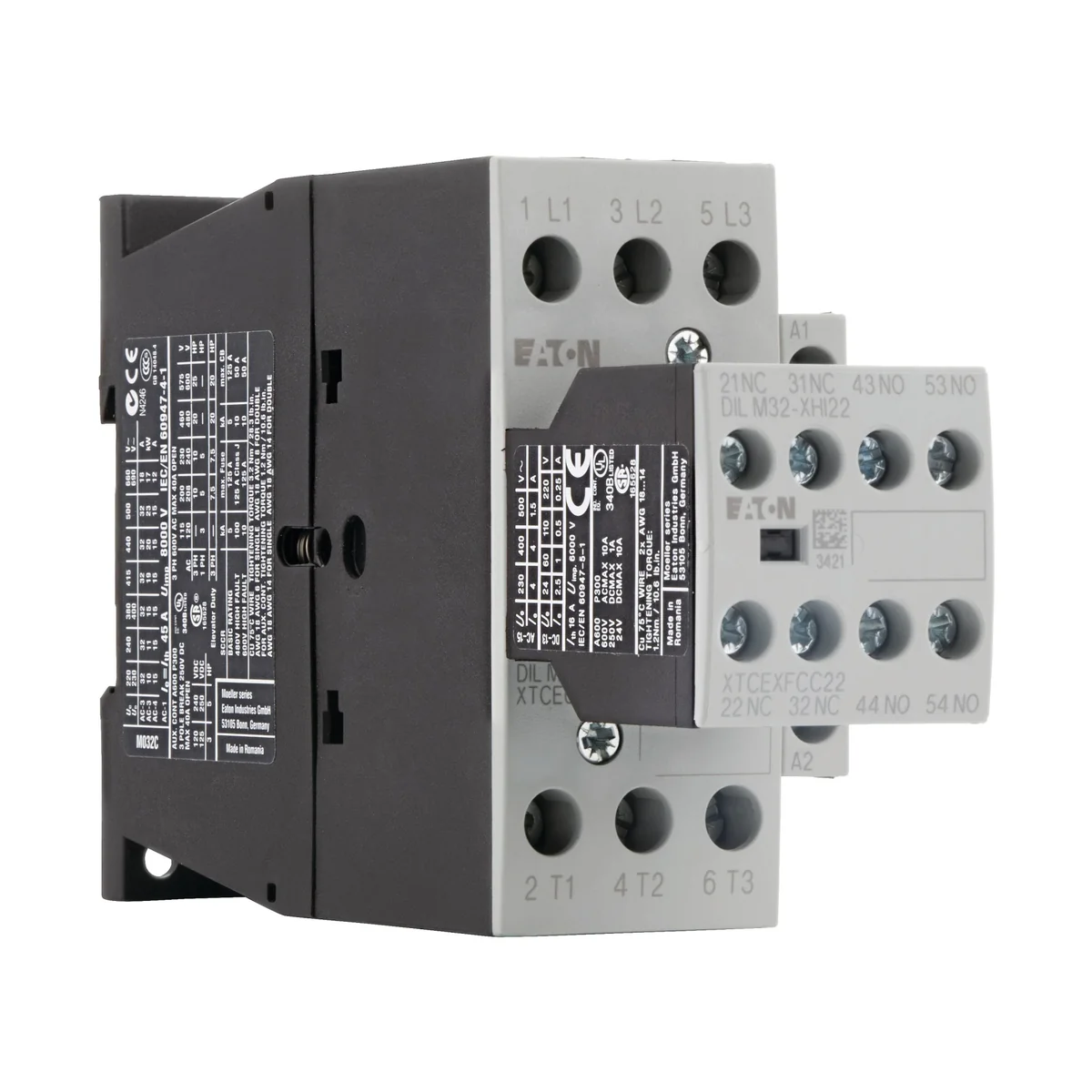

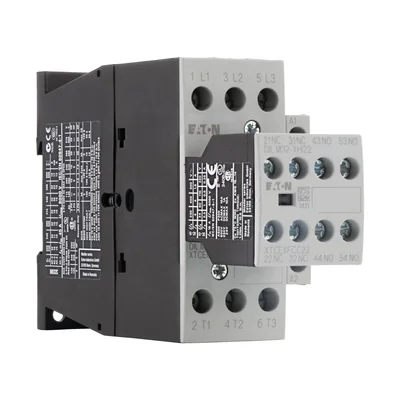

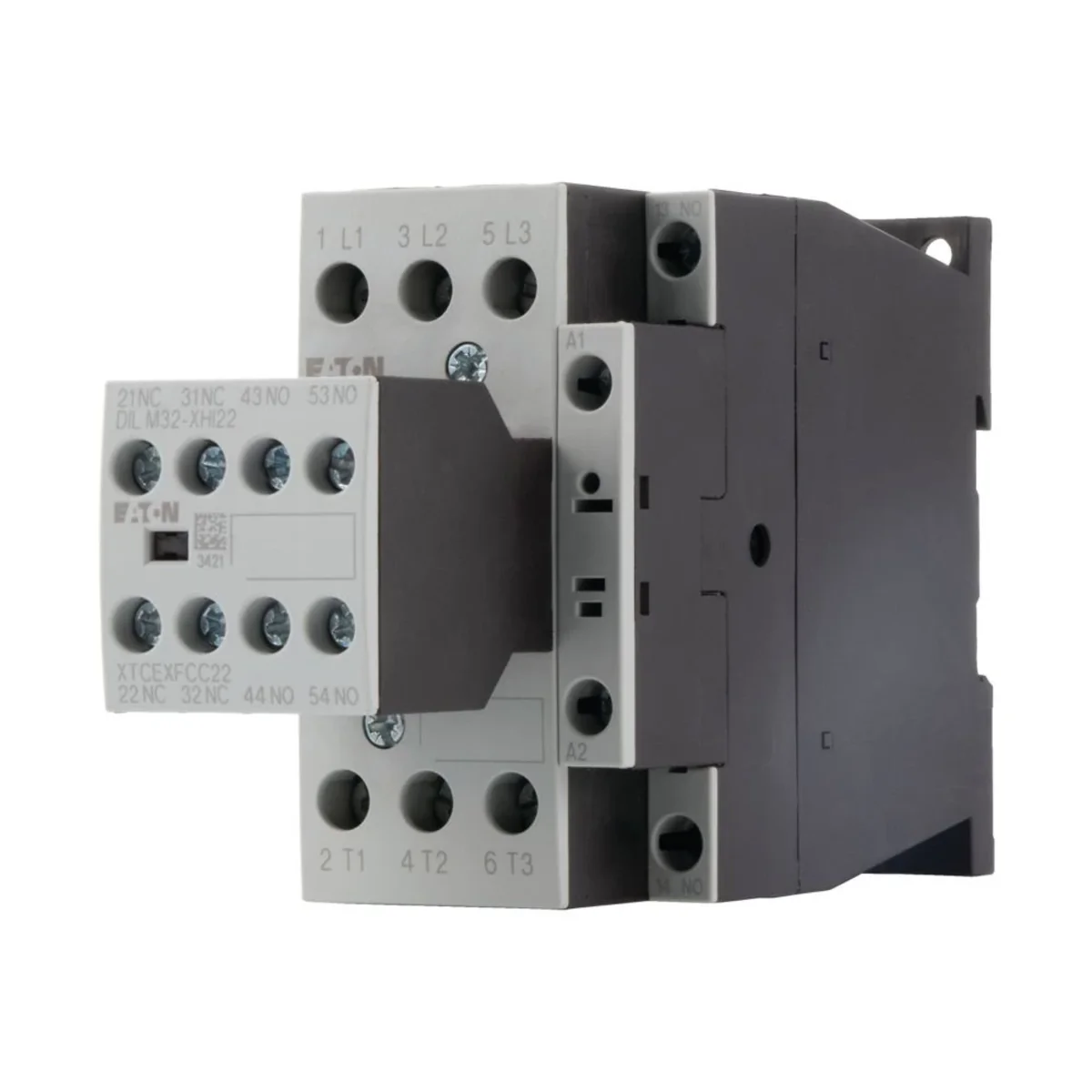

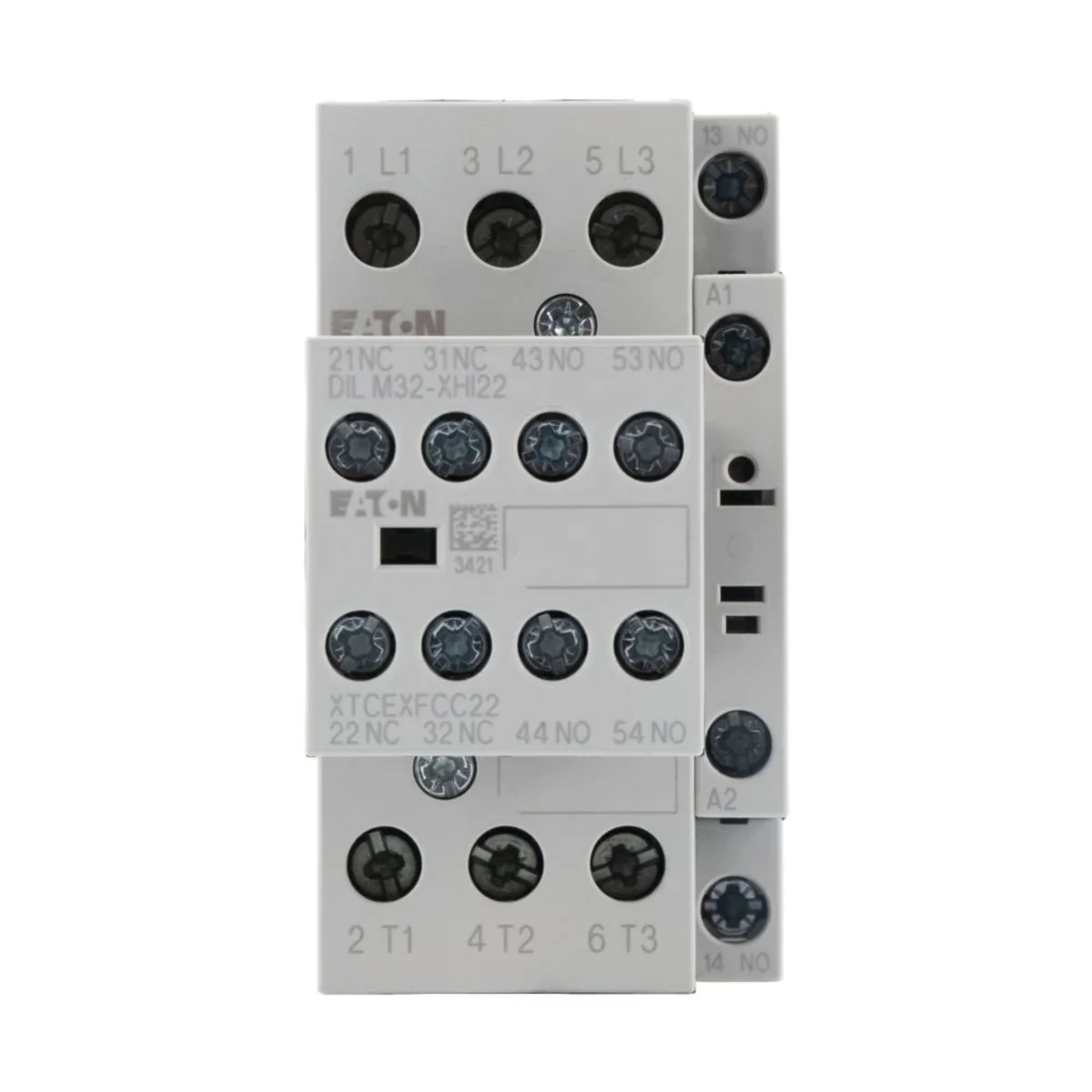

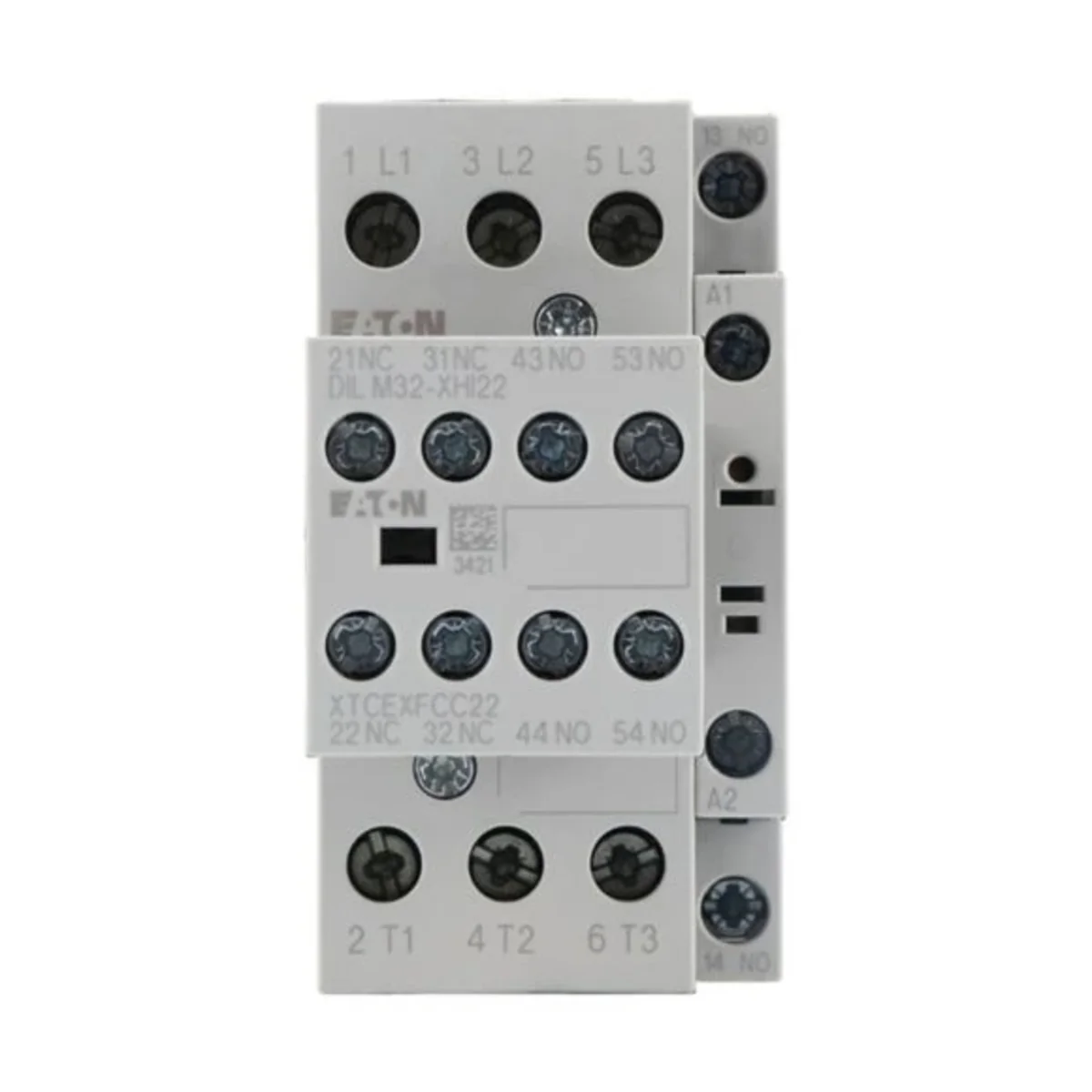

Power contactor, DILM32-32, 32A, 3NO 2NC 277356

local index:
ATA040MOEL
Catalog No:
277356
EAN code:
4015082773564
Price:
210,37 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,70 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

DILM power contactors. For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.

Technical data

  • Rated voltage [V]
    230
  • Rated current [A]
    32

Other technical data

  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation current Ie at AC-1, 400 V
    45 A
  • Rated operation power at AC-3, 400 V
    15 kW
  • Rated operation power at AC-4, 400 V
    7 kW
  • Modular version
    no
  • Number of auxiliary contacts as normally closed contact
    2
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    240 ... 240 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    32 A
  • Rated operation current Ie at AC-4, 400 V
    15 A
  • Rated operation power NEMA
    14.9 kW
  • Number of auxiliary contacts as normally open contact
    3
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3
