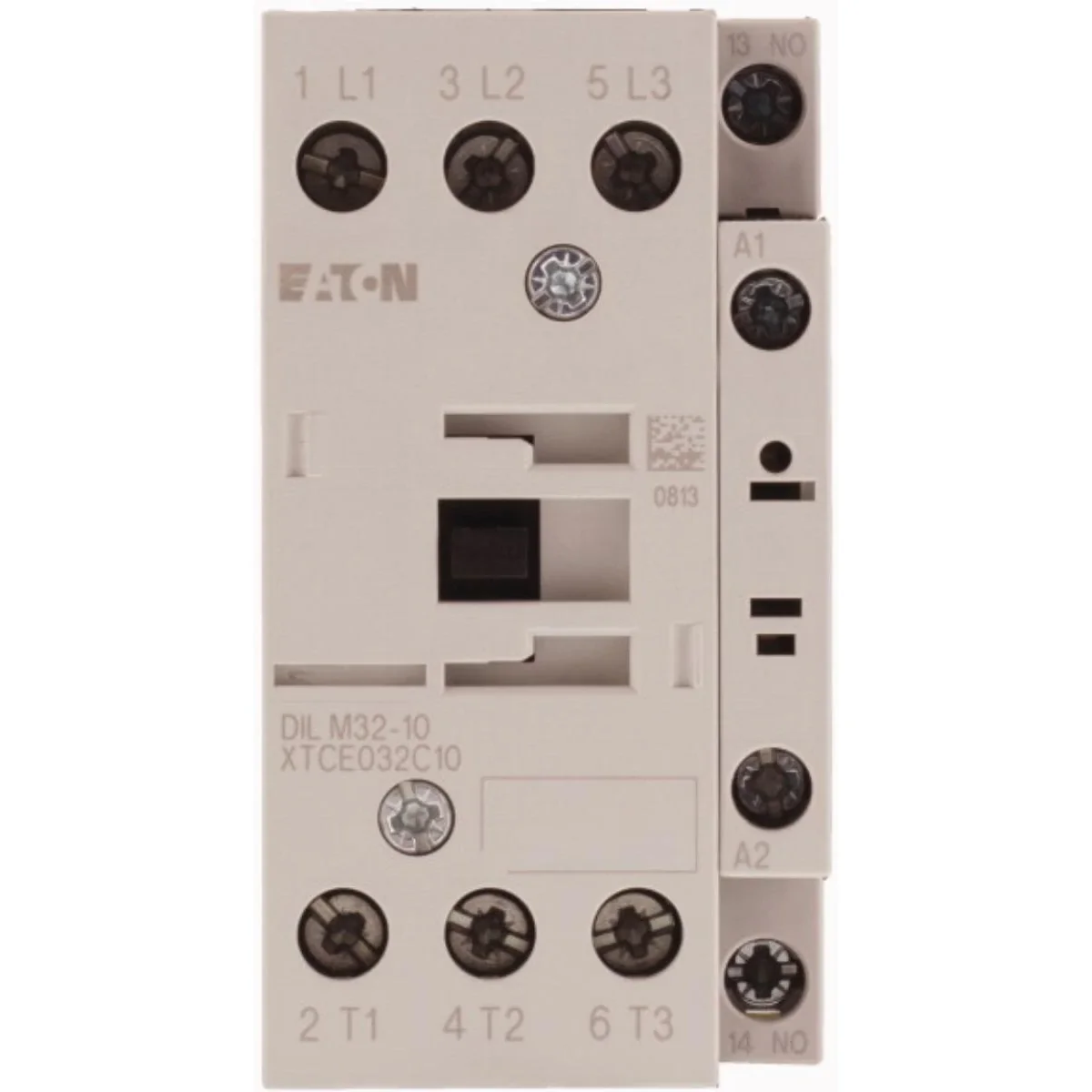

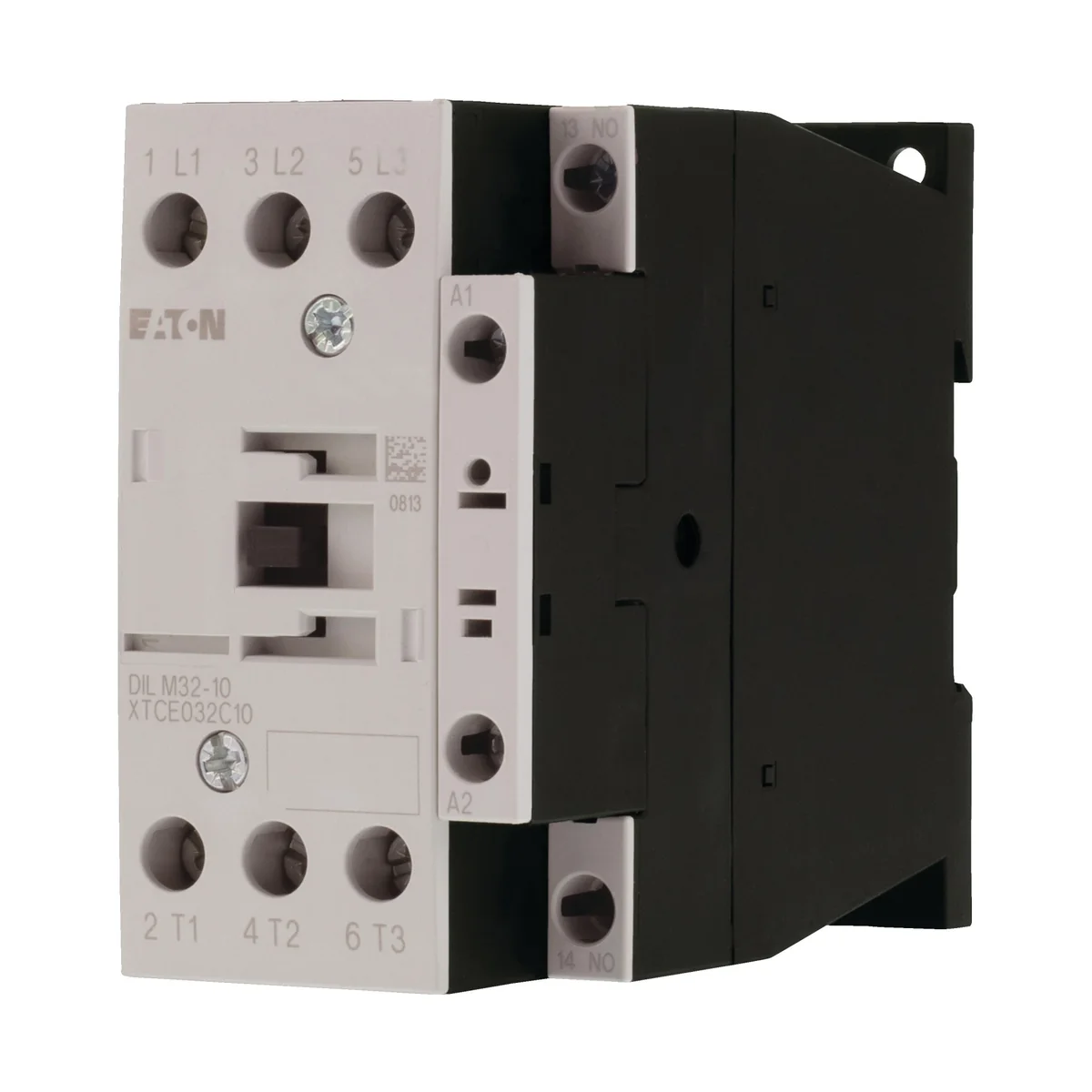

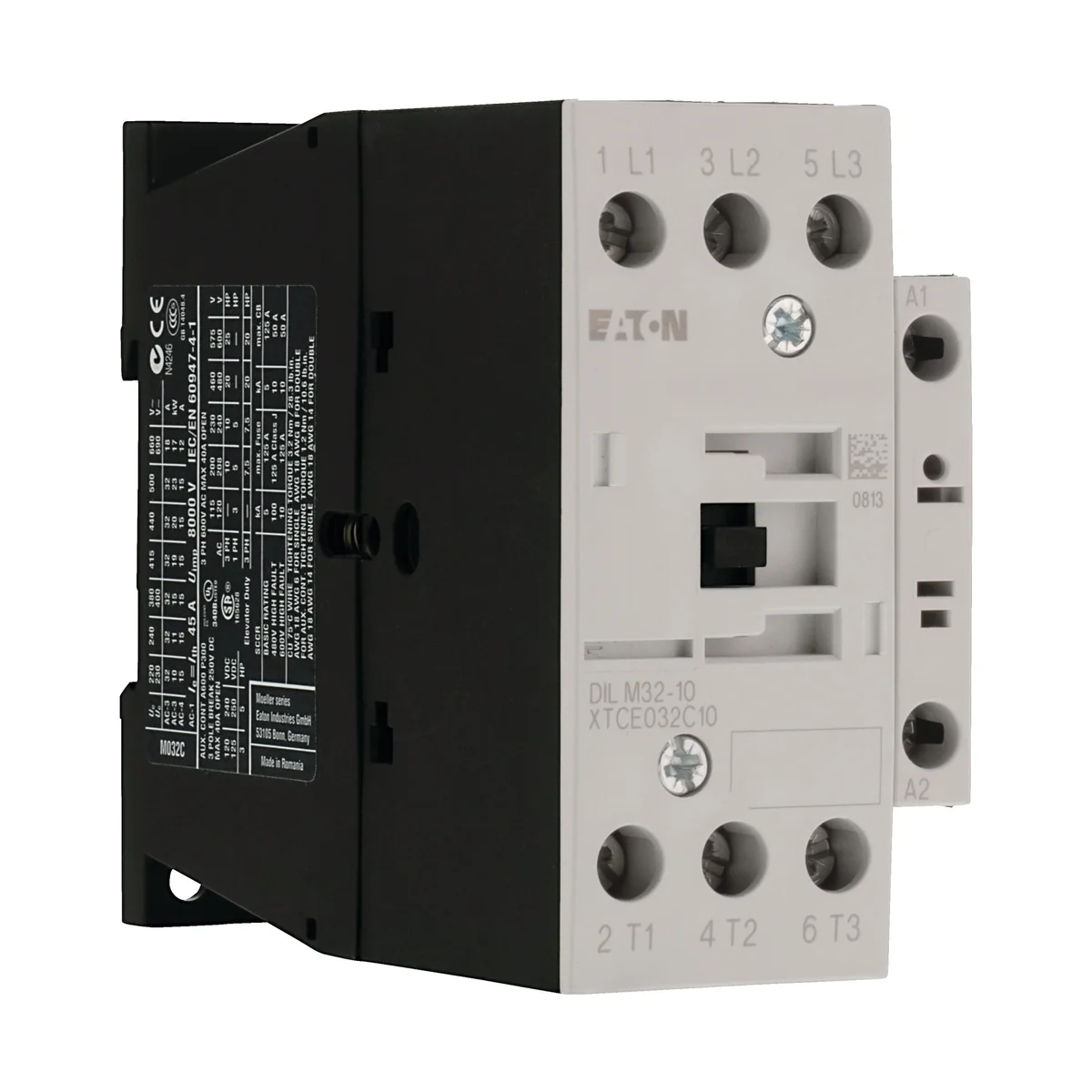

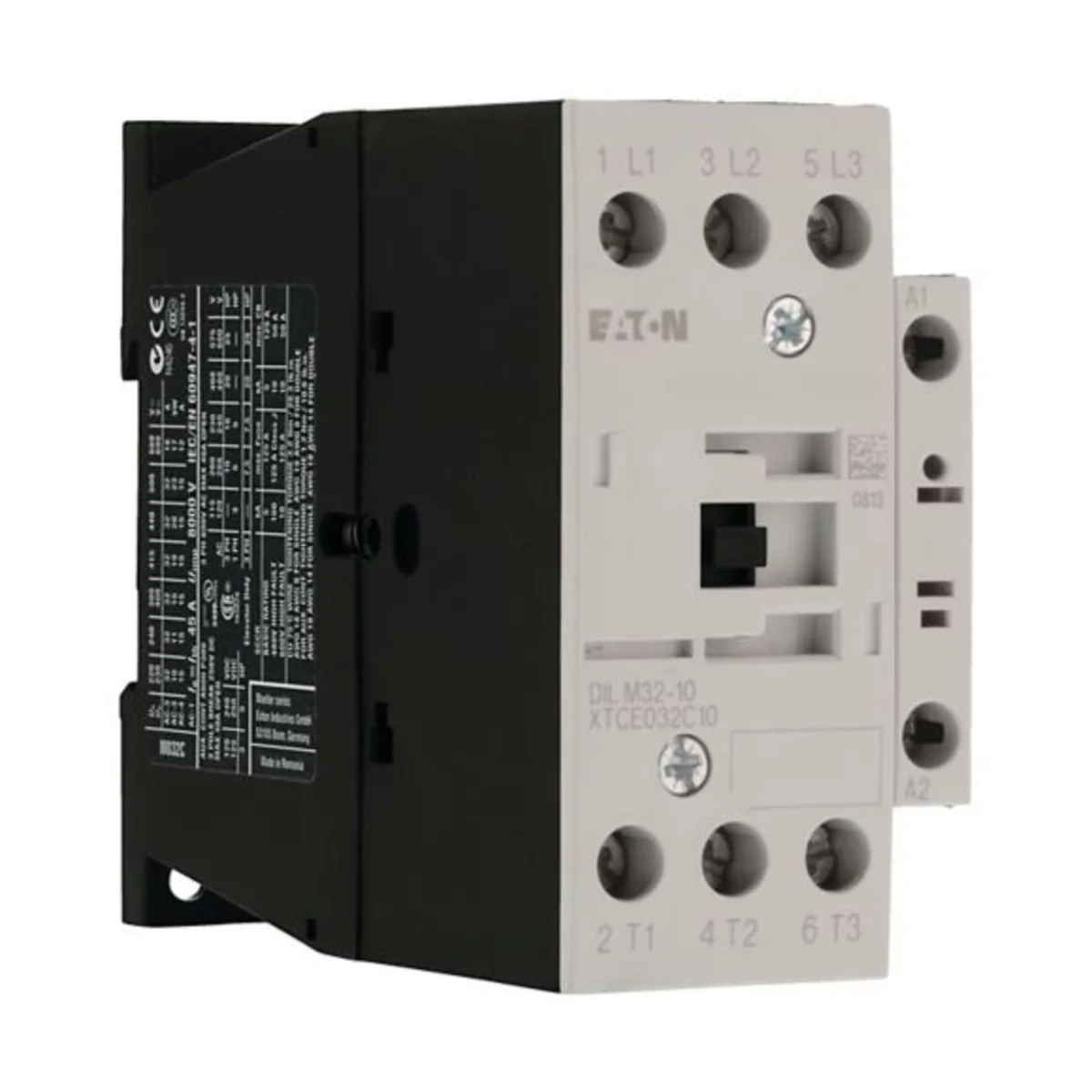

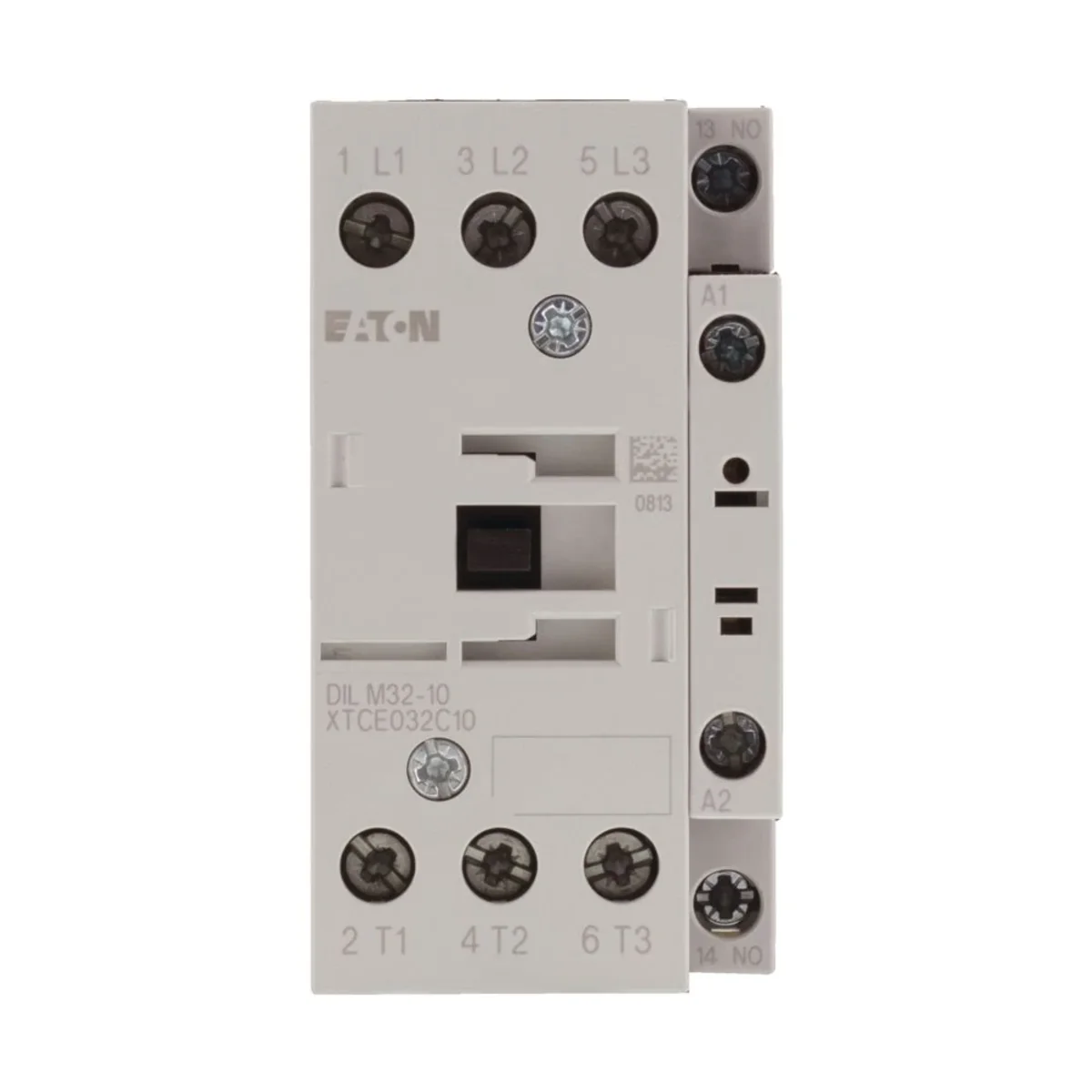

DILM power contactors. For DC operated contactors DILM7 – DILM15 applies: • built-in varistor protection circuit. For DC operated DILM17 contactors – DILM170 applies: • protection circuit built into the control electronics. For AC operated DILM115 contactors – DILM170 applies: • protection circuit built into the electronic control system. For DILM7 – DILM150 applies: • with mirror contacts. Contacts according to EN 50012.
Technical data
Rated voltage [V]
48
Rated current [A]
32
Other technical data
Rated control supply voltage AC 50 Hz
0 ... 0 V
Rated control supply voltage DC
48 ... 60 V
Rated operation current Ie at AC-1, 400 V
45 A
Rated operation power at AC-3, 400 V
15 kW
Rated operation power at AC-4, 400 V
7 kW
Modular version
No
Number of auxiliary contacts as normally closed contact
0
Number of normally closed contacts as main contact
0
Rated control supply voltage AC 60 Hz
0 ... 0 V
Voltage type for actuating
DC
Rated operation current Ie at AC-3, 400 V
32 A
Rated operation current Ie at AC-4, 400 V
15 A
Rated operation power NEMA
14.9 kW
Number of auxiliary contacts as normally open contact
