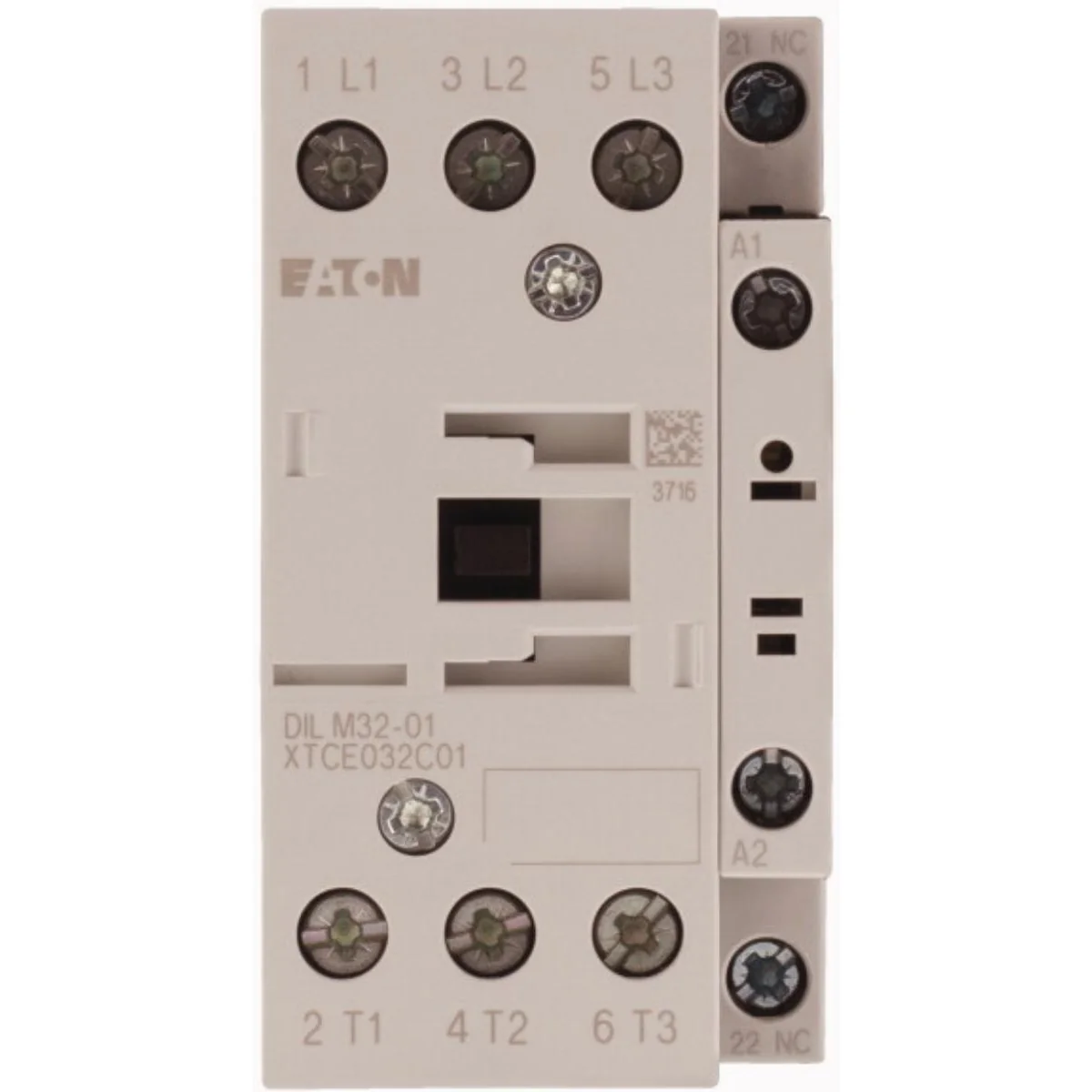

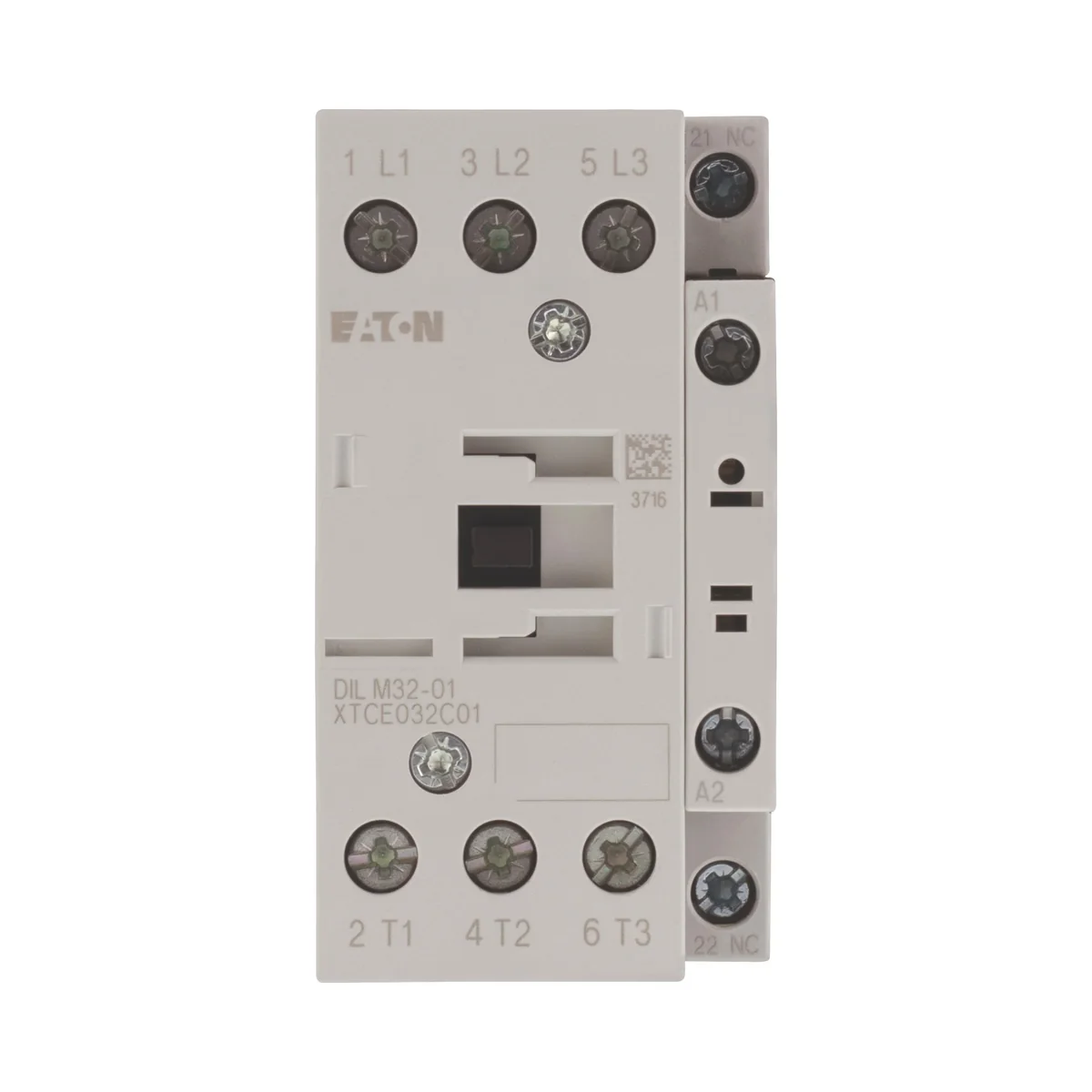

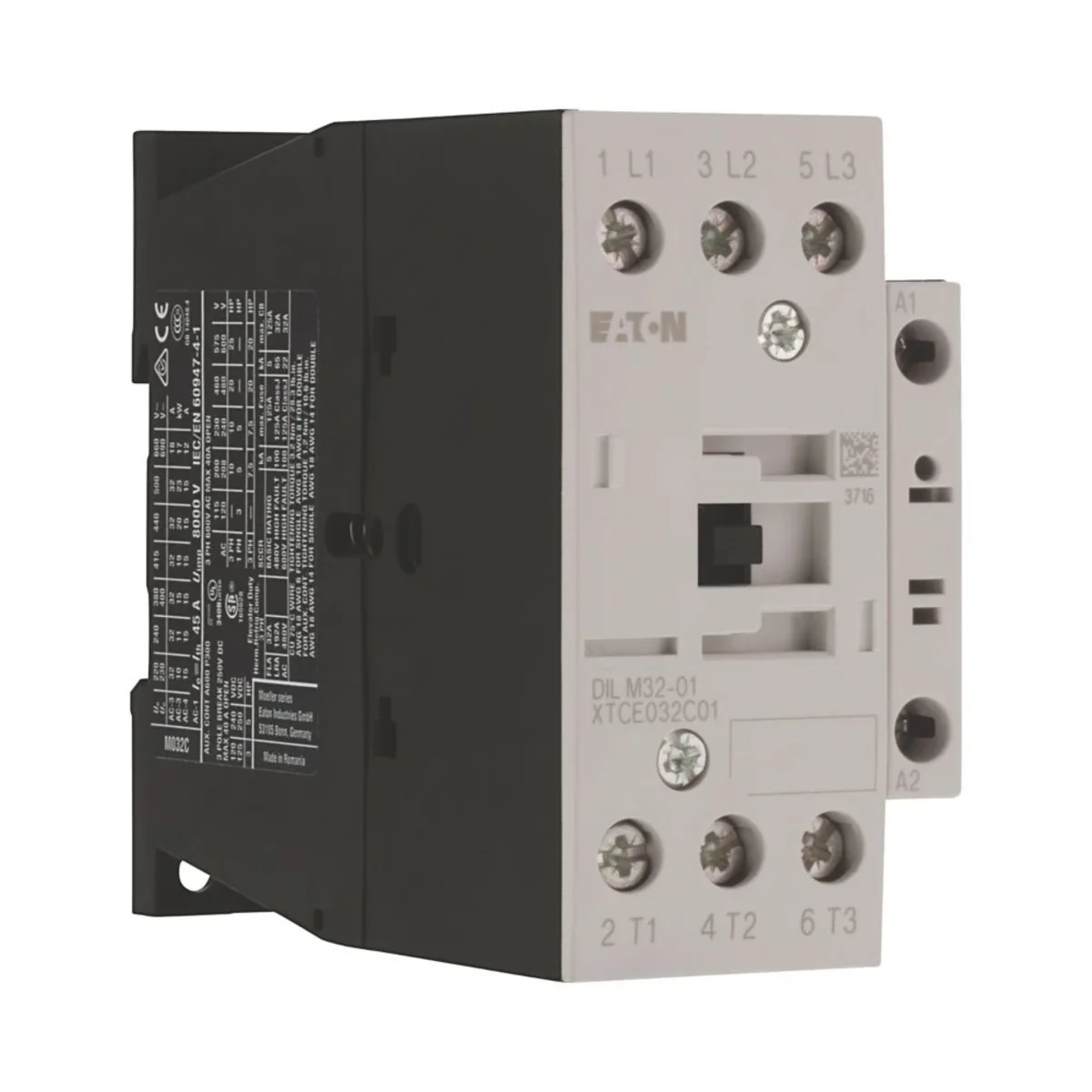

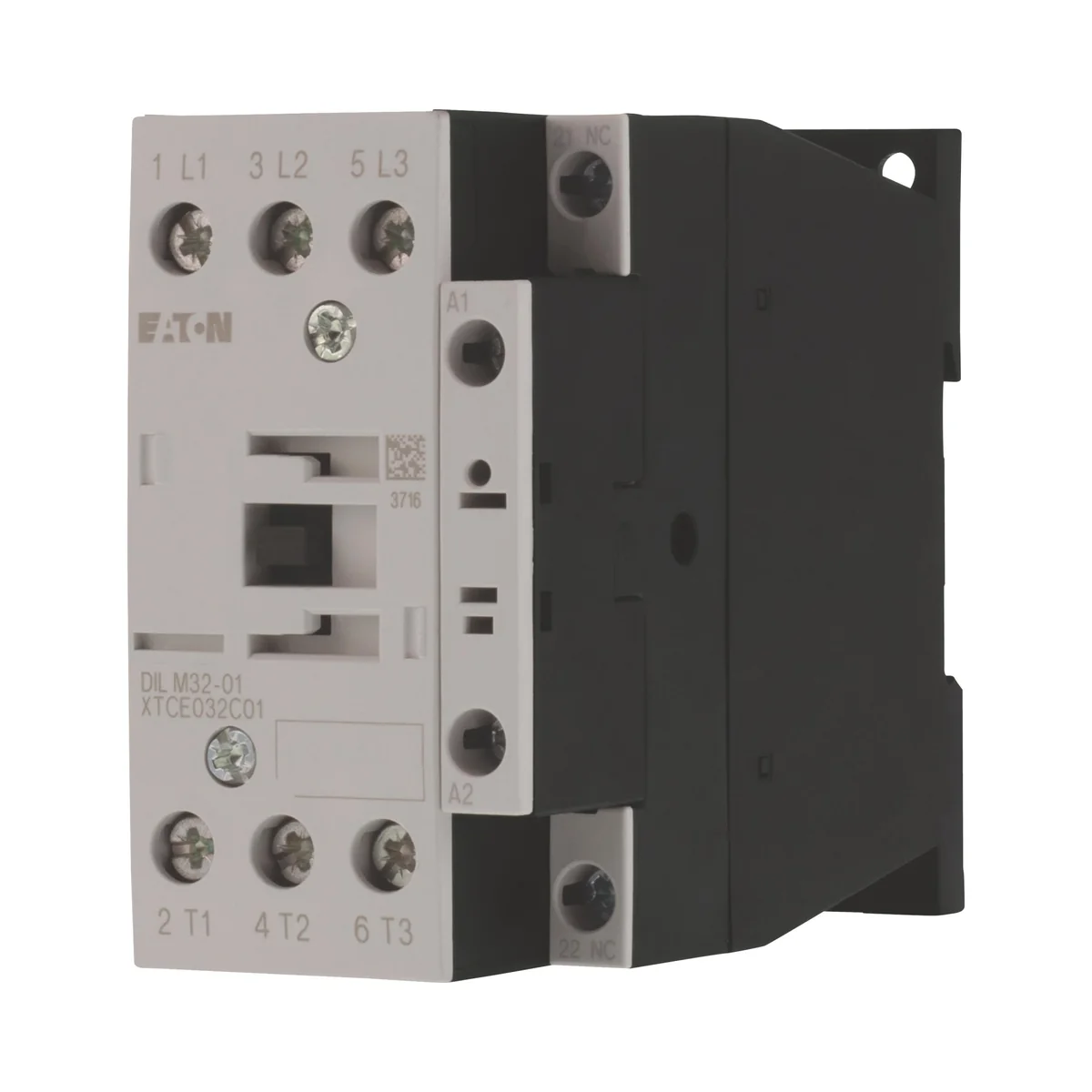

Power contactor, DILM32-01, 32A, 0Z 1R 277309
local index:
ATA207MOEL
Catalog No:
277309
EAN code:
4015082773090
Price:
209,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
DILM power contactors. For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.
Technical data
-
Rated voltage [V]200
-
Rated current [A]32
Other technical data
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC200 ... 240 V
-
Rated operation current Ie at AC-1, 400 V45 A
-
Rated operation power at AC-3, 400 V15 kW
-
Rated operation power at AC-4, 400 V7 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Rated operation current Ie at AC-3, 400 V32 A
-
Rated operation current Ie at AC-4, 400 V15 A
-
Rated operation power NEMA14.9 kW
-
Number of auxiliary contacts as normally open contact0
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,553 |
| Volume (m3) | 0,000 |
| Width (m) | 0,047 |
| Length (m) | 0,099 |
| Depth (m) | 0,087 |
